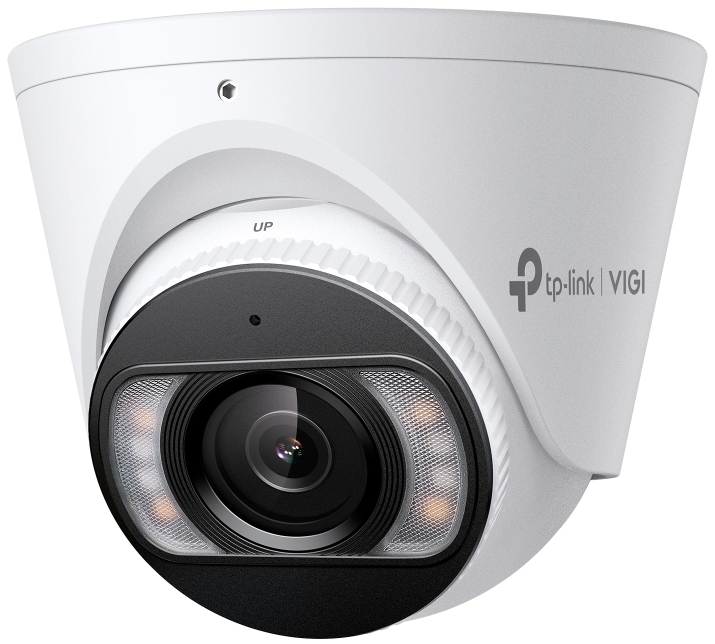

VIGI-C445(2.8MM)

TP-Link C445 Vigi 4MP full Colour Outdoor Turret camera with 2.8mm lens

TP-Link C445 Vigi 4MP full Colour Outdoor Turret camera with 2.8mm Lens, 4 White LED with 30m range, 4 IR LED with 30m range, 2688x1520 maximum Resolution, Main Stream H.265+ / H.265 / H.264+ / H.264 Video Compression, BLC / 3D DNR / HLC / SmartIR image enhancement, 120 dB wide Dynamic range, 1 region ROI, 3 Main streams & 3 Sub-Streams, Human & vehicle classification, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port PoE, Support MicroSD card up to 512 GB, Built-In Microphone, Built-In Speaker, Two-Way audio

Overview:

VIGI C445
VIGI 4MP Full-Color Turret Network Camera

• 4MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology

Features:

Sharper Vision, Smarter Protection
VIGI C445

• High Definition
• Full-Color
• People & Vehicle Analytics
• Human & Vehicle Classification
• Smart Detection
• Active Defense
• Two-Way Audio
• IP67 Weatherproof

People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology

• True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
• White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	VIGI-C445(2.8MM)
CAMERA
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux, 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	F1.6
FOV	2.8 mm:
	Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
	4 mm:
	Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
Lens Mount	M12*P 0.5
DORI Distance	2.8 mm
	Detect: 64 m (210 ft)
	Observe: 27 m (89 ft)
	Recognize: 13 m (43 ft)
	Identify: 6 m (20 ft)
	4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (108 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
ANGLE ADJUSTMENT (MANUAL)
Range	Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°
ILLUMINATOR
IR LED	Quantity: 4
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 4
	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2688 x 1520
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	Note:
	If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	704x576, 640x480, 352x288, 320x240
	Note:
	If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror
	Brightness
	Contrast
	Saturation
	Sharpness
	Exposure
	WDR
	White Balance
	Prevent Overexposure to Infrared Light
	HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
	Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification
	Intrusion Detection
	Line-Crossing Detection
	Region Entering Detection
	Region Exiting Detection
	Object Abandoned Detection
	Object Removal Detection
	Loitering Detection
	Smart Frame
	People Detection
	Vehicle Detection
Basic Event	Motion Detection
	Video Tampering Detection
	Exception ( Illegal Login)
	Scene Change Detection
Alarm Linkage	Memory Card Video Recording
	Message Push
	Audible Warning
	White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
DEEP LEARNING FUNCTION
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

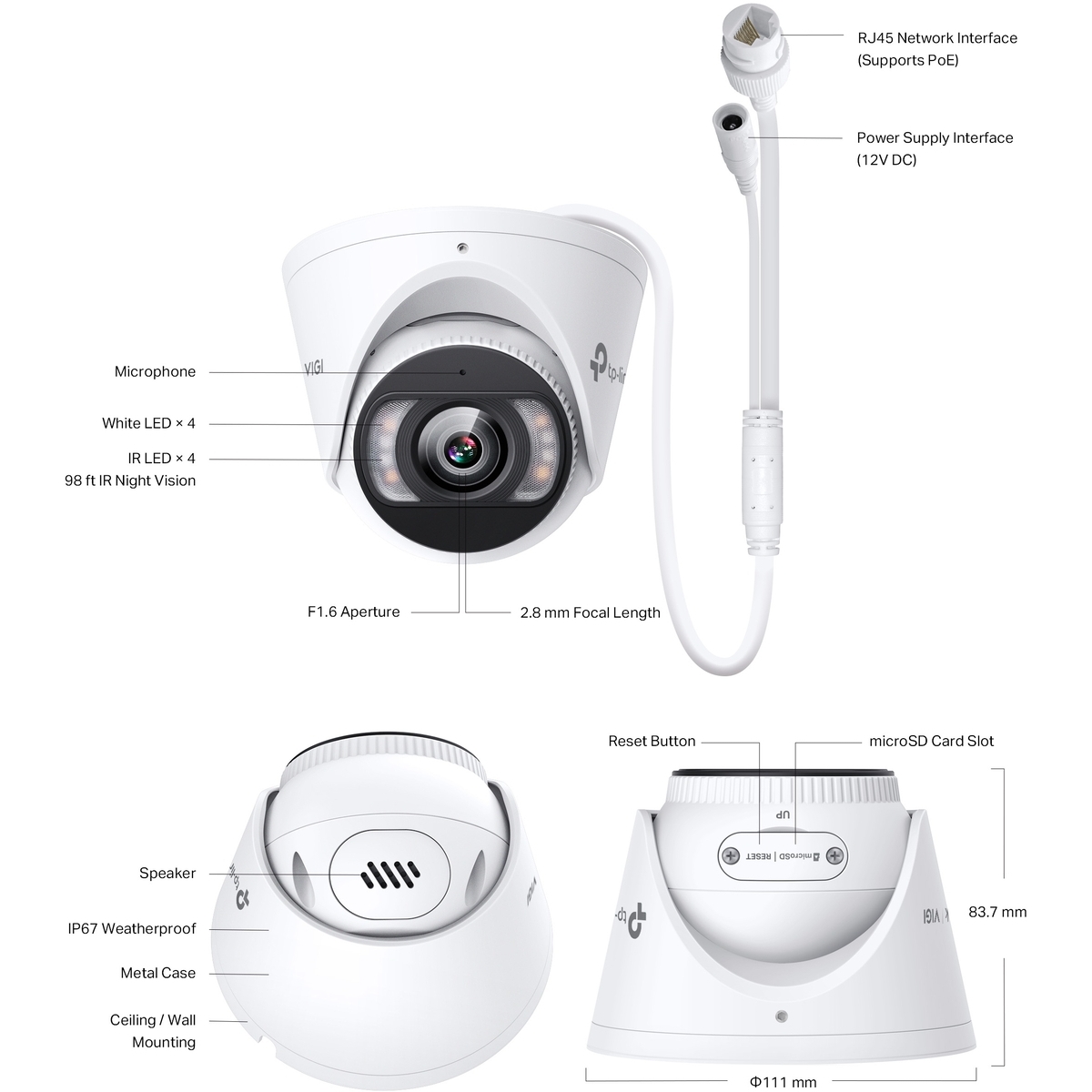

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in Microphone	Yes, Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30-60 °C
Storage Temperature	-40-60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Material	Metal
Net Weight	0.48 Kg
Power Supply	12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
	PoE: 802.3af/at, class 0, Max. 12 W
Protection	IP67
Product Dimensions (L x W x H)	111 x 111 x 83.7 mm
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC
