CAM-S245-4MM

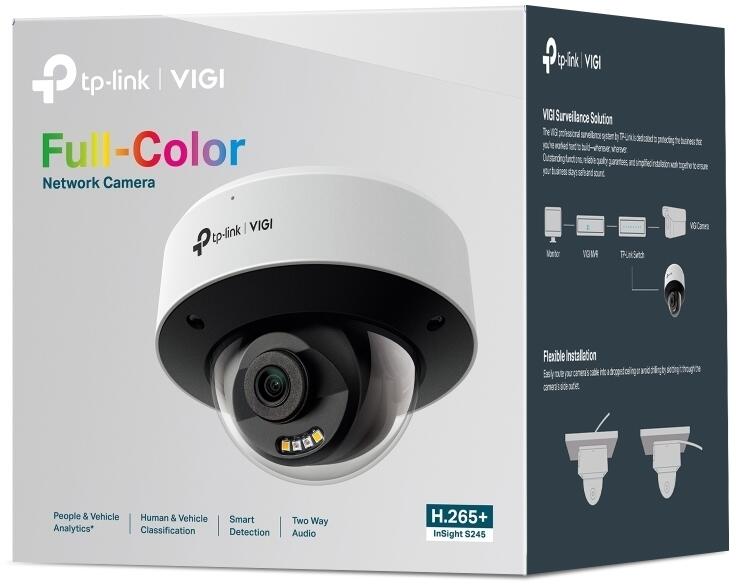

TP-Link Vigi InSight S245 4MP Full-colour Dome Camera with 4mm Lens

TP-Link Vigi InSight S245 4MP Full-colour Dome Camera with 4mm Lens, IR LED & White LED up to 30m, 2688x1520 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, BLC / 3D DNR / HLC / Smart IR, 120 dB wide Dynamic range, 1 region ROI, Two-Way Audio, 3 Main streams & 3 Sub-Streams simultaneous live View, People detection, Vehicle Detection, Motion Detection, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port, Support MicroSD card up to 512 GB, Built-In Microphone, Built-In Speaker

Overview:

TP-Link VIGI InSight S245 is a professional-grade 4MP full-colour dome network camera designed for reliable, around-the-clock surveillance in both indoor and outdoor environments. With advanced imaging, intelligent detection, and active deterrence capabilities, it delivers clear visual evidence, accurate alerts, and strong situational awareness even in challenging lighting conditions. Built with a durable metal housing and wide dynamic range imaging, it is well suited for commercial sites, retail spaces, offices, warehouses, and public areas where dependable security coverage matters.

Description:

The TP-Link VIGI InSight S245 4MP dome camera provides continuous full-colour video with sharp 2688 x 1520 resolution, intelligent people and vehicle detection, and efficient H.265+ video compression to reduce storage demands. Equipped with infrared and white LEDs for up to 30 m illumination, two-way audio for real-time communication, and support for MicroSD storage up to 512 GB, it offers a powerful all-in-one surveillance solution with smart analytics, active defense, and robust environmental protection.

Features:

Clear Imaging Day and Night
This camera captures detailed 4MP video with accurate colour reproduction throughout the day and night. A high-sensitivity sensor combined with white light and infrared illumination ensures visibility even in near-total darkness, while Smart IR automatically adjusts lighting intensity to prevent overexposure at close range. The 120 dB wide dynamic range balances bright and dark areas, making it effective in scenes with strong backlighting or mixed lighting sources.

Intelligent Detection and Smarter Alerts
Built-in analytics help reduce false alarms by accurately identifying people and vehicles rather than irrelevant motion. This allows faster incident review and more meaningful notifications, improving response times and overall security efficiency. Detection options include intrusion, line crossing, region entry and exit, loitering, object removal, and abnormal sound detection, all supported by deep learning algorithms.

Active Defense and Two-Way Communication
Active deterrence capabilities allow the camera to trigger audible warnings or white light flashing when specific events occur. The integrated microphone and speaker enable two-way audio, making it possible to communicate directly with individuals on site or issue real-time warnings when needed.

Optimised Video Storage and Streaming
Advanced H.265+ compression significantly reduces bandwidth usage and storage requirements while maintaining image quality. Multiple stream support enables up to three main streams and three sub-streams simultaneously, making it easier to manage live viewing and recording across different devices and platforms.

Lens Options and Coverage Control
Available with 2.8 mm or 4 mm fixed focal lenses, the camera provides flexible field-of-view choices to match different installation needs. Manual pan, tilt, and rotation adjustments allow precise positioning for optimal coverage in a wide range of environments.

Key lens and coverage highlights include:

• Fixed focal lens options of 2.8 mm or 4 mm with wide-angle viewing
• Detection distances up to 80 m depending on lens selection
• Manual adjustment range supporting flexible installation angles

Audio, Network, and Integration Support
The camera supports two-way audio with noise filtering for clearer communication and integrates easily into existing systems via ONVIF compatibility. It works with the VIGI App, web interface, and VIGI VMS, providing flexible management options across desktop and mobile platforms. Secure network protocols and encryption help protect video data and system access.

Built for Demanding Environments
Designed for long-term reliability, the metal housing offers strong resistance to harsh conditions and vandalism. With IP67 waterproof and IK10 vandal-proof ratings, the camera performs reliably in outdoor installations and high-risk areas, operating in temperatures from -30 to 60 degrees C.

Additional practical details include:

• Built-in MicroSD card slot supporting up to 512 GB for local recording
• PoE and DC power options for flexible deployment
• Compact dome design suitable for ceilings or wall mounting

The TP-Link VIGI InSight S245 combines intelligent analytics, full-colour imaging, and robust construction into a single, easy-to-manage security camera, making it a strong choice for professional surveillance applications that demand clarity, reliability, and smart monitoring.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CAM-S245-4MM
CAMERA
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux , 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm / 4 mm
Aperture	F1.6
FOV	2.8 mm:
	Horizontal FOV: 110degrees, Vertical FOV: 58.1degrees, Diagonal FOV: 133.5degrees
	4 mm:
	Horizontal FOV: 88degrees, Vertical FOV: 46degrees, Diagonal FOV: 105.4degrees
Lens Mount	M12*P 0.5
DORI Distance	2.8 mm
	Detect: 64 m (210 ft)
	Observe: 27 m (89 ft)
	Recognize: 13 m (43 ft)
	Identify: 6 m (20 ft)
	4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (108 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	Pan: 0degrees to 346degrees, Tilt: 0degrees to 75degrees, Rotation: 0degrees to 355degrees
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 2
	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2688 x 1520
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	848x480, 704x576, 640x480, 640x360, 352x288, 320x240
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror
	Brightness
	Contrast
	Saturation
	Sharpness
	Exposure
	WDR
	White Balance
	Prevent Overexposure to Infrared Light
	HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/Smart IR
Wide Dynamic Range	120 dB
	Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, Utility
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	Intrusion Detection
	Line-Crossing Detection
	Region Entering Detection
	Region Exiting Detection
	Object Abandoned Detection
	Object Removal Detection
	Loitering Detection
	People Detection
	Vehicle Detection
	Abnormal Sound Detection
	Scene Change Detection
Basic Event	Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
	Camera Tampering
	Exception (Illegal Login)
Alarm Linkage	Memory Card Video Recording
	Message Push
	Audible Warning
	White Light Flashing
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§
Built-in Microphone	Yes , Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30-60 degreesC
Storage Temperature	-40-60 degreesC
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Material	Metal
Net Weight	0.62 Kg
Power Supply	12V DC ± 5%, Max. 10.54 W, 5.5 mm Coaxial Power Plug
	PoE: 802.3af/at, class 0, Max. 12.52 W
Protection	IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	4.80 x 4.80 x 3.50 in (122 x 122 x 89 mm)
Certifications	CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
