iDS-2CD7A46G2/V-XZHSY(2.8-12mm)

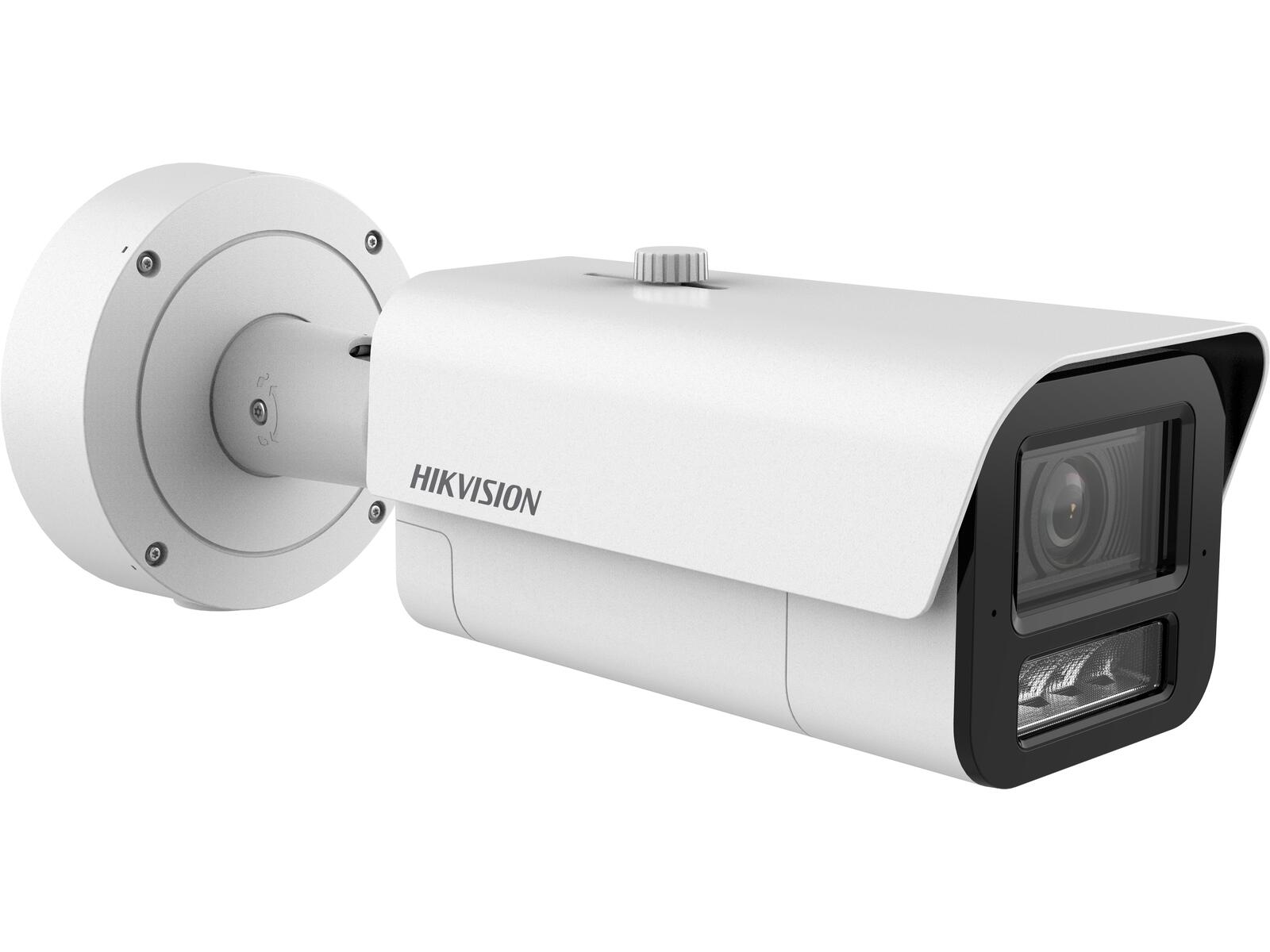

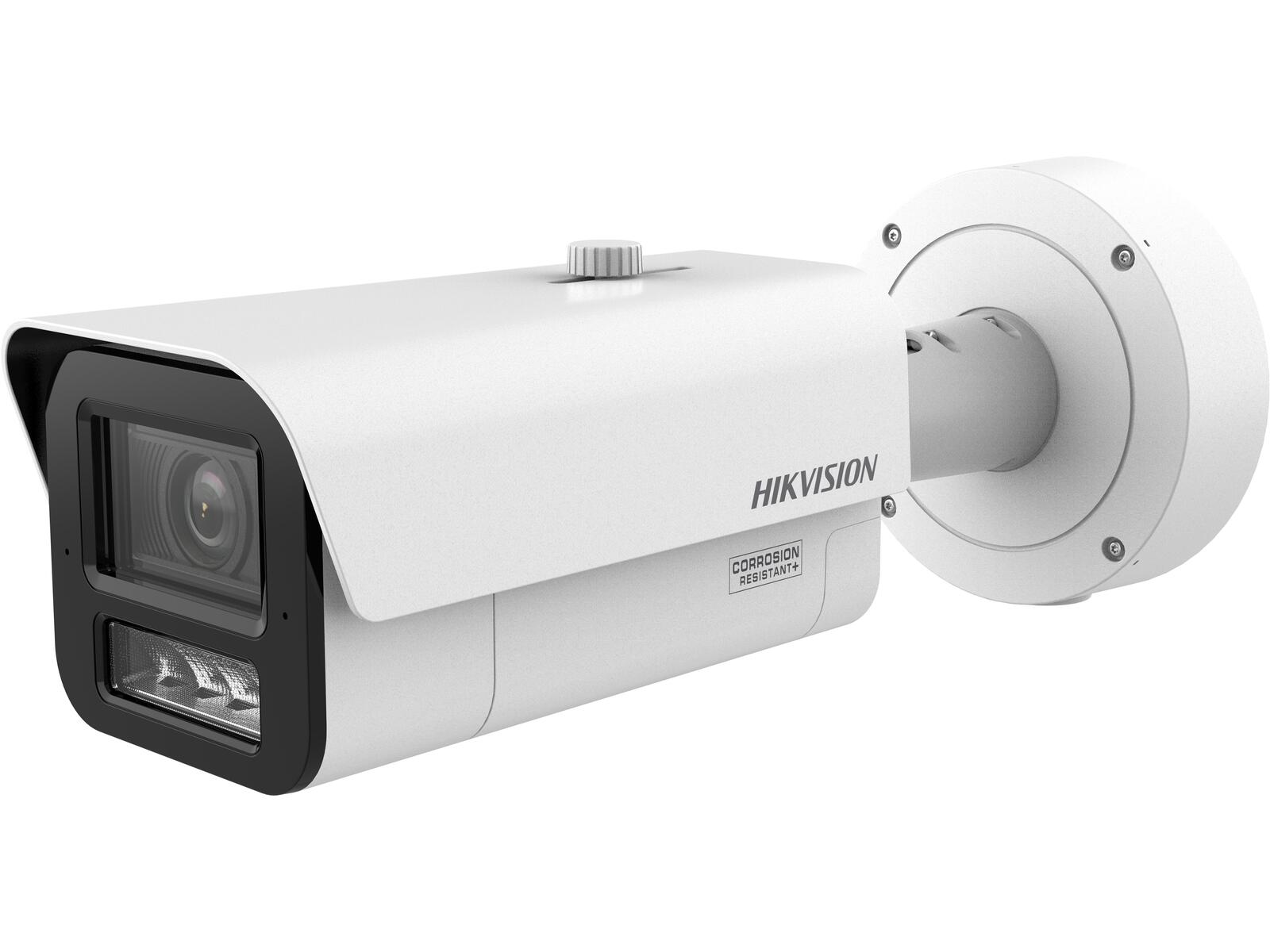

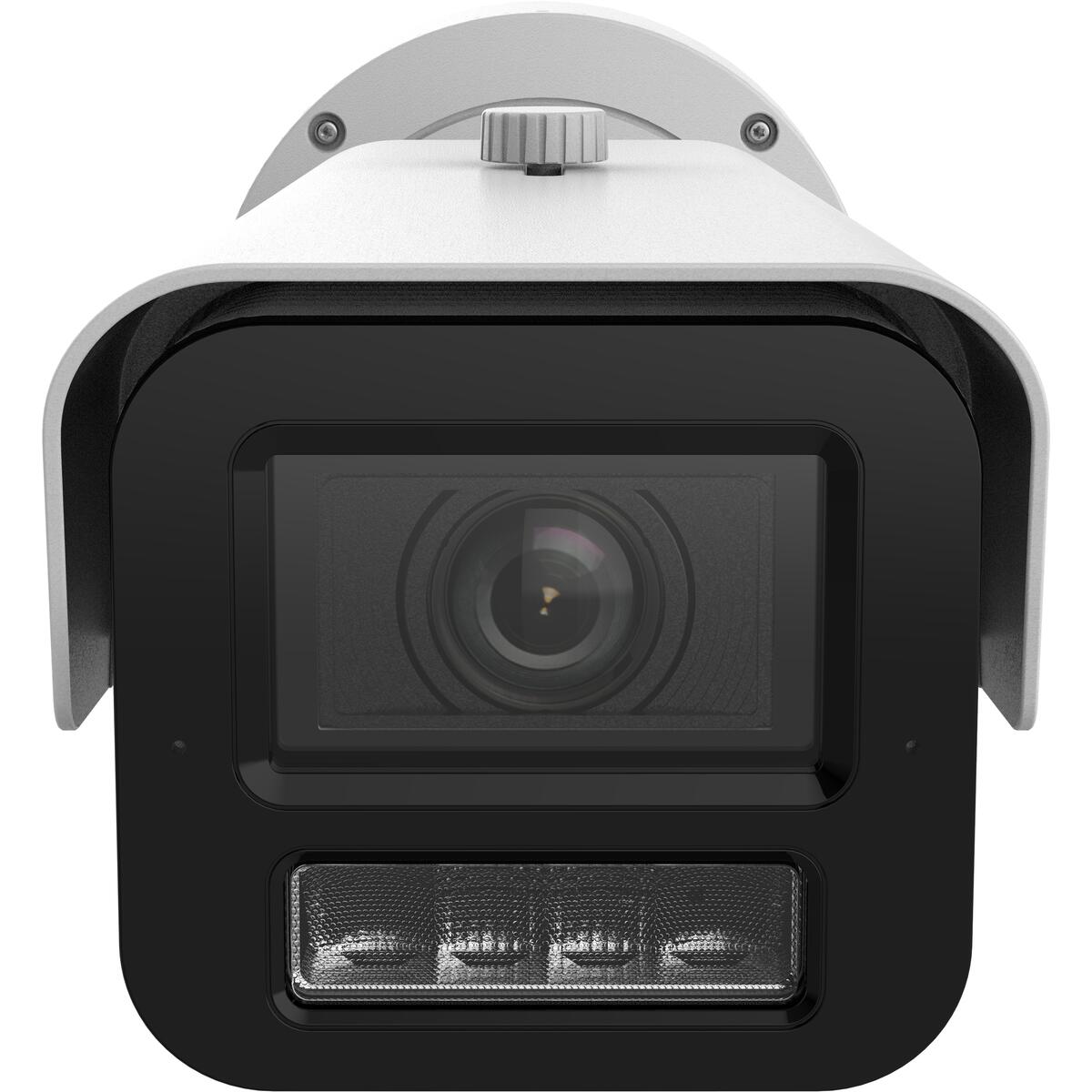

Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera for Perimeter protection ..

Hikvision - Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera for Perimeter protection with 2.8-12mm Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera for Perimeter protection with 2.8-12mm, IR / White Light up to 100m, IP67, IK10, 2688x1520 maximum Resolution, 5 streams, H.265+ / H.265 / H.264+ / H.264 Video Compression, 4 fixed regions for each Stream, Target cropping, Mono Sound, 140 dB wide Dynamic range (WDR), BLC, HLC, 3D DNR, Distortion correction, Defog, EIS Image stabilization, 1 vp-p composite Output, 1x RJ45 Gigabit Self-Adaptive Ethernet Port, Built-In Memory card slot up to 1 TB, 2 inputs & 2 Outputs Alarm, 2 Built-In microphones, 1 Input Audio, 1 Output Audio, Built-In Speaker, 1x RS-485, Motion Detection, Human and vehicle
BUY TODAY ! Expected to be in Stock at suppliers.* print


iDS-2CD7A46G2/V-XZHSY(2.8-12mm) Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera for Perimeter protection with 2.8-12mm Image 2
iDS-2CD7A46G2/V-XZHSY(2.8-12mm) Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera for Perimeter protection with 2.8-12mm Image 4
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. iDS-2CD7A46G2/V-XZHSY(2.8-12mm) Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera for Perimeter protection with 2.8-12mm is available from Laptop Direct and it is sold as new from our IP network security cameras range of products. For reference purposes, the price of R10920 is valid 2026-10-01, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the IP network security cameras category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

iDS-2CD7A46G2/V-XZHSY(2.8-12mm)

Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera for Perimeter protection with 2.8-12mm

Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera for Perimeter protection with 2.8-12mm, IR / White Light up to 100m, IP67, IK10, 2688x1520 maximum Resolution, 5 streams, H.265+ / H.265 / H.264+ / H.264 Video Compression, 4 fixed regions for each Stream, Target cropping, Mono Sound, 140 dB wide Dynamic range (WDR), BLC, HLC, 3D DNR, Distortion correction, Defog, EIS Image stabilization, 1 vp-p composite Output, 1x RJ45 Gigabit Self-Adaptive Ethernet Port, Built-In Memory card slot up to 1 TB, 2 inputs & 2 Outputs Alarm, 2 Built-In microphones, 1 Input Audio, 1 Output Audio, Built-In Speaker, 1x RS-485, Motion Detection, Human and vehicle

Overview Summary:

Protect your property with the Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera, engineered for reliable perimeter surveillance. Equipped with advanced IR and white light technology reaching up to 100 meters, this camera ensures clear images day or night. Its motorized varifocal lens provides flexible viewing angles, while AI-based detection minimizes false alarms, making it ideal for homes, businesses, and industrial sites in South Africa. Buy now to secure your property with professional-grade technology.

This bullet camera is robust, weatherproof (IP67 ), and vandal-resistant (IK10 ), capable of performing in harsh environments. Shop now to enhance security with high-resolution 4MP video and intelligent perimeter protection features that give you peace of mind.

What tier does this fall into?

High

What is this best for?

Perimeter security, property monitoring, vehicle detection, human detection, outdoor surveillance, low-light monitoring

Overview:

Hikvision 4MP DeepinViewX Varifocal Bullet Camera for Perimeter Security
Protect your property with the Hikvision 4MP DeepinViewX Moto Varifocal Bullet Camera, designed for high-performance perimeter surveillance. With advanced imaging technology, durable construction, and intelligent AI features, this camera delivers reliable security in any environment.

Features:

Key Features and Benefits:

  • High-Resolution Imaging: Captures detailed 4MP video at 2688x1520 resolution for clear and precise monitoring.
  • Advanced Low-Light Performance: DarkFighter technology ensures sharp images even in extremely low-light conditions.
  • Wide Dynamic Range: 140 dB WDR balances strong backlight, preventing overexposure and improving image clarity.
  • Flexible Video Streams: Supports up to five simultaneous streams for various monitoring needs.
  • Efficient Compression: H.265+ technology reduces bandwidth and storage requirements without sacrificing quality.
  • Durable Design: IP67-rated for water and dust resistance, IK10-rated for vandal protection, and optional NEMA 4X for corrosion resistance.
  • Weather-Resistant Heater: Built-in heating element ensures clear images during rain, snow, or cold weather.
  • Smart AI Perimeter Protection: Large-scale AI model minimizes false alarms by up to 90%, detecting human and vehicle movement accurately.

Technical Specifications

  • Lens: 2.8-12mm motorized varifocal
  • Illumination: IR and white light up to 100 meters
  • Video Compression: H.265+, H.265, H.264+, H.264
  • Image Optimization: 3D DNR, BLC, HLC, defog, distortion correction, EIS image stabilization
  • Audio: Built-in microphones, 1 input, 1 output, and built-in speaker
  • Connectivity: 1x RJ45 Gigabit Ethernet, 1 vp-p composite output, RS-485 port
  • Storage: Built-in microSD card slot supports up to 1TB
  • Alarm Integration: 2 inputs and 2 outputs, motion detection
  • Special Target cropping, 4 fixed regions per stream

Model Availability

  • iDS-2CD7A46G2/V-XZHSY (2.8-12mm lens)

Why Choose Hikvision DeepinViewX
Hikvision's DeepinViewX series is engineered for perimeter protection, providing superior AI-based threat detection, robust performance in harsh environments, and high-quality video that allows you to monitor your property with confidence.


Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeiDS-2CD7A46G2/V-XZHSY(2.8-12mm)spacer
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 x 1520
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR,0 Lux with light
Shutter Time 1 s to 1 / 100,000 s
Day & Night IR cut filter
Blue glass module (less ghost phenomenon)
Lens
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 106degrees to 41.8degrees, vertical FOV 55.4degrees to 23.6degrees, diagonal FOV 130degrees to 48.1degrees
8 to 32 mm, horizontal FOV 42.5degrees to 15.2degrees, vertical FOV 23.4degrees to 8.7degrees, diagonal FOV 49.7degrees to 17.3degrees
Focus Auto,Semi-auto,Manual
Iris Type P-iris
Aperture 2.8 to 12 mm: F1.47 to F2.5
8 to 32 mm: F1.6
DORI
DORI Wide:
2.8 to 12 mm: D (Detect): 64.7 m, O (Observe): 25.7 m, R (Recognize): 12.9 m, I (Identify): 6.5 m
8 to 32 mm: D (Detect) : 150.3 m, O (Observe) : 59.7 m, R (Recognize) : 30.1 m, I (Identify) : 15 m
Tele:
2.8 to 12 mm: D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.2 m
8 to 32 mm: D (Detect) : 400 m, O (Observe) : 158.7 m, R (Recognize) : 80 m, I (Identify) : 40 m
The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 100 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream Monitoring mode:
50 Hz: up to 50 fps (2688 x 1520, 2560 x 1440, 1280 x 720), up to 100 fps (1920 x 1080)
60 Hz: up to 60 fps (2688 x 1520, 2560 x 1440, 1280 x 720), up to 120 fps (1920 x 1080)
*High frame rate is supported under monitoring mode only.
smart mode:
50 Hz: 25 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream 50 Hz: 25 fps (1280 x 720, 704 x 576, 640 x 480)
60 Hz: 30 fps (1280 x 720, 704 x 480, 640 x 480)
Third Stream 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)
60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
Fourth Stream 50 Hz: 25 fps (1280 x 720, 704 x 576, 640 x 480)
60 Hz: 30 fps (1280 x 720, 704 x 480, 640 x 480)
Fifth Stream 50 Hz: 25 fps (1280 x 720, 704 x 576, 640 x 480)
60 Hz: 30 fps (1280 x 720, 704 x 480, 640 x 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG
Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Target Cropping Yes
e-PTZ Support Patrol and Auto Tracking settings
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR) 140 dB
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask 8 programmable polygon privacy masks
SNR ≥ 52 dB
Picture Overlay LOGO picture can be overlaid on video with 128 x 128 24 bit bmp format.
Image Stabilization EIS
Interface
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Built-in Microphone 2 built-in microphones
Audio 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Built-in Speaker 1 built-in speaker,Max. power consumption: 1.5 W
RS-485 -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output -Y: 12 VDC, max. 100 mA
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
Smart Event scene change detection,audio exception detection,defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
VCA range: up to 80m(nighttime)/100m(daytime)
*Result based on standard setup and test environment
Metadata Intrusion detection,line crossing detection,region entrance detection,region exiting detection
General
Power three-core terminal block
12 VDC ± 20%, 1.8 A, max. 21.5 W
24 VAC ± 20%, 1.47 A, max. 21 W
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.55 A to 0.41 A, max. 23.1 W
Material Aluminum alloy body
Dimension With -Y: Ø140 mm x 377.4 mm (Ø5.5" x 14.9"), Without -Y: Ø144.1 mm x 374.7 mm (Ø5.7" x 14.8")
Package Dimension 425 mm x 190 mm x 180 mm (16.7" x 7.5" x 7.1")
Approx. 2280 g (5.03 lb.)
With Package Weight Without -Y: Approx. 3364 g (7.42 lb.), -Y: Approx. 3406 g (7.5 lb.)
Storage Conditions -40 degreesC to 65 degreesC (-40 degreesF to 149 degreesF). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -40 degreesC to 65 degreesC (-40 degreesF to 149 degreesF). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log
Heater Yes
Demist Yes
Device Management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
Integrated Connector Panel -Y: No
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
LOA: IEC/EN 60950-1
Environment CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)
Automotive and Railway EN50121-4
Other PVC FREE
