HK-311323629

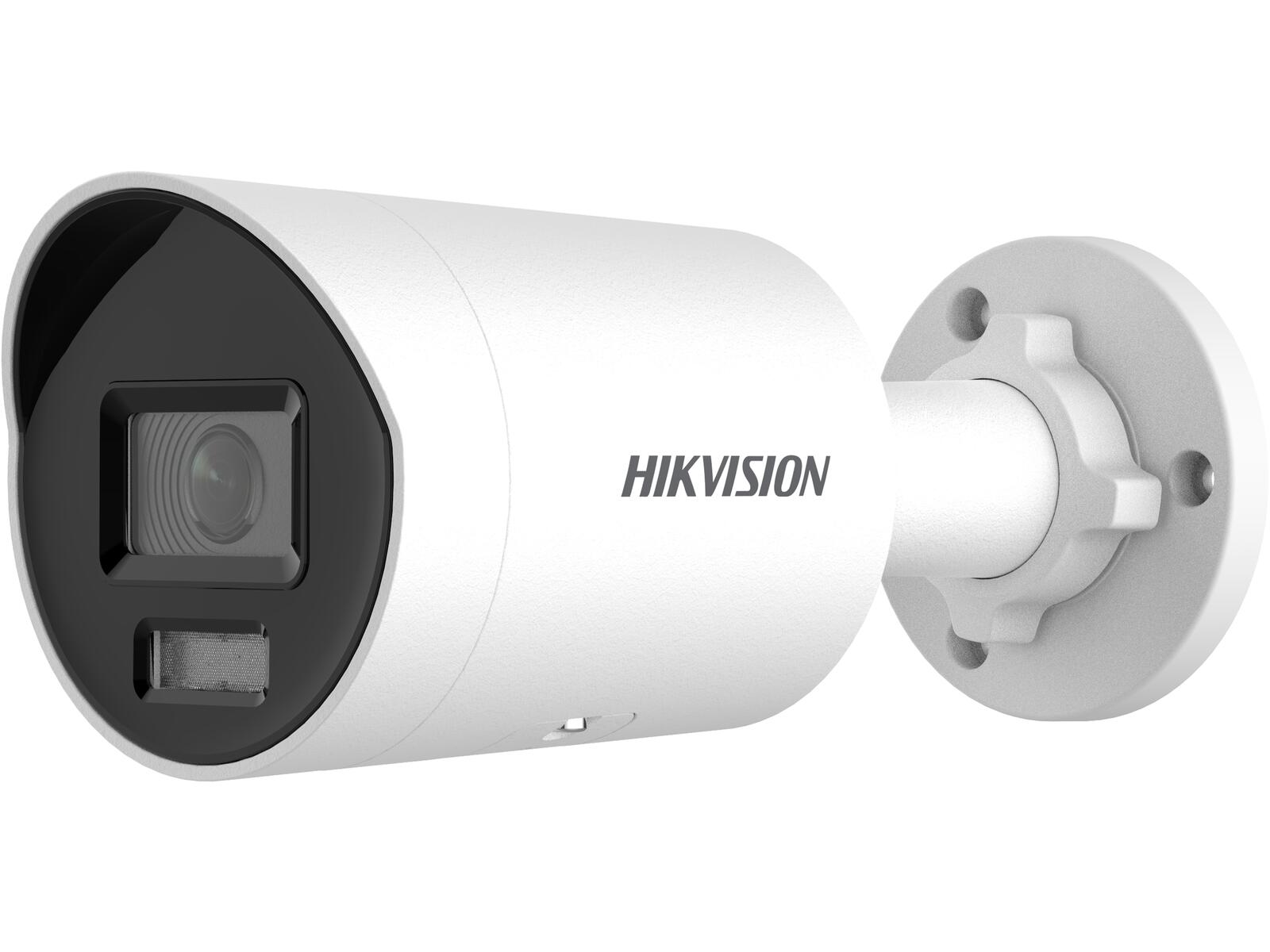

Hikvision 4MP Smart Hybrid Light with ColorVU fixed Mini Bullet Network camera with 2.8mm Lens,

Hikvision 4MP Smart Hybrid Light with ColorVU fixed Mini Bullet Network camera with 2.8mm Lens, 2688x1520 maximum Resolution, IR & White Light up to 40 m, Main Stream H.265 / H.264 / H.264+ / H.265+ Video Compression, 1 fixed region of interest (ROI), Up to 6 channels simultaneous live View, BLC, HLC, 3D DNR, 130 dB wide Dynamic range (WDR), 1x RJ45 10M/100M Self-Adaptive Ethernet Port, Built-In Memory card slot, Motion Detection, Face Capture, Perimeter protection, No Audio, DS-2CD2047G2H-LI(2.8mm)(eF)(O-STD)

Overview:

The Hikvision DS-2CD2047G2H-LI is a 4 MP Smart Hybrid Light ColorVu fixed mini bullet network camera designed for reliable security monitoring in both day and night conditions. With a 2.8mm fixed lens, 2688 x 1520 resolution and intelligent lighting, it provides clear and detailed video while maintaining useful colour information in low-light environments. The compact bullet design makes it suitable for homes, offices, retail premises, warehouses and other security installations.

Description:

The Hikvision DS-2CD2047G2H-LI combines ColorVu imaging with Smart Hybrid Light technology to deliver clear surveillance footage across changing lighting conditions. Infrared and white light illumination can reach up to 40 m, helping maintain visibility after dark while providing flexibility for different monitoring requirements.

Its 130 dB WDR technology helps balance difficult scenes with strong backlighting, while BLC, HLC and 3D DNR assist with maintaining usable images in challenging lighting and noisy conditions. H.265+ compression also helps reduce bandwidth and storage requirements without sacrificing practical video quality.

Intelligent detection capabilities support human and vehicle classification using deep learning, while motion detection, face capture and perimeter protection provide additional tools for security monitoring. The built-in memory card slot allows local recording options, and the RJ45 Ethernet connection provides straightforward network connectivity.

Features:

Clear 4 MP Security Imaging
The 4 MP sensor produces video at up to 2688 x 1520 resolution, providing detailed footage for general surveillance applications. The 2.8mm fixed lens offers a wide viewing perspective, making the camera suitable for monitoring entrances, walkways, rooms, retail areas and other spaces where broad coverage is useful.

Smart Hybrid Light for Day and Night Monitoring
Smart Hybrid Light technology combines infrared and white light illumination to improve visibility in low-light environments. With illumination reaching up to 40 m, the camera can provide dependable night-time monitoring over a useful distance.

Intelligent Security Detection
Deep learning-based human and vehicle classification helps distinguish relevant activity from other movement. The camera also supports motion detection, face capture and perimeter protection, making it suitable for installations where more targeted event monitoring is required.

Key security functions include:

• Human and vehicle classification based on deep learning
• Motion detection
• Face capture
• Perimeter protection
• 1 fixed region of interest (ROI)
• Up to 6 simultaneous live view channels

Reliable Image Processing
The camera is equipped with 130 dB wide dynamic range to help retain detail when bright and dark areas appear within the same scene. BLC, HLC and 3D DNR further improve image usability in difficult lighting conditions.

Efficient Network Video
H.265+ compression provides an efficient way to transmit and store surveillance footage, helping reduce network bandwidth and storage requirements compared with older compression methods. The camera supports H.265, H.264, H.264+, and H.265+ video compression for flexible integration with compatible recording systems.

The network interface includes:

• 1 x RJ45 10/100 Mbps self-adaptive Ethernet port
• Main stream H.265 / H.264 / H.264+ / H.265+
• Up to 6 channels of simultaneous live view
• Built-in memory card slot

Outdoor-Ready Mini Bullet Design
The compact fixed mini bullet housing is designed for practical installation in residential and commercial environments. With an IP67-rated enclosure, the camera is protected against dust and water, making it suitable for outdoor surveillance applications when installed correctly.

Hikvision DS-2CD2047G2H-LI Key Details

• Model: DS-2CD2047G2H-LI(2.8mm)(eF)(O-STD)
• Resolution: 4 MP, up to 2688 x 1520
• Lens: 2.8mm fixed lens
• Night illumination: IR and white light up to 40 m
• WDR: 130 dB
• Compression: H.265, H.264, H.264+, H.265+
• Network: 1 x RJ45 10/100 Mbps Ethernet
• Storage: Built-in memory card slot
• Audio: No audio
• Protection: IP67
• Part Number / SKU: HK-311323629

The Hikvision DS-2CD2047G2H-LI is a practical choice for buyers looking for a 4 MP ColorVu network camera with Smart Hybrid Light, intelligent detection and strong low-light performance. Its combination of wide dynamic range, efficient video compression, Ethernet connectivity and outdoor-rated construction makes it suitable for a wide range of professional and residential CCTV installations.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HK-311323629
Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2688 x 1520
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time	1/3 s to 1 / 100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0degrees to 360degrees,tilt: 0degrees to 90degrees,rotate: 0degrees to 360degrees
Lens
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 104.0degrees, vertical FOV 54.4degrees, diagonal FOV 126.7degrees
	4 mm, horizontal FOV 89.2degrees, vertical FOV 45.5degrees, diagonal FOV 108.2degrees
Lens Mount	M16
Iris Type	Fixed
Aperture	F1.0
Depth of Field	2.8 mm: 2.5 m to ∞
	4 mm: 3.1 m to ∞
DORI
DORI	2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
	4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type	IR,White Light
Supplement Light Range	Up to 40 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
	60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream	50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)
	60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
Third Stream	50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
	60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
	*The third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.264+/H.265+
	Sub-stream: H.265/H.264/MJPEG
	Third stream: H.265/H.264
	*Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR,VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Audio
Audio Compression	-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate	-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering	-U: Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host	Up to 32 users
	3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client	iVMS-4200,Hik-Connect,Hik-Central
Web Browser	Plug-in required live view: IE 10, IE 11
	Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
	Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch	Yes
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR
SNR	≥ 52 dB
Wide Dynamic Range (WDR)	130 dB
Privacy Mask	4 programmable polygon privacy masks
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	-U: Yes
Reset Key	Yes
Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage	Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Smart Event	Scene change detection
Deep Learning Function
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting
	Support alarm triggering by specified target types (human and vehicle)
General
Power	12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection
	PoE: IEEE 802.3af, Class 3, max. 7 W
Material	Front cover: Metal, body: Metal, bracket: Metal
Dimension	Ø74.4 mm x 179.2 mm (Ø2.9" x 7.1")
Package Dimension	234 mm x 120 mm x 117 mm (9.2" x 4.7" x 4.6")
Weight	Approx. 525 g (1.2 lb.)
With Package Weight	Approx. 750 g (1.7 lb.)
Storage Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
General Function	Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC	CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
	IC: ICES-003: Issue 7
	KC: KN32: 2015, KN35: 2015
	RCM: AS/NZS CISPR 32: 2015
Safety	UL: UL 62368-1
	CB: IEC 62368-1: 2014+A11
	CE-LVD: EN 62368-1: 2014/A11: 2017
	BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment	CE-RoHS: 2011/65/EU
Protection	IP67: IEC 60529-2013
