UN-IPC3614LE-ADF28KC-DL

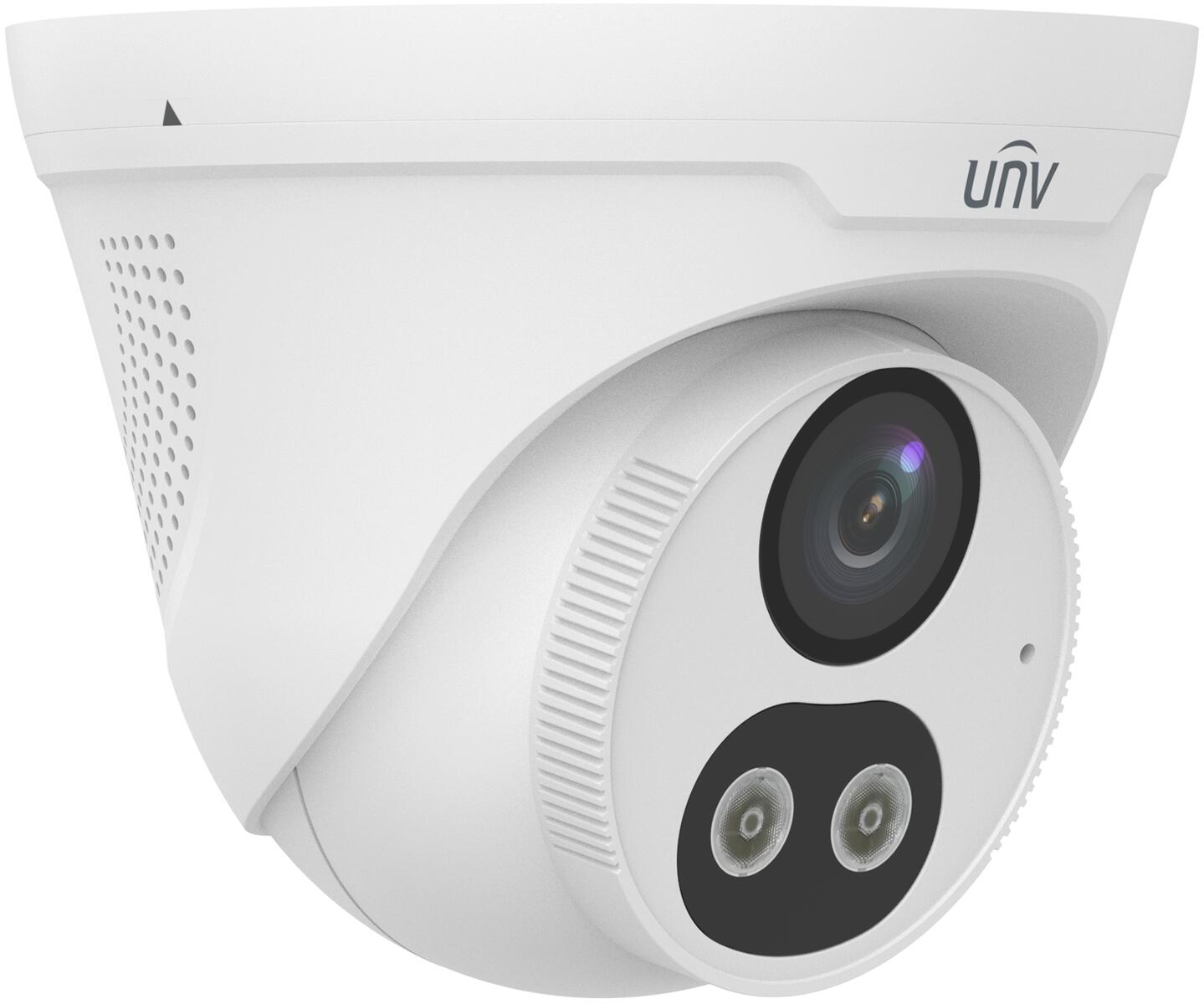

Uniview 4MP ColorHunter fixed Dual-Light Turret Network camera with 2.8mm Lens

Please add to cart for quote Explain
Uniview - Uniview 4MP ColorHunter fixed Dual-Light Turret Network camera with 2.8mm Lens, 4MP (2688x1520) Resolution, 120 dB WDR, 30m illumination distance (IR & Warm Light), Ultra 265 / H.265 / H.264 / MJPEG Video Compression, Up to 4 OSDs, Up to 4 areas Privacy mask, Support ROI, Dual Video Stream, 2D/3D DNR, Basic detection, Two-Way Audio, MicroSD up to 512GB, 1x RJ45 10M/100M Base-TX Ethernet Network, IP67 protection
BUY TODAY ! Expected to be in Stock at suppliers.* print


UN-IPC3614LE-ADF28KC-DL Uniview 4MP ColorHunter fixed Dual-Light Turret Network camera with 2.8mm Lens Image 2
UN-IPC3614LE-ADF28KC-DL Uniview 4MP ColorHunter fixed Dual-Light Turret Network camera with 2.8mm Lens Image 4
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. UN-IPC3614LE-ADF28KC-DL Uniview 4MP ColorHunter fixed Dual-Light Turret Network camera with 2.8mm Lens is available from Laptop Direct and it is sold as new from our IP network security cameras range of products. For reference purposes, the price of R1410 is valid 2026-10-01, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the IP network security cameras category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

UN-IPC3614LE-ADF28KC-DL

Uniview 4MP ColorHunter fixed Dual-Light Turret Network camera with 2.8mm Lens

Uniview 4MP ColorHunter fixed Dual-Light Turret Network camera with 2.8mm Lens, 4MP (2688x1520) Resolution, 120 dB WDR, 30m illumination distance (IR & Warm Light), Ultra 265 / H.265 / H.264 / MJPEG Video Compression, Up to 4 OSDs, Up to 4 areas Privacy mask, Support ROI, Dual Video Stream, 2D/3D DNR, Basic detection, Two-Way Audio, MicroSD up to 512GB, 1x RJ45 10M/100M Base-TX Ethernet Network, IP67 protection

Overview Summary:

High-performance Uniview 4MP ColorHunter turret CCTV camera with 2.8mm lens, dual-light night vision and IP67 protection. Ideal for South Africa. Buy now.

What tier does this fall into?

Mid-range professional

What is this best for?

Home security, small business surveillance, perimeter monitoring, retail security, outdoor installation

Overview:

Uniview 4MP ColorHunter Fixed Dual-Light Turret Network Camera
Designed for professional surveillance applications, the Uniview UN-IPC3614LE-ADF28KC-DL delivers detailed 4MP video with advanced ColorHunter technology for outstanding low-light performance. Combining infrared and warm white illumination, this network turret camera provides dependable monitoring in a wide range of lighting conditions while maintaining excellent image quality. With intelligent video compression, built-in two-way audio, and weather-resistant construction, it is an ideal choice for commercial, industrial, and residential security installations.

Description:

The Uniview UN-IPC3614LE-ADF28KC-DL is a high-performance 4MP IP turret camera featuring a 2.8mm fixed lens, ColorHunter technology, dual-light illumination, and 120 dB True WDR for superior image clarity day and night. Built with integrated microphone and speaker, PoE support, MicroSD storage up to 512GB, and an IP67-rated enclosure, it offers reliable surveillance for indoor and outdoor environments while reducing bandwidth requirements through advanced Ultra 265 video compression.

Features:

Why Choose This 4MP IP Camera
Built around a high-quality 1/3-inch CMOS sensor, this network camera captures crisp 2688 x 1520 resolution video while maintaining smooth frame rates. ColorHunter technology helps retain vibrant colour images in challenging lighting conditions, while the dual-light system intelligently combines infrared and warm white LEDs to improve visibility after dark.

The integrated microphone and speaker allow two-way communication, making the camera suitable for entrances, reception areas, warehouses, offices, retail stores, and perimeter monitoring.

Image Quality and Performance
The camera incorporates advanced imaging technologies that improve video clarity in demanding environments.

  • 4MP resolution up to 2688 x 1520
  • 120 dB True WDR for difficult lighting conditions
  • 2D and 3D digital noise reduction
  • Smart IR illumination up to 30 metres
  • Warm white LED illumination up to 30 metres
  • 9:16 Corridor Mode for narrow monitoring areas
  • Region of Interest (ROI) support for bandwidth optimisation

Video Compression and Storage
Efficient compression technologies help reduce storage requirements without sacrificing image quality.

  • Ultra 265 video compression
  • H.265, H.264 and MJPEG support
  • Dual video stream capability
  • MicroSD card support up to 512GB
  • Up to 4 on-screen display areas
  • Up to 4 privacy mask zones

Audio and Intelligent Functions
The UN-IPC3614LE-ADF28KC-DL offers more than standard video surveillance by incorporating audio and basic intelligent detection capabilities.

  • Built-in microphone and speaker
  • Two-way audio communication
  • Basic intelligent detection
  • Privacy masking
  • ROI support for important monitoring areas

Network Connectivity
Installation is simplified through standard IP networking and Power over Ethernet support.

  • 1 x RJ45 10/100 Mbps Ethernet port
  • PoE power supply support
  • Compatible with standard IP surveillance networks

Built for Indoor and Outdoor Security
With its IP67-rated housing, the camera is engineered to withstand dust, rain, and harsh outdoor conditions. The adjustable 3-axis mounting design makes positioning straightforward, ensuring optimal coverage for virtually any installation.

Whether monitoring business premises, residential properties, parking areas, or industrial facilities, the Uniview UN-IPC3614LE-ADF28KC-DL delivers dependable surveillance performance around the clock.

Technical Highlights

  • Part Number / SKU: UN-IPC3614LE-ADF28KC-DL
  • 4MP ColorHunter fixed dual-light turret network camera
  • 2.8mm fixed lens
  • 1/3-inch CMOS image sensor
  • Maximum resolution: 2688 x 1520
  • Ultra 265, H.265, H.264 and MJPEG compression
  • 120 dB True WDR
  • Dual-light illumination with IR and warm white LEDs
  • Up to 30m IR range
  • Up to 30m warm light range
  • Built-in microphone and speaker
  • Two-way audio support
  • Dual video streams
  • MicroSD card support up to 512GB
  • 2D and 3D DNR
  • Basic detection functions
  • Up to 4 privacy mask areas
  • ROI support
  • 9:16 Corridor Mode
  • RJ45 10/100Mbps Ethernet interface
  • PoE support
  • IP67 weather protection
  • Adjustable 3-axis mounting


Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeUN-IPC3614LE-ADF28KC-DLspacer
Item IPC3614LE-ADF28KC-DL
Camera
Max Resolution 4 MP
Sensor 1/3.0" CMOS
Min. Illumination Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0degrees to 360degrees, Tilt: 0degrees to 80degrees, Rotate: 0degrees to 360degrees
S/N >52 dB
WDR 120 dB
Lens
Focal Length 2.8 mm
Iris Type Fixed
Iris F1.6
Field of View (H) 97.0degrees
Field of View (V) 52.2degrees
Field of View (D) 107.5degrees
DORI
DORI Distance (Lens) 2.8 mm
DORI Distance (Detect) 63.0 m (206.7 ft.)
DORI Distance (Observe) 25.2 m (82.7 ft.)
DORI Distance (Recognize) 12.6 m (41.3 ft.)
DORI Distance (Identify) 6.3 m (20.7 ft.)
Illuminator
Supplemental Light Dual light
Illumination Distance (IR) 30 m (98.4 ft)
Illumination Distance (Warm Light) 30 m (98.4 ft)
Wavelength 850 nm
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4 MP (2688 x 1520), max. 25 fps , 4 MP (2560 x 1440), max. 25 fps , 3 MP (2304 x 1296), max. 30 fps , 1080P (1920 x 1080), max. 30 fps , 720P (1280 x 720), max. 30 fps
Sub Stream: 720P (1280 x 720), max. 30 fps , D1 (720 x 576), max. 30 fps , 640 x 360, max. 30 fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Dual streams
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip vertical, Flip horizontal, 180degrees, 90degrees Clockwise, 90degrees Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital defog
Events
Basic Detection Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, APP
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker Support
WIFI N/A
Network 1 x RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU , (EU)2015/863) , WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 5.0 W (without speaker)
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø118 mm x 96 mm (Ø4.6" x 3.8") (Ø x H)
Weight 0.32 kg (0.71 lb)
Material Metal + Plastic
Working Environment -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button Support
Web Client Language 4 Languages: English, Russian, Spanish, Vietnamese
