VIGI-C230I-MINI-2.8MM

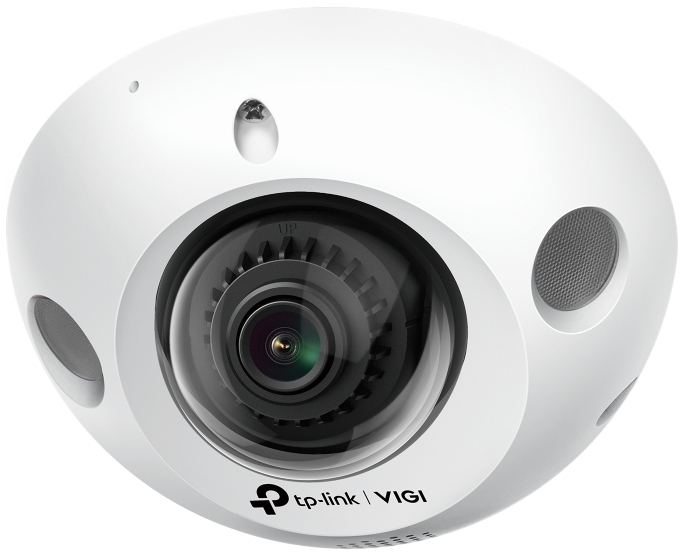

TP-Link C230I Mini Vigi 3MP IR Mini Dome Network Camera with 2.8mm lens

TP-Link C230I Mini Vigi 3MP IR Mini Dome Network camera with 2.8mm Lens, 3D DNR, DWDR, 2304x1296 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, 2 IR LED 30m range, BLC / 3D DNR / HLC / SmartIR, 1 region ROI, Two-Way audio, ONVIF, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port, DC Power Port, Support MicroSD card up to 256 GB, Built-In Microphone, Built-In Speaker

Overview:

VIGI C230I Mini - 3MP IR Mini Dome Network Camera

• 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP- more than enough pixels to pick up some of the more discrete details.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
• Small but compact with wide views : With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.
• IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGIs professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

Features:

Security Never Shuts Down
3MP IR Mini Dome Network Camera VIGI C230I Mini

• High Definition
• Human & Vehicle Classification
• Smart Detection
• Wide-Viewing Angle
• Two-Way Audio
• IK08
• Smart Video Coding
• SmartVid
• Corridor Mode
• ONVIF Ensures Compatibility
• Onboard Storage
• Remote Monitoring

3MP Super-High Definition
The VIGI C230I Mini Camera comes with 3MP- more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

• Motion Detection
• Intrusion Detection
• Object Removal Detection
• Line-Crossing
• Camera Tampering
• Object Abandoned Detection

Small but compact with wide views
With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini Camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.

Every Event is Under Your Control.
VIGI cameras intelligently detect activities, inform you instantly and respond automatically by smart detection and two-way audio.

IK08 Vandal-Proof
Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

SmartVid-Smart Video Enhancement
VIGIs professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.

Onvif Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

Specifications:

© 2023 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	VIGI-C230I-MINI-2.8MM
CAMERA
Image Sensor	1/2.8" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	Color: 0.1 Lux, 0 Lux with IR
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Lens	2.8 mm
Aperture	F1.6
Lens Mount	M12
Viewing Angle	Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
IR Working Distance	30m
Digital Noise Reduction	3D DNR
WDR	DWDR
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm
Aperture	F1.6
FOV	2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
Lens Mount	M12
DORI Distance	2.8mm
	Detect: 49 m (161 ft)
	Observe: 20 m (67 ft)
	Recognize: 10 m (32 ft)
	Identify: 5 m (16 ft)
VIDEO
Max. Resolution	2304 x 1296
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 704x576, 640x480, 352x288, 320x240
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	N/A
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range	Pan: -30° to 30°
	Tilt: 0° to 85°
	Rotate: -15° to 15°
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS
	RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Open Network Video Interface (Profile S)
Cloud	Yes
ONVIF	Yes
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Button	Reset Button
Video Output	-
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes
Built-in Speaker	Yes
Audio	N/A
ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning
Linkage Method	N/A
Output Notification	Message Push
GENERAL
Package Contents	VIGI Network Camera
	Quick Start Guide
	Mounting Accessories
	Mounting Template
Operating Temperature	-30-60 °C
Storage Temperature	-40-60 °C
Storage Humidity	95% or Less (Non-Condensing)
Operating Humidity	95% or Less (Non-Condensing)
Dimensions( H X W X D )	114 x 114 x 58 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.23 kg
Gross Weight	0.41 kg
Power Consumption	12V DC: Max 7.5W
	PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
	PoE (802.3af/at, class 0)
Vandal Resistant	IK08
Protection	IK08
Product Dimensions (L x W x H)	114 x 58 x 114 mm
Certifications	CE/VCCI/BSMI/KC/ONVIF
VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
	Sub-Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution	3MP (2304 x 1296)
Video Streaming	3 Main Streams
	3 Sub-Streams
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
