TP-VIGI-C240-28

TP-Link C240 Vigi 4MP Full-colour Dome Network camera with 2.8mm Lens

TP-Link C240 Vigi 4MP Full-colour Dome Network camera with 2.8mm Lens, 3D DNR, DWDR, 2560x1440 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, 30m range 1 IR LED, 30m range 1 White LED, BLC / 3D DNR / HLC / SmartIR, 1 region ROI, Audio Input, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port, Support MicroSD card up to 256 GB, Built-In Microphone, Motion detection, Human & vehicle classification

Overview:

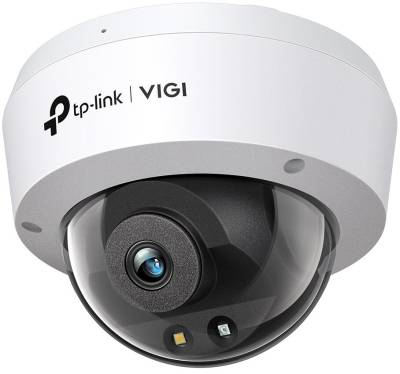

VIGI C240 4MP Full-Color Dome Network Camera
The VIGI C240 is a high-performance 4MP full-color dome camera designed to provide clear, vibrant surveillance around the clock. Equipped with advanced AI technology, robust construction, and flexible power options, this camera ensures reliable monitoring for both indoor and outdoor environments.

Description:

The VIGI C240 delivers 4MP resolution for sharp, detailed video and 24-hour full-color monitoring, even in complete darkness. Its AI-powered human and vehicle classification ensures accurate alerts, while smart detection monitors boundaries, intrusion, and object changes. With built-in audio recording, PoE/12V DC power options, IK10 vandal resistance, IP67 waterproofing, and support for up to 256GB microSD storage, this camera offers complete and cost-effective security management.

Features:

High-Resolution Full-Color Monitoring
Experience clear, detailed surveillance with 4MP resolution. The large-aperture lens and high-sensitivity sensor allow the camera to capture sharp images day or night. Supplemental lights ensure vibrant full-color video even in pitch-black conditions.

AI-Powered Human and Vehicle Classification
The VIGI C240 uses advanced AI algorithms to differentiate humans and vehicles from other objects. Customize alarm rules to reduce false alerts and receive notifications tailored to real threats for faster and more accurate responses.

Advanced Smart Detection
Stay informed with intelligent monitoring options, including:

• Motion detection
• Intrusion detection
• Line-crossing alerts
• Camera tampering alerts
• Object removal detection
• Object abandoned detection

Receive instant notifications when unusual activity occurs within the camera's coverage.

Built-In Audio Recording
Capture audio events within a 15-foot radius with the integrated microphone. This adds an extra layer of awareness to your security monitoring.

Rugged, Weatherproof Design
Constructed to endure harsh conditions, the VIGI C240

• IK10-rated vandal-resistant housing
• IP67-rated waterproofing

This makes it suitable for outdoor or high-risk environments, providing uninterrupted protection against weather and tampering.

Efficient Video Compression
Using H.265+ technology, the camera compresses video without losing quality, saving disk space, reducing network strain, and lowering monitoring costs while maintaining crystal-clear video.

Smart Video Enhancement
Professional video processing improves image clarity and visibility through:

• Smart IR
• Wide Dynamic Range (WDR)
• 3D Digital Noise Reduction (DNR)
• Night vision

These enhancements ensure high-quality video in diverse lighting conditions.

Flexible Power and Management Options
The camera supports both PoE and 12V DC power, simplifying installation and wiring. Control and monitor your system via multiple methods:

• Web UI
• NVR UI
• VIGI app
• VIGI Security Manager

Local or onboard storage is available through microSD cards up to 256GB, ensuring continuous recording and easy data access.

Reliable, All-Day Security
With high-resolution color video, smart AI detection, robust construction, and flexible management, the VIGI C240 provides comprehensive security coverage for homes, offices, and outdoor environments.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	TP-VIGI-C240-28
CAMERA
Image Sensor	1/3" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	Color: 0.005 Lux, 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Lens	2.8 mm/ 4 mm
Aperture	2.8 mm: F1.6
	4 mm: F1.6
Lens Mount	M12
Viewing Angle	2.8mm:
	Horizontal FOV: 95.7degrees, Vertical FOV: 51.7degrees, Diagonal FOV: 113.0degrees
	4mm:
	Horizontal FOV: 79.7degrees, Vertical FOV:42.9degrees, Diagonal FOV: 93.9degrees
Pan/Tilt Range	Pan: 0degrees to 360degrees, Tilt: 0degrees to 85degrees, Rotate: 0degrees to 360degrees
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP67
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm/4 mm
Aperture	2.8 mm: F1.6
	4 mm: F1.6
FOV	2.8 mm:
	Horizontal FOV: 95.7degrees, Vertical FOV: 51.7degrees, Diagonal FOV: 113.0degrees
	4 mm:
	Horizontal FOV: 79.7degrees, Vertical FOV: 42.9degrees, Diagonal FOV: 93.9degrees
Lens Mount	M12
DORI Distance	2.8 mm:
	Detect: 64 m (209 ft)
	Observe: 27 m (87 ft)
	Recognize: 13 m (42 ft)
	Identify: 6 m (21 ft)
	4 mm:
	Detect: 80 m (262 ft)
	Observe: 33 m (109 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
VIDEO
Max. Resolution	2560 x 1440
Main Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	Note: If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	640x480, 352x288, 320x240
	Note: If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED	Quantity: 1
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 1
	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range	Pan: 0degrees to 355degrees
	Tilt: 0degrees to 75degrees
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR
	White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90degrees/270degrees)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	N/A
Audio Input	Yes
Audio Output	N/A
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS
	RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
ONVIF	Yes
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
Button	-
Video Output	-
On-board Storage	Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes
Built-in Speaker	N/A
Audio	N/A
ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	White Light Flashing, Message Push
Linkage Method	N/A
Output Notification	Message Push
GENERAL
Package Contents	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Operating Temperature	-30-60 degreesC
Storage Temperature	-40-60 degreesC
Storage Humidity	95% or Less (Non-Condensing)
Operating Humidity	95% or Less (Non-Condensing)
Dimensions( H X W X D )	115 x 115 x 86 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.28 Kg
Gross Weight	0.46 Kg
Power Consumption	12V DC: Max 5.4W
	PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
	PoE (802.3af/at, class 0)
Vandal Resistant	IK10
Protection	IP67, IK10
Product Dimensions (L x W x H)	115 x 86 x 115 mm
Certifications	CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	Sub-Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 640x480, 352x288, 320x240
Max. Resolution	4MP (2560 x 1440)
Video Streaming	Main Stream
	Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90degrees/270degrees)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
