InSight-S445-2.8mm

TP-Link InSight S445 Vigi 4MP Full-colour Turret Network camera with 2.8mm lens

TP-Link InSight S445 Vigi 4MP Full-colour Turret Network camera with 2.8mm Lens, 4 IR LED up to 30m range, 4 White LED up to 30m range, 2688x1520 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, Image enhancement - BLC / 3D DNR / HLC / SmartIR, 120 dB wide Dynamic range, Up to 4 Privacy mask, 1 region ROI, Two-Way Audio, Audio Input, Audio Output, 3 Main streams & 3 Sub-Streams simultaneous live View, Motion Detection, Enhanced with human & vehicle classification, People & vehicle analytics, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port PoE Network Interface, Built-In Memory card slot support MicroSD card up to 512 GB

Overview:

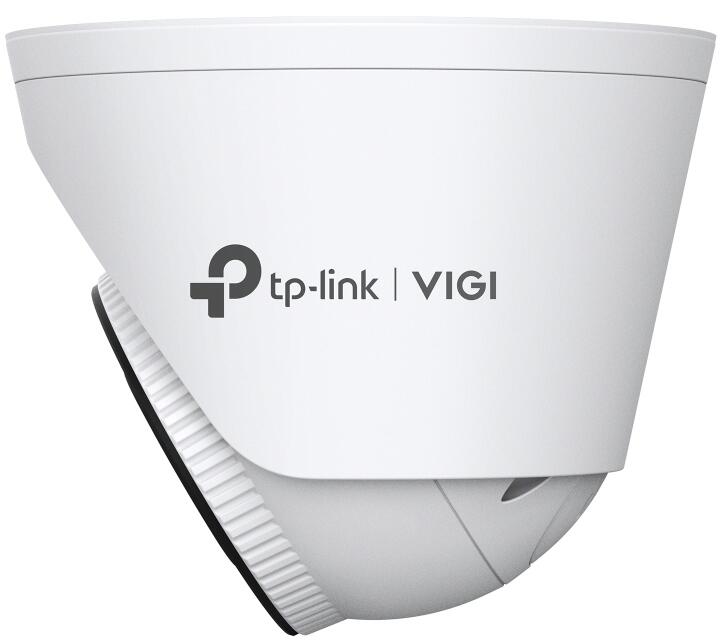

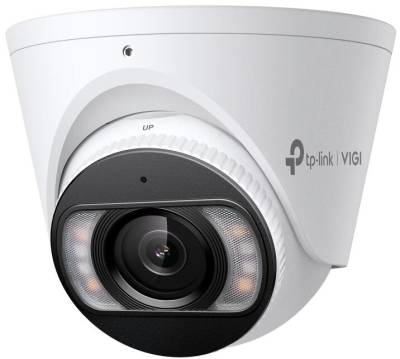

TP-Link InSight S445 VIGI 4MP Full-Color Turret Network Camera
The TP-Link InSight S445 VIGI 4MP Full-Color Turret Network Camera combines high-definition video quality with advanced features designed for enhanced security. Offering 24-hour full-color viewing and powerful smart detection capabilities, this camera ensures superior protection and reliability in both well-lit and low-light environments.

Description:

This 4MP camera captures sharp, detailed images with vibrant full-color footage, even in low light. With advanced human and vehicle classification, smart detection, and intelligent video enhancement, the S445 offers a complete surveillance solution. The camera's IP67-rated weatherproof design ensures durability for both indoor and outdoor use, while the H.265+ compression technology optimizes storage efficiency. Additionally, its two-way audio and active defense system provide real-time communication and immediate security response.

Features:

4MP High-Resolution Full-Color Imaging
The InSight S445 delivers crisp 4MP resolution, capturing detailed video with vibrant color accuracy even in the darkest conditions. Whether day or night, this camera ensures clear and reliable surveillance.

Advanced People and Vehicle Analytics
With built-in analytics, the S445 can detect and classify people and vehicles, helping you focus on specific objects of interest during post-event analysis. This feature significantly reduces the time spent searching through footage.

Human and Vehicle Classification
By distinguishing between humans, vehicles, and other objects, the camera reduces false alarms and provides more accurate event notifications. This functionality improves overall security management, ensuring that only relevant events trigger alerts.

Smart Video Enhancement for Optimal Image Quality
The S445 leverages several technologies to ensure clear and balanced footage:

• True WDR (Wide Dynamic Range) - Captures balanced images in environments with both bright and dark areas by combining different exposure levels.
• Smart IR - Adjusts infrared lighting to prevent glare and overexposure, improving visibility at varying distances.
• 3D DNR (Dynamic Noise Reduction) - Reduces noise in video footage while preserving essential details, providing cleaner, sharper images.
• White Balance - Ensures accurate color reproduction, keeping whites neutral regardless of lighting conditions.

Efficient H.265+ Video Compression
The InSight S445 utilizes H.265+ compression, which reduces bandwidth and storage requirements without compromising video quality. This technology saves up to 57.5% more storage space than H.264 and up to 15% more than standard H.265, helping you store more footage with less hardware.

IP67 Weatherproof Design for Reliable Outdoor Use
Rated for IP67 weather resistance, this camera is built to withstand harsh conditions. Whether rain, snow, or dust, the S445 continues to function reliably in all environments, offering consistent security protection.

Two-Way Audio and Active Defense
The camera supports two-way audio, allowing you to listen and communicate with anyone within the camera's range. Coupled with active defense features, such as motion-triggered alerts and remote deterrence, it gives you full control over your security system.

Flexible Networking and Storage Options
The S445 supports PoE (Power over Ethernet) for easy installation and a MicroSD card slot that supports storage up to 512GB, providing flexible and convenient storage solutions.

Product Summary
The TP-Link InSight S445 VIGI 4MP Full-Color Turret Network Camera is an advanced security solution that ensures sharp, reliable surveillance with smart features. Whether you're looking for human and vehicle detection, enhanced video quality, or a weatherproof design, this camera offers it all in a user-friendly package. Ideal for both residential and commercial use, it provides comprehensive coverage and peace of mind.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	InSight-S445-2.8mm
CAMERA
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux , 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	F1.6
FOV	2.8 mm:
	Horizontal FOV: 100degrees, Vertical FOV: 54degrees, Diagonal FOV: 118degrees
	4 mm:
	Horizontal FOV: 80.4degrees, Vertical FOV: 41.8degrees, Diagonal FOV: 98.7degrees
Lens Mount	M12*P 0.5
DORI Distance	2.8 mm
	Detect: 64 m (210 ft)
	Observe: 27 m (89 ft)
	Recognize: 13 m (43 ft)
	Identify: 6 m (20 ft)
	4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (108 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	Pan: 0degrees to 360degrees, Tilt: 0degrees to 85degrees, Rotation: 0degrees to 360degrees
ILLUMINATOR
IR LED	Quantity: 4
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 4
	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2688 x 1520
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	704x576,640x480, 352x288, 320x240
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror
	Brightness
	Contrast
	Saturation
	Sharpness
	Exposure
	WDR
	White Balance
	Prevent Overexposure to Infrared Light
	HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
	Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	Intrusion Detection
	Line-Crossing Detection
	Region Entering Detection
	Region Exiting Detection
	Object Abandoned Detection
	Object Removal Detection
	Loitering Detection
	People Detection
	Vehicle Detection
	Abnormal Sound Detection
	Scene Change Detection
Basic Event	Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
	Video Tampering Detection
	Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording
	Message Push
	Audible Warning
	White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in Microphone	Yes , Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30-60 degreesC
Storage Temperature	-40-60 degreesC
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

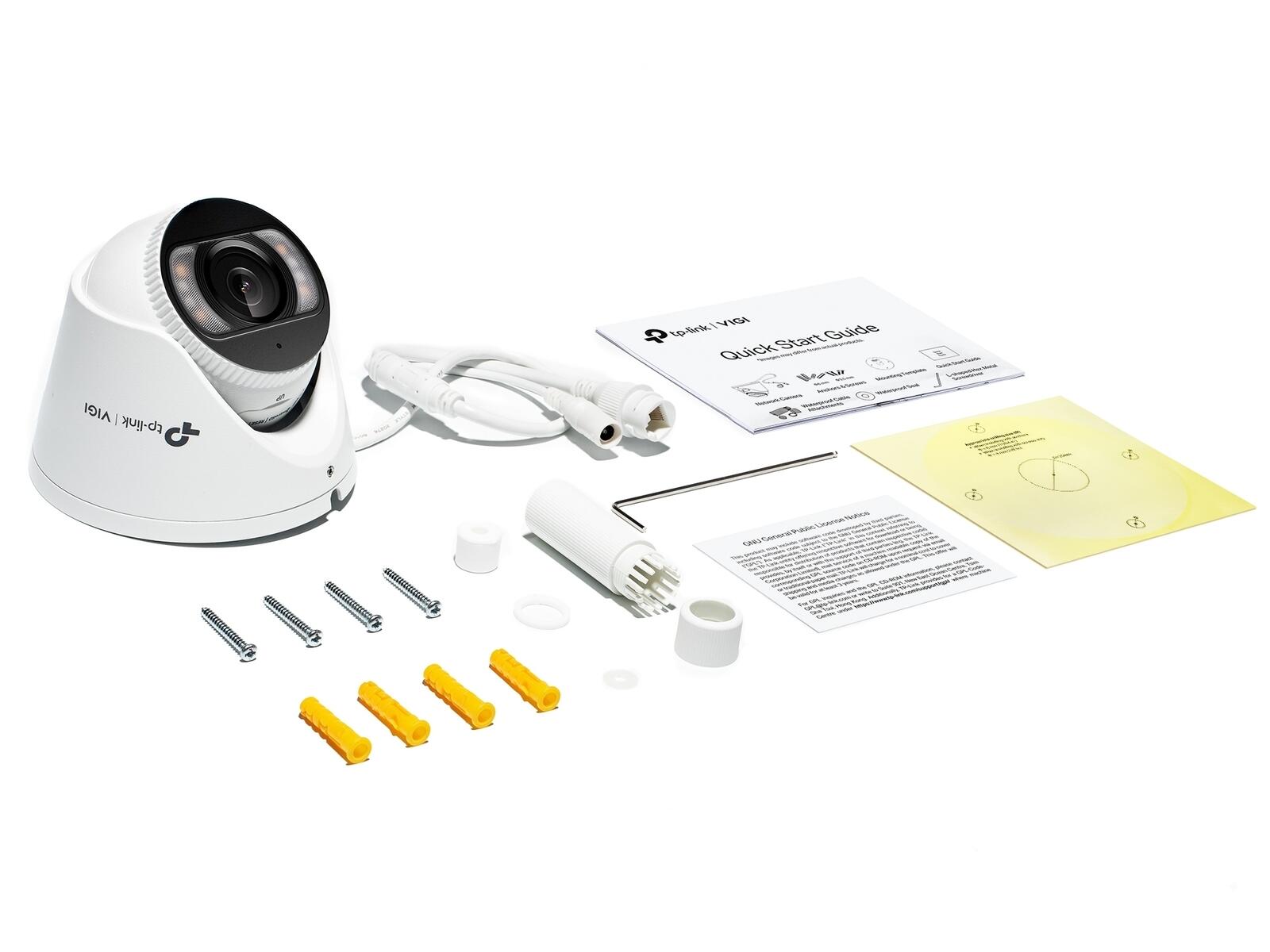

Package Content	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Material	Metal
Net Weight	0.48 Kg
Power Supply	12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
	PoE: 802.3af/at, class 0, Max. 12 W
Protection	IP67
Product Dimensions (L x W x H)	4.4 x 4.4 x 3.3 in (111 x 111 x 83.7 mm)
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC
