InSight-S485PI

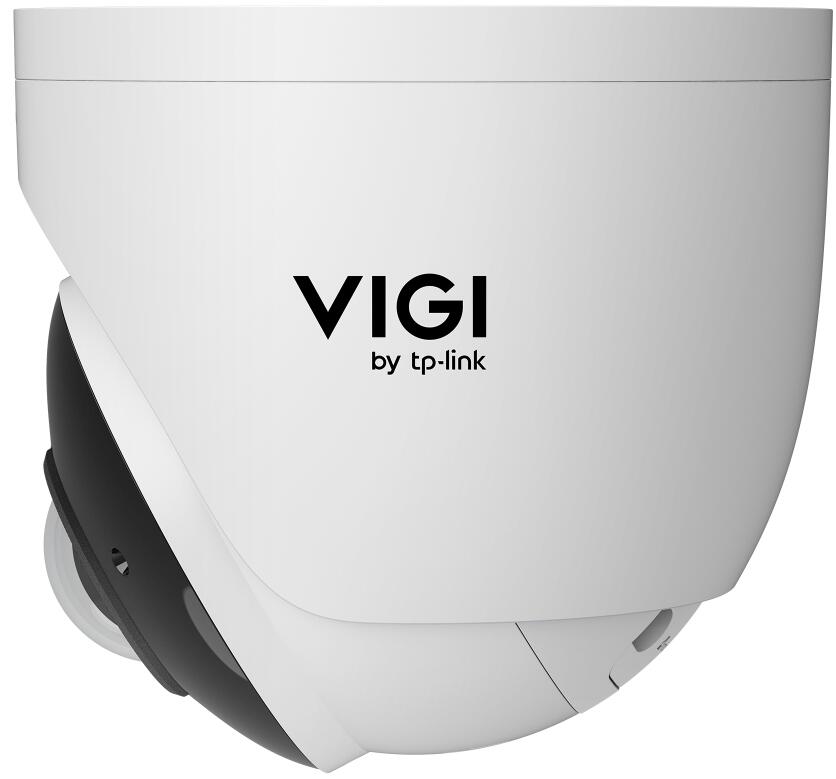

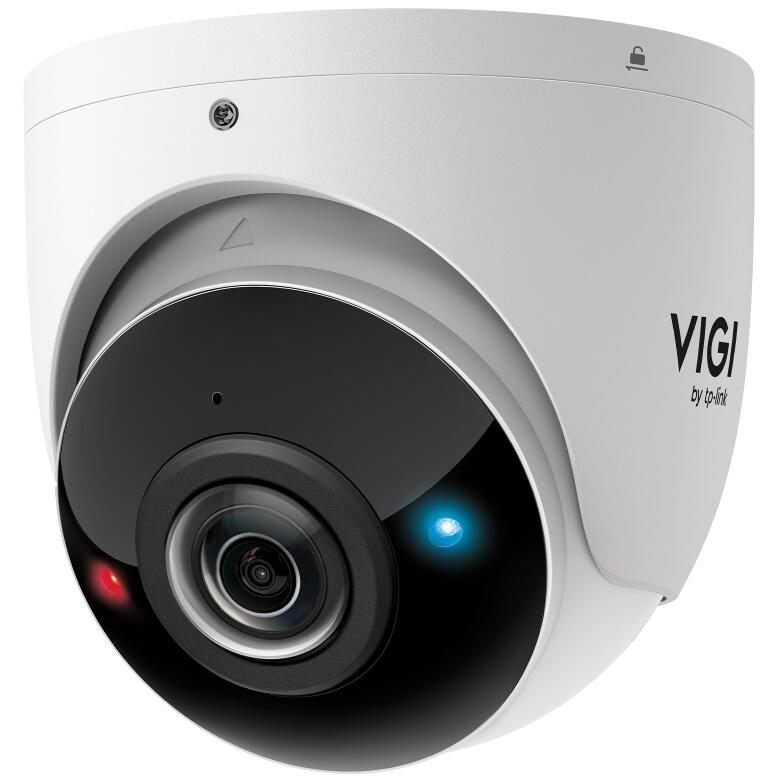

TP-Link InSight S485PI Vigi 8MP IR Panoramic Turret Network camera with 1.65mm Lens

TP-Link InSight S485PI Vigi 8MP IR Panoramic Turret Network camera with 1.65mm Lens, 4 IR LED up to 20m, 3840x2160 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, Image enhancement - BLC / 3D DNR / HLC / SmartIR, 120 dB wide Dynamic range, Up to 4 Privacy mask, 4 region ROI, Two-Way Audio, Built-In Microphone, Audio in Interface, Built-In Speaker, Audio out Interface, 3 Main streams & 3 Sub-Streams simultaneous live View, Motion Detection, Enhanced with human & vehicle classification, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port PoE Network Interface, 1 Alarm in, 1 Alarm out, Red-Blue warning lights, Built-In Memory card slot support MicroSD card up to 512GB

Overview:

InSight S485PI VIGI 8MP IR Panoramic Turret Network Camera: Ultimate Surveillance Solution
The TP-Link InSight S485PI VIGI 8MP IR Panoramic Turret Network Camera combines cutting-edge technology with practical features, offering comprehensive security coverage for a variety of environments. Equipped with advanced imaging and AI analytics, this camera is designed to deliver exceptional clarity, efficient monitoring, and intelligent threat detection, all within a sleek, durable build.

Description:

The InSight S485PI offers a wide 180degrees panoramic view, delivering 8MP Ultra HD resolution for crisp and detailed surveillance footage. Enhanced with advanced infrared night vision, this camera provides clear visibility up to 65.62 ft (20m), even in complete darkness. Its red-blue warning lights create a powerful deterrent against intruders, while the AI-powered people and vehicle analytics help you quickly identify key events. The camera also supports flexible integration with audio and alarm systems, making it a versatile and robust security solution for both indoor and outdoor use.

Features:

Key Benefits:

• Wide 180degrees panoramic view with 8MP clarity
• Advanced AI-powered detection for people and vehicles
• Enhanced security with red-blue flashing warning lights
• IP67 weatherproof and IK10 vandal-proof design
• Easy audio and alarm integration
• H.265+ compression for efficient video storage

Elevate Security with a 180degrees Panoramic View and 4K Clarity
The TP-Link InSight S485PI ensures comprehensive coverage with its expansive 180degrees panoramic view, eliminating blind spots and reducing the need for multiple cameras. This single unit replaces multiple conventional cameras, cutting down on installation and maintenance costs while providing crystal-clear 4K (8MP) video resolution. Ideal for large spaces like hotel lobbies, playgrounds, intersections, and warehouses, this camera simplifies your surveillance setup without compromising on quality.

Powerful Active Defense Technology
The InSight S485PI's Active Defense feature enhances security by leveraging advanced deep learning algorithms to trigger real-time deterrents. When an intrusion is detected, the camera activates red-blue warning lights and loud audio alerts, making it more difficult for intruders to remain undetected. The camera also supports user-customizable voice messages for tailored deterrence.

Enhanced Night Vision for Round-the-Clock Monitoring
The camera's infrared night vision capabilities allow it to deliver clear images in low-light conditions, up to a range of 65.62 ft (20m). Whether it's day or night, the InSight S485PI ensures reliable surveillance, keeping you informed at all hours.

AI-Powered People and Vehicle Analytics for Smart Detection
The InSight S485PI integrates AI-based people and vehicle detection, making it easier to track specific individuals or vehicles in large crowds or busy areas. The advanced classification technology helps distinguish between humans, vehicles, and other moving objects, reducing false alarms and providing more accurate event notifications.

Smart Video Enhancement for Exceptional Image Quality
Thanks to TP-Link's Smart Video Enhancement technology, the InSight S485PI adapts to different lighting conditions for superior image quality. Key features include:

• True WDR : Balanced exposure in challenging lighting environments, ensuring both bright and dark areas are clearly visible.
• Smart IR : Automatically adjusts infrared lighting to eliminate glare and overexposure, improving visibility across varying distances.
• 3D DNR : Reduces noise while preserving image clarity and detail, ensuring sharp footage even in low-light situations.
• White Balance : Guarantees accurate color reproduction, so objects appear natural in any lighting.

Efficient H.265+ Compression for Better Storage and Bandwidth Management
The InSight S485PI leverages H.265+ video compression technology, which reduces bandwidth and storage requirements without compromising image quality. Compared to standard H.264 and H.265 compression, H.265+ saves up to 57.5% more storage space, allowing for longer video retention and more efficient use of network resources.

Rugged and Durable Build for Any Environment
Designed to withstand harsh conditions, the InSight S485PI is both IP67 weatherproof and IK10 vandal-proof, ensuring reliable performance in both outdoor and high-risk environments. Whether it's rain, dust, or physical impact, this camera offers long-lasting durability, making it an ideal choice for a wide range of surveillance applications.

Flexible Integration for Seamless Security Systems
The camera includes flexible audio and alarm integration options, including an audio in/out port and alarm in/out ports, allowing you to easily connect to external devices like microphones, speakers, and access control systems. This integration enhances the overall effectiveness of your security system and ensures a comprehensive solution for monitoring and deterrence.

Conclusion: A Complete Surveillance Solution
The TP-Link InSight S485PI VIGI 8MP IR Panoramic Turret Network Camera combines superior image quality, advanced AI detection, and robust features to provide a reliable and efficient security solution. With its expansive 180degrees view, real-time deterrence capabilities, and seamless integration with other devices, this camera is the perfect choice for any business or home that requires top-tier surveillance technology.

Main Features at a Glance:

• 180degrees panoramic view with 8MP ultra HD clarity
• Red-blue flashing warning lights for enhanced deterrence
• Advanced AI people and vehicle detection technology
• Smart video enhancement for exceptional image quality
• H.265+ video compression for efficient storage
• IP67 weatherproof and IK10 vandal-proof construction
• Flexible alarm and audio integration options

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	InSight-S485PI
CAMERA
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux , 0 Lux with IR light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	1.65 mm
Aperture	F2.0
FOV	1.65mm:
	Horizontal FOV: 180degrees
	Vertical FOV: 86degrees
	Diagonal FOV: 180degrees
Lens Mount	M12
DORI Distance	1.65mm
	Detect: 144.36 ft (44 m)
	Observe: 60.15 ft (18.33 m)
	Recognize: 28.87 ft (8.8 m)
	Identify: 14.44 ft (4.4 m)
Angle Adjustment (Manual)
Range	Pan: 0degrees to 360degrees, Tilt: 0degrees to 75degrees, Rotation: 0degrees to 360degrees
ILLUMINATOR
IR LED	Quantity: 4
	Range: 65.62 ft (20 m)
	Wavelength: 850 nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	3840x2160
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	848x480,704x576, 640x480, 640x360,352x288, 320x240
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 8 Mbps
	Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings	Mirror
	Brightness
	Contrast
	Saturation
	Sharpness
	Exposure
	WDR
	White Balance
	Prevent Overexposure to Infrared Light
	HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	4 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Built-in Microphone
	Audio In Interface
Audio Output	Built-in Speaker
	Audio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	Intrusion Detection
	Line-Crossing Detection
	Region Entering Detection
	Region Exiting Detection
	Object Abandoned Detection
	Object Removal Detection
	Loitering Detection
	People Detection
	Vehicle Detection
	Abnormal Sound Detection
	Scene Change Detection
Basic Event	Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
	Video Tampering Detection
	Exception ( Illegal Login)
	Alarm Input Device
Alarm Linkage	Memory Card Video Recording
	Upload to FTP Server
	Alarm Output Device
	Push Notifications
	Send to Alarm Server
	Active Defence-Sound Alarm
	Active Defence-Light Alarm
	Email Alarm
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In, 1 Alarm Out
	Red-Blue Warning Lights
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
Built-in Microphone	Yes , Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	1 Audio In, 1 Audio Out
GENERAL
Operating Temperature	-30 to 60 degreesC
Storage Temperature	-40 degreesC to 60 degreesC
Operating Humidity	95% or Less (Non-condensing)
Storage Humidity	95% or Less (Non-condensing)
Package Content	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Material	Metal
Net Weight	0.76 Kg
Power Supply	12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug
	PoE: 802.3at, class 4, Max. 21 W
Protection	IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	4.4 x 4.4 x 4.3 in (112.3 x 112.3 x 110.2 mm)
Certifications	CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
