InSight-S245ZI

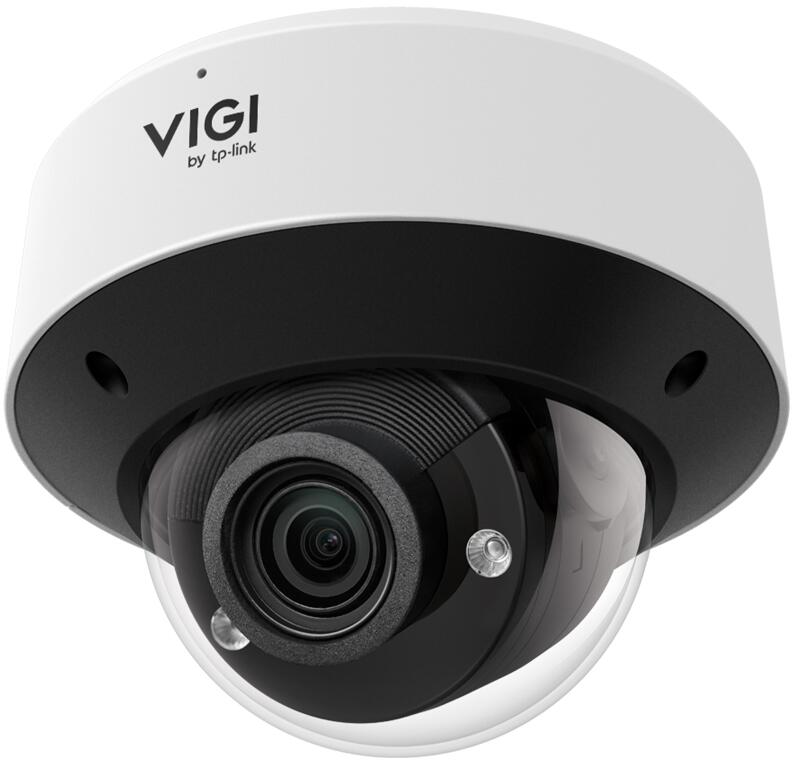

TP-Link Vigi InSight S245zi 4MP 5x Zoom Varifocal Dome Camera with 2.7 - 13.5 mm lens

TP-Link Vigi InSight S245zi 4MP 5x Zoom Varifocal Dome Camera, Motorized Varifocal Lens 2.7 - 13.5 mm, 2688x1520 maximum Resolution, IR Light 60m range, H.265+ / H.265 / H.264+ / H.264 Video Compression, BLC / 3D DNR / HLC / SmartIR, 120 dB wide Dynamic range, 1 region ROI, Two-Way Audio, 3 Main streams & 3 Sub-Streams simultaneous live View, People detection, Vehicle Detection, Motion Detection, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port, 1 Alarm in, 1 Alarm out, Support MicroSD card up to 512 GB, Built-In Microphone, Built-In Speaker, 1x audio in, 1x audio out

Overview:

TP-Link Vigi InSight S245zi 4MP Motorized Varifocal Dome Camera: Premium Surveillance Solution
The TP-Link Vigi InSight S245zi is a high-performance 4MP motorized varifocal dome camera designed for superior security monitoring. This advanced camera combines 5X optical zoom, exceptional resolution, and cutting-edge video enhancement technology to deliver clear, detailed surveillance footage. Built to withstand challenging environments, it features weatherproof and vandal-proof construction, making it an ideal choice for both indoor and outdoor security needs.

Key Highlights:

• 5X Optical Zoom for flexible monitoring and easy installation
• 4MP Super HD Resolution ensures crystal-clear imaging
• 60m IR Range for reliable night-time surveillance
• Human & Vehicle Detection for accurate event notifications
• Smart Video Enhancement technologies for superior image quality
• IP67 Weatherproof & IK10 Vandal-Proof for durability in all conditions
• H.265+ Compression for efficient storage and bandwidth management

Description:

The TP-Link Vigi InSight S245zi is an innovative surveillance camera that combines powerful video capabilities with easy-to-use features. With its 4MP resolution, 5X optical zoom, and advanced night vision, this camera is perfect for monitoring both residential and commercial properties. Equipped with smart detection features like human and vehicle classification, it ensures more accurate notifications, reducing false alarms. Its robust design, IP67 weatherproof rating, and IK10 vandal-proof protection make it a reliable choice for any environment.

The camera's H.265+ video compression technology maximizes storage efficiency, allowing for extended recording without sacrificing video quality. Whether you're protecting your property during the day or night, the TP-Link Vigi InSight S245zi is an excellent choice for those seeking high-definition, reliable surveillance.

Features:

Advanced Zoom and Clear Imaging for Every Situation

• 5X Optical Zoom : This motorized varifocal lens allows you to zoom in with exceptional clarity, making it easier to focus on specific areas of interest.
• High-Definition 4MP Resolution : Experience detailed video footage with 2688x1520 resolution, capturing every important detail with outstanding clarity.
• 60m IR Night Vision : The camera provides excellent night vision with a 60-meter infrared range, ensuring visibility in low-light environments.

Smart Detection and Event Management

• Human & Vehicle Classification : Advanced detection technology differentiates between humans and vehicles, reducing unnecessary alerts and improving event accuracy.
• Smart Video Enhancement : This includes True WDR (Wide Dynamic Range), which helps balance lighting in high-contrast environments, and Smart IR, which optimizes infrared lighting for clearer night-time footage.
• 3D DNR (Dynamic Noise Reduction) : This feature reduces noise in your footage, ensuring that important details remain clear even in low-light conditions.

Durable and Secure for Outdoor Use

• IP67 Weatherproof Rating : The camera is fully protected against dust and water, making it perfect for use in all weather conditions.
• IK10 Vandal-Proof Protection : Built to withstand impacts and tampering, this camera is ideal for areas prone to vandalism.

Efficient Storage with H.265+ Compression

• H.265+ Video Compression : Reduces bandwidth and storage requirements by up to 57.5% compared to traditional H.264, helping you save valuable storage space without compromising on video quality.

Additional Features for Enhanced Performance:

• Two-Way Audio : Communicate through the camera using the built-in microphone and speaker for real-time interaction.
• Flexible Alarm Integration : Easily integrate alarm systems for added security and timely alerts.
• MicroSD Card Support : The camera supports up to 512GB of local storage for video recording, reducing the need for external storage devices.

Whether you're securing a business, home, or large property, the TP-Link Vigi InSight S245zi offers the perfect blend of performance, reliability, and ease of use. With its advanced detection capabilities, clear high-definition video, and durable construction, it stands out as a top choice for effective surveillance.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	InSight-S245ZI
CAMERA
Image Sensor	1/2.9" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux , 0 Lux with IR Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/Scheduled/Auto
LENS
Type	Motorized Varifocal Lens
Focal Length	2.7-13.5 mm (5X Optical Zoom)
Aperture	F1.6
FOV	2.7-13.5 mm:
	Horizontal FOV: 29.6degrees-102.0degrees
	Vertical FOV: 16.8degrees-53.8degrees
	Diagonal FOV: 34.1degrees-122.8degrees
Lens Mount	Ø14
DORI Distance	2.7-13.5 mm:
	Detect: 203-656 ft (62-200 m)
	Observe: 89-276 ft (27-84 m)
	Recognize: 43-131 ft (13-40 m)
	Identify: 23-69 ft (7-21 m)
Angle Adjustment (Manual)
Range	Pan: 0degrees to 350degrees, Tilt: 0degrees to 75degrees, Rotate: 0degrees to 344degrees
ILLUMINATOR
IR LED	Quantity: 4
	Range: 197 ft (60 m)*1
	Wavelength: 850 nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2688x1520
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps
	Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings	Mirror
	Brightness
	Contrast
	Saturation
	Sharpness
	Exposure
	WDR
	White Balance
	Prevent Overexposure to Infrared Light
	HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	Intrusion Detection
	Line-Crossing Detection
	Region Entering Detection
	Region Exiting Detection
	Object Abandoned Detection
	Object Removal Detection
	Loitering Detection
	People Detection
	Vehicle Detection
	Abnormal Sound Detection
	Scene Change Detection
Basic Event	Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
	Video Tampering Detection
	Exception ( Illegal Login)
	Alarm Input Device
Alarm Linkage	Memory Card Video Recording
	Push Notifications
	Active Defence-Sound Alarm
	Email Alarm
	Upload to FTP Server
	Alarm Output Device
	Send to Alarm Server
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In, 1 Alarm Out
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support microSD Card, up to 512 GB*3
Built-in Microphone	Yes , Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	N/A
Audio	1 Audio In, 1 Audio Out
GENERAL
Operating Temperature	-30degreesC to 60 degreesC
Storage Temperature	-40degreesC to 60 degreesC
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Material	Metal
Net Weight	0.775 Kg
Power Supply	12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug
	PoE: 802.3af/at, class 0, Max.12 W
Protection	IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	Ø5.1 x 4.0 in (Ø129.9 x 102.5 mm)
Certifications	CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10
