InSight-S245-2.8mm

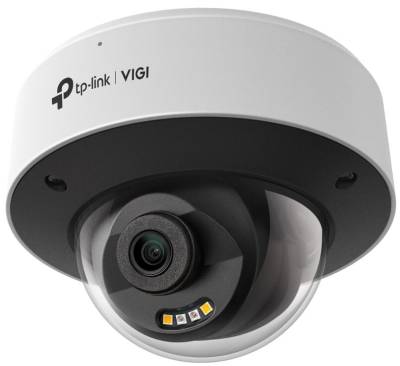

TP-Link Vigi InSight S245 4MP Full-colour Dome Camera with 2.8mm Lens

TP-Link Vigi InSight S245 4MP Full-colour Dome Camera with 2.8mm Lens, IR LED & White LED up to 30m, 2688x1520 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, BLC / 3D DNR / HLC / Smart IR, 120 dB wide Dynamic range, 1 region ROI, Two-Way Audio, 3 Main streams & 3 Sub-Streams simultaneous live View, People detection, Vehicle Detection, Motion Detection, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port, Support MicroSD card up to 512 GB, Built-In Microphone, Built-In Speaker

Overview:

TP-Link Vigi InSight S245 4MP Full-Color Dome Camera: Unmatched Clarity and Intelligence
The TP-Link Vigi InSight S245 4MP Full-Color Dome Camera is designed to provide superior security with enhanced image clarity and advanced smart detection capabilities. Ideal for surveillance applications, this camera delivers high-definition, full-color footage around the clock. With advanced analytics for people and vehicle detection, along with features like active defense and two-way audio, the Vigi InSight S245 ensures both security and peace of mind.

Description:

This 4MP Full-Color Dome Network Camera captures crystal-clear images in all lighting conditions, thanks to its cutting-edge smart video enhancement technologies. With people and vehicle analytics, you can quickly locate and review specific events. It's built to withstand harsh environments with an IP67 waterproof rating and IK10 vandal-proof design, making it a reliable solution for both indoor and outdoor use. Furthermore, its H.265+ video compression technology reduces storage requirements without compromising image quality.

Features:

Key Benefits of the TP-Link Vigi InSight S245 Camera

• Stunning 4MP Full-Color Imaging: Capture high-resolution, vibrant footage 24/7 with the camera's Full-Color functionality, ensuring you don't miss any important details, even in low light.
• People & Vehicle Analytics: Advanced motion detection tools classify people and vehicles, allowing for faster, more accurate searches after events.
• True WDR for Clear Images in Any Lighting: True Wide Dynamic Range ensures a balanced image, even in environments with both bright and dark spots.
• Smart IR & 3D DNR for Enhanced Night Vision: Smart IR adjusts infrared lighting based on distance, while 3D DNR reduces noise in low-light conditions to keep your footage clear and crisp.
• Built-In Audio & Active Defense: Equipped with a built-in microphone and speaker, the camera supports two-way audio, allowing for direct communication and proactive security measures.
• Durability and Protection: With IP67 waterproofing and IK10 vandal-proof protection, the camera can handle harsh weather and tampering attempts, ensuring long-lasting performance.
• Efficient H.265+ Compression Technology: Reduce storage needs by up to 57.5% with H.265+ compression, without sacrificing video quality.

Enhanced Video Technology for Optimal Performance
The Vigi InSight S245 integrates several advanced technologies that significantly improve video quality and performance.

• True WDR (Wide Dynamic Range): By processing various exposure levels, True WDR ensures that both highlights and shadows in high-contrast lighting are visible.
• Smart IR: Automatically adjusts infrared lighting to prevent overexposure, enhancing visibility during the night.
• 3D DNR (Digital Noise Reduction): This technology eliminates digital noise, preserving crucial image details while improving overall image quality.
• White Balance: Automatically adjusts color temperature, ensuring that white objects appear as natural white, no matter the lighting conditions.

Simplified Storage and Bandwidth Management
With the advanced H.265+ compression technology, this camera reduces bandwidth and storage requirements while maintaining exceptional video quality. Compared to traditional H.264, the H.265+ format saves an impressive 57.5% of storage space, making it perfect for users looking to store more video footage without compromising quality.

Reliable Performance, Day and Night
Whether you're monitoring a busy street or the interior of your home, the TP-Link Vigi InSight S245 ensures that you're always getting clear, actionable footage. Its advanced analytics and smart video enhancements make it easy to find what you're looking for, while its durable design ensures the camera performs reliably in any environment.

Key Features at a Glance:

• 4MP Full-Color, High Definition Imaging
• People and Vehicle Detection Analytics
• True WDR and Smart IR for Superior Image Quality
• 3D DNR for Reduced Noise in Low-Light Conditions
• Two-Way Audio for Communication and Active Defense
• IP67 Waterproof and IK10 Vandal-Proof Protection
• H.265+ Video Compression for Efficient Storage
• Built-In Microphone and Speaker for Enhanced Security

Conclusion:
The TP-Link Vigi InSight S245 Dome Camera is an intelligent, high-performance surveillance solution that delivers exceptional image quality, even in challenging lighting. Whether you're enhancing your home security system or outfitting a business, the Vigi InSight S245 provides the advanced features, durability, and ease of use you need for effective, around-the-clock surveillance.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	InSight-S245-2.8mm
CAMERA
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux , 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm / 4 mm
Aperture	F1.6
FOV	2.8 mm:
	Horizontal FOV: 110degrees, Vertical FOV: 58.1degrees, Diagonal FOV: 133.5degrees
	4 mm:
	Horizontal FOV: 88degrees, Vertical FOV: 46degrees, Diagonal FOV: 105.4degrees
Lens Mount	M12*P 0.5
DORI Distance	2.8 mm
	Detect: 64 m (210 ft)
	Observe: 27 m (89 ft)
	Recognize: 13 m (43 ft)
	Identify: 6 m (20 ft)
	4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (108 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	Pan: 0degrees to 346degrees, Tilt: 0degrees to 75degrees, Rotation: 0degrees to 355degrees
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 2
	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2688 x 1520
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	848x480, 704x576, 640x480, 640x360, 352x288, 320x240
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror
	Brightness
	Contrast
	Saturation
	Sharpness
	Exposure
	WDR
	White Balance
	Prevent Overexposure to Infrared Light
	HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/Smart IR
Wide Dynamic Range	120 dB
	Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, Utility
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	Intrusion Detection
	Line-Crossing Detection
	Region Entering Detection
	Region Exiting Detection
	Object Abandoned Detection
	Object Removal Detection
	Loitering Detection
	People Detection
	Vehicle Detection
	Abnormal Sound Detection
	Scene Change Detection
Basic Event	Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
	Camera Tampering
	Exception (Illegal Login)
Alarm Linkage	Memory Card Video Recording
	Message Push
	Audible Warning
	White Light Flashing
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§
Built-in Microphone	Yes , Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30-60 degreesC
Storage Temperature	-40-60 degreesC
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Material	Metal
Net Weight	0.62 Kg
Power Supply	12V DC ± 5%, Max. 10.54 W, 5.5 mm Coaxial Power Plug
	PoE: 802.3af/at, class 0, Max. 12.52 W
Protection	IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	4.80 x 4.80 x 3.50 in (122 x 122 x 89 mm)
Certifications	CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
