iDS-TCM403-BI(G)/POE/1050

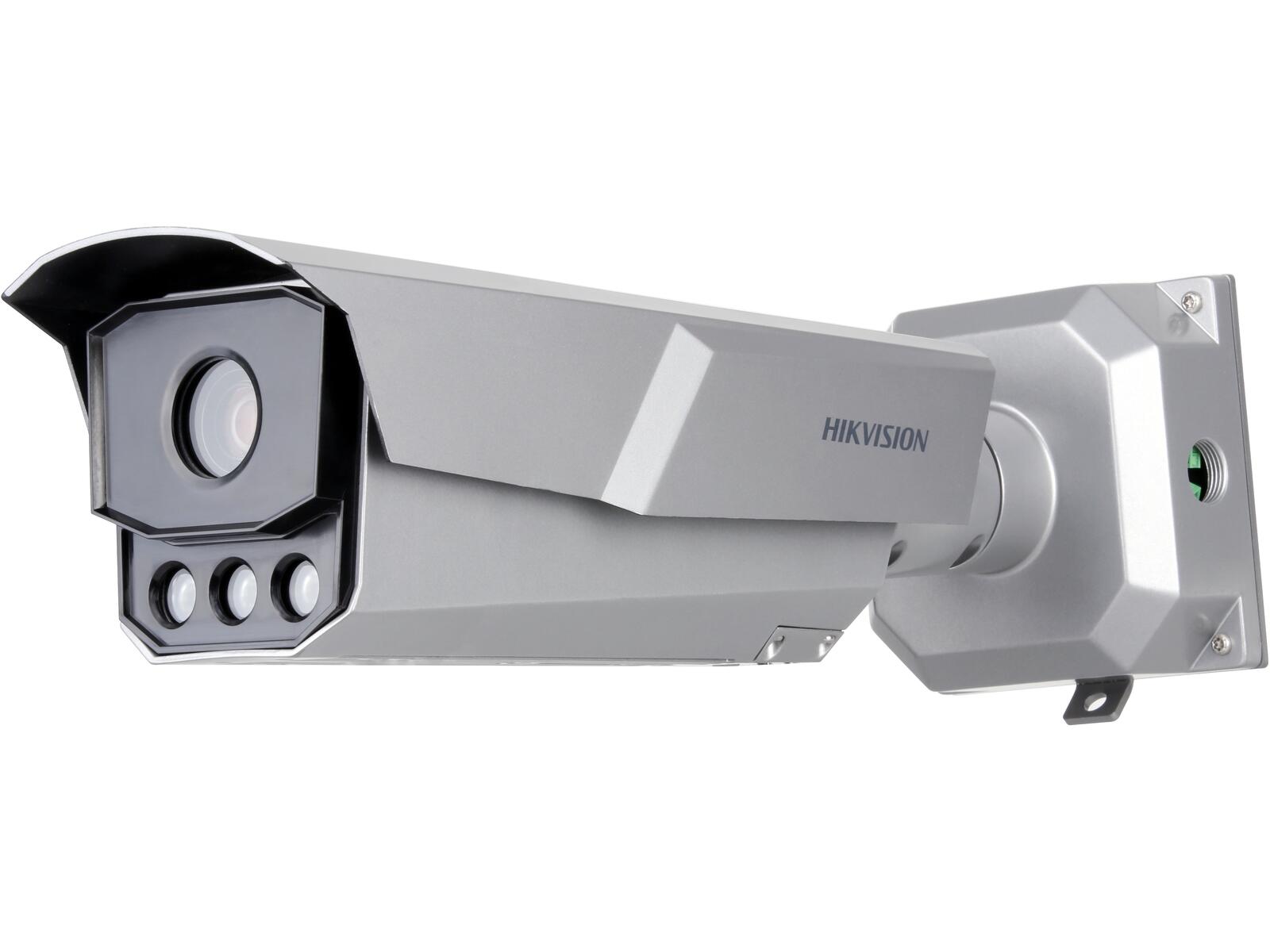

Hikvision 4MP IR ANPR Smart traffic monitoring camera with 10-50mm Lens

Hikvision 4MP IR ANPR Smart traffic monitoring camera with 10-50mm Lens, 2688x1520 maximum Resolution, Auto Focus, DC-IRIS Iris Type, IR Light up to 50 m, H.265 / H.264 / MJPEG Video Compression, Up to 6 channels simultaneous live View, LTE Mobile communication, Micro SIM Card Type, 140 dB wide Dynamic range (WDR), BLC, 3D DNR, GPS Satellite positioning, 1x RJ45 10M/100M/1000M Ethernet Interface, Built-In Memory card slot, 1 Input Interface & 1 Output Interface & 2 relays Alarm, 1x RS-485 Interface, 1 Wiegand, Up to 3 lane(s) coverage, License plate detection

Overview:

4MP ANPR smart traffic monitoring camera for advanced road surveillance
The iDS-TCM403-BI 4 MP IR ANPR Smart Monitoring Camera 4 MP IR ANPR Smart Monitoring Camera High quality imaging with 4 MP resolution (1/1.8 inch CMOS), clear imaging against strong back light due to 140 dB WDR technology, built-in ANPR engine equipped with AI algorithm, efficient H.265 compression technology, water and dust resistant (IP67 ) and vandal proof (IK10)

Description:

This Hikvision ANPR traffic monitoring camera is designed for intelligent road surveillance, combining high resolution imaging, AI based license plate recognition, and multi-lane vehicle tracking. It delivers reliable performance in demanding outdoor environments, supporting continuous monitoring of traffic flow, enforcement scenarios, and security operations. The system is built for accuracy, speed, and long range vehicle detection with strong low-light capability and advanced image processing.

Features:

High resolution imaging and low light performance
This model uses a 1/1.8 inch progressive scan CMOS sensor to deliver crisp 4 MP video output up to 2688 x 1520 resolution. It performs reliably in extremely low illumination conditions with color sensitivity down to 0.0005 lux and black and white down to 0.0001 lux, with infrared enabling zero light operation.

Key imaging points include

• 140 dB wide dynamic range for strong backlight scenes
• 3D digital noise reduction for clearer night imaging
• Auto day and night switching with IR cut filter
• Adjustable image parameters including brightness, contrast, saturation, and sharpness

Lens flexibility and optical control
The camera supports multiple lens configurations, with the 10-50 mm option providing narrow, long-range coverage suitable for multi-lane highways and toll environments. Autofocus and DC iris control ensure stable image clarity across varying lighting conditions.

Lens characteristics (10-50 mm model)

• Horizontal field of view: 32.2 to 7.8 degrees
• Vertical field of view: 18.1 to 4.4 degrees
• Diagonal field of view: 37.1 to 8.95 degrees
• F1.7 aperture for improved low-light capture

AI powered ANPR and traffic intelligence
The integrated ANPR engine enables high-accuracy license plate recognition with AI based processing designed for real-time enforcement and traffic analytics. The system supports multi-lane coverage and can identify vehicle details across a wide range of conditions.

Part number / SKU: iDS-TCM403-BI(G)/POE/1050

Detection capabilities include

• License plate recognition accuracy above 98 percent under recommended conditions
• Vehicle direction recognition accuracy above 98.5 percent
• Capture rate above 99 percent
• Speed detection range from 5 km/h to 120 km/h
• Support for up to 3 traffic lanes

Additional intelligent functions

• Vehicle type classification including cars, buses, trucks, SUVs, motorcycles, and more
• Vehicle color recognition during daytime conditions
• Incident detection such as speeding, congestion, stopped vehicles, wrong-way driving, and lane changes
• Helmet detection and manned or unmanned vehicle classification

Video encoding and streaming efficiency
The system supports advanced compression formats to reduce bandwidth while maintaining image quality, making it suitable for large scale deployments.

Supported formats include

• H.264 and H.265 encoding
• MJPEG for compatibility
• Bit rate range from 32 Kbps to 16 Mbps
• Up to 3 video streams for flexible monitoring
• Simultaneous live view of up to 6 channels

Connectivity and communication options
This camera is equipped with multiple connectivity methods to support integrated traffic and security systems.

Communication interfaces include

• 1 RJ45 Ethernet port supporting 10M, 100M, and 1000M speeds
• LTE mobile communication with micro SIM support (G model)
• GPS satellite positioning for location tracking
• RS-485 interface for external device integration
• Wiegand interface for access and card systems

Supported network protocols include TCP/IP, HTTPS, FTP, DNS, RTSP, SNMP, IPv6, QoS, and more for secure and flexible integration.

Storage and system integration
The camera supports flexible storage and system connectivity for enterprise environments.

• Built-in microSD card slot supporting up to 512 GB
• Compatible with NVR, CVR, and ANR recording systems
• Supports Hik-Central Master and Hik-Central Pro platforms
• ONVIF compliance for third-party integration
• Up to 32 user accounts with multi-level access control

Traffic monitoring and analytics performance
Designed for intelligent transport systems, the camera provides detailed traffic insights and enforcement support.

Traffic data analysis includes

• Average speed monitoring
• Traffic flow measurement
• Queue length estimation
• Real-time congestion detection

Incident detection capabilities

• Stopped vehicle alerts
• Lane violation detection
• Wrong-way driving alerts
• Speeding and low-speed detection

Durability and installation suitability
The housing is constructed from aluminum alloy for long-term outdoor use in harsh environments. It is rated IP67 for water and dust resistance and IK10 for vandal resistance, making it suitable for highways, urban roads, and critical infrastructure.

Environmental tolerance

• Operating temperature from -30 to 70 degrees C
• Humidity tolerance up to 95 percent non-condensing

Technical specifications summary:

• Sensor: 1/1.8 inch progressive scan CMOS
• Max resolution: 2688 x 1520
• IR range: up to 50 meters
• Shutter speed: 1/50 s to 1/40,000 s
• Power: DC 12 to 24 V or PoE 802.3at Class 4
• Maximum power consumption: 15 W
• Dimensions: 428.5 mm x 120 mm x 132.8 mm
• Weight: approximately 2.975 kg

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	iDS-TCM403-BI(G)/POE/1050
Camera
Image Sensor	1/1.8" progressive scan CMOS
Max. Resolution	2688 x 1520
Min. Illumination	Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	1/50 s to 1 / 40,000 s
Day & Night	IR cut filter
Lens
Focal Length & FOV	2.8-12mm : Horizontal: 113.5degrees to 39degrees, Vertical: 58.4degrees to 22.7degrees, Diagonal: 141.3degrees to 44.3degrees
	8-32mm : Horizontal: 41.9degrees to 15.1degreesdegrees, Vertical: 22.9degrees to 8.64degrees, Diagonal: 48.8degrees to 17.3degrees
	10-50mm: Horizontal: 32.2degrees to 7.8degreesdegrees, Vertical: 18.1degrees to 4.4degrees, Diagonal: 37.1degrees to 8.95degrees
Focus	Auto
Iris Type	DC-IRIS
Aperture	2.8-12mm : F1.38
	8-32mm : F1.7
	10-50mm : F1.7
Illuminator
Built-in Supplement Light Type	IR light
Supplement Light Number	3
Built-in Supplement Light Range	Up to 50 m
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720, 704 x 576, 352 x 288)
	60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720, 704 x 576, 352 x 288)
Sub-Stream	50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 352 x 288)
	60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 576, 352 x 288)
Third Stream	50 Hz: 25 fps (1280 x 720, 704 x 576, 352 x 288)
	60 Hz: 30 fps (1280 x 720, 704 x 576, 352 x 288)
Video Compression	H.264 and H.265 encoding
	Main stream: H.265/H.264/MJPEG
	Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile / Main Profile / High Profile
H.265 Type	Main profile
Audio
Audio Compression	G.711/G.722.1
Audio Bit Rate	8Kbps (G.711) /16Kbps (G.722.1)
Network
Protocols	TCP / IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, QoS, IPv4 / IPv6, UDP, SSL / TLS, ISUP, ARP, 802.1X
Simultaneous Live View	Up to 6 channels
API	ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
User/Host	Up to 32 users
	3 user levels: administrator, operator, and user
Security	Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2, 1.3,Host authentication (MAC address)
Network Storage	Micro SD/TF card (512 GB), local storage and CVR, NVR, ANR
Client	Hik-Central Master,Hik-Central Pro
Web Browser	Chrome V61+, IE9 to IE11, Firefox V41+, Edge
Wireless (Mobile Communication)
Frequency	/G model:
	LTE FDD: Band 1,2,3,4,5,7,8,12,17,28,66
	LTE TDD: Band 38,40
	WCDMA/HSPA+: Band 1,2,3,4,5,8
	GSM / GPRS / EDGE: 850 / 900 / 1800 / 1900MHz
Standard	/ G model: LTE FDD / LTE TDD / WCDMA / HSPA+ / GSM / GPRS / EDGE
SIM Card Type	/G model: Micro SIM
Image Settings	Saturation,Brightness,Contrast,Gain,Sharpness,White balance,AGC,Adjustable by client software or web browser.
Day/Night Switch	Auto/Scheduled/Manual
Wide Dynamic Range (WDR)	140 dB
Image Enhancement	BLC, 3D DNR
Supplement Detection (Satellite Positioning)
Satellite Positioning	/G model: GPS
Interface
Ethernet Interface	1 RJ45 10M/100M/1000M Ethernet interface
On-Board Storage	Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
Audio	Supported
Alarm	1 input interface, 1 output interface, 2 relays
RS-485	1 RS-485 interface
Wiegand	1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
Event
Basic Event	HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception
Road Traffic and Vehicle Detection
Coverage	Up to 3 lane(s)
Smart Function	Helmet Detection, Manned Non-Motor
	Traffic flow detection : average speed, traffic flow, queuing length, and traffic status
	Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving
LPR Countries/Regions	Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain
	Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria
	Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka
	America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala
	Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina
	Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
Accuracy (Under recommended installation and lighting conditions)	Capture rate > 99%
	Vehicle moving direction recognition accuracy > 98.5%
	LPR accuracy > 98%
	Mistaken capture rate < 2%
No License Plate Detection	Supported
Motorcycle LPR	Supported
Vehicle Type	Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle
Vehicle Color	Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black
	Recognizable at daytime only.
Vehicle Manufacturer	212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
Capture Speed Range	5 to 120 km/h
Blocklist and Allowlist	Max. 50000 records
General
Operating System	Linux
Power	DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block
	PoE: 802.3at, Type 2, Class 4, max. 15 W
Material	Aluminum alloy
Dimension	428.5 mm x 120 mm x 132.8 mm (16.9" x 4.72" x 5.2") (L x W x H)
Package Dimension	595 mm x 259 mm x 193 mm (23.4" x 10.2" x 7.6") (L x W x H)
Weight	Approx. 2.975 kg (6.56 lb.)
With Package Weight	Approx. 4.385 kg (9.67 lb.)
Operating Condition	-30 degreesC to 70 degreesC (-22 degreesF to 158 degreesF). Humidity 95% or less (non-condensing)
Storage Condition	-30 degreesC to 70 degreesC (-22 degreesF to 158 degreesF). Humidity 95% or less (non-condensing)
General Function	One-key reset, three streams, heartbeat, password protection, watermark
Language	8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
Approval
RF	EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1, EN 301 511 V12.5.1, EN 301 908-2 V13.1.1, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, EN 303 413 V1.2.1, EN IEC 62311:2020
EMC	CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
Safety	CB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
Protection	IK10: IEC 62262:2002,IP67: IEC 60529-2013
Anti-Corrosion Protection	-Y: NEMA 4X (NEMA 250-2018)
