DS-2DE2C400IWG-K/4G/C05S10(4mm)

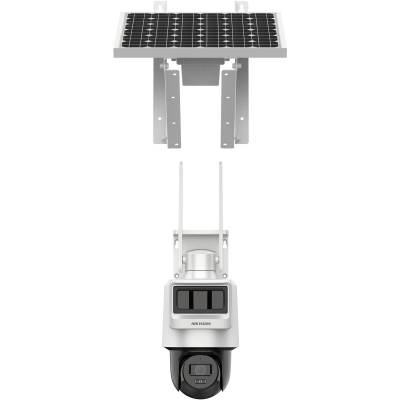

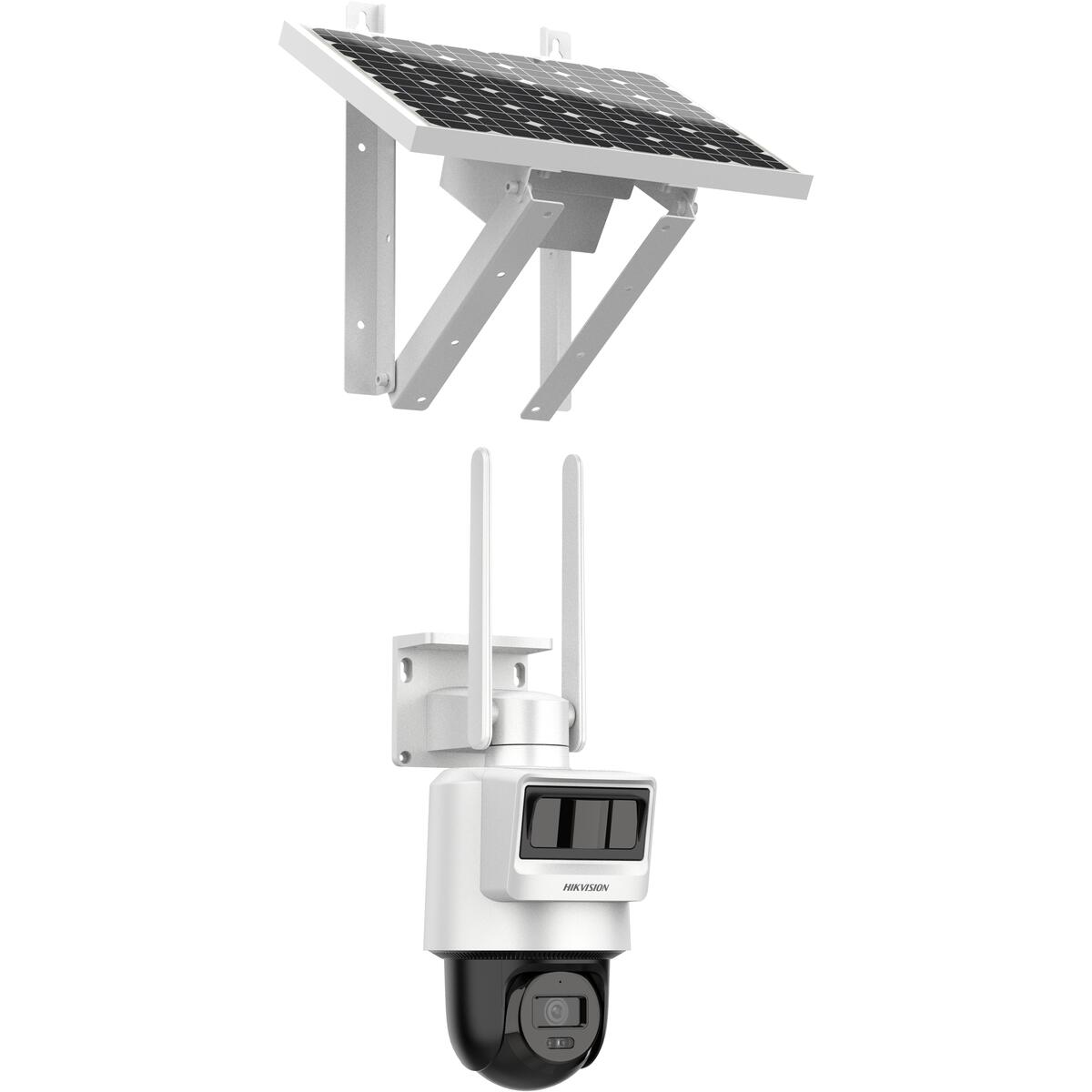

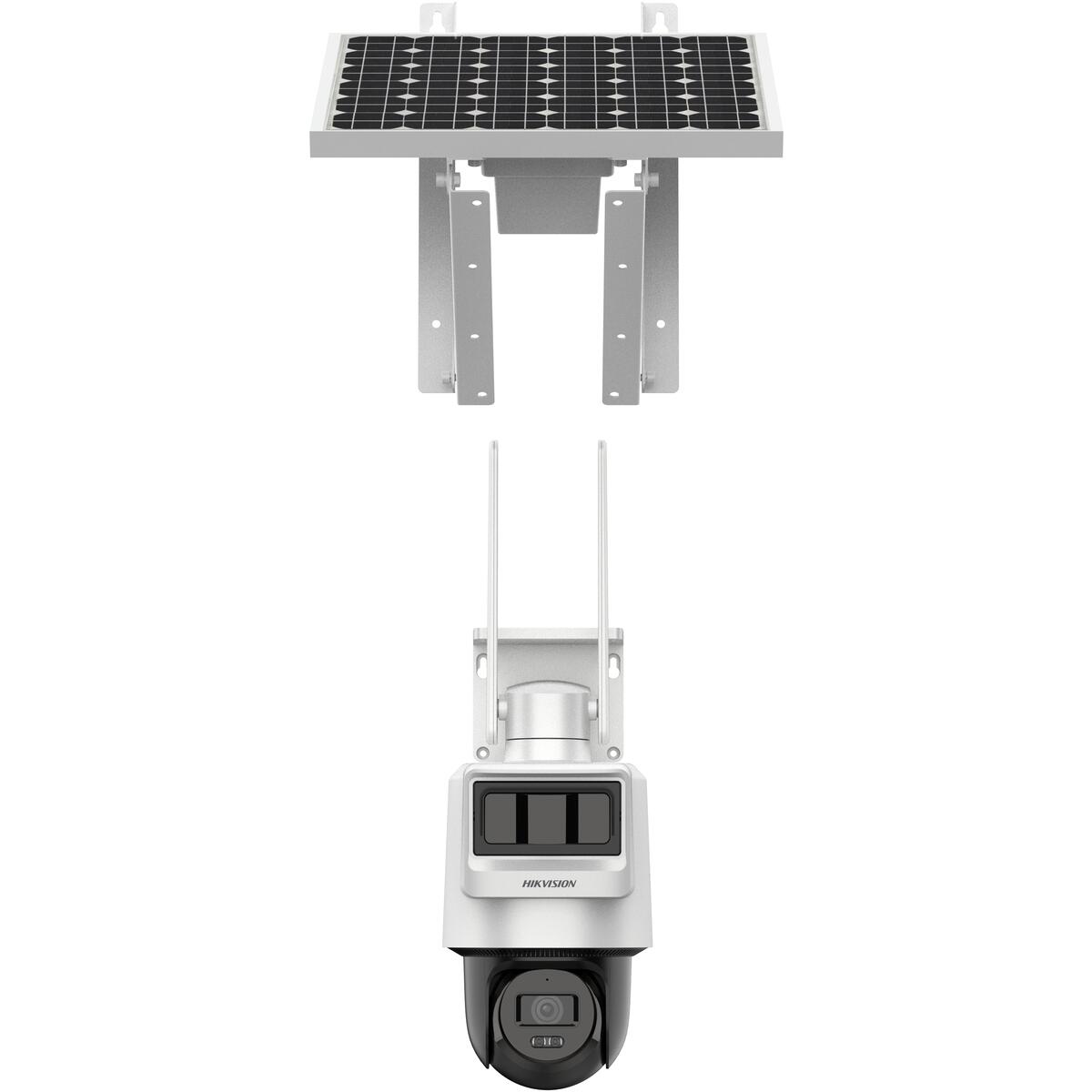

Hikvision 4MP Pro Solar-powered Security PT camera setup with 4mm Lens, LTE

Hikvision 4MP Pro Solar-powered Security PT camera setup with 4mm Lens, 2560x1440 maximum Resolution, Up to 30m IR Light, H.265 / H.264 Video Compression, 1 fixed region for Main Stream region of interest (ROI), Mono Sound, Up to 6 channels simultaneous live View, LTE, Nano SIM, Digital WDR, BLC, HLC, 3D DNR, PIR + radar transducer Type, Up to 12 m detection range, 1x RJ45 10M/100M Self-Adaptive Ethernet Port, Built-In Memory card slot, 1 Built-In Microphone, 1 Built-In Speaker, Ternary Lithium Battery Type, 27 hours cycle lifetime, More than 800 cycles Battery Life

Overview:

Hikvision 4MP Solar Powered PT Security Camera with 4G Connectivity
The DS-2DE2C400IWG-K/4G/C05S10(4mm) is a self-sufficient outdoor security solution designed for locations where power and wired internet are limited or unavailable. Combining solar charging, built-in battery storage, and LTE connectivity, this camera delivers continuous monitoring without the need for complex infrastructure. With 4MP resolution and a wide field of view, it captures detailed footage day and night, supported by infrared illumination up to 30 meters.

Its pan and tilt functionality enhances coverage, allowing flexible positioning and remote control, while intelligent detection powered by PIR and radar technology improves accuracy and reduces false alarms. Two-way audio adds another layer of interaction, making it suitable for remote monitoring, deterrence, and communication in real time.

Description:

This solar powered PT camera provides a practical surveillance solution for remote or off-grid environments. It combines high-resolution imaging, 4G LTE connectivity, and intelligent motion detection with a durable, weather-resistant design. The integrated battery and solar panel support continuous operation, while pan and tilt movement expands coverage without requiring multiple cameras. Built-in audio, onboard storage, and smart detection ensure reliable monitoring with minimal maintenance, making it suitable for farms, construction sites, perimeter security, and temporary installations.

Features:

Key Advantages for Remote Surveillance
Designed to operate independently of traditional power and network setups, this unit is ideal for challenging environments. Its LTE support allows live viewing and alerts from virtually anywhere, while the onboard storage ensures footage is retained even without constant connectivity.

• Solar powered operation with integrated lithium battery for extended uptime
• 4G LTE support using Nano SIM for remote access and monitoring
• Pan range up to 340 degrees and tilt up to 80 degrees for wide area coverage
• PIR and radar dual detection for improved motion accuracy
• Built-in microphone and speaker for two-way communication
• Weather resistant housing suitable for outdoor deployment

Imaging and Video Performance
The 4MP sensor captures clear and detailed footage at a maximum resolution of 2560 x 1440. Low-light performance is enhanced by IR illumination, enabling visibility in complete darkness up to 30 meters. Digital WDR and image enhancement technologies help balance lighting conditions and maintain clarity in high-contrast scenes.

• Resolution up to 2560 x 1440
• IR night vision range up to 30 m
• H.265 and H.264 compression for efficient storage and bandwidth use
• Adjustable image settings including brightness, contrast, and sharpness
• Frame rates up to 15 fps depending on frequency

Lens and Field of View
The included 4 mm lens offers a balanced field of view suitable for general surveillance applications, providing a clear perspective without excessive distortion.

• 4 mm focal length
• Horizontal field of view 70 degrees
• Vertical field of view 35 degrees
• Diagonal field of view 85 degrees

Smart Detection and Alerts
Equipped with dual sensing technology, the camera uses both PIR and radar to detect motion more accurately. This reduces false triggers caused by environmental factors such as wind or small animals.

• Detection range up to 12 meters
• Detection angle 80 degrees horizontal and 30 degrees vertical
• Configurable alerts and event triggers
• Supports recording, snapshots, and audible warnings

Audio and Communication
Two-way audio functionality allows direct interaction through the camera, useful for security warnings or communication with personnel on site.

• Built-in microphone and speaker
• Multiple audio compression formats supported
• Noise filtering for clearer sound capture

Connectivity and Storage Options
The device supports both wireless and wired networking, offering flexibility depending on deployment requirements.

• LTE connectivity via Nano SIM
• RJ45 Ethernet port for optional wired connection
• Supports up to 512 GB microSD storage
• Compatible with Hik-Connect and HikCentral platforms
• Up to 6 simultaneous live view channels

Power and Battery Performance
Engineered for efficiency, the camera operates on a ternary lithium battery supported by solar charging, reducing the need for manual intervention.

• Battery capacity of 50.76 Wh
• Up to 27 hours runtime per cycle without solar input
• More than 800 charge cycles
• Typical consumption around 1.85 W during operation

Environmental Durability
Built for outdoor use, the camera withstands harsh conditions while maintaining consistent performance.

• IP66 rated for water and dust resistance
• Operating temperature range from 0 C to 50 C
• Storage temperature range from -30 C to 60 C

Physical and Installation Details
The design supports flexible mounting and easy deployment across a variety of environments.

• Dimensions approximately 133.1 x 177.64 x 382.44 mm
• Lightweight construction using durable materials
• Includes reset key and multiple interface connectors

Model Reference and Identification
This unit is identified by Part Number DS-2DE2C400IWG-K/4G/C05S10(4mm), ensuring accurate ordering and compatibility within Hikvision solar-powered surveillance solutions.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-2DE2C400IWG-K/4G/C05S10(4mm)
Camera
Image Sensor	1/2.7" Progressive Scan CMOS
Max. Resolution	2560 x 1440
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time	1/3 s to 1 / 100,000 s
Day & Night	IR cut filter
Lens
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 94degrees, vertical FOV 49degrees, diagonal FOV 114degrees
	4 mm, horizontal FOV 70degrees, vertical FOV 35degrees, diagonal FOV 85degrees
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.6
PTZ
Movement Range (Pan)	0degrees to 340degrees
Movement Range (Tilt)	0degrees to 80degrees
Pan Speed	Up to 25degrees/s
Tilt Speed	Up to 25degrees/s
DORI
DORI	2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m
	4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 12.5 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
	60 Hz: 15 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream	50 Hz: 12.5 fps (1280 x 720, 640 x 480, 640 x 360)
	60 Hz: 15 fps (1280 x 720, 640 x 480, 640 x 360)
Video Compression	Main stream: H.265/H.264
	Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR,VBR
Region of Interest (ROI)	1 fixed region for main stream
Audio
Audio Type	Mono sound
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Audio Compression	G.722.1/G.711/MP2L2/PCM/G.726/AAC-LC
Audio Bit Rate	16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)
Network
API	ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
Security	Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, DHCP, IPv4
User/Host	Up to 32 users
	3 user levels: administrator, operator, and user
Client	Hik-Connect,HikCentral Professional, Hik-Partner Pro
Web Browser	Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+
Mobile Communication
Standard	LTE-FDD,LTE-TDD,UMTS
Frequency	EU:
	LTE-FDD: B1/3/5/7/8/20/28
	IN:
	LTE-FDD: B1/3/5/8
	LTE-TDD: B34/38/39/40/41
	LA:
	LTE-FDD: B2/3/4/5/7/8/28/66
	NA:
	LTE-FDD: B2/4/5/12/13/17/66/71
	UMTS: B2/4/5
Uplink and Downlink Data Rate	EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps
	IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps
	LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps
	NA: uplink: 50 Mbps, downlink: 150 Mbps
SIM Card Type	Nano SIM
Wide Dynamic Range (WDR)	Digital WDR
SNR	≥ 52 dB
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR
Image Settings	Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Transducer
Transducer Type	PIR + Radar
Detection Angle	Horizontal: 80degrees, vertical: 30degrees
Detection Range	Up to 12 m
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	1 built-in microphone
Built-in Speaker	1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset Key	Yes
Event
Basic Event	exception
Linkage	Upload to memory card, notify surveillance center, trigger recording, trigger capture, audible warning
General
Power	Power Consumption and Current:
	Typical power scenarios: 1.85 W (4G working)
	Standby scenarios: 80 mW
	Max. Power consumption: 7 W
	Power Supply: 12 VDC ± 25%
	*For debugging only
	10 W (deviation: ± 5%) Solar panels
	Power Interface:
	Power supply interface: four-core aviation connector
	Extened solar panel: four-core aviation connector
Dimension	133.1 mm x 177.64 mm x 382.44 mm/412.44 mm (5.24" x 6.99" x 15.06"/16.24")
Material	Plastic
Package Dimension	375 mm x 305 mm x 398 mm (14.76" x 12.01" x 15.67")
	Approx. 850 g (1.87 lb.)
With Package Weight	Approx. 5400 g (11.88 lb.)
Storage Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	0 degreesC to 50 degreesC (32 degreesF to 122 degreesF). Humidity 95% or less (non-condensing)
Language	English, Ukrainian
General Function	Heartbeat,anti-banding,mirror,password protection
Battery
Battery Type	Ternary Lithium
Cycle Lifetime	27 hours (1.85 W)
	Full charge battery runtime without solar input.
Battery Voltage	9 V to 12.6 V
Capacity	50.76 Wh
Max. Charging Voltage	12.6 V
Max. Output Voltage	12.6 V
Operating Temperature	Charging: 0 degreesC to 45 degreesC (32 degreesF to 113 degreesF)
	Discharging: -20 degreesC to 55 degreesC (-4 degreesF to 131 degreesF)
Battery Life	More than 800 cycles
Approval
RF	CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
	*CE certification is only for the device sold in the European region.
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
	IC: ICES-003: Issue 7
	KC: KN32: 2015, KN35: 2015
Safety	CB: IEC 62368-1: 2014+A11
	CE-LVD: EN 62368-1: 2014/A11: 2017
	BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment	CE-RoHS: 2011/65/EU
	WEEE: 2012/19/EU
	Reach: Regulation (EC) No 1907/2006
Protection	IP66: IEC 60529-2013
