HK-311327274

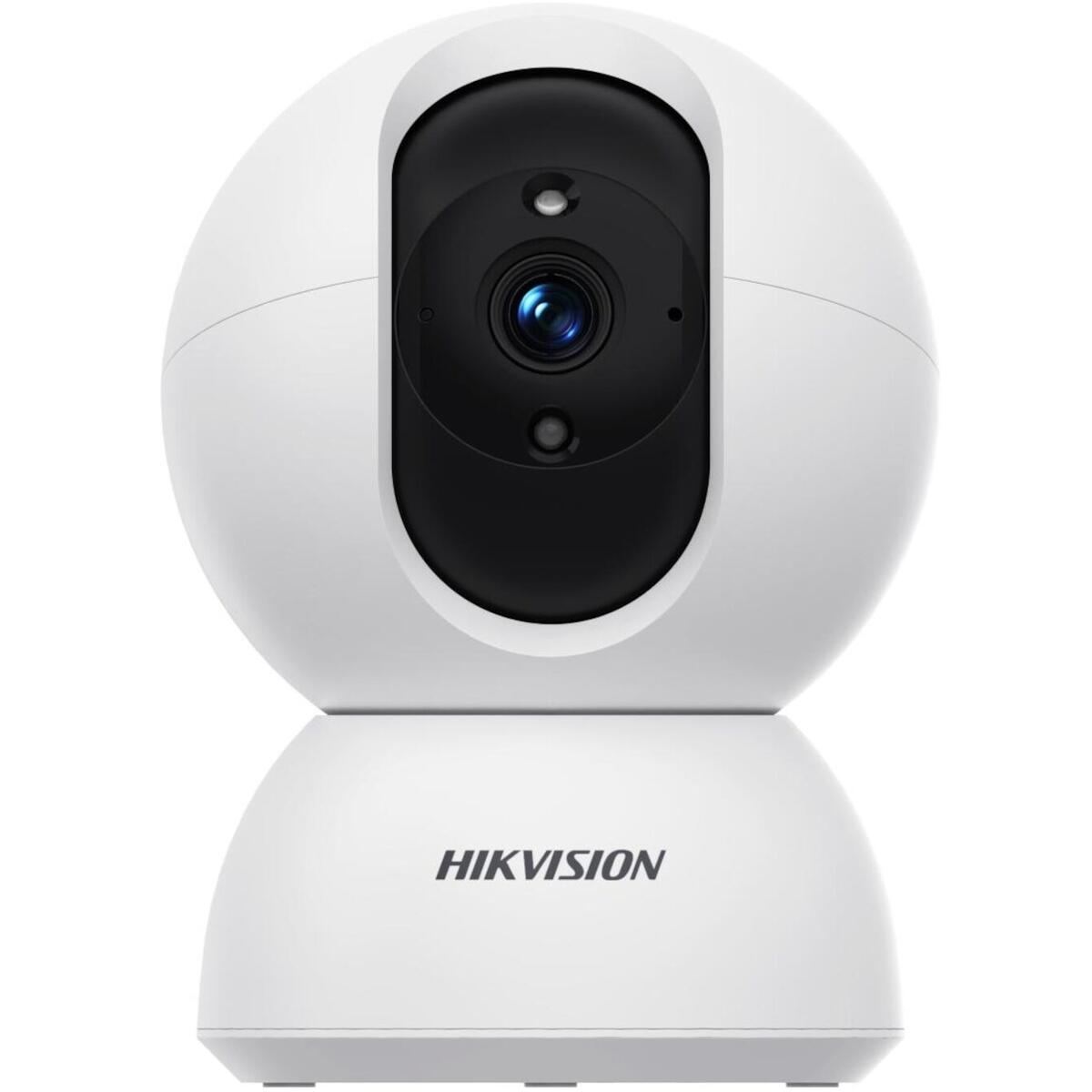

Hikvision 2MP PT Security IP Camera with 4mm Lens with WiFi

Hikvision 2MP PT Security IP Camera with 4mm Lens, 1920x1080 (2MP) maximum Resolution, IR up to 10 m, Main Stream H.265/H.264 Video Compression, Max 15 fps Frame rate, Up to 4 channels simultaneous live View, Wi-Fi 2.4GHz, Up to 50 m Wireless range, Digital WDR, Built-In Microphone, Built-In Speaker, 1x RJ45 10M/100M Self-Adaptive Ethernet Port, Motion Detection, DS-2CV2Q21G1-IDW(4mm)(W)(O-STD)/EU

Overview:

The Hikvision Network PT Security Camera, 4mm Lens, 2MP is a high-performance surveillance solution designed for homes, businesses, and professional security applications. With its 2MP resolution and EXIR 2.0 infrared technology, this camera provides crystal-clear imaging even in low-light conditions, ensuring 24/7 security monitoring.

This Wi-Fi-enabled camera offers seamless installation, eliminating the need for complex wiring. It features built-in two-way audio, allowing users to communicate in real time, making it ideal for home security, office surveillance, and retail monitoring. The H.265 compression technology ensures efficient storage management while maintaining superior image quality.

Built to withstand harsh environments, the IP66-rated weatherproof design protects against dust and water, making it suitable for indoor and outdoor installations. The adjustable pan, tilt, and rotation functions provide flexible positioning for maximum coverage. Additionally, the integrated microSD slot supports up to 512GB, allowing for extensive onboard video storage without the need for external storage devices.

With compatibility for Hik-Connect, iVMS-4200, and other major security platforms, users can remotely monitor live feeds, receive real-time alerts, and manage settings from anywhere. Whether for home protection, office security, or commercial surveillance, the Hikvision Network PT Security Camera, 4mm Lens, 2MP is an advanced surveillance solution designed for reliable monitoring and convenient remote access.

Description:

The Hikvision 2MP PT Security IP Camera combines Full HD video, Wi-Fi connectivity, infrared night vision and two-way audio in a compact pan and tilt security camera. Its 4mm lens provides a practical viewing angle for monitoring rooms, entrances, offices, retail spaces and other areas requiring dependable surveillance.

The camera supports H.265 and H.264 video compression to help reduce bandwidth and storage requirements while maintaining clear video quality. Wireless connectivity can simplify installation where running network cabling is inconvenient, while the RJ45 Ethernet port provides a wired network option when preferred.

For night-time monitoring, the integrated infrared illumination helps maintain visibility in low-light conditions. Motion detection can also assist with identifying activity and generating alerts, making the camera suitable for both routine monitoring and security-focused applications.

Two-way audio adds another layer of functionality, with a built-in microphone and speaker allowing users to listen and communicate remotely. The camera can also be managed through compatible Hikvision platforms, providing convenient access to live video and camera controls.

Features:

Key Highlights

• 2MP Full HD resolution with 1920 x 1080 maximum video resolution
• 4mm fixed lens for general-purpose surveillance
• PT functionality for flexible camera positioning and coverage
• EXIR 2.0 infrared night vision for low-light monitoring
• Infrared range of up to 30m as stated in the supplied product information
• 2.4GHz Wi-Fi connectivity with wireless range of up to 50m
• H.265 and H.264 video compression
• Digital WDR for improved image handling in challenging lighting
• Built-in microphone and speaker for two-way audio
• Motion detection with real-time alerts
• IP66-rated protection against dust and water
• MicroSD card support up to 512GB for local video storage
• Up to 4 channels of simultaneous live view
• 1 x RJ45 10M/100M self-adaptive Ethernet port

Wireless Hikvision Security Camera for Flexible Installation
The integrated 2.4GHz Wi-Fi connection makes the camera a practical choice for installations where additional network cabling may be difficult. With a stated wireless range of up to 50m, positioning the camera can be more flexible, subject to the building layout and wireless environment.

For installations where a wired connection is preferred, the 10M/100M self-adaptive RJ45 Ethernet port provides a reliable alternative. This combination makes the camera suitable for residential, office, retail and other surveillance environments.

2MP Full HD Video and Night Vision
The 1920 x 1080 resolution delivers clear Full HD video for everyday security monitoring. The 4mm lens is suited to general surveillance applications where dependable coverage and image clarity are required.

Infrared illumination supports monitoring after dark, while Digital WDR helps the camera handle scenes containing different levels of brightness. This makes it useful for areas such as entrances, corridors, reception areas, offices and retail spaces where lighting can change throughout the day.

Pan and Tilt Monitoring with Two-Way Audio
The PT design allows the camera to be positioned for broader monitoring coverage. Users can adjust the viewing direction to better suit the installation area rather than relying on a fixed viewing position.

Built-in audio further expands its functionality. The integrated microphone allows audio to be captured, while the built-in speaker supports two-way communication when used with compatible applications and systems.

Motion Detection and Remote Monitoring
Motion detection can help identify activity within the monitored area and provide timely alerts. This can be useful when monitoring entrances, offices, homes, shops and other locations that require notification when movement occurs.

The camera is compatible with Hik-Connect and iVMS-4200, allowing supported users to access live video and manage the surveillance system remotely. Local recording is also supported through the integrated microSD card slot, with capacity of up to 512GB according to the supplied product information.

Weather-Resistant Design for Indoor and Outdoor Use
The IP66-rated housing provides protection against dust and water, making the camera suitable for a range of indoor and outdoor surveillance installations. Its robust design allows it to be considered for areas where exposure to environmental conditions is a concern.

Efficient Video Compression
H.265 and H.264 compression options help manage network bandwidth and recording storage. H.265 can provide more efficient compression than traditional H.264 in suitable applications, helping reduce the amount of storage required while retaining useful video quality.

Technical Details

• Resolution: 2MP, 1920 x 1080
• Lens: 4mm
• Maximum frame rate: Up to 15 fps
• Video compression: H.265 / H.264
• Infrared: EXIR 2.0 infrared night vision
• Wireless: 2.4GHz Wi-Fi
• Wireless range: Up to 50m
• Audio: Built-in microphone and speaker
• Wide dynamic range: Digital WDR
• Network interface: 1 x RJ45 10M/100M self-adaptive Ethernet port
• Storage: MicroSD support up to 512GB
• Detection: Motion detection
• Simultaneous live view: Up to 4 channels
• Protection rating: IP66
• Model: DS-2CV2Q21G1-IDW(4mm)(W)(O-STD)/EU
• Part Number / SKU: HK-311327274

The part number / SKU HK-311327274 can be used to identify this specific Hikvision 2MP PT security camera when ordering or checking product compatibility.

Suitable Applications
This Hikvision Wi-Fi PT security camera is suitable for home security, small business surveillance, offices, retail stores, entrances, reception areas, corridors and other locations requiring remote video monitoring. Its combination of Full HD imaging, night vision, two-way audio, motion detection, Wi-Fi and Ethernet connectivity provides a versatile surveillance solution.

Whats' in the box

• Hikvision Network PT Security Camera, 4mm Lens, 2MP x 1
• User Manual x 1

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	HK-311327274
Camera
Image Sensor	1/3" Progressive Scan CMOS
Max. Resolution	1920 x 1080 (2 MP)
Min. Illumination	Colour: 0.005 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time	1/3 s to 1/10000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0degrees to 360degrees, Tilt: 0degrees to 90degrees, Rotate: 0degrees to 360degrees
Lens
Lens Type	Fixed focal lens, 4 mm
Focal Length & FOV	4 mm: Horizontal FOV 75degrees, Vertical FOV 45degrees, Diagonal FOV 85degrees
Aperture	F2.0
Lens Mount	M12
Illuminator
Supplement Light Type	IR
IR Wavelength	850 nm
Supplement Light Range	Up to 10 m
Video
Main Stream	50 Hz: 25 fps (1920 x 1080, 1280 x 720, 768 x 432) 60 Hz: 30 fps (1920 x 1080, 1280 x 720, 768 x 432)
Sub-Stream	50 Hz: 50 Hz: 25 fps (768 x 432, 512 x 288) 60 Hz: 30 fps (768 x 432, 512 x 288)
Video Compression	Main Stream: Main stream: H.265/H.264 Sub-stream: H.265/H.264
Video Bit Rate	Up to 1 M bps
Frame Rate	Max.15 fps - Self-Adaptive during network transmission
Audio
Audio Compression	G.711/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
Simultaneous Live View	Up to 4 channels
API	ONVIF (Profile S, Profile T, Profile G), SDK
User/Host	Administrator
Security	Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
Client	iVMS-4200, Hik-Connect, Hik-Partner-Pro
Wi-Fi
Transfer Rate	11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps
Encryption Mode	WPA-PSK/WPA2-PSK
Frequency Range	2.412 GHz to 2.472 GHz
Channel Bandwidth	20 MHz
Wireless Range	Up to 50 m (performance varies based on environment)
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software
Day/Night Switch	Auto
Wide Dynamic Range (WDR)	Digital WDR
Privacy Mask	4 programmable polygon privacy masks
Interface
Built-in Microphone	Yes
Built-in Speaker	Yes
On-Board Storage	Built-in memory card slot, support microSD card, up to 512 GB
Reset Key	Yes
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
General
Material	Plastic
Power	5 VDC ± 10%, 1 A, max. 5 W
Storage Conditions	-10 degreesC to 45 degreesC (14 degreesF to 113 degreesF). Humidity 95% or less (non-condensing)
Startup & Operating Conditions	-10 degreesC to 45 degreesC (14 degreesF to 113 degreesF). Humidity 95% or less (non-condensing)
General Function	Heartbeat, mirror
Flashing Light	Red and Blue
Dimension	?8 x 12.2 cm
Weight	Approx. 216 g
Protection	IP66
