DS-2CD2647G3-LIZSY-2.8-12MM

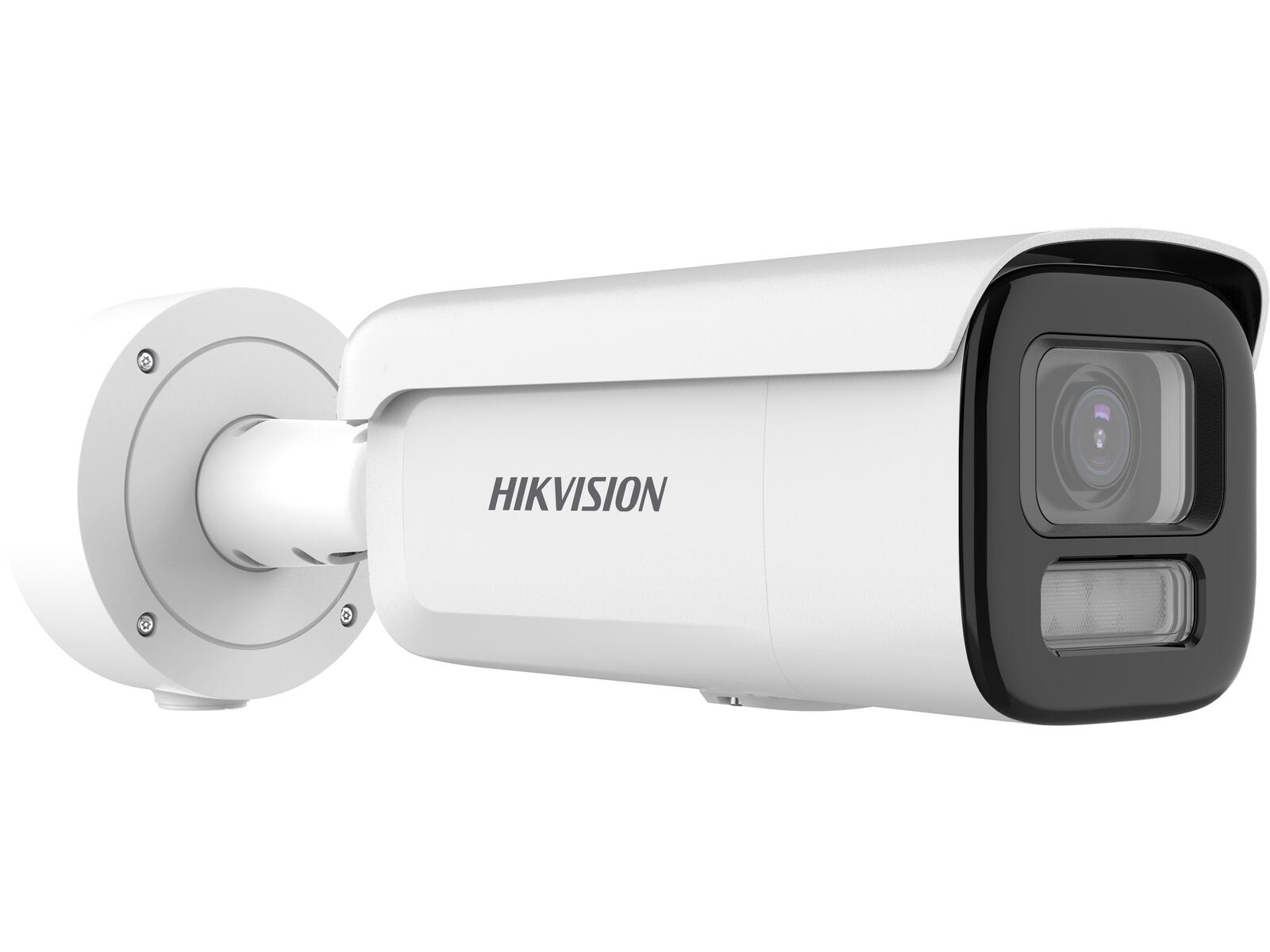

Hikvision 4MP Smart Hybrid Light with ColorVu Motorized Varifocal Bullet Network Camera with 2.8-12mm Lens

Hikvision 4MP Smart Hybrid Light with ColorVU motorized Varifocal Bullet Network camera with 2.8-12mm Lens, 2688x1520 maximum Resolution, 2.8 to 12 mm Varifocal Lens motorized Lens, Up to 60 m IR & White Light, Main Stream H.265 / H.264 / H.264+ / H.265+ Video Compression, H.264 and H.265 Encoding, 1 fixed region for Main Stream region of interest (ROI), Mono Sound Audio, Up to 6 channels simultaneous live View, BLC, HLC, 3D DNR, Distortion correction, Defog, 130 dB wide Dynamic range (WDR), EIS Image stabilization, 1x RJ45 10M/100M Self-Adaptive Ethernet Port, Built-In Memory card slot up to 512GB, 1 Input Audio, 1 Output Audio, 1 Input & 1 Output Alarm, Motion Detection, Smart event, Face Capture, IP67 protection

Overview:

Hikvision DS-2CD2647G3-LIZSY is a 4 MP Smart Hybrid Light bullet network camera designed for clear, reliable surveillance in a wide range of environments. Built around ColorVu technology and a motorized varifocal lens, it delivers consistent full-color video while allowing flexible field-of-view adjustment during installation or remote setup. Advanced image processing, smart detection, and robust outdoor protection make it well suited for commercial sites, industrial areas, and high-demand security applications.

Description:

This camera combines high-resolution imaging with intelligent analytics to help users capture important details day and night. The motorized 2.8 to 12 mm lens supports precise framing, while hybrid IR and white light illumination ensures visibility in complete darkness. Smart detection focuses on people and vehicles, reducing false alerts and improving situational awareness. With strong weather resistance, wide dynamic range, and efficient video compression, it offers dependable performance and lower storage demands over time.

Features:

High-resolution imaging and night visibility
The 4 MP sensor provides a maximum resolution of 2688 x 1520, delivering sharp detail for identification and monitoring. ColorVu technology enables 24/7 color imaging, supported by Smart Hybrid Light that intelligently switches between IR and white light depending on the scene. Illumination reaches up to 60 meters, helping maintain clarity even in large outdoor areas.

Flexible viewing and stable image quality
A motorized varifocal lens ranging from 2.8 to 12 mm allows easy adjustment for wide or narrow coverage without manual refocusing. Image quality is further enhanced by scene-adaptive wide dynamic range up to 130 dB, 3D digital noise reduction, defog, distortion correction, and electronic image stabilization for smoother video in challenging conditions.

Smart analytics and event handling
Deep learning technology enables accurate person and vehicle classification, supporting motion detection, smart events, and face capture. These capabilities help reduce unnecessary alerts while keeping attention on meaningful activity. A fixed region of interest can be configured on the main stream to prioritize critical areas.

Key intelligent functions include:

• Motion detection with smart event filtering
• Person and vehicle classification
• Face capture support
• Region of interest for bandwidth efficiency

Audio, storage, and connectivity options
The camera supports mono audio with one input and one output, allowing basic audio monitoring or integration with external devices. An onboard memory card slot supports cards up to 512 GB for local storage. Network connectivity is provided via a self-adaptive 10M/100M Ethernet port, with support for up to six simultaneous live view channels.

Compression and performance efficiency
Modern video compression standards help reduce bandwidth and storage usage while maintaining image quality. Supported formats include H.265, H.265+, H.264, and H.264+, making the camera compatible with a wide range of recording systems.

Durable outdoor design
Designed for demanding environments, the housing is rated IP67 for water and dust resistance and IK10 for impact protection. An anti-corrosion design improves reliability and longevity, making it suitable for coastal or industrial locations where standard enclosures may degrade faster.

Technical highlights

• 4 MP resolution with ColorVu full-color imaging
• Motorized 2.8 to 12 mm varifocal lens
• Smart Hybrid Light with IR and white light up to 60 m
• 130 dB wide dynamic range and advanced image enhancement
• Deep learning-based detection for people and vehicles
• Built-in memory card slot supporting up to 512 GB
• IP67 and IK10 rated housing for outdoor use

Available options

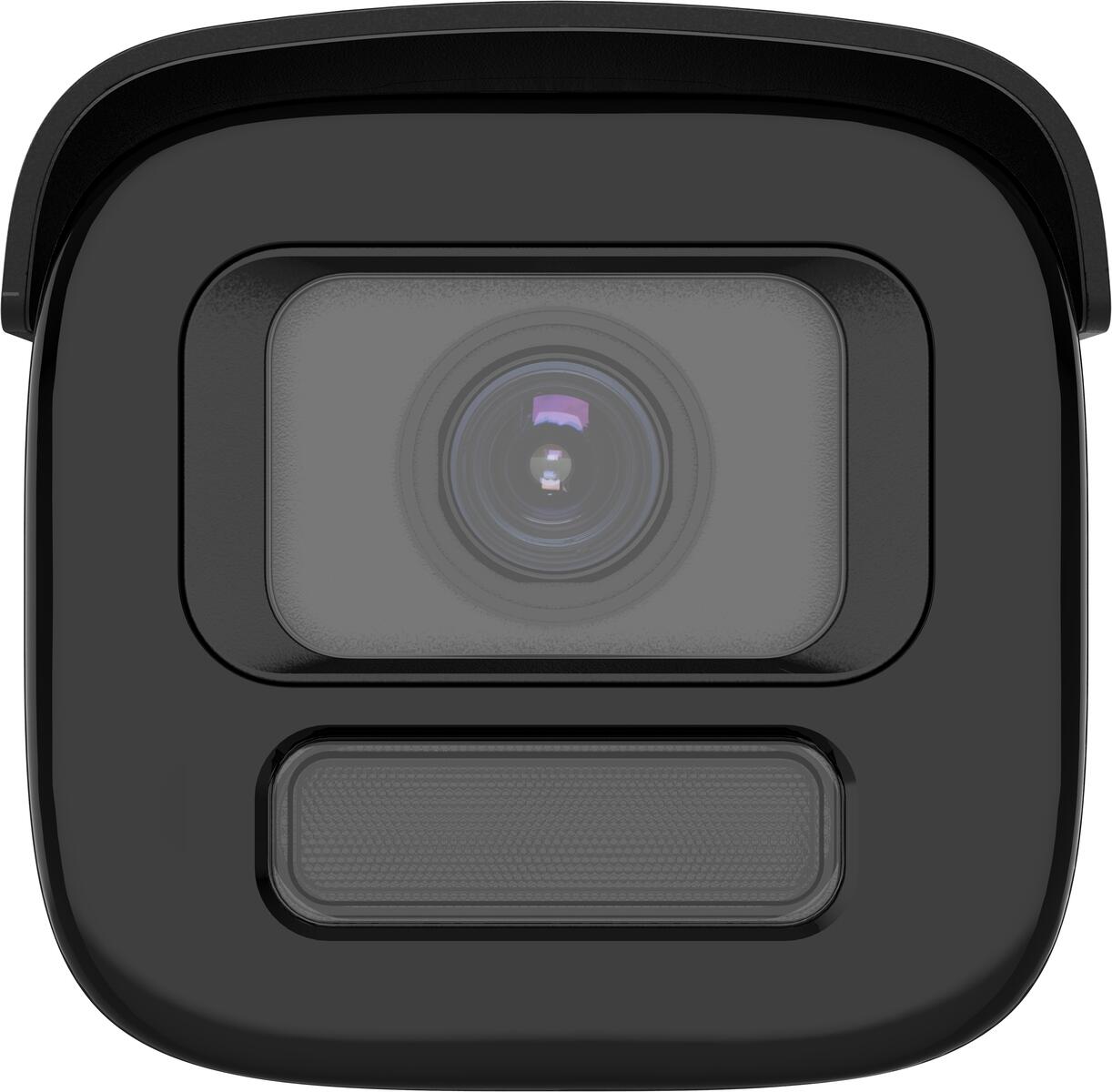

This model is available in standard and black housing variants, both equipped with the same 2.8 to 12 mm motorized lens configuration.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-2CD2647G3-LIZSY-2.8-12MM
Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2688 x 1520
Min. Illumination	Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time	1 s to 1 / 100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0degrees to 355degrees,tilt: 0degrees to 90degrees,rotate: 0degrees to 360degrees
Lens
Lens Type	Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV	2.8 to 12 mm, horizontal FOV 114.6degrees to 41.8degrees, vertical FOV 59.3degrees to 23.6degrees, diagonal FOV 141.3degrees to 48.1degrees
Lens Mount	Integrated
Iris Type	Fixed
Aperture	F1.2
Depth of Field	1 m to ∞
DORI
DORI	Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m
	Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m
Illuminator
Supplement Light Type	White Light,IR
Supplement Light Range	Up to 60 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
	60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream	50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)
	60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
Third Stream	50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
	60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
	*Third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.264+/H.265+
	Sub-stream: H.265/H.264/MJPEG
	Third stream: H.265/H.264
	*Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR,VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream
Audio
Audio Type	Mono sound
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Environment Noise Filtering	Yes
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/48 kHz
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View	Up to 6 channels
API	ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
User/Host	Up to 32 users
	3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client	iVMS-4200,Hik-Connect,Hik-Central
Web Browser	Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
	Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters Switch	Yes
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
SNR	≥ 52 dB
Wide Dynamic Range (WDR)	130 dB
Image Stabilization	EIS
Privacy Mask	4 programmable polygon privacy masks
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
	1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm	1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key	Yes
Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event	Scene change detection
Linkage	Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Deep Learning Function
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting
	Support alarm triggering by specified target types (human and vehicle)
General
Power	12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection
	PoE: PoE(IEEE 802.3at class 4) , MAX : 15W
Material	Front cover: Metal, body: Metal, bracket: Metal
Dimension	Ø140 mm x 333.8 mm (Ø5.5" x 13.1")
Package Dimension	386 mm x 190 mm x 180 mm (15.2" x 7.5" x 7.1")
Weight	Approx. 1540 g (3.4 lb.)
With Package Weight	Approx. 2311 g (5.1 lb.)
Storage Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
General Function	Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety	UL: UL 62368-1
	CB: IEC 62368-1: 2014+A11
	CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU
Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018)
