VIVOTEK FD9187-HT-V3

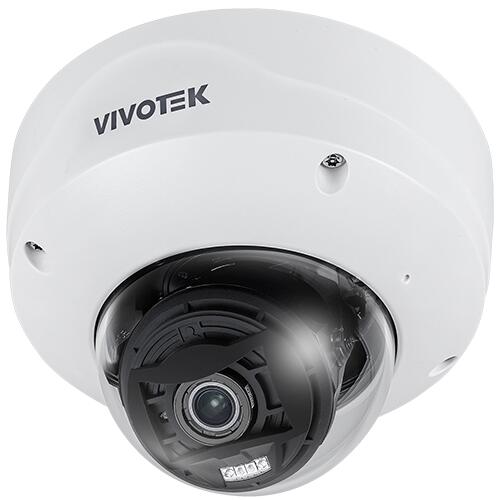

Vivotek FD9187-HT-V3 5MP Indoor Fixed Dome AI camera with 2.7-13.5 mm lens

Vivotek - VIVOTEK FD9187-HT-V3 5MP Indoor Fixed Dome AI camera with 2.7-13.5 mm Lens, 2560x1920 (5MP) maximum Resolution, 2.713.5 mm motorized Vari-Focal Remote Focus Lens Type, WDR Pro, Built-In IR illuminators effective up to 50 meters, ePTZ Pan/Tilt/Zoom functionalities, Compression - H.265 / H.264 / MJPEG, Two-Way Audio (Full Duplex), Built-In Microphone, External Microphone Input, External line Output, Live viewing for up to 10 clients, 1x Ethernet RJ45 LAN Port, Smart IR III, Video Motion Detection, 1x Digital Input, 1x Digital Output
BUY NOW - selling fast! Limited Stock at suppliers.* print


Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. VIVOTEK FD9187-HT-V3 Vivotek FD9187-HT-V3 5MP Indoor Fixed Dome AI camera with 2.7-13.5 mm lens is available from Laptop Direct and it is sold as new from our IP network security cameras range of products. For reference purposes, the price of R9400 is valid 2026-10-27, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the IP network security cameras category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

VIVOTEK FD9187-HT-V3

Vivotek FD9187-HT-V3 5MP Indoor Fixed Dome AI camera with 2.7-13.5 mm lens

VIVOTEK FD9187-HT-V3 5MP Indoor Fixed Dome AI camera with 2.7-13.5 mm Lens, 2560x1920 (5MP) maximum Resolution, 2.713.5 mm motorized Vari-Focal Remote Focus Lens Type, WDR Pro, Built-In IR illuminators effective up to 50 meters, ePTZ Pan/Tilt/Zoom functionalities, Compression - H.265 / H.264 / MJPEG, Two-Way Audio (Full Duplex), Built-In Microphone, External Microphone Input, External line Output, Live viewing for up to 10 clients, 1x Ethernet RJ45 LAN Port, Smart IR III, Video Motion Detection, 1x Digital Input, 1x Digital Output

Overview:

FD9187-HT-V 3 (2.7-13.5 mm) 5MP Indoor Fixed Dome AI Camera
  • WDR Pro for Unparalleled Visibility
  • Built-in IRs up to 50M with Smart IR III
  • AI-powered Smart Motion Detection and Smart VCA
  • Cyber Protection via Trend Micro IoT Security
  • Signed Firmware and Secure Boot

Features:

Diverse Selection with Dependable Performance
Explore a versatile range of focal lengths, effortless installation, and a variety of accessories-unlocking reliable performance tailored to your security needs.

Focal Length Coverage
Thoughtfully crafted to meet a variety of needs, each model is accompanied by both outdoor and indoor versions, simplifying project installations for enhanced convenience.

The shadowed areas within the photos visually approximate the coverage for each range, giving a clear representation of the surveillance capabilities across different focal lengths.

Designed for Broad and Easy Installation
Experience the seamless installation process with our 87-V3 Series cameras. These cameras offer standard junction box mounting holes, ensuring unmatched flexibility in setup.

Flagship Housing for Better Weatherproofing
Meticulously designed for superior weatherproofing. These features ensure that the camera is prepared to face diverse weather conditions, maintaining peak performance. Prioritize reliability in any environment with our advanced housing technology.

Simplifying Inventory Management and Installation
Effortlessly manage your inventory with our universal accessories, shared across multiple product lines, including the 65V2, 67V2, 91V2, and the latest 87V3 series. This streamlined approach not only ensures compatibility and versatility but also facilitates a seamless transition between products, minimizing the learning curve for our resellers and distributors.

Flagship AI
Experience cutting-edge AI capabilities, empowering you with advanced analytics and deep search functionalities for unparalleled security solutions.

Improve your investigation efficiency with powerful data uncovered by VIVOTEK AI camera - people and vehicle with their unique appearance such as color, gender, and type. Simply and reduce duplicated search result with precise object trace.

Smart VCA: AI-Powered Video Analytics on Edge
Empowers cameras to collect more valuable scene awareness data than traditional frame-difference-based video motion detection. Operating as edge-based applications, Smart VCA also minimizes bandwidth and storage usage. Smart VCA is designed to improve efficiency and reduce operators' workloads.

Deep Search: AI-Driven Solution
While AI adoption has presented challenges in installation and configuration for many, VIVOTEK Deep Search revolutionizes the process, simplifying user judgment through automated investigation.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeVIVOTEK FD9187-HT-V3spacer
System Information
CPUMultimedia SoC (System-on-Chip)
FlasheMMC 8 GB
RAMDDR4 2 GB
Camera Specifications
Image Sensor1/2.8" Progressive CMOS
Max. Resolution2560x1920 (5MP)
Lens TypeMotorized, Vari-focal, Remote Focus
Focal Lengthf = 2.7 ~ 13.5 mm
ApertureF1.8(W) ~ F3.3(T)
Iris TypeP-iris
Field of View100.1° ~ 29.9° (Horizontal)
71.8° ~ 22.4° (Vertical)
135.2° ~ 37.4° (Diagonal)
Shutter Time1/5 sec. to 1 / 32,000 sec.
WDR TechnologyWDR Pro
Day/NightYes
Removable IR-cut filterYes
IlluminatorsBuilt-in IR illuminators, effective up to 50 meters with Smart IR III, IR LED*4
(50IRE)
Minimum Illumination0.04 lux @ F1.8 (Color)
<0.005 lux @ F1.8 (B/W)
0 lux with IR illumination on
Pan Range±175°
Tilt Range80°
Rotation Range±175°
Pan/Tilt/Zoom FunctionalitiesePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
StorageSeamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS)
Built-in Installation AidsRemote focus, remote zoom, Micro USB* , pixel calculator
*Requires Wi-Fi dongle and Micro B converter
Video
CompressionH.265, H.264, MJPEG
Maximum Frame Rate30 fps @ 2560x1920 (WDR Pro on)
30 fps @ 2560x1440 (WDR Pro on)
60 fps @ 1920x1080 (WDR Pro off)
Maximum Streams3 video streams (Up to 8 configurable profiles)
Main Stream30fps @ 2560x1920, 1600x1200, 1280x960, 640x480 (4:3)
30fps @ 2560x1440, 1920x1080, 1600x904, 1280x720,1360x768, 640x360 (16:9)
60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
2nd Stream30fps @ 2560x1920, 1600x1200, 1280x960, 640x480 (4:3)
30fps @ 2560x1440, 1920x1080, 1600x904, 1280x720,1360x768, 640x360 (16:9)
60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
3rd Stream30fps @ 1280x960, 640x480 (4:3)
30 fps @ 1280x720, 640x360 (16:9)
60 fps @ 1280x720, 640x360 (16:9)
S/N Ratio70 dB
Dynamic Range120 dB
Video StreamingAdjustable resolution, quality and constant bit rate control, Smart Stream III
Image SettingsGeneral settings
video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators
illuminators, anti-overexposure, VCA-based Smart IR III
Image settings
white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)
Exposure
BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Focus
zoom, focus
Privacy mask
pixel calculator
Scheduled profile settings
Audio
Audio CapabilityTwo-way audio (Full duplex)
CompressionG.711, G.726, MPEG-2 AAC-LC
InterfaceBuilt-in microphone
External microphone Input
External line output
Effective Range5 meters
Network
UsersLive viewing for up to 10 clients
SecurityAccess list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface10 Base-T/100 Base-TX Ethernet
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIFProfile G, S, T supported
AI Analytics
Compute CapabilitySoC with built-in hardware deep learning accelerator
Vision Object AnalyticsObject Detection
People, Vehicle (4-wheeled, 2-wheeled)
Attribute Extraction
People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
Re-Search Extraction
Path Extraction
ApplicationDeep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with licenseRunning detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
AI-powered Image EnhancementSmart IR III
RealSight EngineSmart IR III, Deblur, WDR, White Balance, Exposure Control
Solution Integration
VADP PackageTrend Micro IoT Security (3-year free trial)
Video Motion DetectionMotion Detection (Five-window video motion detection)
Alarm and Event
Event TriggerAudio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event ActionEvent notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
ConnectorsDefault IO
RJ-45 cable connector for 10/100 Mbps PoE network connection
Audio line input
Audio line output
DC 12V power input
Digital input*1
Digital output*1 (12V, 50mA)
Micro USB
Module I/O (AO-011)
Digital input *1
Digital output *1 (12V, 50mA)
AC 24V power input
*Requires extension I/O module kit (AO-011 I/O Kit for dome cameras)
LED IndicatorSystem power and status indicator
Power InputAC 24V*, DC 12V, IEEE 802.3af PoE Class 0 (Power Redundancy)
*Requires extension I/O module kit (AO-011)
Power ConsumptionPoE: Max. 12.95W/ 10.05W (IR on/off)
DC 12V: Max. 14.4W/ 11.5W (IR on/off)
AC 24V*: Max. 12W/ 9.1W (IR on/off)
Dimensionsø 173.6 x 122.6 mm
Weight1.10 kg
CertificationsEMC
CE (EN 55032/EN 55035 Class B, EN 50121-4), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032/BS EN 55035 Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), IC (ICES-003 Issue 7)
Safety
UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD, (EN 62368-1), UKCA (BS EN IEC 62368-1)
Environment
IP54 , IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating TemperatureStarting Temperature:
0°C ~ 50°C (32°F ~ 122°F)
Working Temperature:
-10°C ~ 50°C (14°F ~ 122°F) (IR on/off)
Humidity98% RH (non-condensing)
System Requirements
Operating SystemMicrosoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web BrowserChrome 58.0 or above
Internet Explorer 11
Other PlayersVLC: 1.1.11 or above
Included Accessories
Packing ContentsQuick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, conduit bracket, I/O cable
DORI (EN 62676-4 Standard)
Detection (25PPM/ 8PPF)Wide: 64.4 m (211.2 ft)
Tele: 196.6 m (645.2 ft)
Observation (63PPM/ 19PPF)Wide: 25.7 m (84.4 ft)
Tele: 78.7 m (258.1 ft)
Recognition (125PPM/ 38PPF)Wide: 12.8 m (42.1 ft)
Tele: 39.3 m (129.0 ft)
Identification (250PPM/ 76PPF)Wide: 6.4 m (20.9 ft)
Tele: 19.6 m (64.5 ft)


Download: pdf_downloads/2_6/260184_PDF1.pdf (598982 KB)
