VIVOTEK CC9381-HV-V2

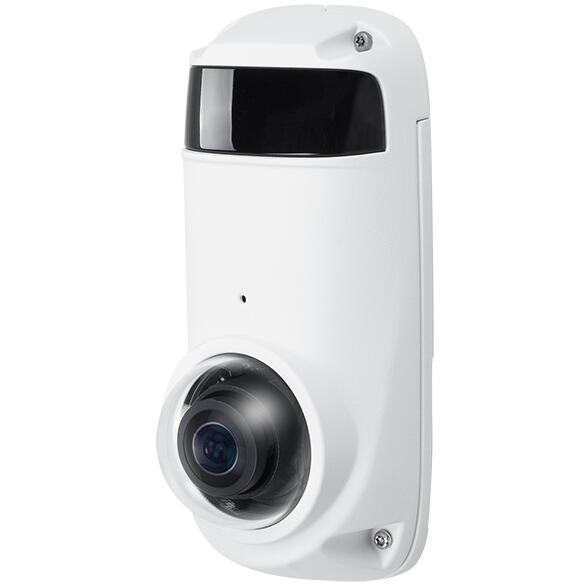

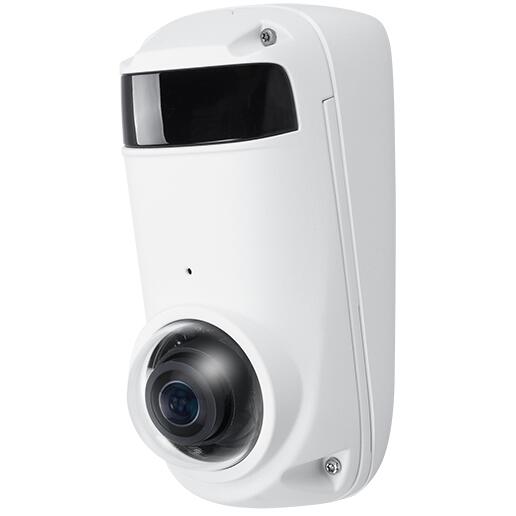

VIVOTEK CC9381-HV-V2 5MP IR Compact Panoramic AI camera with 1.47 mm Lens

Vivotek - VIVOTEK CC9381-HV-V2 5MP IR Compact Panoramic AI camera with 1.47 mm Lens, 2560x1920 (5MP) maximum Resolution, WDR Pro, Built-In IR illuminators up to 20 meters, Compression - H.265 / H.264 / MJPEG, 30 fps @ 2560x1920 Maximum Frame rate, 3 Video streams, One-Way Audio, Built-In Microphone, Live viewing for up to 10 clients, 1x Ethernet RJ45 LAN Port
BUY TODAY ! Expected to be in Stock at suppliers.* print


VIVOTEK CC9381-HV-V2 VIVOTEK CC9381-HV-V2 5MP IR Compact Panoramic AI camera with 1.47 mm Lens Image 2
VIVOTEK CC9381-HV-V2 VIVOTEK CC9381-HV-V2 5MP IR Compact Panoramic AI camera with 1.47 mm Lens Image 3
VIVOTEK CC9381-HV-V2 VIVOTEK CC9381-HV-V2 5MP IR Compact Panoramic AI camera with 1.47 mm Lens Image 4
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. VIVOTEK CC9381-HV-V2 VIVOTEK CC9381-HV-V2 5MP IR Compact Panoramic AI camera with 1.47 mm Lens is available from Laptop Direct and it is sold as new from our IP network security cameras range of products. For reference purposes, the price of R9275 is valid 2026-10-04, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the IP network security cameras category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

VIVOTEK CC9381-HV-V2

VIVOTEK CC9381-HV-V2 5MP IR Compact Panoramic AI camera with 1.47 mm Lens

VIVOTEK CC9381-HV-V2 5MP IR Compact Panoramic AI camera with 1.47 mm Lens, 2560x1920 (5MP) maximum Resolution, WDR Pro, Built-In IR illuminators up to 20 meters, Compression - H.265 / H.264 / MJPEG, 30 fps @ 2560x1920 Maximum Frame rate, 3 Video streams, One-Way Audio, Built-In Microphone, Live viewing for up to 10 clients, 1x Ethernet RJ45 LAN Port

Overview:

CC9381-HV-V2 5MP IR Compact Panoramic AI Camera
  • WDR Pro for Unparalleled Visibility
  • Weather-proof IP67 & Vandal-proof IK10+ rated
  • ±20° Tilt Lens
  • Built-in Microphone
  • 3D Noise Reduction for Low-light Conditions

Features:

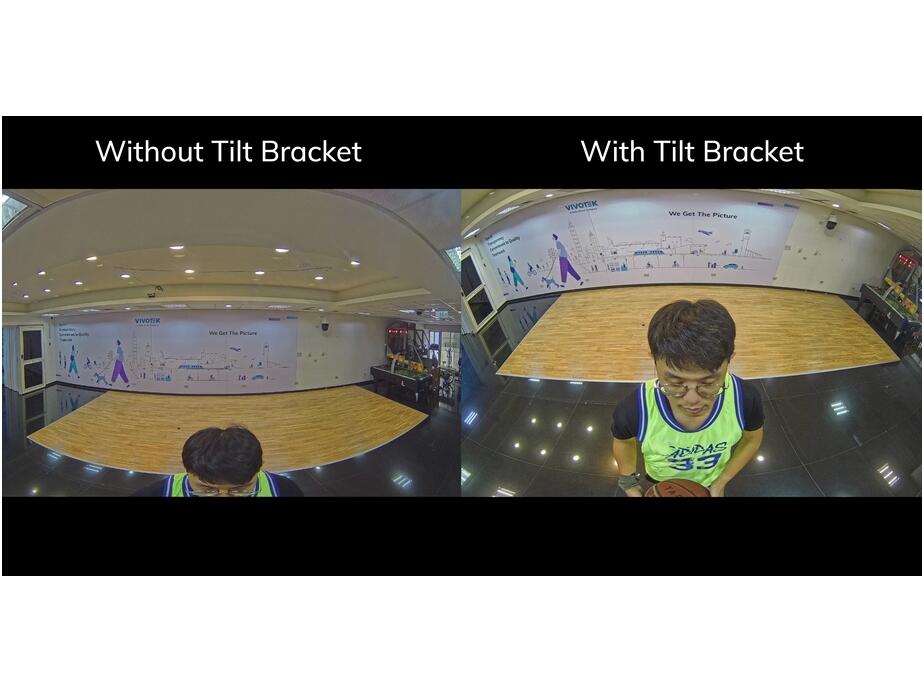

Enhanced Coverage with included Tilt Bracket
The compact panoramic camera boasts a wide field of view, but the included tilt bracket offers even more flexibility. It allows you to tilt and adjust the camera angle by 15~20 degrees, ensuring you can capture even hard-to-reach areas and eliminate potential blind spots in your security coverage.

Uncover Video Insights with Vision Object Analytics
The compact panoramic camera, equipped with VIVOTEK AI technology, empowers you to enhance investigation efficiency by identifying people and vehicles based on unique attributes like color, gender, and type. Streamline your search process and minimize duplicate entries with precise object tracking.

180-degree View with Clear Evidence
Eliminate blind spots and gain a complete picture of your surroundings with its expansive 180-degree field of view. Seamlessly capture every detail in stunning high-resolution with smooth, crystal-clear video at 30fps for effortless identification and review. This empowers you to see everything, from every angle.

See Clearly, Night and Day
Darkness shouldn't compromise your security. The compact panoramic camera boasts a cutting-edge Smart IR (Infrared) technology. With an effective night vision range of up to 20 meters, you can rest assured that your property is under constant surveillance, day or night.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeVIVOTEK CC9381-HV-V2spacer
System Information
CPUMultimedia SoC (System-on-Chip)
Flash8 GB
RAM2GB
Camera Specifications
Image Sensor1/2.8" Progressive CMOS
Max. Resolution2560x1920 (5MP)
Lens TypeFixed-focal
Focal Lengthf = 1.47 mm
ApertureF2.7
Iris TypeFixed iris
Field of View180° (Horizontal)
120° (Vertical)
180°(Diagonal)
Shutter Time1/5 sec. to 1 / 32,000 sec.
WDR TechnologyWDR Pro
Day/NightYes
Removable IR-cut filterYes
IlluminatorsBuilt-in IR illuminators up to 20 meters with Smart IR , IR LED*4
Minimum Illumination0.08 lux @ F2.7 (Color)
0.005lux @ F2.7 (B/W)
0 lux with IR Illumination on
Tilt Range±20°
Pan/Tilt/Zoom FunctionalitiesePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
StorageSeamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS)
Built-in Installation AidsPixel calculator
Video
CompressionH.265, H.264, MJPEG
Maximum Frame Rate30 fps @ 2560x1920
Maximum Streams3 video streams (Up to 8 configurable profiles)
S/N Ratio62 dB
Dynamic Range120 dB
Video StreamingAdjustable resolution, quality and constrained bit rate control, Smart Stream III
Image SettingsGeneral settings
video settings, video orientation (flip, mirror, rotation), day/night settings, smart image
Overlay settings
Illuminators
illuminators, anti-overexposure
Image settings
white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto)
Exposure
exposure strategy (measurement window, metering mode)
exposure control (exposure level, exposure time, gain control), image sharpener for motion blur, AE speed adjustment, WDR
Privacy mask
Pixel calculator
Scheduled profile settings
Audio
Audio CapabilityOne-way Audio
CompressionG.711, G.726, MPEG-2 AAC-LC
InterfaceBuilt-in microphone
Effective Range5 meters
Network
UsersLive viewing for up to 10 clients
SecurityAccess list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management
Protocols802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface10Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIFProfile G, S, T supported
AI Analytics
Compute CapabilitySoC with built-in hardware deep learning accelerator
Vision Object AnalyticsObject Detection
People, Vehicle (4-wheeled, 2-wheeled)
Attribute Extraction
People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
Re-Search Extraction
Path Extraction
ApplicationDeep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with licenseRunning detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
Solution Integration
VADP PackageTrend Micro IoT Security (3-year free trial)
Alarm and Event
Event TriggerAudio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration
Event ActionEvent notification via audio clip, camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
ConnectorsRJ-45 cable connector for 10/100 Mbps Network/PoE connection
LED IndicatorSystem power and status indicator
Power InputIEEE 802.3af PoE Class 0
Power ConsumptionMax. 10.26W/6.96W (IR on/off)
Dimensions160 x 72 x 60 mm
Weight492 g
CertificationsEMC
CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7
Safety
UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471)
Environment
IK10 (IEC 60529), IP66 (IEC 60529)
IA
BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Operating TemperatureStarting Temperature:
-10°C ~ 55°C (14°F~ 131°F)
Working Temperature:
-30°C ~ 55°C (-22°F~ 131°F)(IR on)
-30°C ~ 60°C (-22°F~ 140°F)(IR off)
Humidity98% RH (non-condensing)
System Requirements
Operating SystemMicrosoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web BrowserChrome 58.0 or above
Internet Explorer 10/11
Other PlayersVLC: 1.1.11 or above
Included Accessories
Packing ContentsQuick installation guide, mounting bracket, tilt bracket, screw pack, sunshield
DORI (EN 62676-4 Standard)
Detection (25PPM/ 8PPF)29.2 m (95.9 ft)
Observation (63PPM/ 19PPF)11.7 m (38.3 ft)
Recognition (125PPM/ 38PPF)5.8 m (19.0 ft)
Identification (250PPM/ 76PPF)2.8 m (9.2 ft)
