UN-IPC3608SB-ADF16KM-I0

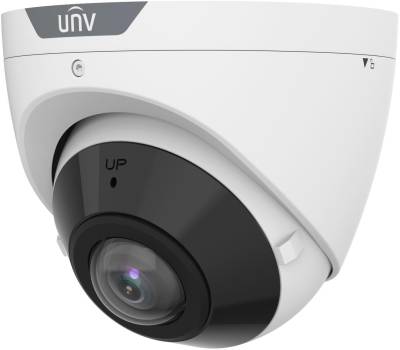

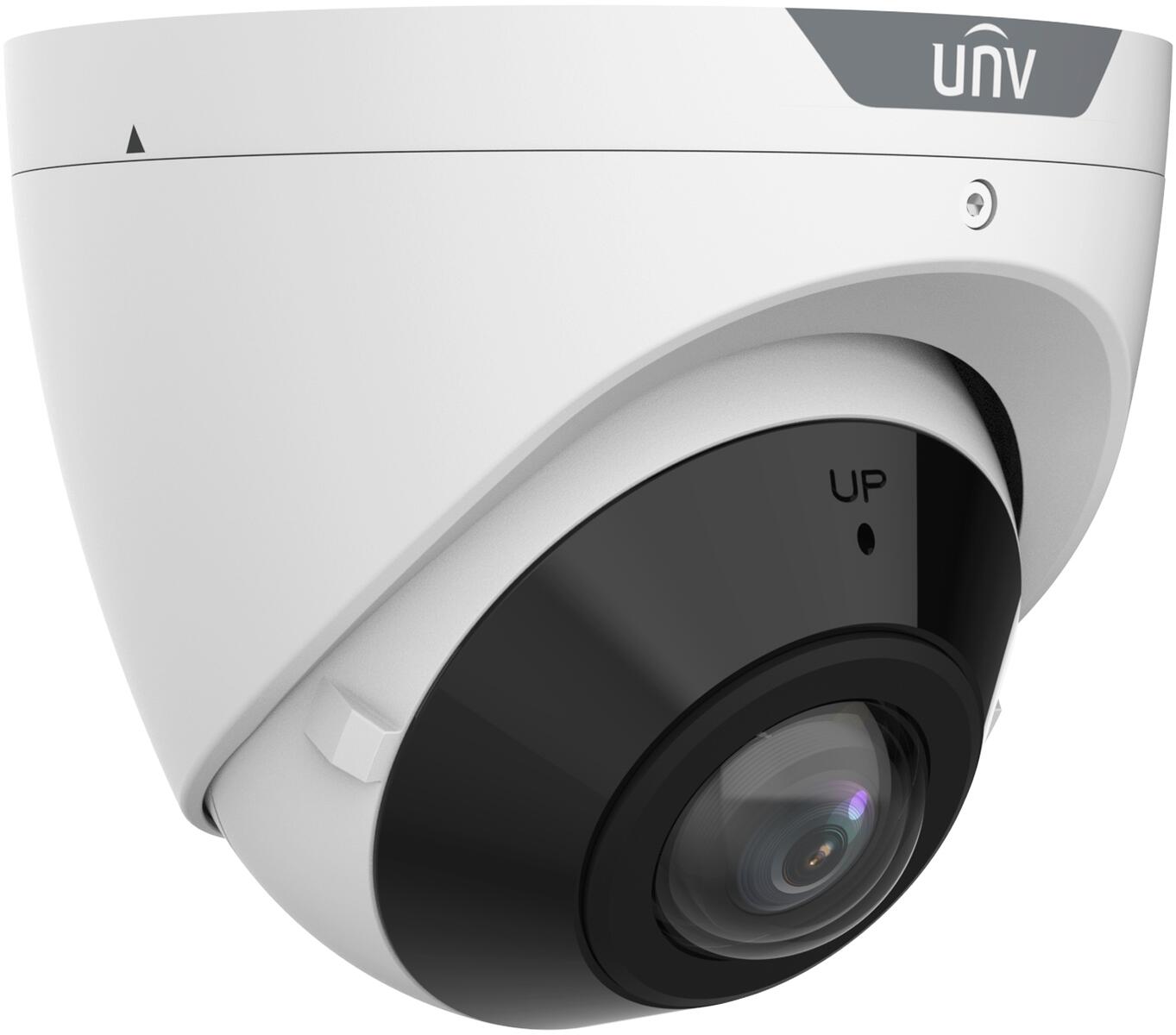

Uniview 8MP OmniView fixed IR Turret Network camera with 1.68mm fixed Lens

Uniview 8MP OmniView fixed IR Turret Network camera with 1.68mm fixed Lens, 180 degrees Panoramic (OmniView), Dewarping, Smart IR (20m), 120dB WDR, Ultra 265 / H.265 / H.264 / MJPEG Video Compression, Up to 8 OSDs, Up to 4 areas Privacy mask, Support ROI, Triple streams, 8MP 3840x2160 Max 30 fps, 2D/3D DNR, HLC, BLC, Smart intrusion prevention, Basic detection, MicroSD up to 512GB, Built-In Mic, 1 x RJ45 10M/100M Base-TX Ethernet Network

Overview:

180 Degree 8MP OmniView Turret Network Camera
Capture an ultra-wide 180 degree panoramic view with the Uniview 8MP OmniView Fixed IR Turret Network Camera. Equipped with a 1/2.7 inch CMOS sensor and a 1.68mm fixed lens, it delivers sharp 8MP video at up to 30fps while minimizing blind spots. The built-in dewarping function provides multiple viewing modes for a more natural image, making it ideal for entrances, corridors, retail spaces, warehouses, offices, schools, and other locations that require maximum coverage from a single camera.

Description:

The Uniview UN-IPC3608SB-ADF16KM-I0 is designed to provide wide-area surveillance with excellent image clarity and intelligent detection capabilities. Combining a panoramic 180 degree field of view, built-in microphone, Smart IR night vision, advanced video compression, and AI-powered intrusion prevention, this network camera helps improve security while reducing storage requirements and false alarms. Its rugged construction makes it suitable for both indoor and outdoor installations.

Features:

Why Choose This 8MP Panoramic Security Camera
Unlike traditional fixed cameras that require multiple units to cover a wide space, this OmniView camera delivers an expansive 180 degree horizontal viewing angle from a single installation point. Intelligent target classification helps distinguish people, vehicles, and non-motor vehicles from environmental movement, improving event accuracy while reducing unnecessary notifications.

The integrated dewarping technology allows users to adjust the panoramic image into more practical viewing layouts, making monitoring easier without sacrificing coverage.

Image Quality and Performance
Powered by an 8MP CMOS image sensor, the camera produces detailed surveillance footage with smooth recording at up to 30 frames per second. True 120dB Wide Dynamic Range helps maintain balanced exposure in scenes with both bright and dark areas, while 2D and 3D Digital Noise Reduction improve image quality in challenging lighting conditions.

Supported recording resolutions include:

• 3840 x 2160 at up to 30fps
• 3072 x 1728 at up to 30fps
• 2560 x 1440 at up to 30fps
• 1920 x 1080 at up to 30fps

Smart Detection and AI Analytics
Advanced analytics help improve perimeter security while minimizing false alarms.

Detection functions include:

• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• Human, vehicle, and non-motor vehicle classification
• Basic motion detection

Video Compression and Storage
Efficient compression technologies reduce bandwidth usage while maintaining excellent image quality.

Supported formats:

• Ultra 265
• H.265
• H.264
• MJPEG

Additional recording capabilities include:

• Triple video streams
• Region of Interest (ROI)
• Up to 8 OSD overlays
• Up to 4 privacy masking areas
• MicroSD card support up to 512GB

Audio and Network Connectivity
The built-in microphone allows audio recording alongside video, providing additional context during security events.

Connectivity includes:

• 1 x RJ45 10/100 Mbps Ethernet port
• Network video streaming
• Built-in microphone

Night Vision and Lighting Performance
Smart IR technology automatically adjusts infrared illumination to prevent overexposure of nearby subjects while maintaining visibility in darkness.

Key benefits include:

• Smart IR technology
• Up to 20 metre infrared viewing distance
• 120dB True WDR
• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• 2D and 3D Digital Noise Reduction

Built for Indoor and Outdoor Security
Designed for demanding environments, the camera offers reliable protection against dust, water, and physical impact.

Protection ratings:

• IP67 weather-resistant housing
• IK10 vandal-resistant construction

Technical Highlights

• Part Number / SKU: UN-IPC3608SB-ADF16KM-I0
• 8MP OmniView fixed IR turret network camera
• 1/2.7 inch CMOS image sensor
• 1.68mm fixed lens
• 180 degree panoramic viewing angle
• Adjustable dewarping levels from 1 to 9
• Maximum resolution of 3840 x 2160 at 30fps
• Built-in microphone
• Smart IR with 20 metre range
• Ultra 265, H.265, H.264 and MJPEG compression
• Intelligent intrusion prevention
• Triple stream support
• ROI support
• Up to 8 OSD overlays
• Up to 4 privacy mask areas
• MicroSD storage up to 512GB
• RJ45 10/100 Base-TX Ethernet connection

The Uniview UN-IPC3608SB-ADF16KM-I0 is an excellent solution for businesses and organizations seeking high-resolution panoramic surveillance with intelligent analytics, wide-area coverage, flexible viewing options, and reliable performance in both indoor and outdoor environments.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UN-IPC3608SB-ADF16KM-I0
Item	IPC3608SB-ADF16KM-I0
Camera
Max Resolution	8 MP
Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0degrees to 360degrees, Tilt: 0degrees to 75degrees, Rotate: 0degrees to 360degrees
WDR	120 dB
S/N	>52 dB
Lens
Focal Length	1.68 mm
Iris	F2.0
Field of View (H)	180degrees
Field of View (V)	100degrees
Field of View (D)	180degrees
Lens Type	Fixed
Iris Type	Fixed
DORI
DORI Distance (Lens)	1.68 mm
DORI Distance (Detect)	37.8 m (124.0 ft)
DORI Distance (Observe)	15.1 m (49.6 ft)
DORI Distance (Recognize)	7.6 m (24.9 ft)
DORI Distance (Identify)	3.8 m (12.5 ft)
Illuminator
Illumination Distance (IR)	20 m (65.6 ft)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Supplemental Light	IR
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams
Frame Rate-Main Stream	8 MP (3840 x 2160), max. 30 fps , 5 MP (3072 x 1728), max. 30 fps , 4 MP (2560 x 1440), max. 30 fps , 1080P (1920 x 1080), max. 30 fps
Frame Rate-Sub Stream	720P (1280 x 720), max. 30 fps , D1 (720 x 576), max. 30 fps , 640 x 360, max. 30 fps , 2CIF (704 x 288), max. 30 fps , CIF (352 x 288), max. 30 fps
Frame Rate-Third Stream	D1 (720 x 576), max. 30 fps , 640 x 360, max. 30 fps , 2CIF (704 x 288), max. 30 fps , CIF (352 x 288), max. 30 fps
Auto Scene Match (ASM)	Support (only WDR)
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IR	Support
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180degrees
Dewarping	Support
HLC	Support
BLC	Support
Image Stabilization	N/A
Low Illumination Characteristics	Low-light
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Attribute Collection	SIP with color retrieval
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression	G.711U, G.711A, AAC-LC
Audio Bitrate	G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 x RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
	FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1)
	UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU , (EU)2015/863) , WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
	IK10 (IEC 62262)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 5.5 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111 mm x 93 mm (Ø4.4" x 3.7") (Ø x H)
Weight	0.48 kg (1.06 lb)
Working Environment	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Material	Metal
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
