UN-IPC314SB-ADF28KMC-DL-I1

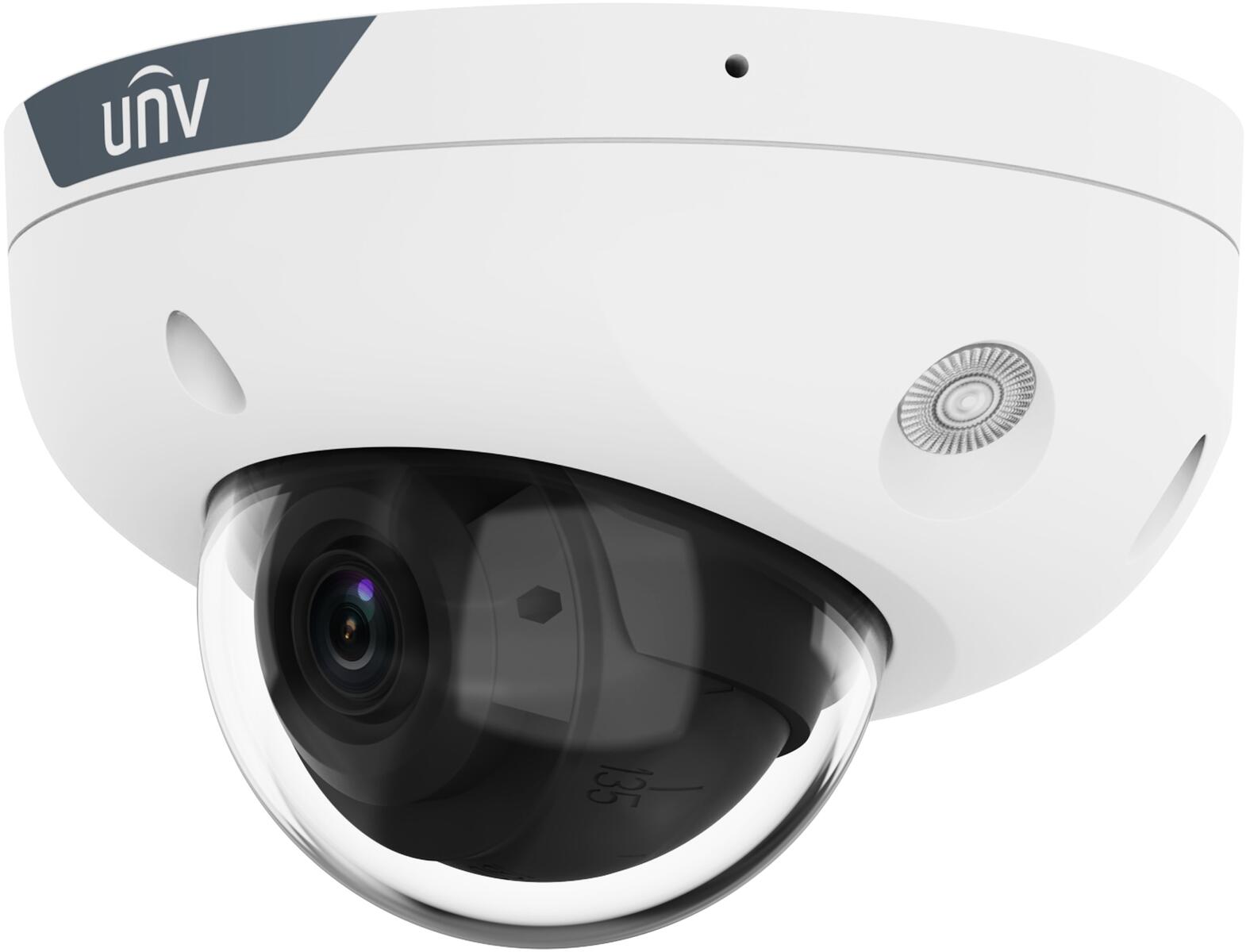

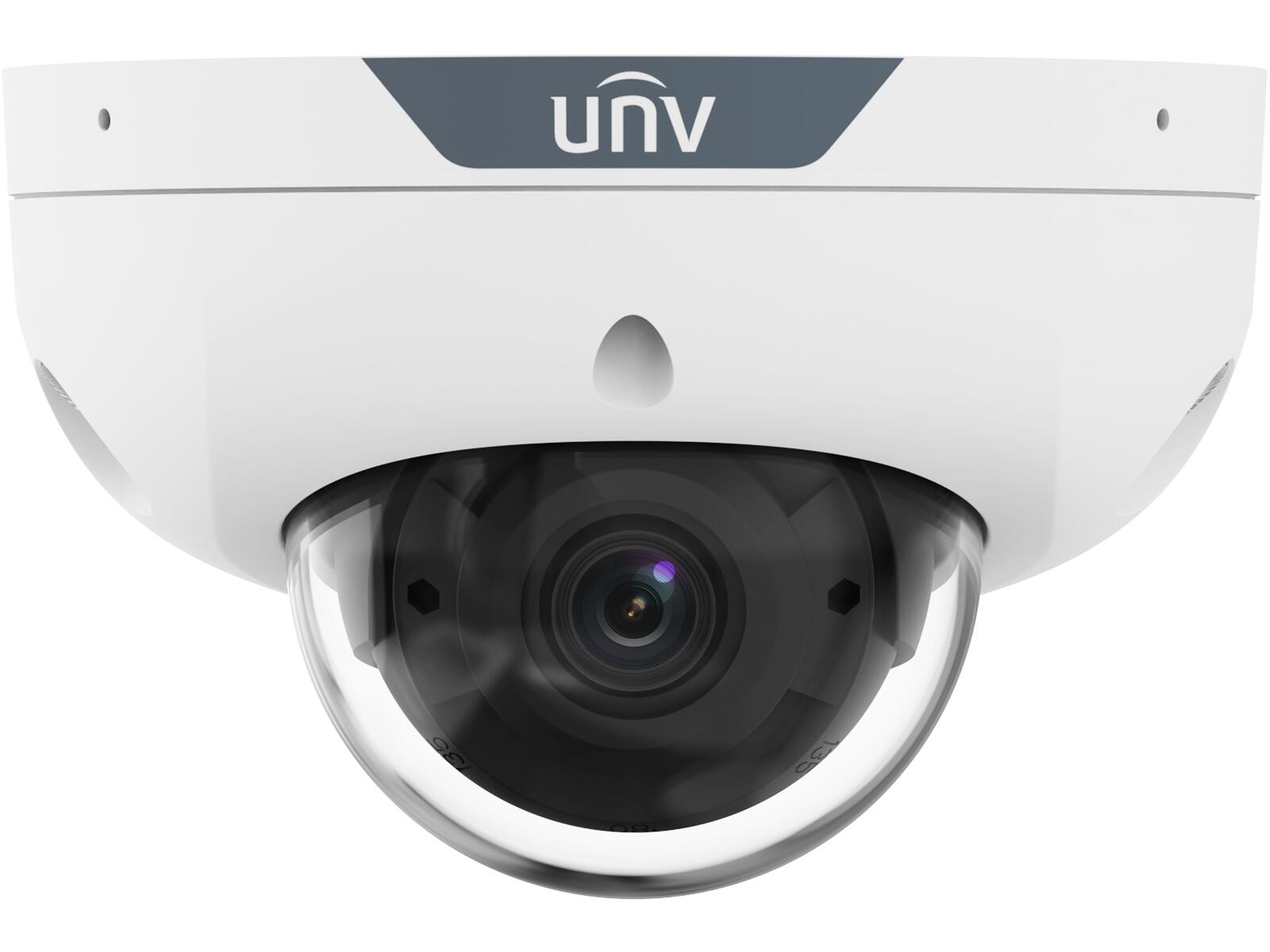

Uniview 4MP Dual-light WDR Mini Dome Network Camera with 2.8mm fixed lens

Uniview 4MP Dual-Light WDR Mini Dome Network camera with 2.8mm fixed Lens, Dual Light (IR + Warm White), ColorHunter, Wise-ISP, 130dB WDR, Ultra 265 / H.265 / H.264 / MJPEG Video Compression, Up to 8 OSDs, Up to 4 areas Privacy mask, Support ROI, Triple streams, 4MP 2688x1520 Max 30 fps, 2D/3D DNR, HLC, BLC, Smart intrusion prevention, People Counting, Basic detection, MicroSD up to 512GB, 1 / 1x audio I/O, 1 / 1 Alarm I/O, Built-In dual-mic, Built-In Speaker, 1 x RJ45 10M/100M Base-TX Ethernet Network, IP67, IK10

Overview:

Uniview 4MP Dual-Light WDR Mini Dome Network Camera
The Uniview IPC314SB-ADF28KMC-DL-I1 is a high-performance 4MP mini dome network camera designed to deliver exceptional image quality in demanding indoor and outdoor surveillance environments. Equipped with a 1/2.9-inch CMOS sensor and a fixed 2.8mm lens, it captures sharp video at up to 2688 x 1520 resolution and 30fps. ColorHunter technology combined with Wise-ISP provides vibrant full-colour images around the clock, while intelligent analytics help improve security accuracy by focusing on relevant events and reducing false alarms.

Description:

The Uniview UN-IPC314SB-ADF28KMC-DL-I1 is built for reliable, professional-grade video surveillance. Combining Dual-Light technology with ColorHunter and Wise-ISP, it delivers detailed full-colour images day and night. Advanced AI-powered intrusion prevention, people counting, dual built-in microphones, a speaker, and flexible alarm and audio interfaces make it an excellent solution for businesses, commercial properties, schools, warehouses, and residential installations requiring intelligent monitoring and dependable performance.

Features:

Why Choose This 4MP Network Camera
Designed to provide dependable monitoring in a wide variety of environments, this mini dome camera combines advanced imaging technology with intelligent detection capabilities. The powerful 130dB True WDR ensures balanced images even in scenes with challenging backlighting, while Smart IR and integrated warm white illumination maintain excellent visibility after dark.

Its intelligent analytics distinguish between people, vehicles and non-motorised vehicles, helping reduce nuisance alerts caused by environmental movement such as birds, leaves or changing light conditions.

Key Highlights

• 4MP CMOS image sensor with up to 2688 x 1520 resolution
• Fixed 2.8mm wide-angle lens
• Dual-Light technology with infrared and warm white illumination
• ColorHunter and Wise-ISP for 24-hour full-colour monitoring
• True 130dB Wide Dynamic Range for difficult lighting conditions
• AI-powered intrusion prevention with target classification
• People flow counting and crowd density monitoring
• Built-in dual microphones and integrated speaker
• Audio and alarm input/output support
• Triple video streams with ROI support
• MicroSD card support up to 512GB
• IP67 weatherproof and IK10 vandal-resistant housing

Video Performance
This camera supports multiple video compression technologies, helping reduce bandwidth and storage usage while maintaining excellent image quality.

Supported resolutions include:

• 4MP (2688 x 1520) at up to 30fps
• 4MP (2560 x 1440) at up to 30fps
• 3MP (2304 x 1296) at up to 30fps
• Full HD 1080p (1920 x 1080) at up to 30fps

Supported compression formats:

• Ultra 265
• H.265
• H.264
• MJPEG

Image enhancement technologies include:

• 130dB True WDR
• 2D and 3D Digital Noise Reduction
• HLC
• BLC
• ROI support
• Corridor Mode (9:16)

Smart Analytics
Integrated AI capabilities help improve security monitoring while reducing unnecessary alerts.

Available intelligent functions include:

• Cross line detection
• Intrusion detection
• Area entry detection
• Area exit detection
• Intelligent target classification
• People counting
• Crowd density monitoring
• Basic event detection
• Privacy masking with up to four configurable areas

Audio and Connectivity
The camera supports two-way audio and flexible integration with security systems through built-in audio hardware and external interfaces.

Connectivity includes:

• Built-in dual microphones
• Integrated speaker
• 1 audio input
• 1 audio output
• 1 alarm input
• 1 alarm output
• RJ45 10/100Mbps Ethernet connection

Built for Demanding Environments
With a rugged design, this mini dome camera is suitable for installations where durability is essential. Its IP67-rated enclosure protects against dust and water, while IK10 vandal resistance provides additional protection in exposed locations.

Infrared illumination reaches up to 30 metres for dependable night vision, while the integrated warm white light also provides full-colour imaging at distances of up to 30 metres.

Technical Summary

• Part Number / SKU: UN-IPC314SB-ADF28KMC-DL-I1
• Camera type: 4MP Mini Dome IP Camera
• Image sensor: 1/2.9-inch CMOS
• Lens: Fixed 2.8mm
• Maximum resolution: 2688 x 1520
• Maximum frame rate: 30fps
• Video compression: Ultra 265, H.265, H.264, MJPEG
• Storage: MicroSD card up to 512GB
• Dual-Light illumination: IR and warm white LED up to 30m
• Audio: Built-in dual microphones and speaker
• Protection rating: IP67
• Impact rating: IK10

The Uniview UN-IPC314SB-ADF28KMC-DL-I1 combines advanced imaging, intelligent analytics, durable construction and efficient video compression into a versatile surveillance solution suitable for professional security installations across commercial, industrial and residential environments.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UN-IPC314SB-ADF28KMC-DL-I1
Item	IPC314SB-ADF28KMC-DL-I1
Camera
Max Resolution	4 MP
Sensor	1/2.9" CMOS
Min. Illumination	Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan:-48degrees to 48degrees, Tilt: 0degrees to 80degrees, Rotate: 0degrees to 360degrees
S/N	> 56 dB
WDR	130 dB
Lens
Focal Length	2.8 mm
Iris	F1.6
Field of View (H)	101.1degrees
Field of View (V)	57.1degrees
Field of View (D)	117.7degrees
Lens Type	Fixed
Iris Type	Fixed
DORI
DORI Distance (Lens)	2.8 mm
DORI Distance (Detect)	63.0 m (206.7 ft)
DORI Distance (Observe)	25.2 m (82.7 ft)
DORI Distance (Recognize)	12.6 m (41.3 ft)
DORI Distance (Identify)	6.3 m (20.7 ft)
Illuminator
Illumination Distance (IR)	30 m (98.4 ft)
Illumination Distance (Warm Light)	30 m (98.4 ft)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Light On/Off Control	Auto/Manual
Supplemental Light	Dual light
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams
Frame Rate-Main Stream	4 MP (2688 x 1520), max. 30 fps , 4 MP (2560 x 1440), max. 30 fps , 3 MP (2304 x 1296), max. 30 fps , 1080P (1920 x 1080), max. 30 fps , 720P (1280 x 720), max. 30 fps
Frame Rate-Sub Stream	1080P (1920 x 1080), max. 30 fps , 720P (1280 x 720), max. 30 fps , D1 (720 x 576), max. 30 fps , 640 x 360, max. 30 fps , 2CIF (704 x 288), max. 30 fps , CIF (352 x 288), max. 30 fps
Frame Rate-Third Stream	D1 (720 x 576), max. 30 fps , 640 x 360, max. 30 fps , 2CIF (704 x 288), max. 30 fps , CIF (352 x 288), max. 30 fps
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180degrees, 90degrees Clockwise, 90degrees Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis	N/A
People Counting	Support people flow counting and crowd density detection
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression	G.711U, G.711A, AAC-LC
Audio Bitrate	G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Serial Port	N/A
Built-in Mic	Built-in dual-mic
Built-in Speaker	Support
WIFI	N/A
Network	1 x RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)
	FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
	UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU , (EU) 2015/863) , WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
	IK10 (IEC 62262)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 8.5 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111.2 mm x 72.6 mm (Ø4.4" x 2.9" ) (Ø x H)
Weight	0.46 kg (1.01 lb)
Material	Metal
Working Environment	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
