UN-IPC2124LB-AF28-A2

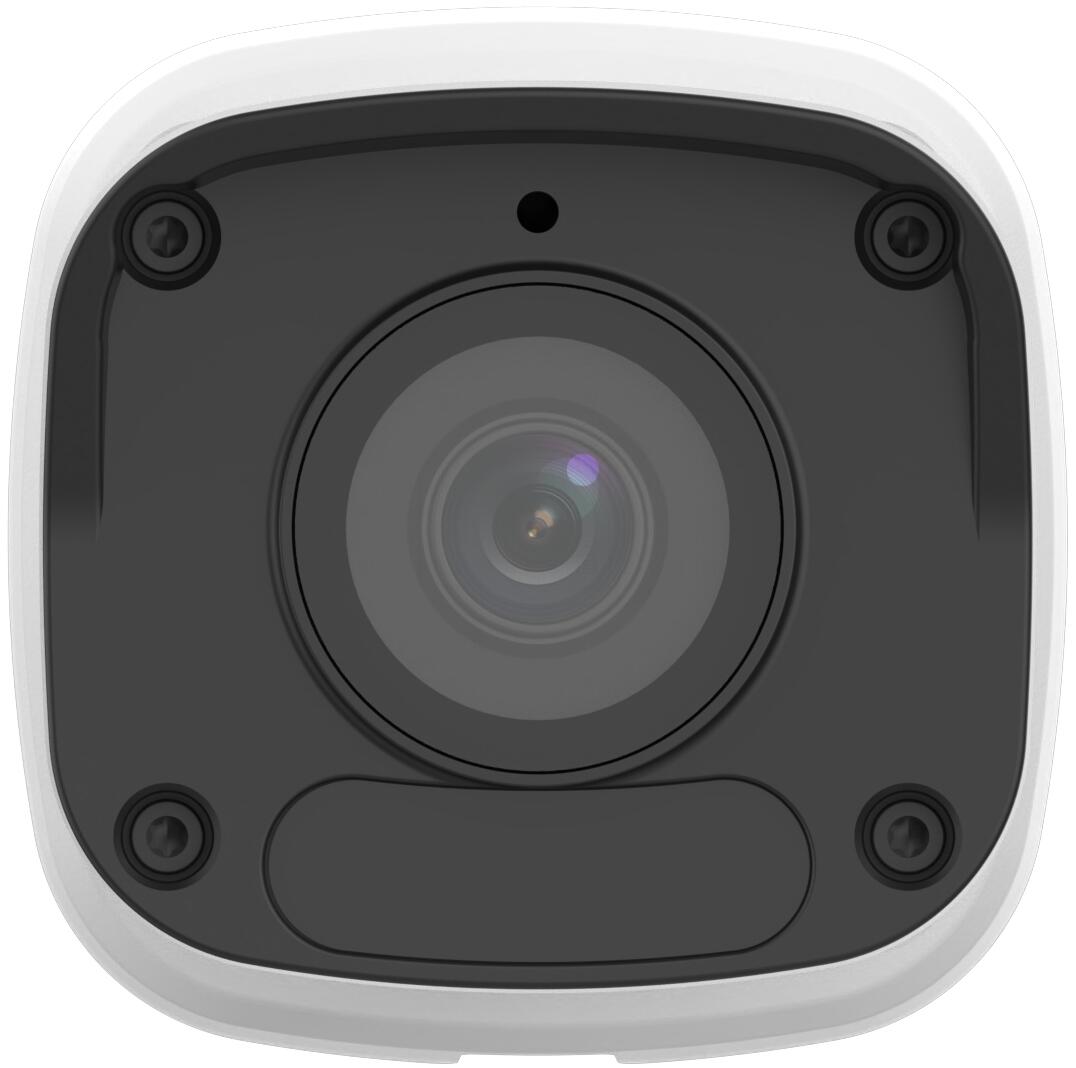

Uniview UNV 4MP Mini Fixed Bullet IP Camera with 2.8mm lens

Uniview UNV 4MP Mini Fixed Bullet IP Camera with 2.8mm Lens, IPC2124LB-AF28-A2, DWDR, Up to 30m IR Light, Ultra 265 / H.265 / H.264 Video Compression, 4MP (2560x1440) 25 fps Main Stream Maximum, Up to 4 OSDs, Up to 4 areas, Support ROI, Dual streams, 2D/3D DNR Digital Noise Reduction, HLC, BLC, Digital Defog, Human Body detection 2.0, Motion Detection, Audio detection, Built-In Mic, 1x RJ45 10M/100M Base-TX Ethernet, IP67 protection

About this product

The Uniview 4MP Mini Fixed Bullet IP Camera delivers high-resolution surveillance with a compact, durable design. Featuring a 2.8mm lens, smart IR night vision up to 30 meters, human body detection, motion and audio alerts, and dual-stream support, it ensures reliable security monitoring for residential and commercial use.

Overview:

Uniview 4MP Mini Fixed Bullet IP Camera with 2.8mm Lens
The Uniview UNV IPC2124LB-AF28-A2 delivers high-resolution surveillance with a compact, durable design. Engineered for reliable security monitoring, this 4MP mini bullet camera combines advanced imaging technology with intelligent detection capabilities, making it ideal for both residential and commercial applications.

Description:

This camera offers crisp 4MP video quality, smart IR for night vision up to 30 meters, and dual-stream support for efficient video transmission. Equipped with human body detection 2.0, digital noise reduction, and built-in audio capabilities, it ensures precise monitoring and security alerts. Its rugged IP67-rated housing makes it suitable for outdoor environments, and flexible power options include PoE and DC 12V.

Features:

High-Resolution Imaging and Video Compression
Capture clear, detailed footage with a 4MP 1/3.0" CMOS sensor, supporting multiple resolutions including 2560 x 1440 at 25 fps. The camera uses Ultra 265, H.265, and H.264 video compression to reduce bandwidth and storage requirements without compromising image quality. Dual streams allow efficient remote monitoring alongside main recording.

Smart Night Vision and Noise Reduction
Equipped with smart IR technology, the camera provides night vision up to 30 meters. 2D/3D digital noise reduction minimizes interference in low-light conditions, while digital defog and HLC/BLC adjustments enhance image clarity in challenging environments. Day/night functionality ensures consistent performance around the clock.

Intelligent Detection and Alerts
Human body detection 2.0 accurately identifies moving individuals for targeted security alerts. Additional detection options include motion and audio detection, enabling proactive monitoring and faster response to potential threats.

Durable Design for Outdoor Use
IP67-rated housing ensures the camera is protected against dust and water, making it ideal for outdoor installation. The 3-axis adjustable design allows flexible mounting positions to cover specific surveillance areas effectively.

Audio and Connectivity Options
The built-in microphone enables audio monitoring alongside video recording. Networking is supported via 1x RJ45 10M/100M Base-TX Ethernet, and power options include PoE (IEEE 802.3af) or DC 12V for convenient installation.

Flexible Installation and ROI Support
Support for up to 4 OSDs and 4 customizable areas ensures precise monitoring. ROI (Region of Interest) function optimizes video quality in critical zones, allowing security teams to focus on key areas without increasing storage load.

Key Benefits

• Crystal-clear 4MP video with flexible resolution settings
• Long-range IR night vision up to 30 meters
• Intelligent human detection and motion/audio alerts
• Reliable performance with IP67-rated weatherproof design
• Efficient video storage using Ultra 265 compression
• Simple installation with PoE and DC 12V support

FAQ

What is the maximum resolution?

4MP (2560x1440) at 25fps; supports 3MP and 1080p at higher frame rates.

Does it have night vision?

Yes, IR night vision up to 30 meters with smart IR for clear night-time images.

Is it weatherproof?

Yes, IP67-rated for dust and water resistance, suitable for indoor and outdoor use.

Does it include audio?

Built-in microphone supports audio monitoring; no speaker for two-way audio.

What are the power options?

DC12V +-25% or PoE (IEEE 802.3af).

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UN-IPC2124LB-AF28-A2
Item	IPC2124LB-AF28-A2
Camera
Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0degrees to 360degrees, Tilt: 0degrees to 90degrees, Rotate: 0degrees to 360degrees
S/N	> 52 dB
WDR	DWDR
Lens
Focal Length	2.8 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	94.3degrees
Field of View (V)	52.2degrees
Field of View (D)	99.6degrees
Lens Type	Fixed
DORI
DORI Distance (Lens)	2.8 mm
DORI Distance (Detect)	63.0 m (206.7 ft.)
DORI Distance (Observe)	25.2 m (82.7 ft.)
DORI Distance (Recognize)	12.6 m (41.3 ft.)
DORI Distance (Identify)	6.3 m (20.7 ft.)
Illuminator
Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2560 x 1440), max. 25 fps , 3 MP (2304 x 1296), max. 30 fps , 1080P (1920 x 1080), max. 30 fps
	Sub Stream: 640 x 360, max. 30 fps , 2CIF (704 x 288), max. 30 fps , CIF (352 x 288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180degrees
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Image Stabilization	N/A
Events
Basic Detection	Human body detection 2.0, Motion detection, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	N/A
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile T) , API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	UNV-Link, UNV-Link Pro, EZStation
Web Browser	Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+, Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 x RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
	FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1)
	UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU , (EU)2015/863) , WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 3.9 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	157.5 mm x 62.5 mm x 62.7 mm (6.2" x 2.5" x 2.5") (L x W x H)
Weight	0.19 kg (0.42 lb)
Material	Graphene + Plastic
Working Environment	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese
