99-135A002-0002

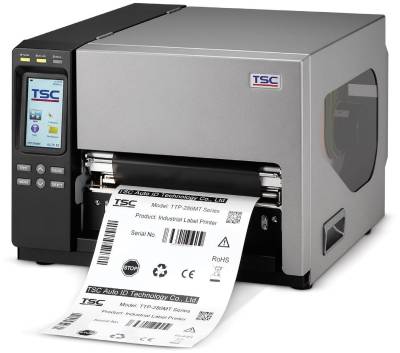

TSC TTP-286MT Thermal Transfer / Direct Thermal Label Printer, USB, Serial, Parallel, LAN

TSC TTP-286mt Thermal Transfer / Direct Thermal Label Printer, USB, RS232, Parallel, Ethernet, 8 dots/mm (203 dpi), 241mm Media width, 216 mm print width, 208mm Roll Diameter, 152 mm/s Speed, 16 bits Colour 480x272 pixels LCD panel, 4.3" Touch LCD Display with 6-button menus, 600 meter Ribbon supply, SD Flash Memory Expansion up to 32GB, Up to 6" per sec print Speed for 203 dpi

Overview:

TSC TTP-286MT Thermal Transfer and Direct Thermal Label Printer
The TSC TTP-286MT delivers high-performance label printing for industrial, warehouse, and commercial applications. With precise 203 dpi resolution and versatile connectivity options, it ensures efficient and reliable labeling for a wide range of tasks. Its robust design, user-friendly interface, and expandable memory make it ideal for businesses requiring consistent, high-speed printing.

Description:

This industrial label printer supports both thermal transfer and direct thermal printing, accommodating media widths up to 241 mm and print widths up to 216 mm. It offers multiple connectivity options including USB, RS232, parallel, and Ethernet. The 4.3" touch LCD display with 6-button menus provides intuitive operation. With a 600-meter ribbon supply, SD card memory expansion up to 32 GB, and print speeds up to 152 mm/s (6" per second), the TTP-286MT is designed for high-volume, professional labeling. Optional modules like Bluetooth, wireless, and cutters extend its functionality further.

Features:

Key Capabilities and Design

• 203 dpi printing resolution for clear, professional labels
• Maximum media width: 241 mm; print width: 216 mm
• High-speed printing up to 152 mm/s
• Robust die-cast chassis and sheet metal construction with media view window
• 4.3" touch LCD display with 6-button menu for easy operation
• 512 MB Flash memory and 256 MB SDRAM, expandable with SD card up to 32 GB
• Long-life ribbon supply up to 600 meters

Connectivity and Compatibility

• USB 2.0, USB Host, RS232, parallel, and Ethernet interfaces included
• Optional modules available for Bluetooth, 802.11 b/g/n wireless, GPIO connectivity, and cutting
• TSPL-EZ programming for flexible and easy label design

Practical Applications

• Compliance labeling for shipping and receiving
• Branding labels with logos, graphics, and text
• Pallet and inventory labeling
• Warning and drum labels
• Custom signage and multiple-up label printing

Included Accessories

• USB cable
• Power supply unit and power cable
• Real-time clock and LCD display

The TSC TTP-286MT combines speed, durability, and flexibility to meet the demanding needs of modern labeling environments, making it a reliable choice for industrial, retail, and logistics operations.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	99-135A002-0002
PRINTER MODEL	TTP-286MT
Resolution	8 dots/mm (203 DPI)
Printing method	Thermal Transfer & Direct Thermal
Max. print speed	152 mm (6")/second
Max. print width	216 mm (8.5")
Max. print length	11,430 mm (450")
Enclosure	Die-cast chassis/Sheet metal structure with clear media view window
Physical dimension	440 mm (W) x 336 mm (H) x 514 mm (D) 17.32" (W) x 13.23" (H) x 20.24" (D)
Weight	23.7 kg (N.W)
Label roll capacity	208.3 mm (8.2") OD
Ribbon	600 m long, Max. 90 mm OD, 1" core (ink coated outside)
Ribbon width	110 mm ~ 254 mm (4.3" ~ 10")
Processor	32-bit RISC CPU
Memory	512 MB Flash memory
	256 MB SDRAM
	SD Flash memory card reader for Flash memory expansion, up to 32 GB
Interface	RS-232
	Centronics
	USB 2.0
	Internal Ethernet, 10/100 Mbps
	USB host, for scanner or PC keyboard
	GPIO (factory option)
	Bluetooth (user option)
	External 802.11 b/g/n wireless (user option)
Power	Internal universal switching power supply
	Input: AC 100~240V, 3.0A, 50~60Hz
	Output: DC 24V, 8.33A, 200W
LCD	16 bits Color, 480 x 272 pixels, with back lights, Resistive Touch Screen
Operation switch, button	1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select)
Sensors	Gap transmissive sensor (position adjustable)
	Black mark reflective sensor (position adjustable)
	Ribbon end sensor
	Ribbon Encoder sensor
	Head open sensor
Real time clock	Standard
	8 alpha-numeric bitmap fonts
Internal fonts	Monotype Imaging true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	1D bar code
	Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN- 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11
	2D bar code
	PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZ (Compatible to EPL, ZPL, ZPL II)
Media type	Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound)
Media width	101.6 ~ 241.3 mm (4" ~ 9.5")
Media thickness	0.06 ~ 0.254 mm (2.36 ~ 10 mil)
Media core diameter	76.2 mm (3")
Label length	25.4 ~ 11,430 mm (1" ~ 450")
Environment condition	Operation: 5 ~ 40degreesC, 20 ~ 85% non-condensing
	Storage: -40 ~ 60degreesC, 10 ~ 90% non-condensing
Safety regulation	FCC Class A, CE Class A, UL, CUL, TÜV/Safety
Environmental concern	Comply with RoHS, WEEE
Accessories	Windows labeling software CD disk
	Quick start guide
	USB cable
	Power cord
	Ribbon paper core
Factory options	GPIO interface
Dealer options	N/A
User options	Guillotine cutter (full cut)
	Heavy duty cutter (full cut)
	Bluetooth module (serial interface)
	802.11 b/g/n wireless module (serial interface)
	KP-200 Plus keyboard display unit
	KU-007 Plus programmable smart keyboard
