PTB680

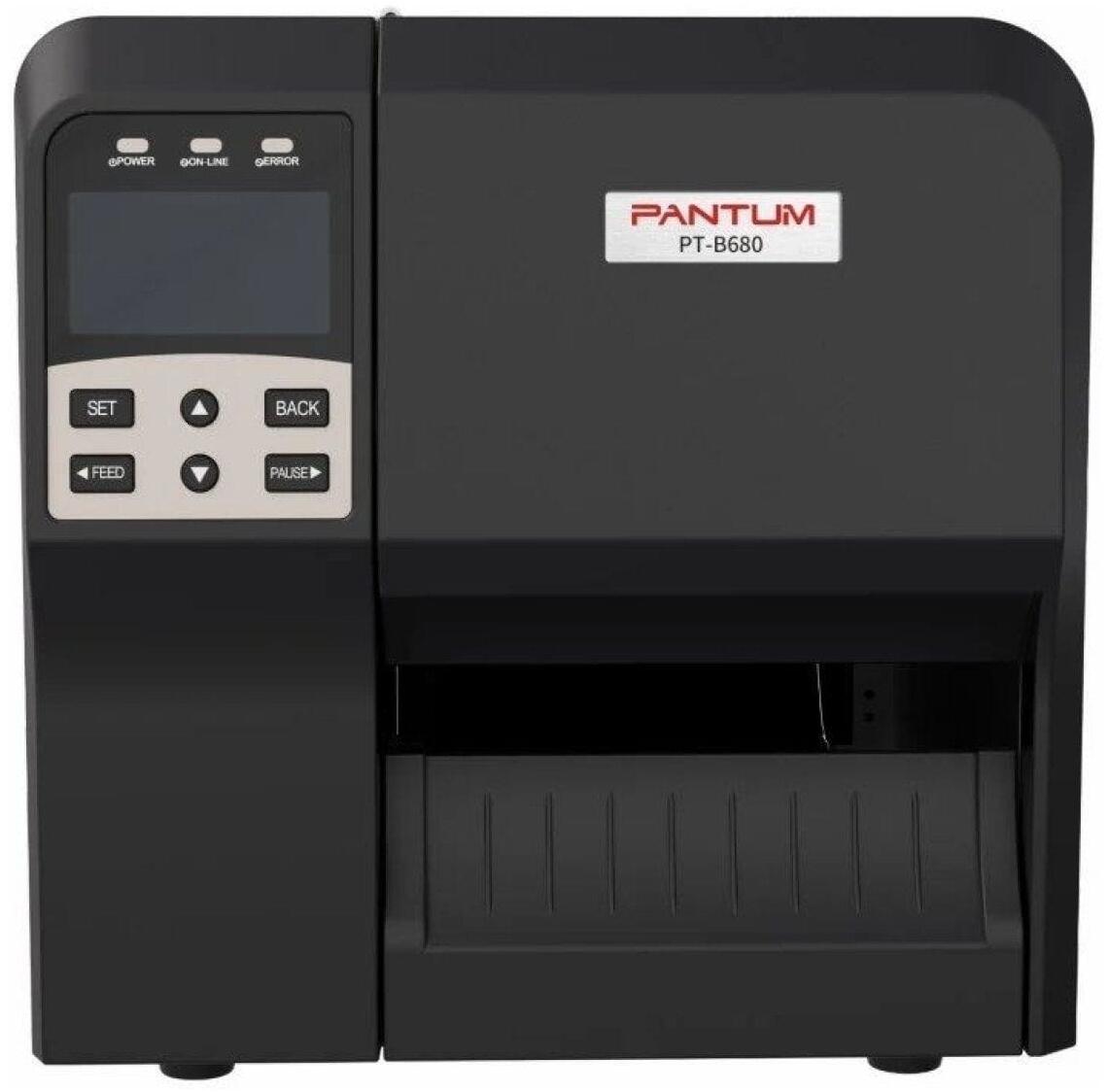

Pantum PT-B680 Thermal Barcode Label Printer, USB, LAN, Serial

Pantum - Pantum PT-B680 Thermal Barcode Label Printer, 300 dpi print Resolution, 203 mm/sec Maximum print Speed, 106.7 mm Maximum print width, 710 mm Maximum print length, 25.4 mm to 38 mm Core Diameter, USB, Ethernet, RS-232
BUY NOW - selling fast! Limited Stock at suppliers.* print

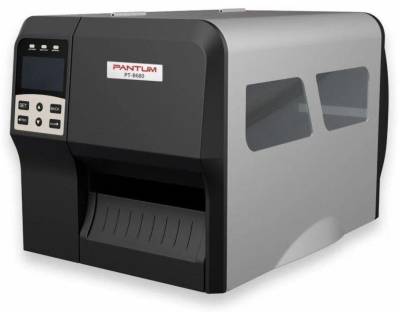

PTB680 Pantum PT-B680 Thermal Barcode Label Printer, USB, LAN, Serial Image 2

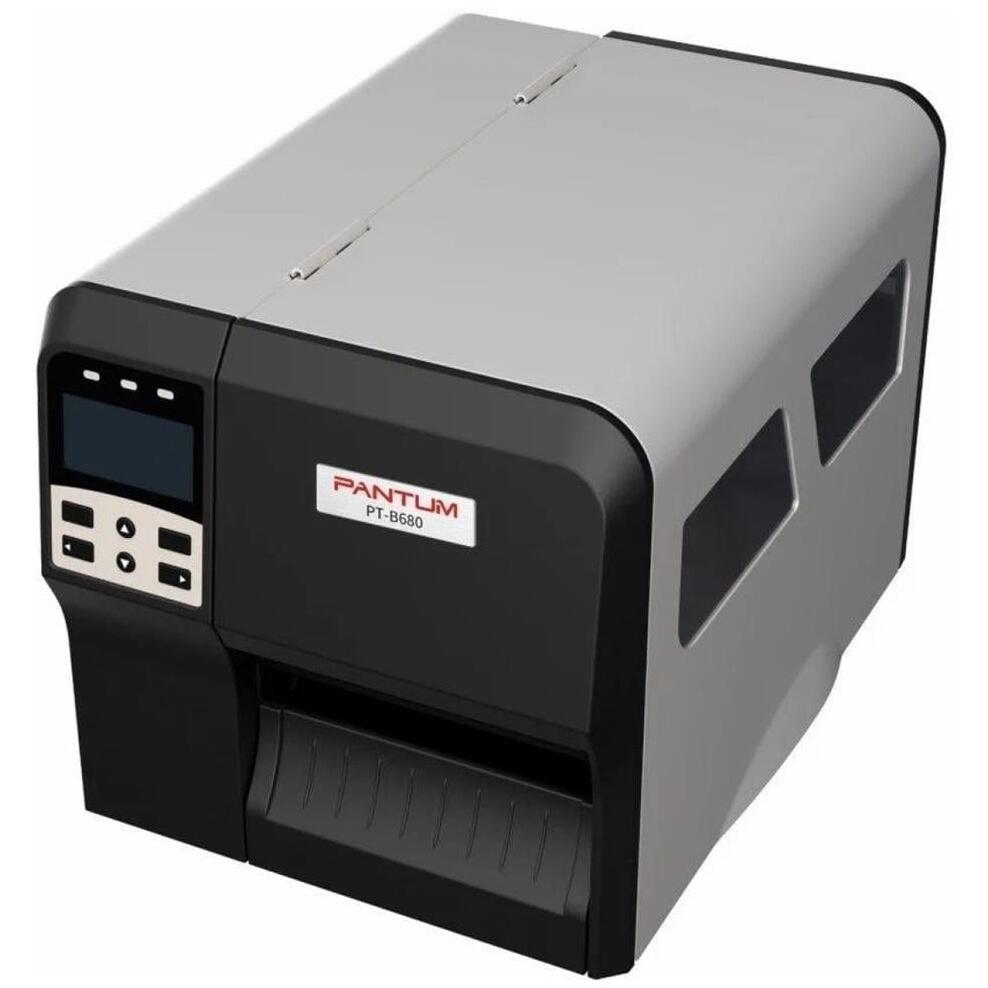

PTB680 Pantum PT-B680 Thermal Barcode Label Printer, USB, LAN, Serial Image 4
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. PTB680 Pantum PT-B680 Thermal Barcode Label Printer, USB, LAN, Serial is available from Laptop Direct and it is sold as new from our Label printers range of products. For reference purposes, the price of R9580 is valid 2026-10-26, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Label printers category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

PTB680

Pantum PT-B680 Thermal Barcode Label Printer, USB, LAN, Serial

Pantum PT-B680 Thermal Barcode Label Printer, 300 dpi print Resolution, 203 mm/sec Maximum print Speed, 106.7 mm Maximum print width, 710 mm Maximum print length, 25.4 mm to 38 mm Core Diameter, USB, Ethernet, RS-232

Overview Summary:

The Pantum PT-B680 thermal barcode label printer delivers high-quality, crisp labels with a sharp 300 dpi resolution and a rapid printing speed of up to 203 mm per second. Designed for businesses in retail, logistics, and manufacturing, this versatile printer supports both thermal transfer and direct thermal printing methods, ensuring durable labels across various applications. Easy to connect via USB, Ethernet, or RS-232, it integrates smoothly into existing systems. Shop now to enhance your labeling efficiency with reliable performance.

What tier does this fall into?

High-performance

What is this best for?

Retail labeling, logistics management, manufacturing barcode printing, inventory tracking, shipping labels

Overview:

Pantum PT-B680 Thermal Barcode Label Printer: Reliable, High-Quality Label Printing
The Pantum PT-B680 is a versatile thermal barcode label printer designed to meet the demands of retail, logistics, and manufacturing industries. Combining thermal transfer and direct thermal printing technologies, it delivers sharp, durable labels for a wide range of applications.

Features:

Key Features and Specifications

Printing Technology and Performance

  • Uses both thermal transfer and direct thermal printing methods
  • High print resolution of 300 dpi ensures crisp and clear barcodes
  • Fast printing speed of up to 203 mm per second accelerates label production
  • Maximum print width of 106.7 mm accommodates various label sizes
  • Supports print lengths up to 710 mm for long label needs

Memory and Storage

  • Equipped with 16 MB DRAM for smooth operation
  • 8 MB Flash memory for storing fonts and graphics

Media and Ribbon Compatibility

Label Specifications

  • Supports label widths from 20 mm to 120 mm
  • Compatible with label thickness ranging between 0.06 mm and 0.254 mm
  • Maximum roll diameter up to 203 mm
  • Core diameter between 25.4 mm and 38 mm

Ribbon Specifications

  • Ribbon widths supported: 30 mm to 110 mm
  • Maximum ribbon length of up to 450 meters
  • Ribbon core diameter of 25.4 mm
  • Maximum ribbon roll diameter of 81.3 mm

Connectivity Options

  • USB interface for straightforward connection
  • Ethernet support for network integration
  • RS-232 port for legacy system compatibility

Supported Barcode Types
The PT-B680 supports a wide range of barcode symbologies, making it suitable for diverse labeling needs:

  • 1D Barcodes: Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, MSI, Plessey, UPC-A, UPC-E
  • 2D Barcodes: Aztec, Data Matrix, PDF 417, QR Code

Physical Dimensions and Operating Conditions

  • Dimensions: 425 mm (W) x 255 mm (D) x 265 mm (H)
  • Weight: 9.65 kg
  • Operating temperature range: 0degrees C to 40degreesC
  • Humidity tolerance: 30% to 90% (non-condensing)

Why Choose the Pantum PT-B680
With its combination of fast printing speeds, high resolution, and versatile media compatibility, the Pantum PT-B680 thermal barcode label printer is ideal for businesses looking to streamline labeling processes without compromising quality. Its multiple connectivity options and broad barcode support ensure seamless integration into existing workflows.

If you need a reliable printer capable of handling diverse label sizes and printing durable barcodes for retail, warehouse, or manufacturing environments, the Pantum PT-B680 is a smart choice.


Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodePTB680spacer
Printing Technology Thermal Transfer and Direct Thermal
Print Resolution 300 dpi
Maximum Print Speed 203 mm/sec
Maximum Print Width 106.7 mm
Maximum Print Length 710 mm
Memory 16 MB DRAM
8 MB Flash
Media Specifications
Label Width 20 mm to 120 mm
Label Thickness 0.06 mm to 0.254 mm
Maximum Roll Diameter 203 mm
Core Diameter 25.4 mm to 38 mm
Ribbon Specifications
Width 30 mm to 110 mm
Maximum Length Up to 450 m
Core Diameter 25.4 mm
Maximum Roll Diameter 81.3 mm
Connectivity USB
Ethernet
RS-232
Supported Barcode Symbologies
1D Barcodes Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, MSI, Plessey, UPC-A, UPC-E, and others
2D Barcodes Aztec, Data Matrix, PDF 417, QR Code, and others
Physical Dimensions 425 x 255 x 265 mm
Weight 9.65 kg
Operating Environment
Temperature 0degreesC to 40degreesC
Humidity 30% to 90% (non-condensing)
