InSight-S455-2.8mm

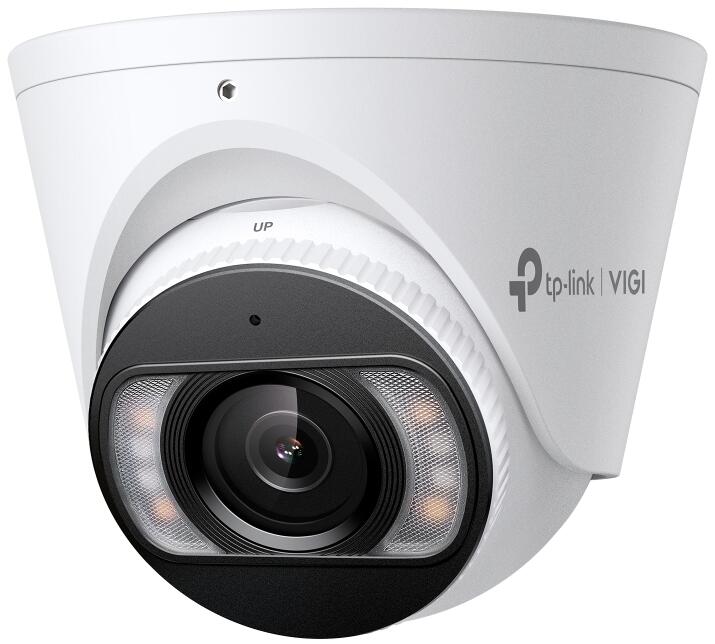

TP-Link InSight S455 Vigi 5MP Full-colour Turret Network camera with 2.8mm Lens

TP-Link InSight S455 Vigi 5MP Full-colour Turret Network camera with 2.8mm Lens, 4 IR LED up to 30m range, 4 White LED up to 30m range, 2880x1620 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, Image enhancement - BLC / 3D DNR / HLC / SmartIR, 120 dB wide Dynamic range, Up to 4 Privacy mask, 1 region ROI, Two-Way Audio, Audio Input, Audio Output, 3 Main streams & 3 Sub-Streams simultaneous live View, Motion Detection, Enhanced with human & vehicle classification, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port PoE Network Interface, Built-In Memory card slot support MicroSD card up to 512GB, Built-In Microphone, Built-In Speaker

Overview:

TP-Link InSight S455 Vigi 5MP Full-Color Turret Network Camera
The TP-Link InSight S455 Vigi 5MP Full-Color Turret Network Camera is a top-of-the-line security solution designed to deliver exceptional clarity, enhanced video quality, and reliable performance, whether for home or business use. With advanced features like full-color 24-hour surveillance, intelligent video analytics, and smart detection technologies, this camera offers a comprehensive monitoring experience.

Description:

The TP-Link InSight S455 provides 5MP high-definition video with vibrant full-color images around the clock, even in low-light conditions. Equipped with human and vehicle classification, it helps prioritize key events, making surveillance smarter and more efficient. With built-in Smart IR, True WDR, and 3D DNR, the camera ensures clear and balanced footage, even in challenging lighting environments. The camera also features enhanced compression technology (H.265+) to save bandwidth and storage, while its IP67 weatherproof rating makes it durable in outdoor environments. A range of smart detection and audio features, including two-way audio and active defense, further elevate the security capabilities.

Features:

5MP High-Definition and Full-Color Surveillance
The InSight S455 offers super-high definition 5MP resolution with full-color imaging, ensuring that every detail is captured clearly. Whether it's day or night, the camera's full-color capability allows for accurate identification in any lighting condition.

People & Vehicle Analytics for Smarter Surveillance
This camera's advanced analytics allow you to filter and search for specific individuals or vehicles. It classifies people and vehicles separately from other objects to provide more accurate and useful event notifications. Post-event searches become faster and more efficient, saving valuable time.

Smart Video Enhancement for Better Image Quality
The InSight S455 is equipped with several smart video technologies that optimize image quality, including:

• True WDR (Wide Dynamic Range): Enhances image quality by balancing bright and dark areas, ensuring all details are visible in high-contrast settings.
• Smart IR: Adjusts infrared lighting dynamically to prevent overexposure and glare, ensuring better night-time visibility.
• 3D DNR (Dynamic Noise Reduction): Reduces image noise by analyzing data across frames, preserving detail while minimizing distractions from noise.
• White Balance: Ensures accurate color reproduction, even in challenging lighting environments.

H.265+ Compression for Optimal Storage and Bandwidth Efficiency
The InSight S455 uses the H.265+ video compression standard to significantly reduce bandwidth usage and storage requirements, while still maintaining high-quality video output. Compared to older compression formats like H.264 and H.265, H.265+ can save up to 57.5% more storage, allowing you to store more video footage without sacrificing quality.

Active Defense and Two-Way Audio for Enhanced Security
This camera goes beyond just capturing footage. With built-in two-way audio, you can communicate directly with individuals in the camera's vicinity, adding an extra layer of interaction. The active defense feature allows you to take further action when potential threats are detected, making it a proactive security solution.

Durable and Weatherproof for Outdoor Use
With an IP67 weatherproof rating, the InSight S455 is designed to withstand the elements, making it ideal for outdoor surveillance. Whether exposed to rain, dust, or extreme temperatures, this camera continues to perform reliably in harsh conditions.

Key Benefits of the TP-Link InSight S455

• Crystal-clear video: 5MP full-color resolution ensures sharp images, day or night.
• Smart detection and analytics: Classifies people and vehicles for precise alerts.
• Advanced video enhancement: Optimizes footage with True WDR, Smart IR, and 3D DNR.
• Reduced storage and bandwidth: H.265+ compression reduces data usage by up to 57.5%.
• Durable design: IP67 rating ensures reliability in all weather conditions.
• Efficient communication: Two-way audio and active defense features for enhanced security.

Specifications:

• Resolution: 5MP (2880x1620)
• Lens: 2.8mm
• IR Range: Up to 30m (4 IR LEDs)
• White LED Range: Up to 30m
• Video Compression: H.265+, H.265, H.264+, H.264
• Dynamic Range: 120 dB WDR
• Audio: Two-way audio with built-in microphone and speaker
• Network Interface: 1 x RJ45 10/100 Mbit Self-Adaptive Ethernet Port, PoE
• Storage: MicroSD card slot (up to 512GB)
• Weatherproof Rating: IP67
• Other Motion detection, human and vehicle classification, privacy masks, smart detection, active defense.

The TP-Link InSight S455 Vigi 5MP Full-Color Turret Network Camera is an intelligent and versatile surveillance tool, perfect for anyone looking to enhance their security system with cutting-edge features and reliable performance. Whether you're monitoring a small business or securing your home, this camera provides everything you need for clear, accurate, and efficient surveillance.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	InSight-S455-2.8mm
CAMERA
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux , 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	F1.6
FOV	2.8 mm:
	Horizontal FOV: 111.4degrees, Vertical FOV: 58.8degrees, Diagonal FOV: 134degrees
	4 mm:
	Horizontal FOV: 88degrees, Vertical FOV: 46degrees, Diagonal FOV: 105.4degrees
Lens Mount	M12*P 0.5
DORI Distance	2.8 mm
	Detect: 64 m (210 ft)
	Observe: 27 m (89 ft)
	Recognize: 13 m (43 ft)
	Identify: 6 m (20 ft)
	4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (108 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	Pan: 0degrees to 360degrees, Tilt: 0degrees to 85degrees, Rotation: 0degrees to 360degrees
ILLUMINATOR
IR LED	Quantity: 4
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 4
	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2880 X 1620
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080
	1280x720
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	848x480, 704x576, 640x480, 640x360, 352x288, 320x240
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror
	Brightness
	Contrast
	Saturation
	Sharpness
	Exposure
	WDR
	White Balance
	Prevent Overexposure to Infrared Light
	HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
	Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	ONVIF Profile S/T/G
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	Intrusion Detection
	Line-Crossing Detection
	Region Entering Detection
	Region Exiting Detection
	Object Abandoned Detection
	Object Removal Detection
	Loitering Detection
	People Detection
	Vehicle Detection
	Abnormal Sound Detection
	Scene Change Detection
Basic Event	Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
	Video Tampering Detection
	Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording
	Message Push
	Audible Warning
	White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in Microphone	Yes , Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30-60 degreesC
Storage Temperature	-40-60 degreesC
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

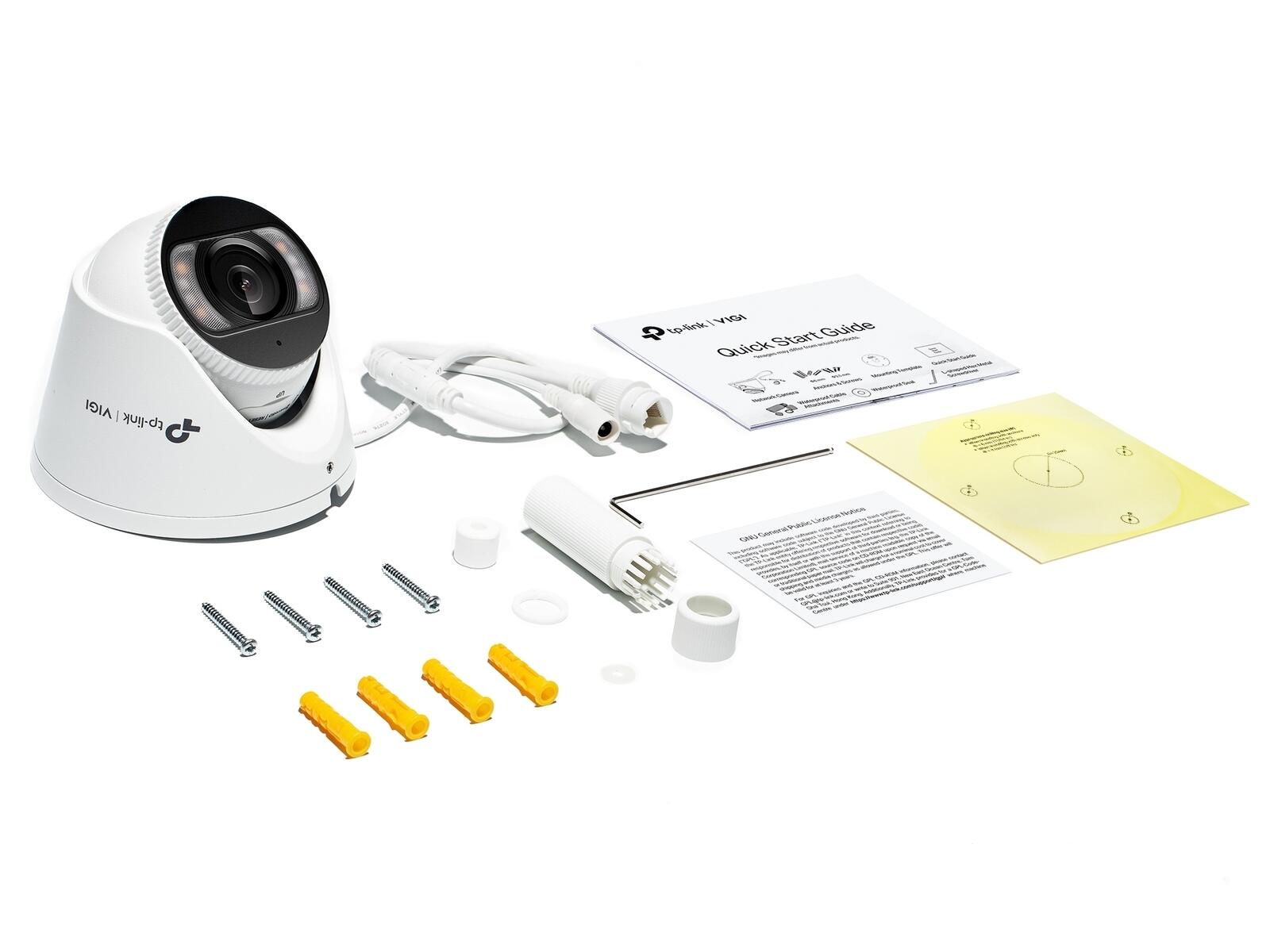

Package Contents	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Material	Metal
Net Weight	0.48 Kg
Power Supply	12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
	PoE: 802.3af/at, class 0, Max. 12 W
Protection	IP67
Product Dimensions (L x W x H)	4.4 x 4.4 x 3.3 in (111 x 111 x 83.7 mm)
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC
