CAM-S485PI

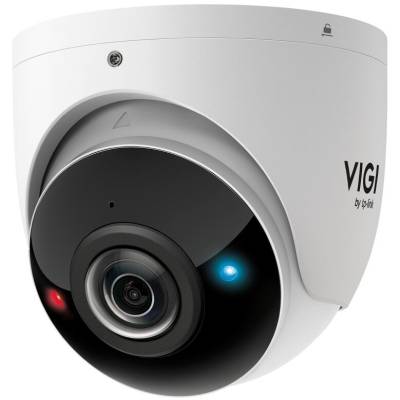

TP-Link InSight S485PI Vigi 8MP IR Panoramic Turret Network camera with 1.65mm Lens

TP-Link InSight S485PI Vigi 8MP IR Panoramic Turret Network camera with 1.65mm Lens, 4 IR LED up to 20m, 3840x2160 maximum Resolution, H.265+ / H.265 / H.264+ / H.264 Video Compression, Image enhancement - BLC / 3D DNR / HLC / SmartIR, 120 dB wide Dynamic range, Up to 4 Privacy mask, 4 region ROI, Two-Way Audio, Built-In Microphone, Audio in Interface, Built-In Speaker, Audio out Interface, 3 Main streams & 3 Sub-Streams simultaneous live View, Motion Detection, Enhanced with human & vehicle classification, 1x RJ45 10/100 Mbit Self-Adaptive Ethernet Port PoE Network Interface, 1 Alarm in, 1 Alarm out, Red-Blue warning lights, Built-In Memory card slot support MicroSD card up to 512GB

Overview:

InSight S485PI
VIGI 8MP IR Panoramic Turret Network Camera

The InSight S485PI delivers wide 180 degree coverage and 4K clarity, making it ideal for monitoring large indoor and outdoor areas. It combines advanced imaging performance, smart detection, and durable construction for reliable security in demanding environments.

Description:

This 8MP panoramic turret camera provides extensive scene coverage with its ultra wide lens, long range infrared, and smart video enhancement. It supports human and vehicle analytics, active defense with warning lights, efficient storage compression, and flexible audio and alarm connectivity. Its robust weatherproof and vandal resistant build ensures consistent operation in challenging locations.

Features:

Key Advantages for Modern Surveillance
The camera is built for scenarios where wide area monitoring and high detail matter, including entrances, lobbies, loading areas, retail spaces, and warehouses. Its panoramic view reduces the need for multiple cameras, improving installation efficiency while lowering operational costs.

Panoramic Monitoring for Larger Spaces
A single camera can oversee expansive locations where standard devices often leave gaps. The 180 degree view combined with 4K resolution provides comprehensive scene coverage, minimising the number of cameras required.

Active Defense System for Real Time Deterrence
The camera responds to security events with audible alerts and flashing lights triggered by built in intelligence or external alarm systems. Custom voice audio can also be added to strengthen on site deterrence.

Enhanced Deterrence with Red Blue Alerts
Red and blue warning lights stand out more than standard white indicators. When paired with audio signals, these alerts help prevent unwanted activity before it escalates.

Integration with Audio and Alarm Devices
The audio input and output options, along with alarm ports, allow the camera to be connected to compatible access control or security systems, giving installers more flexibility.

Rapid Event Notifications to Mobile Devices
If the system detects motion or receives an alert from an external sensor, notifications are sent immediately to the user's mobile device for quick response.

Advanced Detection Powered by AI
The analytics engine helps identify relevant activity by distinguishing people and vehicles from unrelated movement.

• People and Vehicle Analytics help refine searches by attributes such as clothing colour or vehicle category.
• Human and Vehicle Classification reduces false alerts from environmental movement like shadows or wildlife.

Image Quality Enhancements for Challenging Light
The camera includes multiple optimisation tools that help maintain clarity throughout the day.

• True WDR balances scenes with bright and dark areas.
• Smart IR adjusts infrared output to avoid overexposure at night.
• 3D DNR reduces noise and improves clarity.
• White Balance maintains natural colour accuracy.

Efficient Video Encoding for Reduced Storage Use
With H.265+, the camera preserves image detail while lowering bandwidth and storage consumption. It offers significant savings compared to older compression methods.

Technical Summary

• 8MP resolution at 3840x2160
• Panoramic 1.65 mm lens
• Infrared range up to 20 m
• Support for H.265+, H.265, H.264+, H.264
• BLC, HLC, 3D DNR, Smart IR
• 120 dB dynamic range
• Up to four privacy masks
• Up to four ROI zones
• Two way audio with built in mic and speaker
• Three main streams and three sub streams
• Motion detection with human and vehicle classification
• RJ45 10/100 Mbps port with PoE
• Alarm input and output
• Red blue warning lights
• MicroSD slot supporting up to 512 GB
• IP67 and IK10 protection

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CAM-S485PI
CAMERA
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux , 0 Lux with IR light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	1.65 mm
Aperture	F2.0
FOV	1.65mm:
	Horizontal FOV: 180degrees
	Vertical FOV: 86degrees
	Diagonal FOV: 180degrees
Lens Mount	M12
DORI Distance	1.65mm
	Detect: 144.36 ft (44 m)
	Observe: 60.15 ft (18.33 m)
	Recognize: 28.87 ft (8.8 m)
	Identify: 14.44 ft (4.4 m)
Angle Adjustment (Manual)
Range	Pan: 0degrees to 360degrees, Tilt: 0degrees to 75degrees, Rotation: 0degrees to 360degrees
ILLUMINATOR
IR LED	Quantity: 4
	Range: 65.62 ft (20 m)
	Wavelength: 850 nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	3840x2160
Main Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate :
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	848x480,704x576, 640x480, 640x360,352x288, 320x240
	Note:
	If the image rotation is set to 90degrees or 270degrees, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 8 Mbps
	Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings	Mirror
	Brightness
	Contrast
	Saturation
	Sharpness
	Exposure
	WDR
	White Balance
	Prevent Overexposure to Infrared Light
	HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	4 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Built-in Microphone
	Audio In Interface
Audio Output	Built-in Speaker
	Audio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	Intrusion Detection
	Line-Crossing Detection
	Region Entering Detection
	Region Exiting Detection
	Object Abandoned Detection
	Object Removal Detection
	Loitering Detection
	People Detection
	Vehicle Detection
	Abnormal Sound Detection
	Scene Change Detection
Basic Event	Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
	Video Tampering Detection
	Exception ( Illegal Login)
	Alarm Input Device
Alarm Linkage	Memory Card Video Recording
	Upload to FTP Server
	Alarm Output Device
	Push Notifications
	Send to Alarm Server
	Active Defence-Sound Alarm
	Active Defence-Light Alarm
	Email Alarm
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In, 1 Alarm Out
	Red-Blue Warning Lights
Reset Button	Yes
Power	DC Power Port

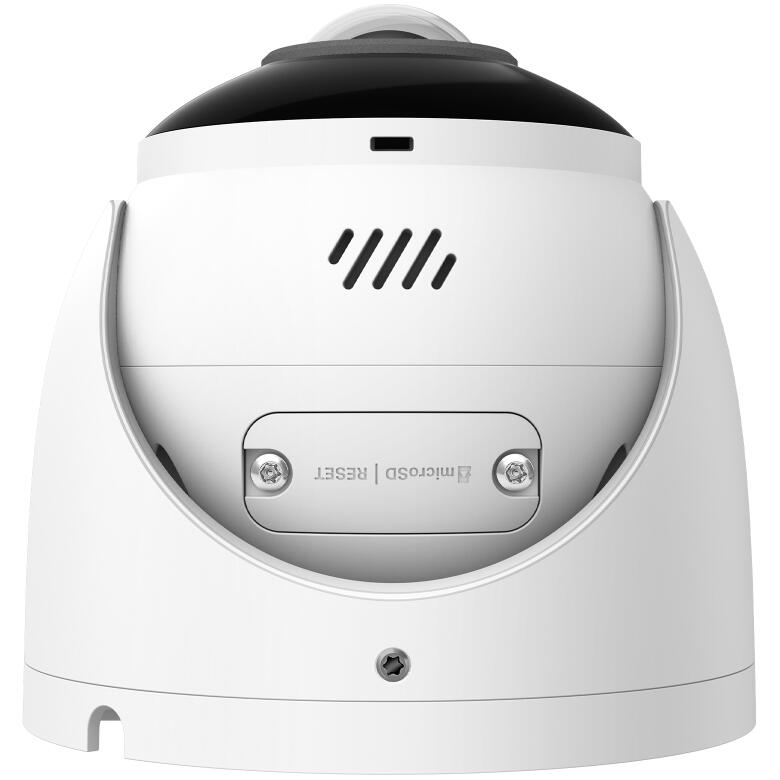

On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
Built-in Microphone	Yes , Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	1 Audio In, 1 Audio Out
GENERAL
Operating Temperature	-30 to 60 degreesC
Storage Temperature	-40 degreesC to 60 degreesC
Operating Humidity	95% or Less (Non-condensing)
Storage Humidity	95% or Less (Non-condensing)
Package Content	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Material	Metal
Net Weight	0.76 Kg
Power Supply	12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug
	PoE: 802.3at, class 4, Max. 21 W
Protection	IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	4.4 x 4.4 x 4.3 in (112.3 x 112.3 x 110.2 mm)
Certifications	CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
