MBD-X10SDV-2C-TP4F

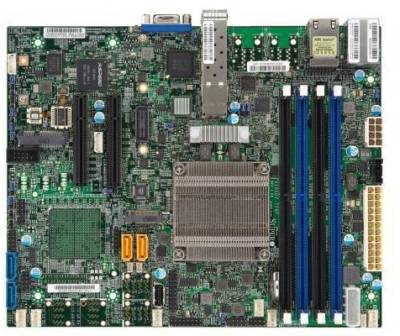

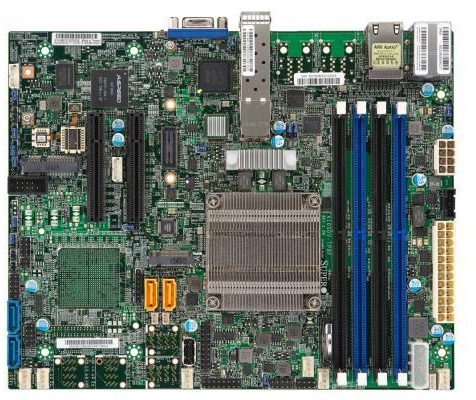

SuperMicro X10SDV-2C-TP4F Motherboard with Pentium D1508 2.2GHz, No RM, HDD, ..

Super Micro - SuperMicro X10SDV-2C-TP4F Motherboard, SoC Pentium D1508 2.2GHz Dual Core, 4x DIMM ECC-REG, Dual LAN with 10G SFP+ from D-1500 SoC, Aspeed AST2400 bmc Graphics, 4x SATA3 (6Gbps) Port SATA, 2x 1GbE LAN ports, 1x RJ45 dedicated IPMI LAN Port, 5x USB 2.0 ports (4 headers / 1 Type-A), 2x USB 3.0 ports (2 rear), 1x VGA Port, 1x Com Port, 2x PCI-e 3.0 x8, M.2 PCI-e 3.0 x 4
BUY NOW - selling fast! Limited Stock at suppliers.* print


Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. MBD-X10SDV-2C-TP4F SuperMicro X10SDV-2C-TP4F Motherboard with Pentium D1508 2.2GHz, No RM, HDD, OS is available from Laptop Direct and it is sold as new from our Server motherboards range of products. For reference purposes, the price of R8415 is valid 2026-10-08, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Server motherboards category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

MBD-X10SDV-2C-TP4F

SuperMicro X10SDV-2C-TP4F Motherboard with Pentium D1508 2.2GHz, No RM, HDD, OS

SuperMicro X10SDV-2C-TP4F Motherboard, SoC Pentium D1508 2.2GHz Dual Core, 4x DIMM ECC-REG, Dual LAN with 10G SFP+ from D-1500 SoC, Aspeed AST2400 bmc Graphics, 4x SATA3 (6Gbps) Port SATA, 2x 1GbE LAN ports, 1x RJ45 dedicated IPMI LAN Port, 5x USB 2.0 ports (4 headers / 1 Type-A), 2x USB 3.0 ports (2 rear), 1x VGA Port, 1x Com Port, 2x PCI-e 3.0 x8, M.2 PCI-e 3.0 x 4

Overview:

  • Intel Pentium processor D1508, Single socket FCBGA 1667; 2-Core, 4 Threads, 25W
  • Up to 128GB ECC RDIMM DDR4 1866MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
  • 2 PCI-E 3.0 x8, Mini PCI-E (mSATA support), M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110
  • 2 10G SFP+ and 2 GbE LAN
  • 4 SATA3 (6Gbps) ports via SoC
  • 2 USB 3.0 ports (rear), 5 USB 2.0 ports (4 via headers, 1 Type A)
  • 2 SuperDOM, 1 COM, TPM 2.0 header, GPIO and SMbus headers
  • 12V DC Input and ATX Power Source

Specifications:

© 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeMBD-X10SDV-2C-TP4Fspacer
Product SKUs
MBD-X10SDV-2C-TP4FX10SDV-2C-TP4F
Physical Stats
Form FactorFlex ATX
Dimensions9.0" x 7.25" (22.86cm x 18.42cm)
Processor/Cache
CPUIntel Pentium Processor D1508.
Socket FCBGA1667 supported, CPU TDP support 25W
Cores / Cache2 cores, 4 threads / 3MB cache
System Memory
Memory Capacity128GB Registered ECC RDIMM, DDR4-2133MHz64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes4GB, 8GB, 16GB, 32GB
Memory Voltage1.2V
Error DetectionCorrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
ChipsetSystem on Chip
SATASoC controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
RSTe
IPMISupport for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network ControllersDual LAN with 10G SFP+ from D-1500 SoC
Dual LAN with 1GbE with Intel I210
GraphicsAspeed AST2400 BMC
Input / Output
SATA4 SATA3 (6Gbps) port
LAN2 10G SFP+ LAN ports
2 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port
USB5 USB 2.0 ports (4 headers, 1 Type A)
2 USB 3.0 ports (2 rear)
Video Output1 VGA port
Serial Port / Header1 COM Port (1 header)
TPMTPM Header
Expansion Slots
PCI-E2 PCI-E 3.0 x8
M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support
M.2M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2242/2280/22110
Key: M-Key
System BIOS
BIOS Type128Mb SPI Flash with AMI BIOS
BIOS FeaturesPCI 3.0
ACPI 5.0
USB Keyboard support
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup
Management
SoftwareIntel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor 5, Watchdog
Power ConfigurationsACPI Power Management
ATX Power connector
+12V DC Power Input
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
PC Health Monitoring
Voltage+1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, System level control, VBAT
FAN6x 4-pin fan headers (up to 6 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, System level control
TemperatureMonitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LEDCPU / System Overheat LED
Other Features12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS
Operating Environment
Operating Temperature Range0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range10% ~ 95% (non-condensing)
