Specifications:
| © 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |

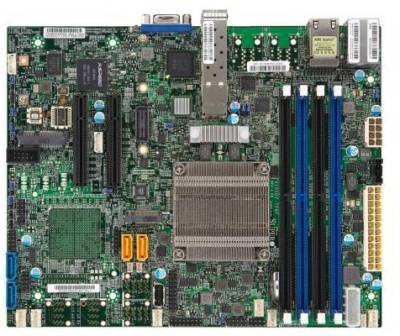

| Product Code | MBD-X10SDV-2C-TP4F |
| Product SKUs | |
| MBD-X10SDV-2C-TP4F | X10SDV-2C-TP4F |
| Physical Stats | |
| Form Factor | Flex ATX |
| Dimensions | 9.0" x 7.25" (22.86cm x 18.42cm) |
| Processor/Cache | |
| CPU | Intel Pentium Processor D1508. |
| Socket FCBGA1667 supported, CPU TDP support 25W | |
| Cores / Cache | 2 cores, 4 threads / 3MB cache |
| System Memory | |
| Memory Capacity | 128GB Registered ECC RDIMM, DDR4-2133MHz64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots |
| Memory Type | 1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) | |
| On-Board Devices | |
| Chipset | System on Chip |
| SATA | SoC controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10 |
| RSTe | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Network Controllers | Dual LAN with 10G SFP+ from D-1500 SoC |
| Dual LAN with 1GbE with Intel I210 | |
| Graphics | Aspeed AST2400 BMC |
| Input / Output | |
| SATA | 4 SATA3 (6Gbps) port |
| LAN | 2 10G SFP+ LAN ports |
| 2 1GbE LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | |
| USB | 5 USB 2.0 ports (4 headers, 1 Type A) |
| 2 USB 3.0 ports (2 rear) | |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 header) |
| TPM | TPM Header |
| Expansion Slots | |
| PCI-E | 2 PCI-E 3.0 x8 |
| M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support | |
| M.2 | M.2 Interface: 1 SATA/PCI-E 3.0 x4 |
| Form Factor: 2242/2280/22110 | |
| Key: M-Key | |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| BIOS Features | PCI 3.0 |
| ACPI 5.0 | |
| USB Keyboard support | |
| SMBIOS 2.8 | |
| UEFI 2.4 | |
| RTC (Real Time Clock) Wakeup | |
| Management | |
| Software | Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor 5, Watchdog |
| Power Configurations | ACPI Power Management |
| ATX Power connector | |
| +12V DC Power Input | |
| Control of power-on for recovery from AC power loss | |
| CPU thermal trip support for processor protection | |
| M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL | |
| PC Health Monitoring | |
| Voltage | +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, System level control, VBAT |
| FAN | 6x 4-pin fan headers (up to 6 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, System level control |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| LED | CPU / System Overheat LED |
| Other Features | 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS |
| Operating Environment | |
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% ~ 85% (non-condensing) |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) |
