RF-SH-30WB

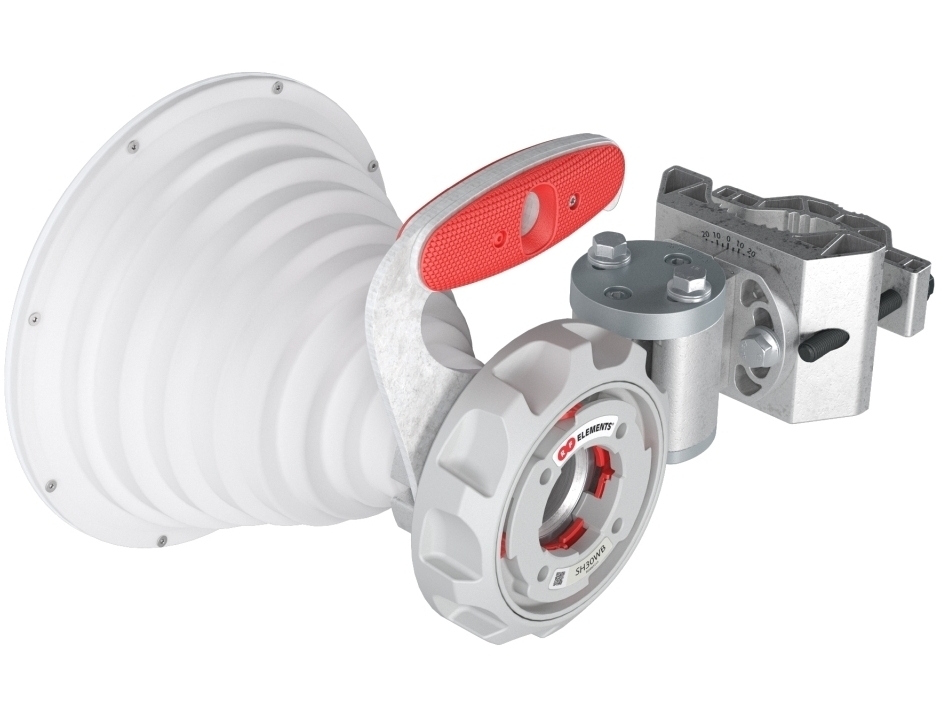

RF Elements SH30WB Wideband 30 degrees Symmetrical Horn Antenna

RF Elements - RF Elements SH30WB Wideband 30 degrees Symmetrical Horn Antenna, TwistPort Waveguide connector, 160 km/h Wind survival, 18 dBi gain, 96 % beam efficiency, Dual Linear H + V Polarization, 4900 - 7125 MHz Frequency range
BUY TODAY ! Expected to be in Stock at suppliers.* print


Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. RF-SH-30WB RF Elements SH30WB Wideband 30 degrees Symmetrical Horn Antenna is available from Laptop Direct and it is sold as new from our Wireless: Antennas range of products. For reference purposes, the price of R5430 is valid 2025-07-08, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Wireless: Antennas category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

RF-SH-30WB

RF Elements SH30WB Wideband 30 degrees Symmetrical Horn Antenna

RF Elements SH30WB Wideband 30 degrees Symmetrical Horn Antenna, TwistPort Waveguide connector, 160 km/h Wind survival, 18 dBi gain, 96 % beam efficiency, Dual Linear H + V Polarization, 4900 - 7125 MHz Frequency range

Overview:

RF ELEMENTS SH30WB WIDEBAND SYMMETRICAL HORN 30°
  • Radio Connection: TwistPort Waveguide Connector
  • Antenna Type: Horn
  • Materials: UV Resistant ABS plastic, Aluminum, Stainless Steel
  • Environmental: IP65
Features:

HORN ANTENNA WITH WIDEBAND PERFORMANCE
30° Symmetrical Horn Antennas have a symmetrical beam pattern with depressed sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense co-location deployments.

Important Features
  • Wideband performance covering 5 & 6 GHz unlicensed spectrum bands
  • Industry-changing TwistPort waveguide connector. Connect directly to waveguide ported radios or use TP Adaptor to common coaxial connectors.
New Industrial design
  • Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments
  • Extremely lightweigth for low tower load
  • Compact for low wind loading
  • UBR mounting bracket with stainless steel hardware with anti-seize coating
  • Industry leading ergonomics with integrated handle for easy deployment


Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeRF-SH-30WBspacer
TECHNICAL DATA
Radio ConnectionTwistPort Waveguide Connector
Antenna TypeHorn
MaterialsUV Resistant ABS plastic, Aluminium, Stainless Steel
EnviromentalIP65
Pole Mounting Diameter40-80 mm (1.5-3.1 inch)
Recommended as close to 80 mm (3.1 inch) as possible
Temperature-35°C to +60°C (-31°F to +140°F)
Wind Survival160 km/h (100 mi/h)
Wind Load46/23 N - Front/Side at 160 km/h (100 mi/h)
Effective Projected Area386/179 cm2 - Front/Side (59.8/27.7 in2)
Mechanical Adjustment± 20° Elevation, ± 20° Azimuth
Weight2.3 kg / 5.1 lbs - single unit
3.1 kg / 6.8 lbs - single unit incl. package
23.2 kg / 51.1 lbs - wholesale box (5 units)
DimensionsSingle unit retail box:
373 x 236 x 258 mm (14.6 x 9.3 x 10.1 inch)
Wholesale box (5 units):
1200 x 392 x 274 mm (47.2 x 15.4 x 10.8 inch)
PERFORMANCE
Frequency Range4900 - 7125 MHz Antenna on WG Port
Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna
Gain18 dBi
Azimuth Beam Width -3 dB/-6dBH 20°, V 20° / H 30°, V 30°
Elevation Beam Width -3 dB/-6dBH 20°, V 20° / H 30°, V 30°
Beam Efficiency96 %
Front-to-Back Ratio30 dB
VSWRCheck our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna
PolarizationDual Linear H + V
Impedance50 Ohm
