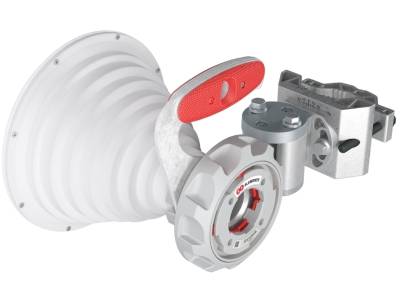

RF ELEMENTS SH30WB WIDEBAND SYMMETRICAL HORN 30°

• Radio Connection: TwistPort Waveguide Connector
• Antenna Type: Horn
• Materials: UV Resistant ABS plastic, Aluminum, Stainless Steel
• Environmental: IP65

Features:

HORN ANTENNA WITH WIDEBAND PERFORMANCE
30° Symmetrical Horn Antennas have a symmetrical beam pattern with depressed sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense co-location deployments.

Important Features

• Wideband performance covering 5 & 6 GHz unlicensed spectrum bands
• Industry-changing TwistPort waveguide connector. Connect directly to waveguide ported radios or use TP Adaptor to common coaxial connectors.

New Industrial design

• Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments
• Extremely lightweigth for low tower load
• Compact for low wind loading
• UBR mounting bracket with stainless steel hardware with anti-seize coating
• Industry leading ergonomics with integrated handle for easy deployment

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	RF-SH-30WB
TECHNICAL DATA
Radio Connection	TwistPort Waveguide Connector
Antenna Type	Horn
Materials	UV Resistant ABS plastic, Aluminium, Stainless Steel
Enviromental	IP65
Pole Mounting Diameter	40-80 mm (1.5-3.1 inch)
	Recommended as close to 80 mm (3.1 inch) as possible
Temperature	-35°C to +60°C (-31°F to +140°F)
Wind Survival	160 km/h (100 mi/h)
Wind Load	46/23 N - Front/Side at 160 km/h (100 mi/h)
Effective Projected Area	386/179 cm2 - Front/Side (59.8/27.7 in2)
Mechanical Adjustment	± 20° Elevation, ± 20° Azimuth
Weight	2.3 kg / 5.1 lbs - single unit
	3.1 kg / 6.8 lbs - single unit incl. package
	23.2 kg / 51.1 lbs - wholesale box (5 units)
Dimensions	Single unit retail box:
	373 x 236 x 258 mm (14.6 x 9.3 x 10.1 inch)
	Wholesale box (5 units):
	1200 x 392 x 274 mm (47.2 x 15.4 x 10.8 inch)
PERFORMANCE
Frequency Range	4900 - 7125 MHz Antenna on WG Port
	Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna
Gain	18 dBi
Azimuth Beam Width -3 dB/-6dB	H 20°, V 20° / H 30°, V 30°
Elevation Beam Width -3 dB/-6dB	H 20°, V 20° / H 30°, V 30°
Beam Efficiency	96 %
Front-to-Back Ratio	30 dB
VSWR	Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna
Polarization	Dual Linear H + V
Impedance	50 Ohm
