PTB680 specification sheet

Short Description

Long Description

Overview:

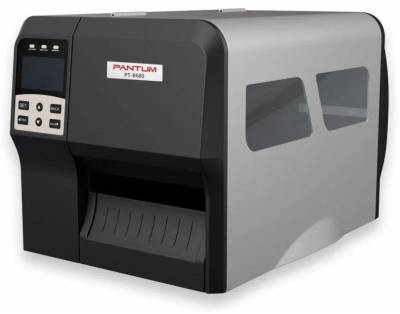

Pantum PT-B680 Thermal Barcode Label Printer: Reliable, High-Quality Label Printing
The Pantum PT-B680 is a versatile thermal barcode label printer designed to meet the demands of retail, logistics, and manufacturing industries. Combining thermal transfer and direct thermal printing technologies, it delivers sharp, durable labels for a wide range of applications.

Features:

Key Features and Specifications

Printing Technology and Performance

• Uses both thermal transfer and direct thermal printing methods
• High print resolution of 300 dpi ensures crisp and clear barcodes
• Fast printing speed of up to 203 mm per second accelerates label production
• Maximum print width of 106.7 mm accommodates various label sizes
• Supports print lengths up to 710 mm for long label needs

Memory and Storage

• Equipped with 16 MB DRAM for smooth operation
• 8 MB Flash memory for storing fonts and graphics

Media and Ribbon Compatibility

Label Specifications

• Supports label widths from 20 mm to 120 mm
• Compatible with label thickness ranging between 0.06 mm and 0.254 mm
• Maximum roll diameter up to 203 mm
• Core diameter between 25.4 mm and 38 mm

Ribbon Specifications

• Ribbon widths supported: 30 mm to 110 mm
• Maximum ribbon length of up to 450 meters
• Ribbon core diameter of 25.4 mm
• Maximum ribbon roll diameter of 81.3 mm

Connectivity Options

• USB interface for straightforward connection
• Ethernet support for network integration
• RS-232 port for legacy system compatibility

Supported Barcode Types
The PT-B680 supports a wide range of barcode symbologies, making it suitable for diverse labeling needs:

• 1D Barcodes: Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, MSI, Plessey, UPC-A, UPC-E
• 2D Barcodes: Aztec, Data Matrix, PDF 417, QR Code

Physical Dimensions and Operating Conditions

• Dimensions: 425 mm (W) x 255 mm (D) x 265 mm (H)
• Weight: 9.65 kg
• Operating temperature range: 0degrees C to 40degreesC
• Humidity tolerance: 30% to 90% (non-condensing)

Why Choose the Pantum PT-B680
With its combination of fast printing speeds, high resolution, and versatile media compatibility, the Pantum PT-B680 thermal barcode label printer is ideal for businesses looking to streamline labeling processes without compromising quality. Its multiple connectivity options and broad barcode support ensure seamless integration into existing workflows.

If you need a reliable printer capable of handling diverse label sizes and printing durable barcodes for retail, warehouse, or manufacturing environments, the Pantum PT-B680 is a smart choice.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	PTB680
Printing Technology	Thermal Transfer and Direct Thermal
Print Resolution	300 dpi
Maximum Print Speed	203 mm/sec
Maximum Print Width	106.7 mm
Maximum Print Length	710 mm
Memory	16 MB DRAM
	8 MB Flash
Media Specifications
Label Width	20 mm to 120 mm
Label Thickness	0.06 mm to 0.254 mm
Maximum Roll Diameter	203 mm
Core Diameter	25.4 mm to 38 mm
Ribbon Specifications
Width	30 mm to 110 mm
Maximum Length	Up to 450 m
Core Diameter	25.4 mm
Maximum Roll Diameter	81.3 mm
Connectivity	USB
	Ethernet
	RS-232
Supported Barcode Symbologies
1D Barcodes	Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, MSI, Plessey, UPC-A, UPC-E, and others
2D Barcodes	Aztec, Data Matrix, PDF 417, QR Code, and others
Physical Dimensions	425 x 255 x 265 mm
Weight	9.65 kg
Operating Environment
Temperature	0degreesC to 40degreesC
Humidity	30% to 90% (non-condensing)
