RBL009UIGS-2HAXD-IN

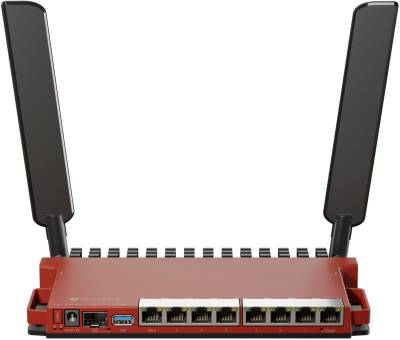

MikroTik L009 Desktop Router with 1x 2.5Gb SFP & 8x Gigabit Ethernet Ports with 2.4GHz ax Wi-Fi

Overview:

L009UiGS-2HaxD-IN
L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 2.4 GHz ax dual-chain wireless.

Features:

The legendary RB2011 product line has provided affordable, flexible, and robust connectivity for over a decade. In fact, it was our very first router with SFP. Finally, its time for an upgrade. But dont worry: weve kept and improved all the key elements and features of the beloved RB2011 . Even the red color scheme and the appealing price!

There are three main reasons to choose the L009: better performance, more features, and some interesting quality-of-life improvements. Lets start with the raw power and performance improvements.

L009 features a powerful dual-core ARM CPU . It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.

L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters.
All the ports are now Gigabit Ethernet ports. Theres PoE-in on the first port. You can use it instead of the DC jack to power the unit. And theres PoE-Out on the last port - for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity . We have tested a variety of MikroTik SFP modules and cables that support higher speeds - the 2.5G capability makes a sysadmins life so much easier- theres a console port for quick direct-access configuration!
At the heart of it all we have a speedy Marvell Peridot Switchchip which offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1 . The first port has its own Gigabit full duplex line to the CPU. That means - countless configurations with no bottlenecks!

The 2.4 GHz dual-chain wireless connectivity is also much stronger now. The Generation 6 or the ax standard wireless offers up to 90% higher speed in the 2.4 GHz spectrum ! Not to mention the overall signal stability. It can handle more clients with better responsiveness.

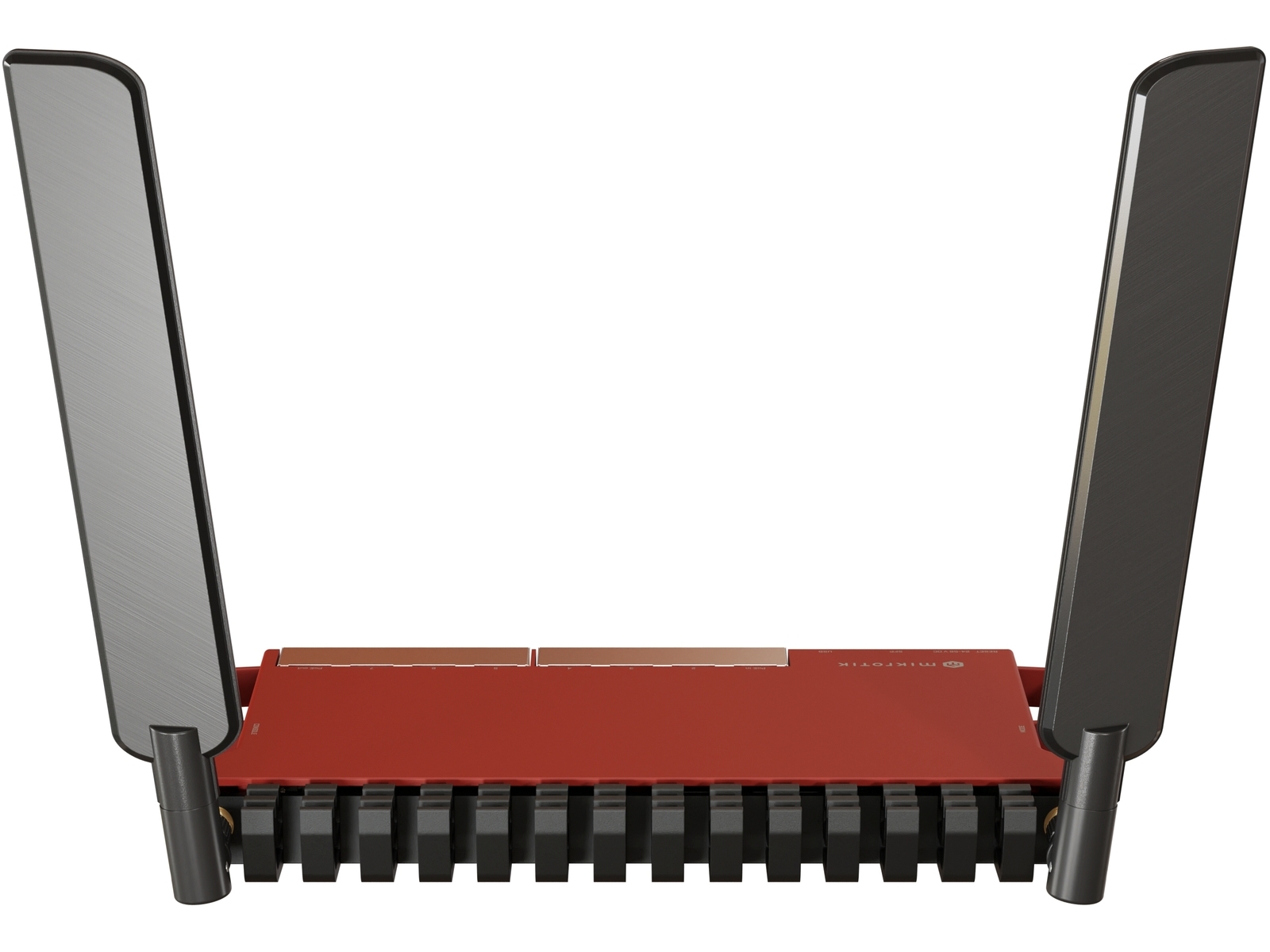

The new enclosure is a spectacular innovation on its own. Its the same form-factor you might have seen with our highly sought-after RB5009 devices. It has several extremely useful properties. First of all, the case acts as a massive heat-sink, protecting your setups from overheating. But heres the fun part: with a simple set of accessories, you can fit up to four of these routers in a single 1U rackmount space.

Here at MikroTik, were the world champions of server room tetris. So heres our latest lifehack for the most efficient server rooms: grab an RB5009 with PoE-out ports. And mount it together with seven L009 routers in just two 1U rackmount spaces. Youll become a living legend among system administrators, setting a new example of efficient space management and simple, reliable powering. And if you dont need the wireless capability, you can cut costs even more and try the other version of this router: the L009UiGS-RM. It has all the same features - except for the 2.4 GHz wireless. And it comes with all the necessary mounting accessories.

RB2011 will always remain a networking legend, but its time to take it up a notch. And the L009 product line is the perfect upgrade that will help you save time, money, and server room space like never before!

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	RBL009UIGS-2HAXD-IN
Specifications
Product code	L009UiGS-2HaxD-IN
Architecture	ARM 64bit
CPU	IPQ-5018
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	88E6190
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	512 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	4
Wireless 2.4 GHz chip model	IPQ-5018
Wireless 2.4 GHz generation	Wi-Fi 6
WiFi speed	AX600
Ethernet
10/100/1000 Ethernet ports	8
Number of 1G Ethernet ports with PoE-out	1
Fiber
SFP ports	1 (2.5G supported)
Peripherals
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1.5
Powering
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	24-56 V
Max power consumption	42 W
Max power consumption without attachments	14 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	24-56 V
PoE-out
PoE-out ports	Ether8
PoE out	Passive PoE
Max out per port output (input 18-30 V)	1 A
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	1.0 A
Certification & Approvals
Certification	CE, FCC, IC, EAC, ROHS
IP	20
Other
Mode button	Yes
