WR1200E

Cudy Dual Band 1200 Mbps Wi-Fi 5 Fast Ethernet Router

Cudy Dual Band 1200 Mbps Wi-Fi 5 Fast Ethernet Router, WR1200E, 867 Mbps @ 5GHz Wi-Fi Speed, 300 Mbps @ 2.4GHz Wi-Fi Speed, 2x2 MIMO 5GHz Wi-Fi streams, 2x2 MIMO 2.4GHz Wi-Fi streams, 2x fixed Wi-Fi antennas, Beamforming, Max 170 m range performance, 4x 10/100 Mbps RJ45 Ports with 1x WAN Port, Operation modes - Wi-Fi Router / Access Point / Range Extender / WISP / Client

Overview:

The Cudy WR1200E AC1200 dual-band WiFi router is built to deliver stable, high-speed connectivity for everyday home and small office use. With combined speeds of up to 1200 Mbps across 2.4 GHz and 5 GHz bands, it supports smooth streaming, responsive gaming, and reliable browsing. Designed for flexibility, it operates in multiple modes including router, access point, and range extender, making it suitable for a wide range of network setups.

Description:

The Cudy WR1200E is a compact yet capable WiFi 5 router that balances performance, coverage, and usability. It uses dual-band technology with MU-MIMO to handle multiple connected devices efficiently while reducing lag. Beamforming technology focuses signal strength toward active devices, improving stability and coverage throughout your space. With support for VPN clients such as WireGuard and OpenVPN, along with app-based management, it offers both control and security for modern connected environments.

Features:

Dual-Band Performance for Everyday Connectivity
This router delivers reliable wireless performance with simultaneous dual-band support. The 5 GHz band provides faster speeds for bandwidth-intensive tasks, while the 2.4 GHz band ensures wider coverage for general browsing and smart devices.

• 867 Mbps on 5 GHz for streaming and gaming
• 300 Mbps on 2.4 GHz for broader coverage
• 4-stream WiFi 5 with 2x2 MIMO on both bands
• MU-MIMO support for handling multiple devices simultaneously

With a recommended capacity of up to 40 connected devices, it is well suited for households with multiple users and smart home devices.

Consistent Coverage with Smart Signal Optimization
Beamforming technology enhances wireless efficiency by directing the signal toward connected devices instead of broadcasting uniformly. This results in more stable connections, especially in environments with walls or interference.

• Coverage up to approximately 170 meters under ideal conditions
• Improved signal penetration through typical indoor obstacles
• Two fixed antennas optimized for balanced range and performance

Flexible Networking Modes for Different Use Cases
The WR1200E adapts to various networking needs through multiple operating modes, allowing it to function beyond a standard router.

• WiFi router for primary internet distribution
• Access point to extend wired networks wirelessly
• Range extender to boost existing WiFi coverage
• WISP mode for wireless ISP connections
• Client mode for connecting wired devices to WiFi

Wired Connectivity and Ports
For stable wired connections, the router includes Fast Ethernet ports suitable for devices that require consistent throughput.

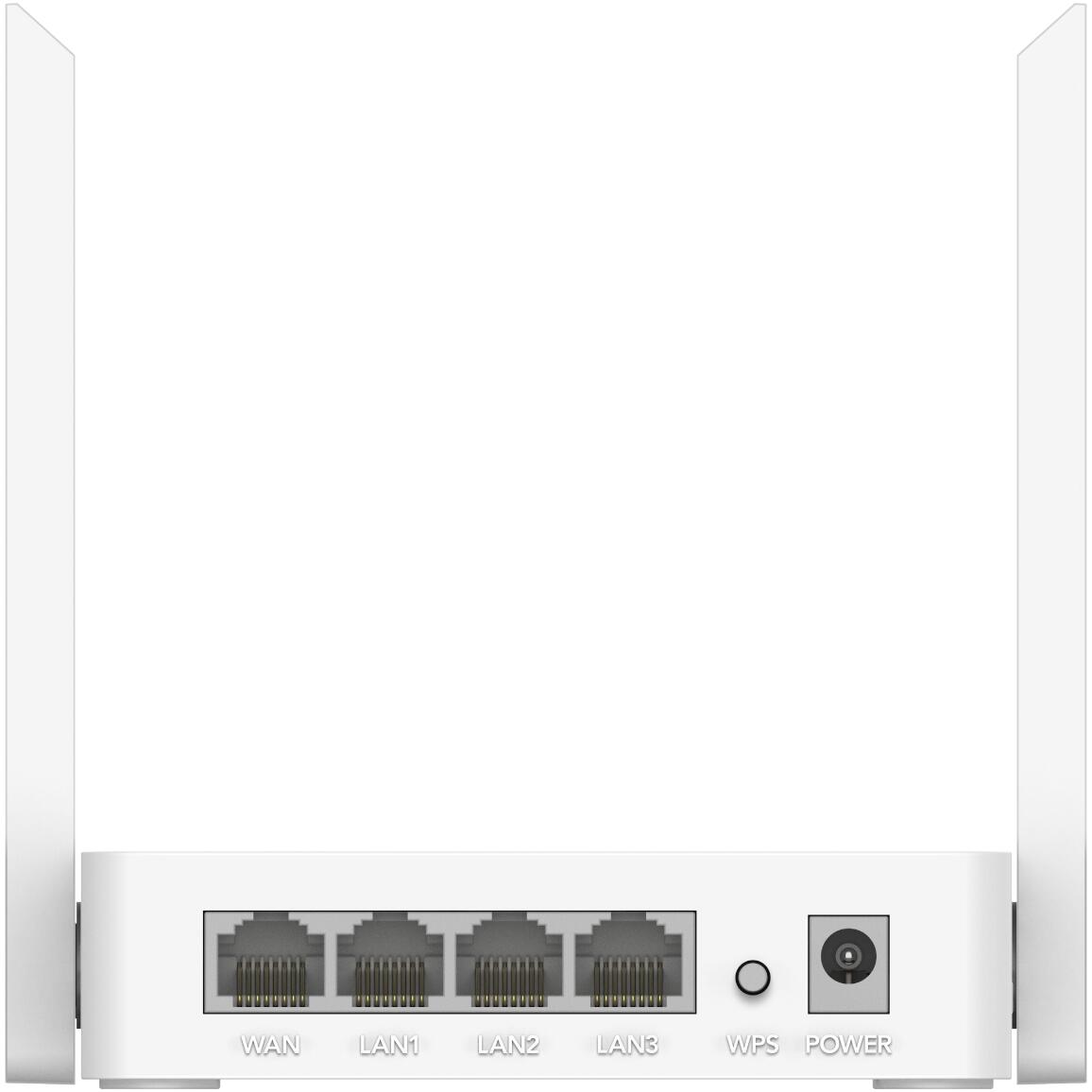

• 4x 10/100 Mbps RJ45 ports
• 1x WAN port and 3x LAN ports
• Ideal for PCs, consoles, and smart TVs

Security and VPN Support
Security is handled through modern encryption standards and advanced networking controls, making it suitable for both home and light business use.

• WPA, WPA2, and WPA3 wireless security
• Built-in VPN client support including WireGuard, OpenVPN, PPTP, and L2TP
• SPI firewall with DoS protection
• Guest network support on both bands

Smart Management and App Control
Network management is simplified through an intuitive interface and mobile app support, allowing quick setup and ongoing monitoring.

• Cudy app for local network control
• Device-level management including scheduling and access control
• Domain and IP filtering for content management
• Real-time status panel for network monitoring

Hardware and System Details
The internal hardware is optimized for stable operation and efficient processing of network traffic.

• 580 MHz single-core CPU
• 64 MB DDR2 RAM and 8 MB flash storage
• Maximum power consumption of 8W
• Compact desktop design measuring 118 x 80 x 27.5 mm

Key Technical Summary

• Model: WR1200E 1.0
• Part Number / SKU: WR1200E
• WiFi standard: WiFi 5 with 256-QAM
• Maximum channel width: 80 MHz
• IPv4 and IPv6 support
• QoS with per-user rate limiting
• VLAN and IPTV compatibility
• Advanced routing features including port forwarding, UPnP, and DMZ

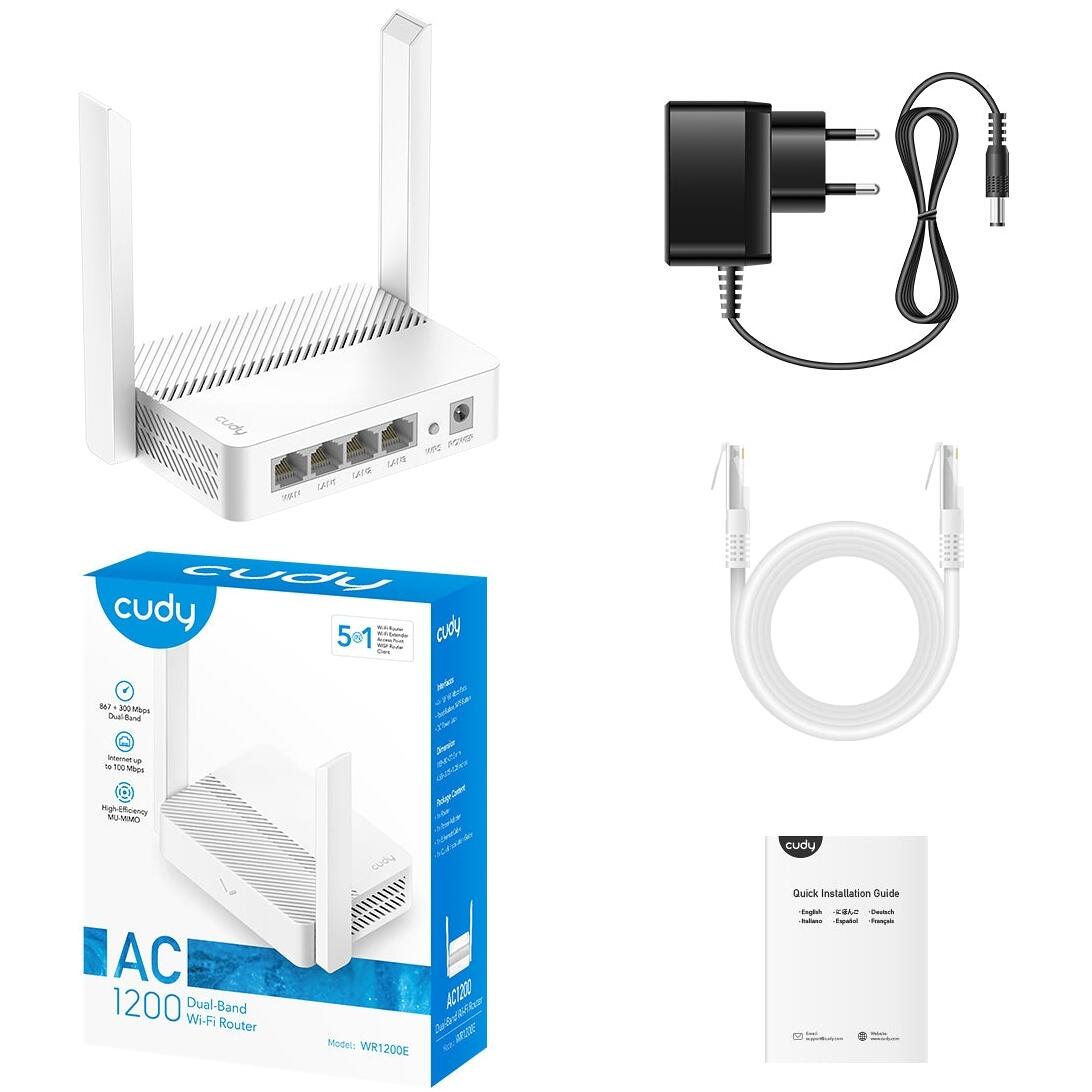

What's Included in the Box

• Cudy WR1200E router
• Power adapter
• Ethernet cable
• Installation guide

The Cudy WR1200E (Part Number: WR1200E) is a practical solution for users seeking dependable dual-band WiFi, essential security features, and flexible deployment modes in a compact and affordable device.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	WR1200E
Model Version	WR1200E 1.0
CPU
CPU Details	580 MHz Single-Core, MIPS24KEC
Memory/Storage
Flash/ROM	8 MB (64 Mbit ) NOR
DDR/RAM	64 MB (512 Mbit) DDR2
Wireless
5 GHz Wi-Fi Speed	867 Mbps
2.4 GHz Wi-Fi Speed	300 Mbps
5 GHz Wi-Fi Streams	2T2R (2x2 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2x2 MIMO)
Wi-Fi Antennas	2x Fixed
5 GHz Antenna Gain Max	4.93dBi
2.4 GHz Antenna Gain Max	3.49dBi
FEM or PA/LNA	5 GHz: 2x Internal
	2.4 GHz: 2x Internal
Beamforming	True
Range Performance	Max: 170 m (558 ft)
	Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4'')
	One concrete wall with thickness < 20 cm (7'')
Interfaces
10/100 Mbps RJ45 Ports	4
Ethernet Notes	1x WAN port, the rest are LAN ports
LED	System
Physical Buttons	WPS Button
	Reset Button
Power Input	DC Jack
Power
Power Methods	DC
DC	12V 1A
Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC
	Output: 12V 1A DC
Max Power Consumption (W)	8W
Idle Power Consumption (W)	3W
Reliability
Environment	Operating Temperature: 0 degreesC ~ 40 degreesC (32 degreesF ~104 degreesF)
	Storage Temperature: -40 degreesC ~ 70 degreesC (-40 degreesF ~ 158 degreesF)
	Humidity: 10% ~ 90% non-condensing
	Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Installation	Desktop
Dimension	118x80x27.5 mm
	4.65x3.15x1.08 inches
Product Weight	100 g (3.53 oz.)
Package Content
Package Content	WR1200E
	Power Adapter
	Ethernet Cable
	Installation Guide
Ordering Information
Retail Package Weight	350 g (12.35 oz.)
Retail Package Dimension	176x140.5x56 mm
	6.93x5.53x2.2 inches
Units per Carton	40
Carton Dimension	60x30x37.5 cm
	23.62x11.81x14.76 inches
Carton Gross Weight	15.3 kg (33.73 lbs)
Carton Net Weight	14.4 kg (31.75 lbs)
Model Version
Model Version	WR1200E 1.0
Wireless
Wi-Fi Standards	Wi-Fi 5
Max Wi-Fi Modulation	256-QAM
Wi-Fi Efficiency	MU-MIMO
Wi-Fi Efficiency Note	MU-MIMO available on 5 GHz
Max Capacity	128
Recommended Client Upper Limit	40
Max Wi-Fi Channel Width	80 MHz
Wi-Fi Security	WPA/WPA2/WPA3
Guest Network	2.4 GHz, 5 GHz
WPS	True
General
Operation Modes	Wi-Fi Router
	Access Point
	Range Extender
	WISP
	Client
WAN Mode	DHCP
	Static IP
	PPPOE
	PPTP
	L2TP
Internet Failover Sequence	WAN
	WISP
Network
QoS	Per-User Rate Limiting
DHCP	Address Reservation
	DHCP Client List
	Server
IP Versions	IPv4/IPv6
IPv6 Protocols	Relay
	Dynamic (SLAAC/DHCPv6)
	Static (Fixed IP)
	Passthrough
	464XLAT
	MAP-E
	DS-Lite
IPTV/VLAN	Bridge
	Tag VLAN
	VoIP VLAN
	IPTV VLAN
TTL Customization	Extend
	Spoof
	Custom
IGMP	IGMP Proxy
	IGMP Snooping
Forwarding	Port Forwarding
	Port Triggering
	UPnP
	DMZ
Firewall	SPI Firewall
	DoS Protection
	Block PING
Application Layer Gateway	IPSec Passthrough
	L2TP Passthrough
	PPTP Passthrough
	FTP Passthrough
	TFTP Passthrough
	H323 Passthrough
	SIP Passthrough
	RTSP Passthrough
Utilities
VPN Client	OpenVPN
	Wireguard
	PPTP
	L2TP
DNS Options	Manual DNS
	Rebind Protection
	Override Clients' DNS
Wake on LAN	True
Online Detection	True
Management
All Devices Management	Wi-Fi Time Schedule
	MAC Filter
	IP/MAC Binding
Per-Devices Management	Internet On/Off
	VPN On/Off
	Online Time Schedule
	Device Rename
Content Management	Domain Filter
	IP Filter
System
LED Control	True
Local Control Method	Config Web Page
	App Control
Remote Control Method	TR069/TR098/TR111/TR181
	Config Page via HTTP
Firmware Upgrade	Local Update
Reliability	Timed Reboot
	Backup and Restore
Diagnostic Tools	Diagnosis
	Ping
	Traceroute
	NSLookup
	System Log
Languages	English
	German
	Spanish
	French
	Hebrew
	Italian
	Portuguese
	Ukrainian
	Russian
	Korean
Dashboard
Panel	Internet Status
	Devices Management
	WAN Status
	LAN Status
	WISP Status
	Wi-Fi Status
	VPN Status
	DHCP Server Status
	System Version
Charts	Internet Speed
	WISP Speed
	Wi-Fi Speed
