RB-CRS309S

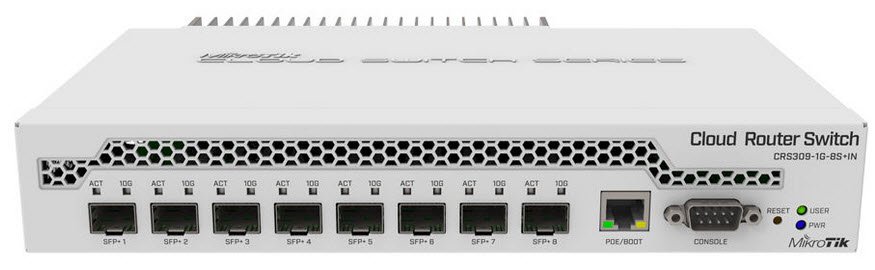

Mikrotik CRS309-1G-8S+IN 8 Port SFP+ Cloud Router Switch

Mikrotik CRS309-1G-8S+IN 8 Port SFP+ Cloud Router Switch

Overview:

Mikrotik Routerboard's RB-CRS309S is a compact yet powerful networking switch. It features 8x SFP+ ports and 1x Gigabit Ethernet management port which also supports PoE input. The RB-CRS309S supports a dual-boot feature offering both RouterOS and SwitchOS boot options, an RS232 serial port and grounding terminal. The compact and sleek metallic enclosure also acts as a heatsink, making this device passively cooled so there is no fan noise and no dust accumulation inside.

Specifications:

© 2019 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	RB-CRS309S
Architecture	ARM 32bit
CPU	98DX8208
CPU	core count 2
CPU nominal frequency	800 MHz
CPU temperature monitor	Yes
DC inputs	1x DC jack, 1x PoE-In
DC jack input Voltage	12-57 V
Ethernet Ports	1x 10/100/1000
License level	5
Max power consumption	23 W
Max power consumption without attachments	17 W
Operating System	RouterOS / SwitchOS
PoE in	802.3af/at
PoE in input Voltage	18-57 V
RAM	512 MB
Serial port	RS232
SFP+ ports	8
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 70°C
Dimensions	272 x 158 x 44 mm
