98012552

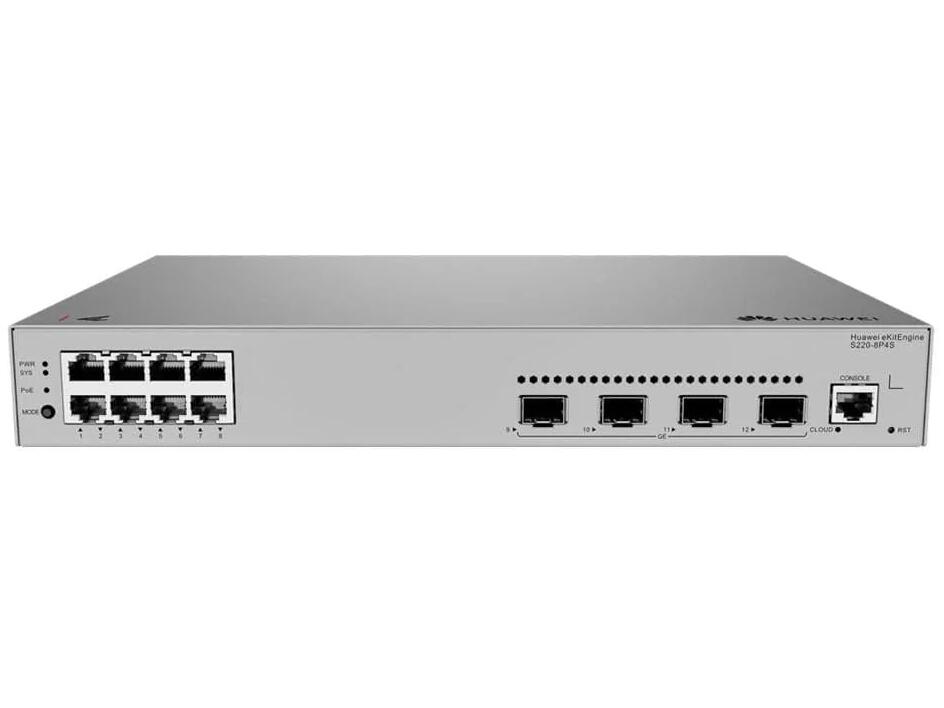

Huawei eKit S220-8P4S 8x Gigabit PoE+ 125W & 4x 1GE SFP Ports Layer 2 Managed Switch

Huawei eKit S220-8P4S 8x Gigabit PoE+ 125W & 4x 1GE SFP Ports Layer 2 Managed Switch, 1U Chassis height, 8x Gigabit PoE+ Ports with 125W budget, 4x Gigabit SFP Ports

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	98012552
Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.)
	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	2.5 kg (5.51 lb)
Weight with packaging [kg(lb)]	3.05 kg (6.72 lb)
Typical power consumption [W]	19.99 W
Typical heat dissipation [BTU/hour]	68.21 BTU/hour
Maximum power consumption [W]	Without PoE: 25.09 W
	Full PoE load: 166.65 W (PoE: 125 W)
Maximum heat dissipation [BTU/hour]	Without PoE: 85.61
	Full PoE load: 568.63
Static power consumption [W]	17.19 W
MTBF [years]	69.71 years
MTTR [hours]	2 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	47 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	35 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	1
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100-240 V AC , 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 300 V AC , 47 Hz to 63 Hz
Maximum input current [A]	3 Amp
Memory	2 GB
Flash memory	Physical space: 1 GB
Console port	RJ45
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	Differential mode: ±6 kV , common mode: ±6 kV
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
