4Y37A72483

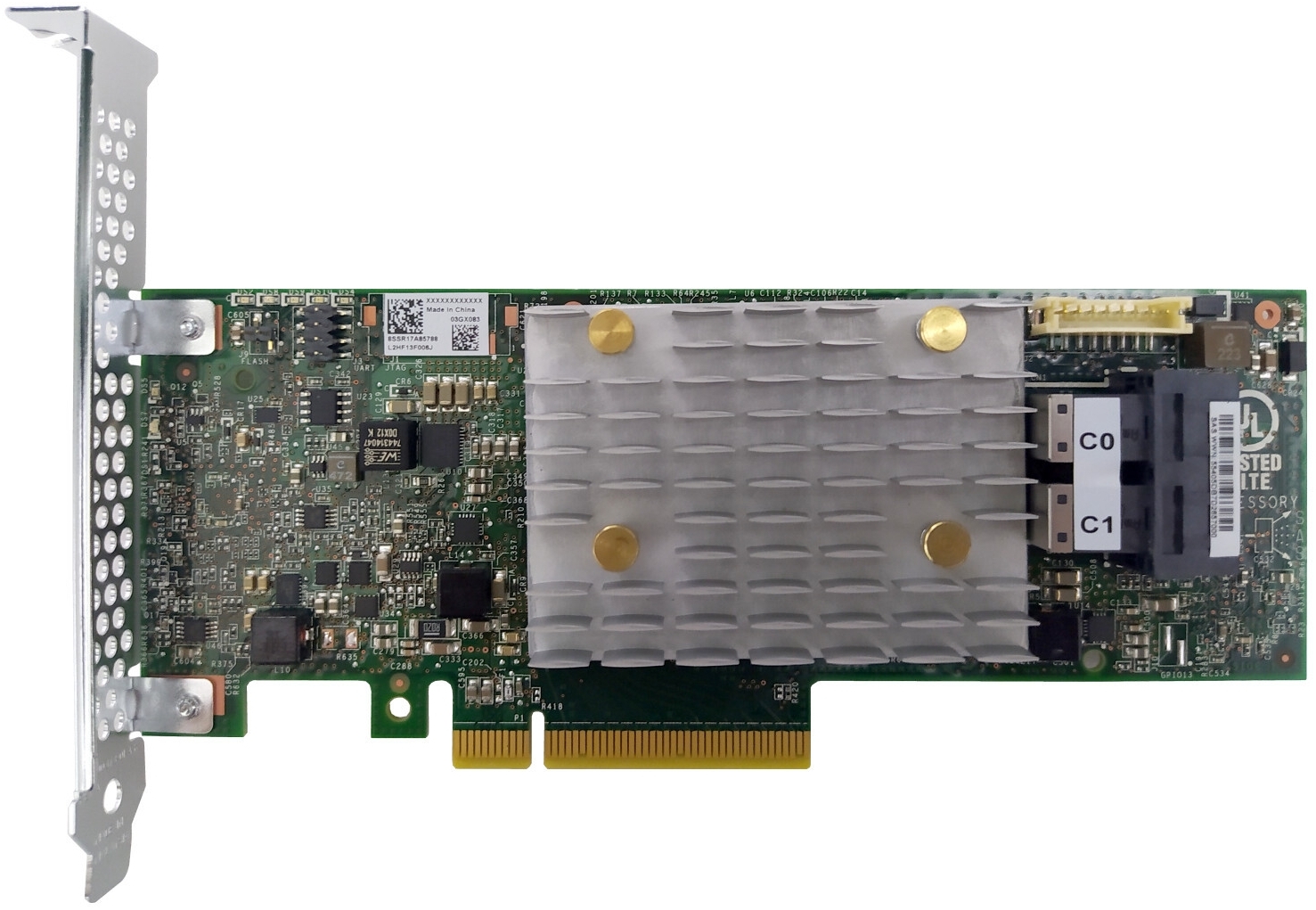

Lenovo 9350-8i 2GB Flash RAID PCIe 3.0 x8 adaptor card

Lenovo - Lenovo 4Y37A72483 9350-8i 2GB Flash RAID PCI-e 3.0 x8 adaptor card, 12Gb SAS Port Interface, 8x Ports, 2x Mini-SAS HD x4 (SFF-8643)
No stock at suppliers. print


Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. 4Y37A72483 Lenovo 9350-8i 2GB Flash RAID PCIe 3.0 x8 adaptor card is available from Laptop Direct and it is sold as new from our Controllers : RAID range of products. For reference purposes, the price of R14500 is valid 2026-10-23, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Controllers : RAID category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

4Y37A72483

Lenovo 9350-8i 2GB Flash RAID PCIe 3.0 x8 adaptor card

Lenovo 4Y37A72483 9350-8i 2GB Flash RAID PCI-e 3.0 x8 adaptor card, 12Gb SAS Port Interface, 8x Ports, 2x Mini-SAS HD x4 (SFF-8643)

Overview:

The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.

The family offers two port-counts:
  • The ThinkSystem RAID 9350-8i supports up to eight internal SAS or SATA drives
  • The ThinkSystem RAID 9350-16i supports up to 16 internal SAS or SATA drives
The family offers two adapter form factors:
  • Low-profile PCIe installed in a standard PCIe slot
  • Custom form-factor (CFF) design which is cabled to an onboard PCIe 4.0 x8 port on the server and not occupy a standard PCIe slot.

Features:

The ThinkSystem RAID 9350 Series internal RAID adapters have the following specifications:
  • PCIe 3.0 x8 host interface
  • Two (8i adapter) or four (16i adapter) connectors to the drive backplanes
  • Two adapter form factors:
    • Low-profile PCIe adapter with broad server compatibility
    • Custom form-factor, designed to not consume a standard PCIe slot
  • 12 Gbps SAS/SATA RAID controllers, based on the Adaptec SmartRAID 3152-8i and SmartRAID 3154-16i
  • 2GB (8i) or 4GB (16i) of integrated flash-backed cache
  • Connectivity for up to 8 (8i) or 16 (16i) internal SAS or SATA drives
  • Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported.
  • Support for intermixing of 12 Gbps and 6 Gbps drives.
  • Support for RAID 0, 1, 10, 5, 50, 6 and 60 standard
  • Support for JBOD (non-RAID, called "raw" or "HBA mode" in Adaptec parlance) drive state
  • Support for up to 64 virtual disks, up to 128 arrays, up to 16 virtual disks per array
  • Support for logical drive sizes greater than 2 TB.
  • Configurable stripe size from 16 KB up to 1 MB
  • Supports 512e, 512n and 4K sector formatted drives
  • RAID ADM through triple mirroring, move array, and split mirroring
  • Quick initialization
  • Online capacity expansion
  • Copyback hot spare
  • Dynamic caching algorithm
  • Native command queuing (NCQ)
  • Background initialization
  • Hot-plug drive support
  • RAID level migration
  • Hot spares- global, dedicated, and pooled
  • Automatic/manual rebuild of hot spares
  • S.M.A.R.T. support
  • Dynamic sector repair
  • Staggered drive spin-up
  • Bootable array support
  • Smart PQI driver with multiple queue and MSI-X support for all device drivers for all supported operating systems
  • Secure boot support


Specifications:

© 2022 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product Code4Y37A72483spacer
FeatureRAID 9350-8i
Form factorLow profile
ControllerMicrochip Luxor ROC PM8204
Adaptec equivalentAdaptec SmartRAID 3152-8i
Host interfacePCIe 3.0 x8
Port interface12 Gb SAS
Number of ports8
Port connectors2x Mini-SAS HD x4 (SFF-8643)
Drive interfaceSAS, SATA
Drive typeHDD, SSD
Hot-swap drivesYes
Max devices8
RAID levels0, 1, 10, 5, 50, 6, 60
JBOD drive state (HBA mode / Raw)Yes
Cache2GB (Standard)
Supercap cache protection with flashYes
SED supportNo
