AC-SS1414PL

Sunix SATA1414P - raid card - low-profile

Sunix - Sunix SATA1414PL , Low profile bracket - 1 x ATA133 ( 2 devices ) + 1 x internal SATA2 + 1 x external e-SATA , PCI-Express(1x) , with raid 0/1/0+1 - JMicron JMB363 , support LCQ , NCQ - low-profile for 2U rackmount or flex-atx ( antec minuet )

Not rated yet



Rate this product

5%
Price Drop
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. AC-SS1414PL Sunix SATA1414P - raid card - low-profile is available from Laptop Direct and it is sold as new from our Controllers : RAID range of products. For reference purposes, the price of R345 is valid 2026-10-23, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Controllers : RAID category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

AC-SS1414PL

Sunix SATA1414P - raid card - low-profile

Sunix SATA1414PL , Low profile bracket - 1 x ATA133 ( 2 devices ) + 1 x internal SATA2 + 1 x external e-SATA , PCI-Express(1x) , with raid 0/1/0+1 - JMicron JMB363 , support LCQ , NCQ - low-profile for 2U rackmount or flex-atx ( antec minuet )

Sunix SATA1414P - raid card - low-profile

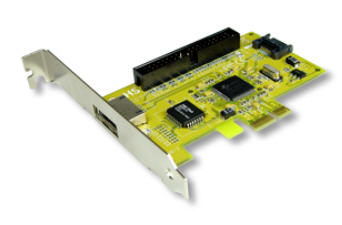

SATA1414P is a single-chip, one-lane PCI Express to two Serial-ATA (SATA) II and one Parallel-ATA (PATA) channels RAID host controller that brings server-class features to the desktop. SATA1414P equips high- performance chipset which supports all Serial ATA II features, including 3.0 Gbps SATA II transfer speeds and Native Command Queuing (NCQ). Besides, the external SATA channel supports Hot-Swapping feature to attach/detach SATA hard drive and enclosure without powering your system off. SUNIX SATA1414P is the best solution for users to integrate both traditional PATA and new-generation SATA storage devices with RAID function, such as hard disk drives, CD-RW and DVD-ROM drives.

Features:

  • Supports 1-Lane 2.5Gbps PCI Express bus Spec. Ver 1.0a.
  • Internal native interface multiplexed to 2-port SATA II and 1-port PATA.
  • Supports 2-port 3.0Gbps SATA II interface.
  • Compliants Serial ATA II extensions to Serial ATA 1.0a .
  • Supports Native Command Queue (NCQ) on SATA II port.
  • Supports up to 4 storage device connection with RAID 0, 1, 0+1, JBOD.
  • Provides one external channel for SATA II hard drive connection.
  • Hot-swapping feature allows you to attach/detach SATA device without
    powering system off.
  • Works with various brands of large capacity SATA/SATA II hard disk drives.
  • Low-profile design fitting for kinds of computer chassis (Optional).

    • © 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
    Specifications and features
    Product Code AC-SS1414PLspacer

    Interface

    PCI Express x1

    IC

    JMircon JMB363

    Port

    One Internal + One External Serial-ATA & One Parallel-ATA ports

    Channe

    One external Serial ATA II channel

    O.S. Support

    Windows2000/XP/2003/Vista, Linux 2.6x

    Operation temperature

    0 C ~ 60 C

    Storage temperature

    -20 C ~ 85 C

    Operation humidity

    5 ~ 95% RH
