AP371

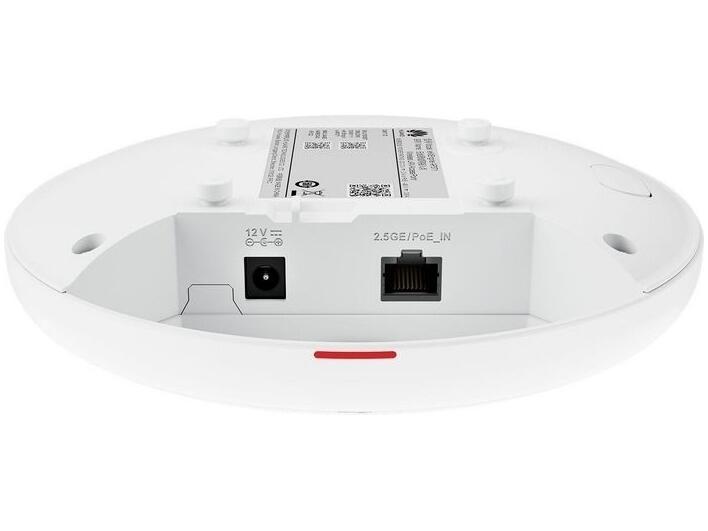

Huawei eKit Wireless AP371 Wi-Fi 7 Indoor Access Point

Huawei eKit Wireless AP371 Wi-Fi 7 Indoor Access Point, Dual Radio, 2x2 MU-MIMO, Internal Smart antennas, 1x 2.5GE RJ45 Port, 2.4GHz and 5GHz Dual Band

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AP371
Item	Specification
Installation Type	Wall
	Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	61 mm x 231 mm x 203 mm (2.40 in. x 9.09 in. x 7.99 in.)
Weight without packaging [kg(lb)]	0.47 kg (1.04 lb)
Weight with packaging [kg(lb)]	0.69 kg (1.52 lb)
Storage	NAND Flash 256 MB
Console port	None
Maximum power consumption [W]	13.3 (excluding USB)
Maximum heat dissipation [BTU/hour]	43.1 BTU/hour
Power supply mode	PoE
	DC power adapter
Rated input voltage [V]	12 V
Input voltage range [V]	DC: 12 V ± 10%
	PoE: 802.3at/af
Service port surge protection	PoE port:
	Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B
	Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B
PoE OUT	Not supported
Maximum number of physical ports on the entire device	2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing
Long-term operating temperature [°C(°F)]	-10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	-60 m to +5000 m (-196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	Floating ground
USB	The USB port can supply 2.5 W or 5 W power.
	USB 2.0 is supported in V600R024C10 and later versions. USB 3.0 is unavailable and will be supported through software upgrade in the future.
IoT slot	Not supported
BLE	Not supported
Radio number	2
Operating frequency band	2.4GHz
	5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2
	Radio 1 (5 GHz): 2x2
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax/be
	5 GHz:802.11a/n/ac/ac Wave 2/ax/be
Radio interface	Built-in smart antennas
Antenna gain	2.4 GHz:
	4 dBi/chain (peak gain)
	1 dBi (combined gain)
	5 GHz:
	5 dBi/chain (peak gain)
	3 dBi (combined gain)
	BLE: 4 dBi (peak gain)
Maximum transmit power	2.4 GHz:
	20 dBm/chain
	23 dBm (combined power)
	5 GHz:
	20 dBm/chain
	23 dBm (combined power)
Singal radio transmit power [dBm]	2.4G: -10 dBm to 20 dBm/chain
	5G: -10 dBm to 20 dBm/chain
MTBF [year]	158.215 year
MTTR [hour]	2 hour
Frequency stability [ppm]	+/-20
802.3at power supply description	No function is limited.
802.3af power supply description	The USB function is not supported. Other functions are not restricted.
DC power supply description	No function is limited.
