UB-UE-E7-CAMPUS

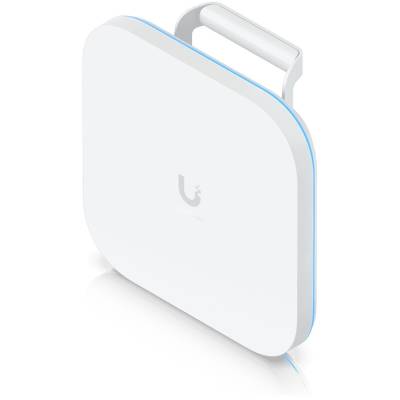

Ubiquiti E7 Campus Enterprise-Grade Indoor / Outdoor Access Point with 10-stream Dual-Band WiFi 7

Ubiquiti E7 Campus Enterprise-Grade Indoor / Outdoor Access Point with 10-stream Dual-Band WiFi 7 Performance, 100 degree directional antenna, No PoE injector included, Requires PoE++ 90W, 10 spatial streams, 1000+ connected devices, 1x 10 GbE Uplink & 1x GbE RJ45 Port, Prism filtering, Real-Time Spectrum analysis, WiFi 7 Standard

Overview:

Ubiquiti E7 Campus Enterprise-Grade Indoor and Outdoor WiFi 7 Access Point
The Ubiquiti E7 Campus is a high-performance enterprise WiFi 7 access point designed to deliver reliable wireless connectivity across demanding indoor and outdoor environments. Built for large-scale deployments, it combines advanced RF filtering technology, integrated directional antennas, and ultra-fast networking interfaces to provide dependable coverage for high-density users and bandwidth-intensive applications. Supporting more than 1,000 connected devices, it is an excellent choice for campuses, enterprise facilities, educational institutions, and large commercial spaces.

Description:

The Ubiquiti E7 Campus Enterprise WiFi 7 Access Point delivers next-generation wireless networking with dual-band 10-stream performance, advanced PRISM active RF filtering, and integrated directional antennas for focused coverage. Designed for enterprise-grade deployments, it supports over 1,000 connected devices while providing a 10 GbE uplink for maximum throughput and a secondary Gigabit Ethernet port for network redundancy. Part number UB-UE-E7-CAMPUS is ideal for organizations seeking fast, reliable, and scalable wireless infrastructure for both indoor and outdoor installations.

Features:

Designed for High-Density Enterprise Networks
Built to handle demanding wireless environments, the E7 Campus delivers exceptional capacity and performance using the latest WiFi 7 technology. Integrated directional antennas concentrate wireless coverage where it is needed most, while PRISM active RF filtering minimizes interference to improve signal quality and network stability.

Whether deployed across corporate campuses, educational facilities, industrial sites, or outdoor business areas, this access point is engineered to maintain reliable wireless performance even under heavy client loads.

Key Highlights

• Enterprise-grade indoor and outdoor WiFi 7 access point
• Dual-band 10-stream wireless performance
• Supports more than 1,000 connected devices
• Integrated 100 degree directional antenna
• PRISM active RF filtering technology
• Real-Time Spectrum Analysis for improved RF visibility
• One 10 GbE Ethernet uplink
• One Gigabit Ethernet RJ45 port for redundancy
• Designed for high-capacity enterprise deployments
• Requires PoE++ 90W power source
• PoE injector not included

Advanced Wireless Performance
The E7 Campus combines the latest WiFi 7 standard with intelligent RF management technologies to maximize network efficiency. Its 10 spatial streams allow multiple simultaneous high-speed connections, making it suitable for environments with large numbers of users and connected devices.

Real-Time Spectrum Analysis helps network administrators identify and address sources of wireless interference, while PRISM filtering further enhances wireless reliability in crowded RF environments.

Connectivity and Network Integration
Enterprise deployments benefit from high-speed wired connectivity alongside advanced wireless capabilities.

Key connectivity includes:

• 1 x 10 Gigabit Ethernet uplink
• 1 x Gigabit Ethernet RJ45 port for high availability
• PoE++ 90W power requirement
• Compatible with enterprise network infrastructure

Please note that a PoE injector is not included and must be supplied separately if required.

Ideal Deployment Environments
The Ubiquiti E7 Campus is suitable for a wide range of professional networking applications, including:

• Corporate campuses
• Universities and schools
• Warehouses and manufacturing facilities
• Hospitality venues
• Healthcare environments
• Large office buildings
• Outdoor enterprise installations

Technical Summary

• Part Number / SKU: UB-UE-E7-CAMPUS
• WiFi Standard: WiFi 7
• Wireless Bands: Dual-band
• Spatial Streams: 10
• Antenna: Integrated 100 degree directional antenna
• Maximum Client Capacity: Over 1,000 connected devices
• RF Technology: PRISM active RF filtering
• Spectrum Tools: Real-Time Spectrum Analysis
• Ethernet Ports: 1 x 10 GbE uplink, 1 x Gigabit Ethernet RJ45
• Power Requirement: PoE++ 90W
• PoE Injector: Not included
• Installation: Indoor and outdoor enterprise environments

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UB-UE-E7-CAMPUS
Overview
Dimensions	Device: 250 x 250 x 45.5 mm
	(9.8 x 9.8 x 1.8")
	Articulating mount: Ø104 x 149.4
	(Ø4.1 x 5.9")
WiFi Standard	WiFi 7
Spatial Streams	10
Coverage Area	465 m² (5,000 ft²)
Max. Client Count	1000+
Uplink	10 GbE
	1 GbE

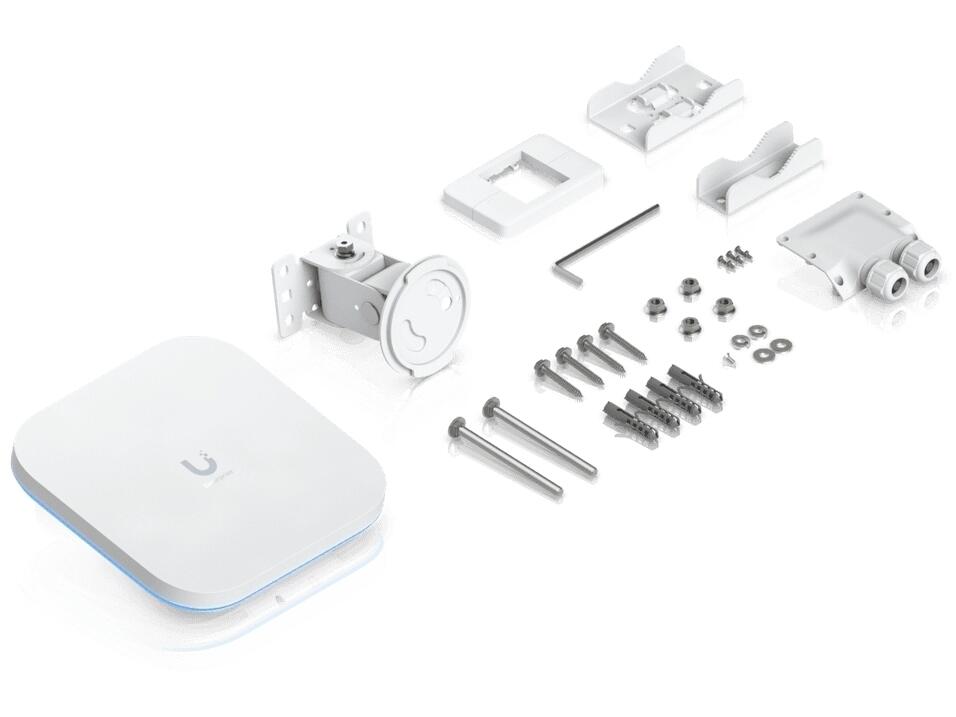

Mounting	Wall, Pole (Mounts Included)
	VESA (Optional)
Weatherproofing	IPX6
	IP67 with Waterproof Door Kit (Included)
Power Method	PoE++
Performance MIMO
5 GHz	Low Band: 4 x 4 (DL/UL MU-MIMO)
	High Band: 4 x 4 (DL/UL MU-MIMO)
2.4 GHz	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz	Low / High band: 8.6 Gbps (BW240)
2.4 GHz	688 Mbps (BW40)
Antenna Gain
5 GHz	Directional internal: 12 dBi, 100degrees x 55degrees
2.4 GHz	Directional internal: 9 dBi, 90degrees x 80degrees
Max. TX Power
5 GHz	Low / High band: 30 dBm
2.4 GHz	23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates
802.11be (WiFi 7)	7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Features
Wireless Meshing	Yes
Band Steering	Yes
802.11v BSS Transition Management	Yes
802.11r Fast Roaming	Yes
802.11k Radio Resource Management (RRM)	Yes
Zero-Wait DFS	Yes
Advanced Radio Management	Yes
Real-Time Spectral Analysis	Yes
Passpoint (Hotspot 2.0)	Yes
Captive Hotspot Portal
Custom Branding Landing Page	Yes
Voucher Authentication	Yes
Payment-Based Authentication	Yes
External Portal Server Support	Yes
Password Authentication	Yes
Guest Network Isolation	Yes
Private Pre-Shared Key (PPSK)	Yes
WiFi Speed Limiting	Yes
Client Device Isolation	Yes
WiFi Schedules	Yes
RADIUS over TLS (RadSec)	Yes
Dynamic RADIUS-assigned VLAN	Yes
Hardware
Max. Power Consumption	44W
Supported Voltage Range	42.5-57V DC
Networking Interface	(1) 10 GbE RJ45 port
	(1) GbE RJ45 port
PRISM RF Filtering	Yes
Weight	Device: 2.2 kg (4.9 lb)
	With articulating mount: 3.1 kg (6.8 lb)
Wind Loading	164.75 N at 200 km/h (37 lbf at 125 mph)
Pole Mount Diameter	1-2.5" (25-63.5 mm)
Antennas	(1) Internal with directional patterns
Antenna beamwidth
5 GHz	100degrees x 55degrees
2.4 GHz	90degrees x 80degrees
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	Stainless steel, aluminum alloy
LEDs
System	R/G/B
Channel Bandwidth	HT 20 / 40, VHT 20 / 40 / 80 / 160, HE 20 / 40 / 80 / 160, EHT 20/40/80/160/240 (MHz)
Operating Frequency	US/CA:
	2400 - 2472 MHz
	U-NII-1: 5150 - 5250 MHz
	U-NII-2A: 5250 - 5350 MHz
	U-NII-2C: 5470 - 5725 MHz
	U-NII-3: 5725 - 5850 MHz
	U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz
	Worldwide:
	2400 - 2483.5 MHz
	5150 - 5850 MHz
Ambient Operating Temperature	-30 to 60degrees C (-22 to 140degrees F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	Yes
Certifications	CE, Anatel: 02724-25-08356
Application Requirements
UniFi Network	Version 9.0.114 and later
Mobile App	iOS version 10.20.0 and later
	Android version 10.21.3 and later
