98012556

Huawei S530-24ST4XE 24x GE & 8x Combo RJ45 or SFP & 4x 10GE SFP+ & 2x 12GE Stack Ports Layer 3 Managed Switch

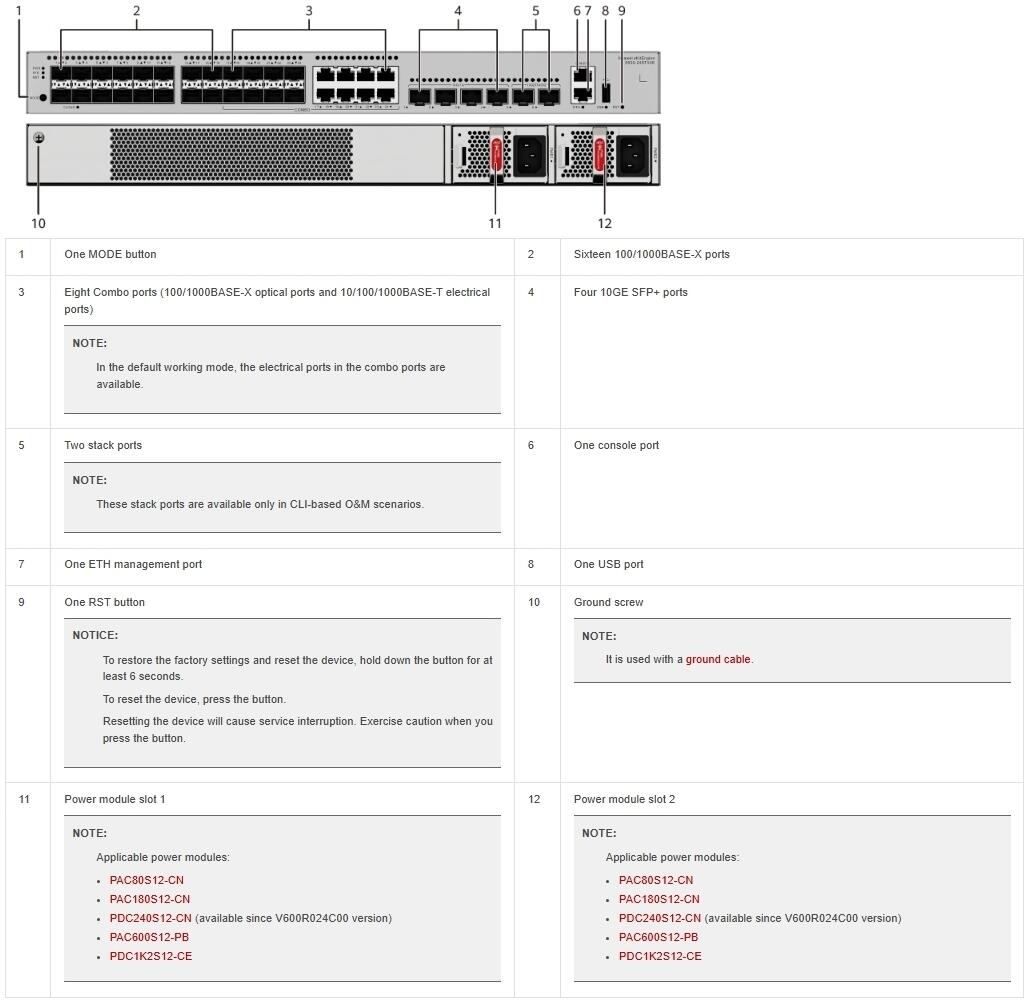

Huawei S530-24ST4XE 24x GE & 8x Combo RJ45 or SFP & 4x 10GE SFP+ & 2x 12GE Stack Ports Layer 3 Managed Switch, 1U Chassis height, Metal Chassis material, 2 Power slots, 2 fan modules, 1+1 Redundant Power Supply, 24x Gigabit RJ45 Ports, 8x Gigabit Ports Dual purpose RJ45 or SFP, 2x 12 Gigabit Stack Ports

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	98012556
Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	5.6 kg (12.35 lb)
Weight with packaging [kg(lb)]	7.4 kg (16.31 lb)
Typical power consumption [W]	31.6 W
Typical heat dissipation [BTU/hour]	107.82 BTU/hour
Maximum power consumption [W]	48.70 W (with two 80 W AC power modules)
	85.78 W (with two 1200 W DC power modules)
Maximum heat dissipation [BTU/hour]	166.17 (with two 80 W AC power modules)
	292.69 (with two 1200 W DC power modules)
Static power consumption [W]	14 W
MTBF [years]	112.03 years
MTTR [hours]	2 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	38.1 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	26.1 dB(A)
Number of card slots	0
Number of power slots	2
Number of fans modules	2
Redundant power supply	1+1
	Power modules without fans and power modules with fans cannot be installed in the same chassis.
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC , 50/60 Hz
	High-voltage DC input: 240 V DC
	DC input: -48 V DC to -60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC , 45-65 Hz
	High-voltage DC input: 190 V DC to 290 V DC
	DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	2 GB
Flash memory	Physical space: 1 GB
Console port	RJ45
Eth Management port	Supported
USB	Supported
RTC	Not supported
RPS input	Not supported
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
	Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
