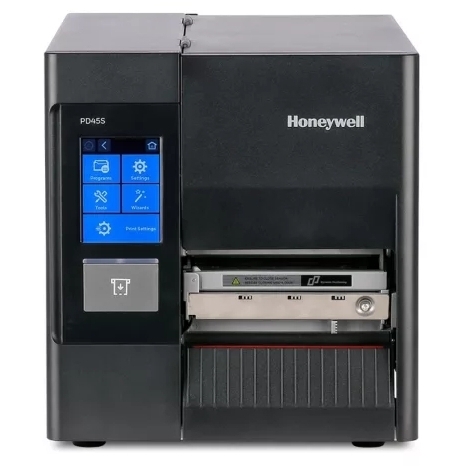

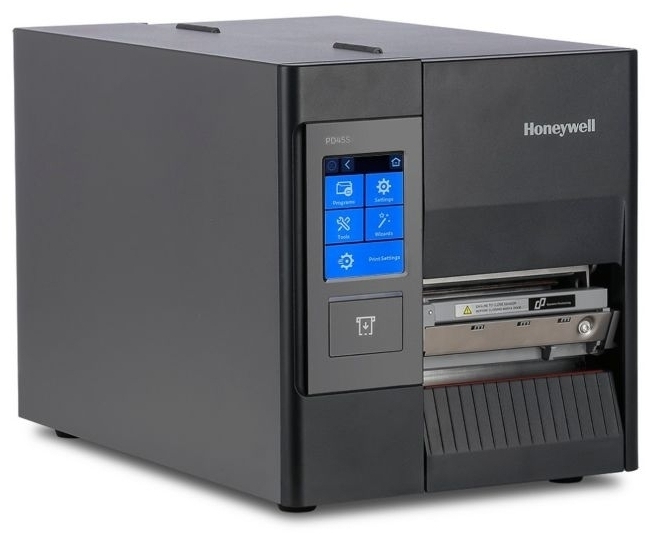

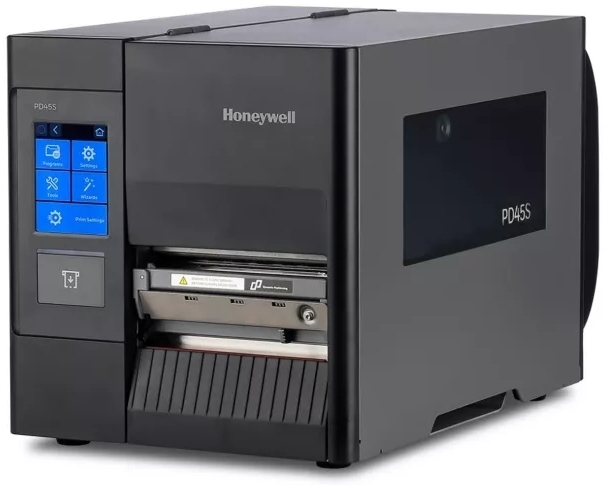

Honeywell PD45S0F Direct Thermal and Thermal Transfer Industrial Label Printer, LAN, USB

Honeywell PD45S0F Direct Thermal and Thermal Transfer Industrial Label Printer, Ethernet, USB, Colour LCD, 8 dots/mm printing Resolution, 50 - 250 mm/s printing speed, 108 mm Maximum width, 3.5" Colour Touch control LCD

Overview:

PD45S/PD45
The PD45S Honeywell's new commercial grade industrial printer, is suited for manufacturing, retail, logistics, health care, and government applications. With Honeywell print platform, PD45S can be alternative to the competing printers in the market.

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.

The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell's patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.

Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.

The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	PD45S0F0010000200
GENERAL SPECIFICATION
Product models	PD45S0F
	3.5" color touch control LCD
	PD45S0C
	2.36" keyed LCD
Printing modes	Direct thermal and thermal transfer Printing
Processors	Arm Cortex -A7, 800MHz
	128 MB flash memory
	128 MB DDR3 SDRAM
	Multi-GB USB storage device (FAT16/FAT32)
	Built-in real-time clock
PRINT SPECIFICATIONS
Printing resolution	203 dpi
	8 dots/mm
	300 dpi
	11.8 dots/mm
Printing speed	203 dpi
	50 - 250 mm/s (2-10 ips)
	300 dpi
	50 - 200 mm/s (2-8 ips)
Maximum width	203 dpi
	108 mm (4.25 inches)
	300 dpi
	105.7 mm (4.16 inches)
Maximum Continuous Print Length	203 dpi
	4.8 m (15.75 inches)
	300 dpi
	2.2 m (7.22 inches)
MECHANICAL
MECHANICAL	PD45S0F/PD45S0C
Dimensions (L x H x W)	438 mm x 270 mm x 249 mm (17.24 in x 10.63 in x 9.80 in)
Weight	10.82 kg (23.85 lbs)
OPTIONS AND ACCESSORIES
OPTIONS AND ACCESSORIES	Wireless network interface card(optional)
	Parallel interface card
	Labeling machine interface card
	Industrial GPIO interface card
	Peeling and rewind assembly
	Cutter
RIBBON SPECIFICATIONS
Ribbon supporting	Inner carbon or outer carbon
Maximum roll diameter	80 mm (3.15 inches), about 450 m (1,476 feet)
Roll core ID	25.4 mm (1 inch)
Max. /Min. Width (ribbon and roll core)	110/51 mm (4.33/2.0 inches)
Type	Wax base, mixed base and resin base
MEDIA SPECIFICATIONS
MEDIA SPECIFICATIONS	Non-continuous label paper, black label paper, tag paper, guide hole paper, notch paper or continuous label paper
Maximum/minimum width (label and liner)	114/20 mm (4.5/0.79 in)
Minimum label length	Paper tearing mode
	5.0 mm (0.197 inches)
	Self-peeling mode
	12.7 mm (0.5 inches)
	Cutter Mode
	38.0mm (1.5 inches)
Thickness (label and liner)	3 mil to 10 mil (0.076mm to 0.255mm)
Configuration	External roll paper or folding paper
Maximum diameter of label roll	203.2 mm (8.0 inches)
Label roll core	76 mm (3.0 inches)/25.4mm (1.0 inches)
PRINT INTERFACES
Standard	USB 2.0 host interface
	USB 2.0 device interface
	Ethernet interface, transmission rate 10/100 Mbps
	RS-232, transmission rate up to 115.2 KB/s
It supports the following serial port protocols	Fingerprint/Direct Protocol
	XON/XOFF, ENQ/ACK, RTS/CTS
	IPL
	XON/XOFF, Honeywell Std. Protocol
Optional	W IFI
	IEEE 802.11 a/b/g/n/ac, Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (THIP/CCKM Personal and Enterprise, WPA2 (AES-CCMP/CCKM Personal and Enterprise)
	Parallel port
	IEEE 1284
	Industrial interface
	8-bit INPUT/output, 4 analog signal relays and 1 RS-232/422/485 port
	Dual serial ports
	RS-232, RS-422 and RS-485, and 20 mA current loop, GPIO card
OPERATING ENVIRONMENT
Operating temperature	+5°C to +40°C (+41°F to +104°F)
Storage temperature	-20°C to +70°C (-4°F to +158°F)
Humidity	20% to 85%, non-condensing
BARCODES/FONTS/GRAPHICS
Barcodes	Supporting all main 1D and 2D symbols
Supporting standards	UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label, OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label and Global Transport Label
Font	Monotype font engine, non-Latin fonts can be supported through WTLE, and customers can also download (Truetype) fonts by themselves.
Graphics	It supports PCX, PNG, GIF and BMP file formats. Other formats can be supported by Label Generation Tools.
SOFTWARE
Printer command languages	Fingerprint (FP), Direct Protocol (DP), IPL, ZSim2 (ZPL-II), DPL, XML can be enabled for SAP AII and Oracle WMS
Application programs /Driver programs	InterDriver Windows printer drive and one-key installation driver, CUPS driver for Linux, program packages for Honeywell device type for SAP and Honeywell label design and printing
SMART PRINTING languages	Honeywell's special C# languages for printers
	Smart Printing Developer Resource Kit, write application in the development environment compatible with .NET.
Configuration and equipment
management support	Printset supports Windows to configure printers, the mature Web interface is used for configuration and one-to-one management
	SAP, Oracle, Linux and Windows are trademarks or registered trademarks of their respective owners.
USER INTERFACE LANGUAGES
Color CNC LCD and WEB interface	English, Italian, French, Spanish, Portuguese, German, Russian, Traditional Chinese, Simplified Chinese, Korean, Japanese and Thai
POWER SUPPLY
PFC power supply with the rated power of 100W AC voltage	100V AC to 240V AC, 50Hz to 60Hz
