DS-KV6114-MWBE1

Hikvision 4MP IP Villa Door Station PoE 2 locks control

Hikvision - Hikvision 4MP IP Villa Door Station PoE 2 locks control, DS-KV6114-MWBE1, Linux Operation system, Embeded high Performance Processor, Main Stream 4MP (2688x1520p) Resolution camera, IR Light up to 3 m, H.264 / H.265 / MJPEG Video Compression Standard, 1 Built-In omnidirectional Microphone, 1 Built-In loudspeaker, 2000 user capacity, 6000 card capacity, Wi-Fi, Bluetooth, 4 Alarm Input, 1x RJ-45 10/100 Mbps Self-Adaptive Network Interface, 1 tamper, 1 Exit Button, 1x RS-485, Support TF card, 2 Relay lock control, 1 Door contact Input, Surface mounting installation
BUY NOW ! Supplier stock not confirmed, but might be in stock.* print

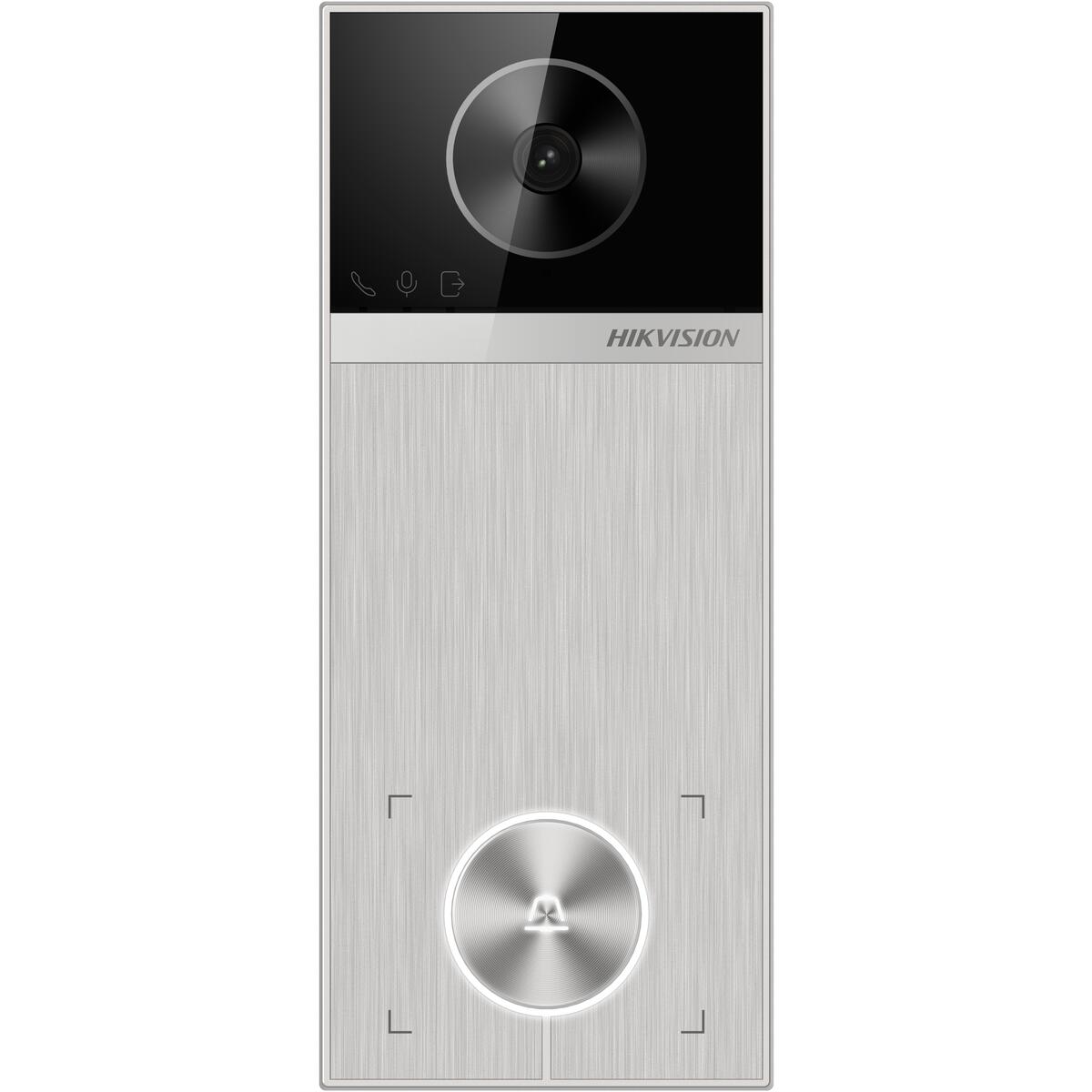

DS-KV6114-MWBE1 Hikvision 4MP IP Villa Door Station PoE 2 locks control Image 2

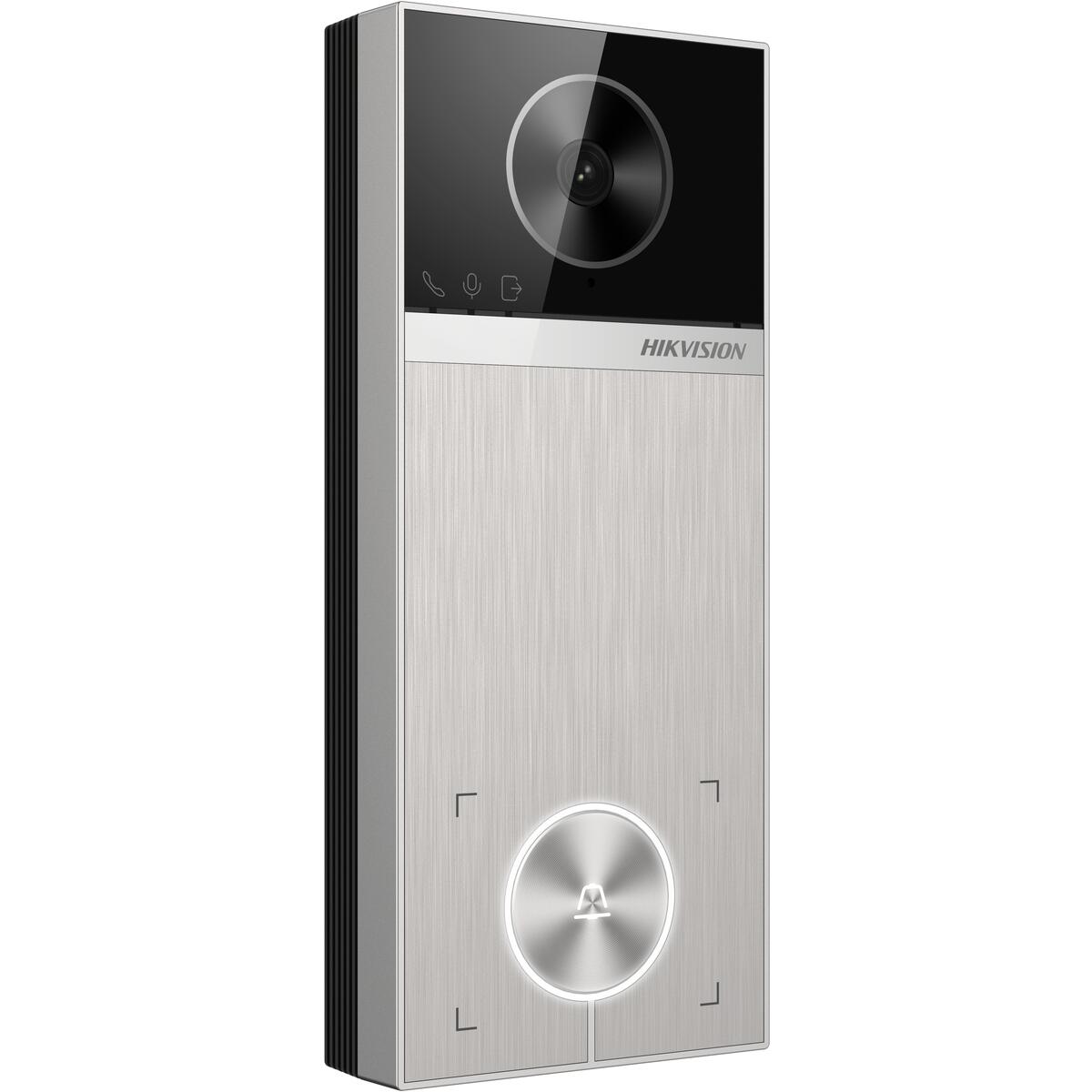

DS-KV6114-MWBE1 Hikvision 4MP IP Villa Door Station PoE 2 locks control Image 4
Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. DS-KV6114-MWBE1 Hikvision 4MP IP Villa Door Station PoE 2 locks control is available from Laptop Direct and it is sold as new from our Intercoms / access control range of products. For reference purposes, the price of R2895 is valid 2026-10-06, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Intercoms / access control category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

DS-KV6114-MWBE1

Hikvision 4MP IP Villa Door Station PoE 2 locks control

Hikvision 4MP IP Villa Door Station PoE 2 locks control, DS-KV6114-MWBE1, Linux Operation system, Embeded high Performance Processor, Main Stream 4MP (2688x1520p) Resolution camera, IR Light up to 3 m, H.264 / H.265 / MJPEG Video Compression Standard, 1 Built-In omnidirectional Microphone, 1 Built-In loudspeaker, 2000 user capacity, 6000 card capacity, Wi-Fi, Bluetooth, 4 Alarm Input, 1x RJ-45 10/100 Mbps Self-Adaptive Network Interface, 1 tamper, 1 Exit Button, 1x RS-485, Support TF card, 2 Relay lock control, 1 Door contact Input, Surface mounting installation

Overview Summary:

The Hikvision DS-KV6114-MWBE1 is a 4MP IP villa door station designed for secure and convenient residential access. With a wide 150degrees viewing angle, built-in audio, Wi-Fi 6, Bluetooth and multiple unlocking methods, it provides reliable visitor communication and controlled entry.

Supporting PoE, two-lock control, up to 2,000 users and 6,000 cards, this outdoor door station is a practical choice for modern villa security systems. Buy now for dependable access control and video communication from Hikvision.

What tier does this fall into?

Professional

What is this best for?

Villa access control, video intercom, residential security, visitor communication, two-door lock control, outdoor entry management

Overview:

The Hikvision DS-KV6114-MWBE1 is a 4MP IP villa door station designed to provide reliable video door entry, visitor communication and secure access control for residential properties. With a wide 150 degree viewing angle, PoE connectivity and support for multiple unlocking methods, it offers a practical solution for modern IP-based door access systems.

Description:

The DS-KV6114-MWBE1 combines a high-resolution 4MP camera with two-lock control, allowing a single villa door station to manage access to two separate locks. Its built-in microphone and speaker provide two-way audio communication, while infrared illumination supports visibility at distances of up to 3 metres.

Users can unlock supported doors using cards, Bluetooth, Hik-Connect or an indoor station. The door station also supports video recording and playback through Hik-Connect or a PC web interface, making it suitable for homes that require both visitor monitoring and access management.

The unit runs on Linux with an embedded high-performance processor and supports IEEE 802.3at PoE for network connectivity and power through a compatible Ethernet connection. Its surface-mount design makes it suitable for straightforward installation at residential entrances.

Features:

Key Benefits

  • 4MP camera resolution up to 2688 x 1520 for clearer visitor identification
  • 150 degree viewing angle for broader coverage around the entrance
  • Two-lock control for managing two separate access points
  • Multiple unlocking options including card, Bluetooth, Hik-Connect and indoor station
  • Built-in microphone and loudspeaker for two-way communication
  • IR illumination up to 3 metres for improved visibility in low-light conditions
  • Video recording and playback through Hik-Connect or PC web access
  • IEEE 802.3at PoE support for convenient network and power connectivity

Access Control and Connectivity
The door station supports up to 2,000 users and 6,000 cards, making it suitable for residential developments and larger villa access systems. Four alarm inputs, a door contact input, exit button connection and tamper protection provide additional options for integrating the unit into an access control setup.

Connectivity and expansion options include:

  • 1 x RJ-45 10/100 Mbps self-adaptive network interface
  • 1 x RS-485 interface
  • Wi-Fi connectivity
  • Bluetooth support
  • Support for TF card storage
  • 2 x relay outputs for lock control
  • 4 x alarm inputs
  • 1 x door contact input
  • 1 x exit button connection
  • 1 x tamper input

Camera and Video
The integrated 4MP camera delivers a main stream resolution of 2688 x 1520 pixels and uses a wide 150 degree viewing angle to provide extensive coverage of the entrance area. Video compression supports H.264, H.265 and MJPEG formats, helping balance image quality and network or storage requirements.

The built-in infrared light provides illumination up to 3 metres, helping maintain useful visitor visibility when the entrance is poorly lit.

Installation and Operation
Designed for surface mounting, the Hikvision DS-KV6114-MWBE1 can be installed at villa entrances and integrated with compatible Hikvision indoor stations and access control equipment. PoE support simplifies installation by allowing compatible network infrastructure to provide both communication and power.

The part number / SKU for this Hikvision villa door station is DS-KV6114-MWBE1, making it easy to identify when ordering, configuring or matching the unit with compatible equipment.

Technical Details

  • Operating system: Linux
  • Processor: Embedded high-performance processor
  • Camera resolution: 4MP, 2688 x 1520
  • Viewing angle: 150 degrees
  • IR range: Up to 3 metres
  • Video compression: H.264, H.265, MJPEG
  • Audio: Built-in omnidirectional microphone and loudspeaker
  • User capacity: Up to 2,000 users
  • Card capacity: Up to 6,000 cards
  • Network: 1 x RJ-45 10/100 Mbps
  • Power/networking: IEEE 802.3at PoE
  • Lock control: 2 relay outputs
  • Installation: Surface mounting

The Hikvision DS-KV6114-MWBE1 is well suited to villa and residential access control installations where high-quality video, two-way communication and flexible door unlocking are required in one IP door station.


Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeDS-KV6114-MWBE1spacer
System parameters
Operation system Linux
ROM 4 GB
RAM 512 MB
Processor Embeded high performance processor
Video parameters
Lens 1
Resolution Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P)
Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
FOV Horizontal: 150degrees , Vertical: 75degrees
Wide dynamic range (WDR) Support 120 dB
Supplement light IR light, up to 3 m
Video compression standard H.264 , H.265 , MJPEG
Audio parameters
Audio input 1 built-in omnidirectional microphone
Audio compression standard G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
Audio output 1 built-in loudspeaker
Audio compression bitrate 8~64 Kps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Audio Performance 50cm 80dB (Maximum: 50cm 83dB)
Audio Sample Rate 16kHz, 8kHz
Capacity
User capacity 2000
Face capacity /
Card capacity 6000
Network parameters
Network protocol TCP/IP, RTSP, ipv6,onvif
Wi-Fi 2.4G
Bluetooth Supported
3G/4G /
Wi-Fi Protocol IEEE802.11b , IEEE802.11g , IEEE802.11n , IEEE802.11ax
Wi-Fi Type WiFi 6
Authentication
Authentication mode Card, Bluetooth, Hik-Connect, indoor station
Card type M1 Card
Card reading frequency 13.56 MHz
Card reading distance M1card : 2 to 2.5 cm
Application
Mobile APP Hik-Connect
Motion Detection Support
Playback Support
Call Elevator Support
Smart Features Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)
Device interfaces
Alarm input 4, (include Exit button and Door contact input)
Network interface 1 RJ-45, 10/100 Mbps self-adaptive
TAMPER 1
Exit button 1
RS-485 1
USB /
Wiegand /
TF card Support TF card, up to 128 G
Alarm output /
Lock control 2 relay, Max. 30 VDC 2 A
Door contact input 1
Supported TF Format FAT32 , exFAT
General
Button 1 physical button
Installation Surface mounting
Indicator 3
Without package: 273 g (0.61 lb),With package: 431g (0.95 lb)
Protective level IP65
Working temperature -40 degreesC to 60 degreesC (-40 degreesF to 140 degreesF)
Working humidity 10% to 90% (no-condensing)
Dimension (W x H x D) 164 mm x 69 mm x 24.7 mm (6.46" x 2.72" x 0.97")
Battery /
Application environment Outdoor
Power consumption < 10 W
Language English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
Power supply 12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
Material Front Shell and Rear Shell Material: Plastic
Viewing Window Panel Material: Glass
Metal Version Metal Panel: Aluminum Alloy
Power Supply Output Max. 12 VDC, 1 A


Download: pdf_downloads/2_7/274180_PDF1.pdf (741125 KB)
