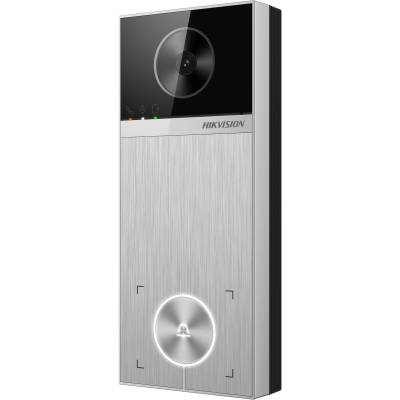

The Hikvision DS-KV6114-MWBE1 is a 4MP IP villa door station designed to provide reliable video door entry, visitor communication and secure access control for residential properties. With a wide 150 degree viewing angle, PoE connectivity and support for multiple unlocking methods, it offers a practical solution for modern IP-based door access systems.
The DS-KV6114-MWBE1 combines a high-resolution 4MP camera with two-lock control, allowing a single villa door station to manage access to two separate locks. Its built-in microphone and speaker provide two-way audio communication, while infrared illumination supports visibility at distances of up to 3 metres.
Users can unlock supported doors using cards, Bluetooth, Hik-Connect or an indoor station. The door station also supports video recording and playback through Hik-Connect or a PC web interface, making it suitable for homes that require both visitor monitoring and access management.
The unit runs on Linux with an embedded high-performance processor and supports IEEE 802.3at PoE for network connectivity and power through a compatible Ethernet connection. Its surface-mount design makes it suitable for straightforward installation at residential entrances.
Key Benefits
Access Control and Connectivity
The door station supports up to 2,000 users and 6,000 cards, making it suitable for residential developments and larger villa access systems. Four alarm inputs, a door contact input, exit button connection and tamper protection provide additional options for integrating the unit into an access control setup.
Connectivity and expansion options include:
Camera and Video
The integrated 4MP camera delivers a main stream resolution of 2688 x 1520 pixels and uses a wide 150 degree viewing angle to provide extensive coverage of the entrance area. Video compression supports H.264, H.265 and MJPEG formats, helping balance image quality and network or storage requirements.
The built-in infrared light provides illumination up to 3 metres, helping maintain useful visitor visibility when the entrance is poorly lit.
Installation and Operation
Designed for surface mounting, the Hikvision DS-KV6114-MWBE1 can be installed at villa entrances and integrated with compatible Hikvision indoor stations and access control equipment. PoE support simplifies installation by allowing compatible network infrastructure to provide both communication and power.
The part number / SKU for this Hikvision villa door station is DS-KV6114-MWBE1, making it easy to identify when ordering, configuring or matching the unit with compatible equipment.
Technical Details
The Hikvision DS-KV6114-MWBE1 is well suited to villa and residential access control installations where high-quality video, two-way communication and flexible door unlocking are required in one IP door station.
| © 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | DS-KV6114-MWBE1 |
| System parameters | |
| Operation system | Linux |
| ROM | 4 GB |
| RAM | 512 MB |
| Processor | Embeded high performance processor |
| Video parameters | |
| Lens | 1 |
| Resolution | Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) |
| Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P) | |
| FOV | Horizontal: 150degrees , Vertical: 75degrees |
| Wide dynamic range (WDR) | Support 120 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264 , H.265 , MJPEG |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 8~64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Audio Performance | 50cm 80dB (Maximum: 50cm 83dB) |
| Audio Sample Rate | 16kHz, 8kHz |
| Capacity | |
| User capacity | 2000 |
| Face capacity | / |
| Card capacity | 6000 |
| Network parameters | |
| Network protocol | TCP/IP, RTSP, ipv6,onvif |
| Wi-Fi | 2.4G |
| Bluetooth | Supported |
| 3G/4G | / |
| Wi-Fi Protocol | IEEE802.11b , IEEE802.11g , IEEE802.11n , IEEE802.11ax |
| Wi-Fi Type | WiFi 6 |
| Authentication | |
| Authentication mode | Card, Bluetooth, Hik-Connect, indoor station |
| Card type | M1 Card |
| Card reading frequency | 13.56 MHz |
| Card reading distance | M1card : 2 to 2.5 cm |
| Application | |
| Mobile APP | Hik-Connect |
| Motion Detection | Support |
| Playback | Support |
| Call Elevator | Support |
| Smart Features | Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m) |
| Device interfaces | |
| Alarm input | 4, (include Exit button and Door contact input) |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 1 |
| RS-485 | 1 |
| USB | / |
| Wiegand | / |
| TF card | Support TF card, up to 128 G |
| Alarm output | / |
| Lock control | 2 relay, Max. 30 VDC 2 A |
| Door contact input | 1 |
| Supported TF Format | FAT32 , exFAT |
| General | |
| Button | 1 physical button |
| Installation | Surface mounting |
| Indicator | 3 |
| Without package: 273 g (0.61 lb),With package: 431g (0.95 lb) | |
| Protective level | IP65 |
| Working temperature | -40 degreesC to 60 degreesC (-40 degreesF to 140 degreesF) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W x H x D) | 164 mm x 69 mm x 24.7 mm (6.46" x 2.72" x 0.97") |
| Battery | / |
| Application environment | Outdoor |
| Power consumption | < 10 W |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
| Power supply | 12 VDC, 1.2 A,IEEE 802.3 at, standard PoE |
| Material | Front Shell and Rear Shell Material: Plastic |
| Viewing Window Panel Material: Glass | |
| Metal Version Metal Panel: Aluminum Alloy | |
| Power Supply Output | Max. 12 VDC, 1 A |
