ARU-IO-SG2505P

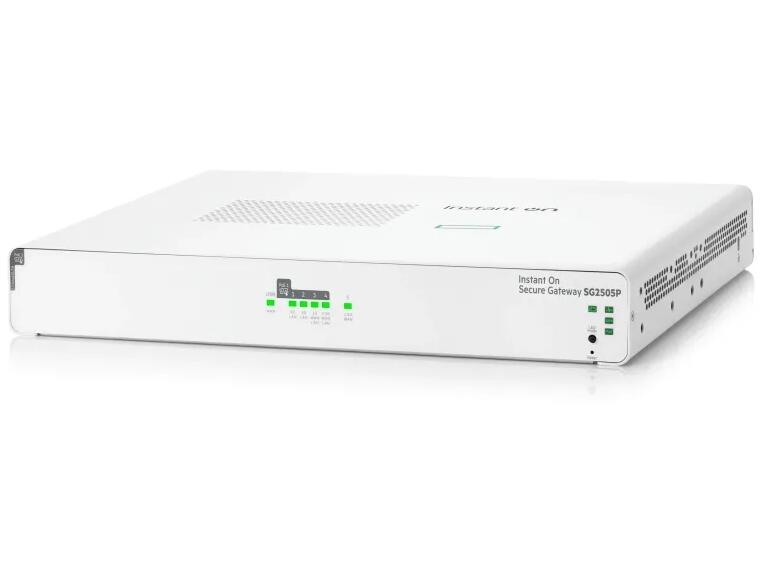

HPE SG2505P Instant On 5 port 2.5G PoE+ Gateway

Overview Summary:

The HPE SG2505P Instant On 5-Port 2.5G PoE+ Secure Gateway delivers enterprise-grade performance for small to medium-sized businesses across South Africa. It provides multi-gigabit connectivity, advanced security features like IDS/IPS, VPN support, and PoE+ for powering devices, all manageable via the cloud. Shop now to secure your network and simplify IT management.

Perfect for offices, retail stores, and hospitality environments, the SG2505P ensures reliable uptime and robust protection against cyber threats. Buy now and benefit from a scalable, easy-to-manage network solution that supports up to 300 users.

What tier does this fall into?

High-performance

What is this best for?

Small to medium business networks, office networking, retail environments, hospitality network management, secure VPN deployment, PoE device support

Overview:

HPE Instant On SG2505P Secure Gateway for SMB Networks
The HPE Networking Instant On Secure Gateway SG2505P is designed for small to medium businesses that require reliable, high-speed connectivity combined with strong network security. Built to support multi-gigabit internet connections, this compact gateway delivers consistent performance while helping organizations defend against modern cyber threats such as ransomware, phishing, and data breaches. It is well suited for environments like retail stores, hospitality venues, and professional offices where uptime and protection are critical.

Description:

The SG2505P is a cloud-managed secure gateway that integrates advanced security capabilities with flexible multi-gigabit networking. It offers a combination of 2.5GbE and 1GbE ports, along with PoE+ support to power connected devices such as access points. With built-in firewall protection, intrusion detection and prevention, and VPN support, it enables secure remote access and site-to-site connectivity. Centralized management through the Instant On platform simplifies deployment, monitoring, and updates, making it an efficient solution for growing businesses. Part number ARU-IO-SG2505P ensures easy identification when sourcing or deploying this model.

Features:

Designed for Modern Business Environments
This gateway is tailored for organizations that need both performance and security without complexity. It supports multi-gigabit ISP connections and ensures stable operations even during network disruptions through WAN resiliency. The intuitive cloud-based management system reduces administrative overhead while maintaining visibility and control across distributed sites.

Typical deployment scenarios include:

Hospitality environments requiring reliable guest and staff connectivity
Retail businesses managing transactions and connected devices
Professional offices handling sensitive client data and remote access

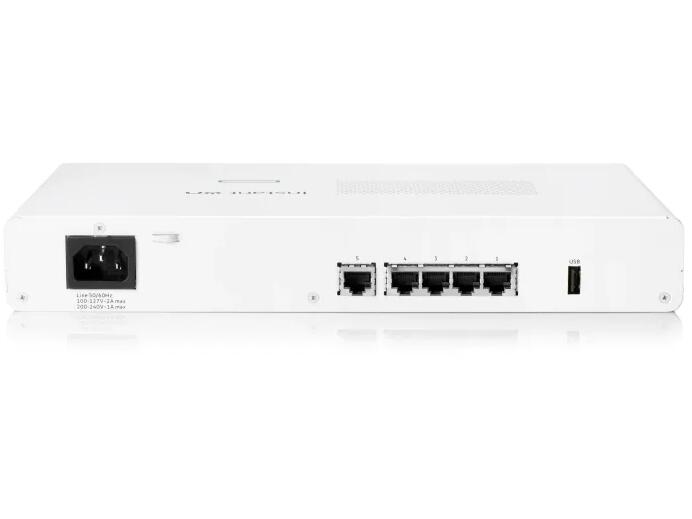

Connectivity and Port Configuration
The SG2505P provides flexible connectivity options to accommodate different network topologies and growth requirements.

1 x 2.5GbE WAN port for high-speed internet access
1 x 2.5GbE WAN or LAN configurable port
1 x 1GbE WAN or LAN configurable port
2 x 1GbE LAN ports for internal device connections
1 x USB-A 2.0 interface for additional functionality

This combination allows businesses to optimize traffic flow and adapt to changing network demands.

Security and Performance Capabilities
Security is a central component of the SG2505P, delivering enterprise-level protection in a simplified form factor.

Stateful firewall for traffic inspection and control
Intrusion detection and prevention system with up to 2.4 Gbps throughput
VPN and site-to-site VPN support with up to 2.3 Gbps performance
Protection against common cyber threats including malware and phishing
Support for up to 300 users, making it suitable for growing teams

These capabilities ensure that network traffic remains secure without compromising speed.

Power and Device Support
With integrated PoE+ functionality, the gateway can directly power connected devices, reducing the need for additional hardware.

Total PoE budget of 64W Class 4
Ideal for powering access points, IP phones, or IoT devices
Simplifies deployment by minimizing cabling and power requirements

Management and Deployment
The SG2505P is managed through the Instant On cloud portal or mobile app, providing centralized control and visibility.

Remote monitoring and configuration from anywhere
Automated firmware updates for security and stability
User-friendly interface for quick setup and ongoing management

This approach reduces complexity while maintaining enterprise-grade control.

Physical Details and Identification

Dimensions: 1.73 x 12.19 x 9.22 inches (4.39 x 30.96 x 23.42 cm)
Weight: 5.29 lbs (2.40 kg)
SKU: ARU-IO-SG2505P
Manufacturer SKU: S0G34A

The compact form factor allows for flexible installation in various business environments while maintaining robust performance.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ARU-IO-SG2505P
Interfaces	1x 2.5GbE WAN, 1x 2.5GbE WAN/LAN, 1x 1GbE WAN/LAN, 2x 1GbE LAN
PoE Power	64W Class 4 PoE
Additional interfaces	1x USB-A 2.0
IDS/IPS performance	2.4 Gbps
VPN performance	2.3 Gbps
Number of users	300
Dimensions (L x W x H)	1.73 x 12.19 x 9.22in (4.39cm x 30.96cm x 23.42cm)
Weight lb (kg)	5.29lbs (2.40kg)
MTFB	37
