UCG-IND

Ubiquiti UCG-IND UniFi Cloud Gateway Industrial

Ubiquiti UCG-IND UniFi Cloud Gateway Industrial, 15x HD or 8x 2K or 5x 4K Managed cameras, 50 Managed Access hubs, 500+ simultaneous users connected, 1x 10G SFP+ Port, 1x 10 GbE RJ45 Port, 1x 2.5 GbE RJ45 Port, 5 Gbps IDS/IPS Throughput, 115 m2 coverage area, WiFi 7, 4.3 Gbps @ 5GHz Throughput, 688 Mbps @ 2.4GHz Throughput, MicroSD card Expansion slot, 270W PoE budget, 30W PoE+ per Port, 90W PoE+++ per Port

Overview:

The Ubiquiti UCG-IND UniFi Cloud Gateway Industrial is engineered for demanding environments where performance, reliability, and scalability are critical. Built with a rugged, fanless design, it delivers advanced routing, high-density PoE output, and full UniFi application support in a compact form factor. With support for over 500 simultaneous users and up to 50 managed devices, this gateway is suited for industrial deployments, large offices, and high-traffic network environments. Integrated WiFi 7 capability and multi-gigabit connectivity ensure fast, stable wireless and wired performance, while built-in storage and security tools provide a complete, all-in-one networking solution.

Description:

The UCG-IND combines enterprise-grade routing, switching, and wireless functionality into a single industrial-grade platform. Designed for high-density deployments, it supports multiple high-resolution cameras, access control systems, and large user loads without compromising performance. With a substantial PoE budget, flexible mounting options, and advanced security including IDS/IPS and deep packet inspection, it delivers both power and intelligence at the network edge. Integrated UniFi applications enable centralized management of network, surveillance, access, and communication systems, making it a versatile solution for complex infrastructures.

Features:

Key Connectivity and Power Specifications
This model is equipped with a versatile range of high-speed ports to support modern networking demands. Multi-gigabit Ethernet and SFP+ connectivity allow for flexible WAN and LAN configurations, while PoE capabilities simplify device deployment. The unit includes one 10G SFP+ port and one 10 GbE RJ45 port for high-speed uplinks, alongside a 2.5 GbE RJ45 WAN port plus additional 2.5 GbE LAN ports. It features four 2.5 GbE RJ45 ports including PoE+ and PoE+++ support, delivering up to 90W of power per port for power-hungry devices with a total PoE budget of 270W for dense device deployments.

Integrated WiFi 7 Performance
Built-in wireless capability ensures high throughput and efficient coverage without requiring additional access points for smaller deployments. The gateway supports WiFi 7 with backward compatibility for older standards, offering up to 4.3 Gbps throughput on the 5 GHz band and up to 688 Mbps on the 2.4 GHz band. It utilizes 2x2 MU-MIMO for both bands to ensure optimal data delivery across a coverage area of up to 115 square meters.

Advanced Security and Traffic Management
The gateway includes enterprise-level security features designed to protect and optimize network traffic across all connected devices. Key capabilities include a stateful and application-aware Layer 7 firewall, deep packet inspection and traffic identification, and intrusion detection and prevention with over 55000 signatures. Additional protections involve VLAN and subnet-based traffic segmentation, content filtering and ad blocking, as well as zone-based firewall policies with advanced filtering.

VPN and SD-WAN Capabilities
Secure remote access and site connectivity are built in, with multiple VPN protocols and simplified deployment options. This includes license-free SD-WAN functionality, support for Site-to-Site VPN including IPsec and OpenVPN, and WireGuard and L2TP VPN server support. Teleport zero-configuration VPN is available for remote users, along with OpenVPN and WireGuard client support.

Optimized for UniFi Ecosystem Management
The device runs the full UniFi application suite, enabling centralized control of multiple systems from a single interface. It supports Network, Protect, Access, Talk, and Connect applications, manages over 50 UniFi devices and access hubs, and can handle up to 15 HD, 8 2K, or 5 4K cameras while supporting 500+ concurrent users.

Hardware and System Design
The industrial-grade construction ensures reliable operation in harsh environments while maintaining efficient thermal performance. The unit features a fanless design for silent and dust-resistant operation, powered by a quad-core ARM Cortex-A73 processor at 2.2 GHz with 3 GB of system memory. Pre-installed 128 GB microSD storage provides NVR functionality with an additional MicroSD expansion slot for more space, and it operates reliably in temperatures ranging from -30 to 50 degrees Celsius.

Deployment Flexibility
Designed to adapt to different installation requirements, the unit supports multiple mounting options including wall-mounted installation, desktop placement with the included stand, or rack mounting using an optional accessory. The device comes with a 350W power supply and can consume up to 28W of maximum device power excluding PoE output.

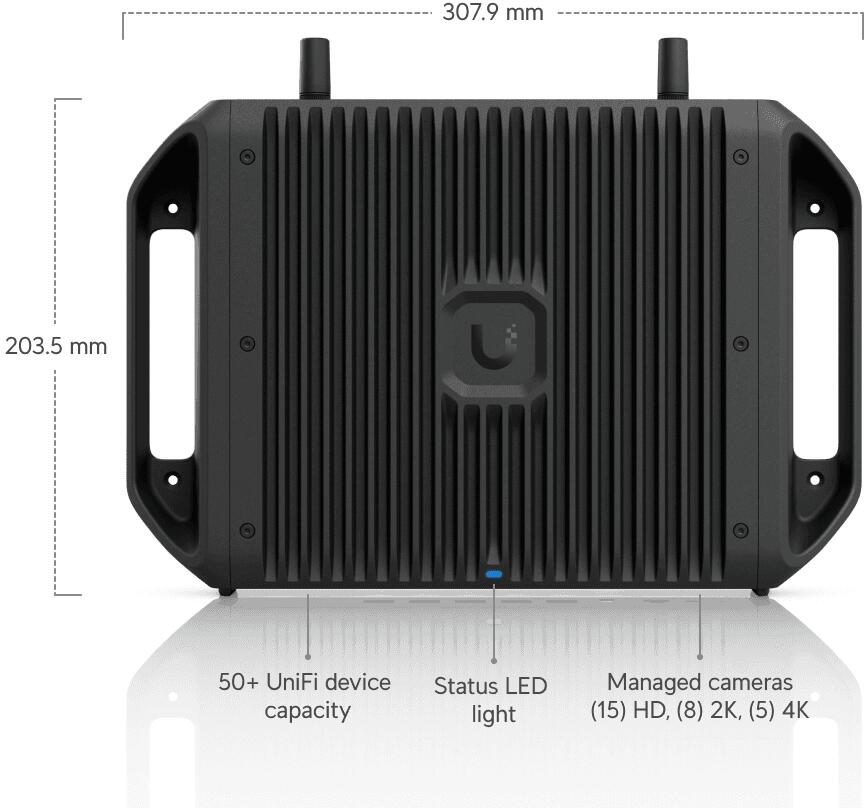

The Ubiquiti UniFi Cloud Gateway Industrial, part number UB-UCG-IND, provides a robust and scalable foundation for modern networks that demand high throughput, advanced security, and centralized management in a single, durable platform. Its dimensions measure 307.9 x 203.5 x 43.7 mm for the device itself.

Whats' in the box

Specifications:

FAQ

Is the Ubiquiti UCG-IND suitable for large-scale industrial deployments?
The device is engineered for demanding environments, supporting up to 50 managed devices, over 500 simultaneous users, and high-density camera setups including up to 15 HD or 5 4K cameras.

What are the connectivity and power capabilities of this gateway?
It features a quad-core processor with one 10G SFP+ port, one 10 GbE RJ45 port, and four 2.5 GbE ports that support up to 90W PoE+++ per port for powering high-demand devices.

Does the unit include built-in wireless networking?
Yes, it integrates WiFi 7 capability with a coverage area of up to 115 m2 and delivers throughput speeds of 4.3 Gbps on the 5 GHz band.

How is data storage handled for surveillance systems?
The gateway includes a pre-installed 128 GB microSD card for NVR functionality, with an additional MicroSD expansion slot available for increasing storage capacity.

Can the device operate in extreme temperature conditions?
Yes, its rugged fanless design allows it to function reliably within an ambient operating temperature range of -30 to 50 degrees Celsius.
