V11HA27040

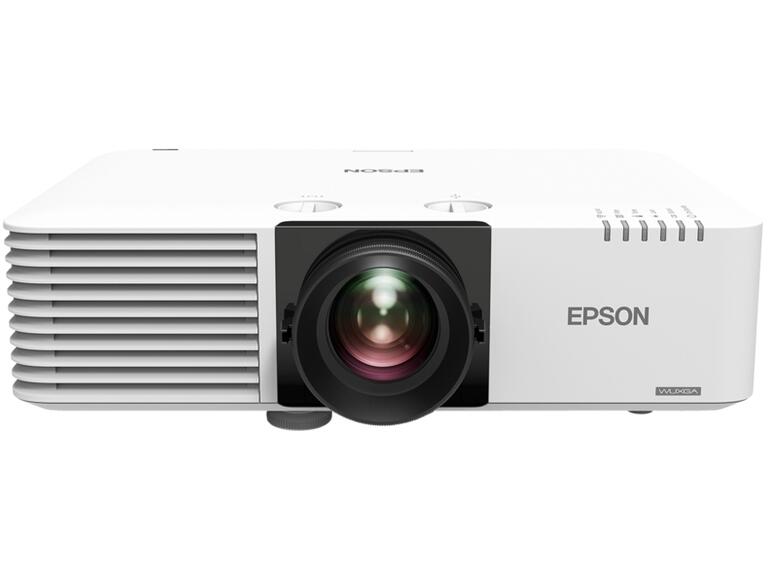

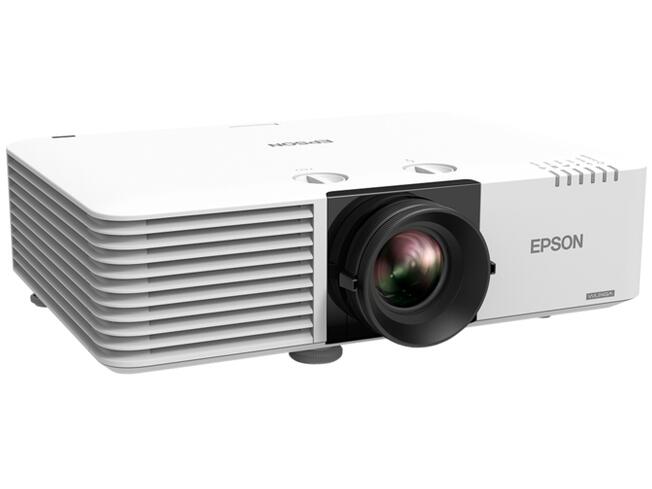

Epson EB-L530U 5200 Lumen WUXGA 1920x1200 3LCD Laser Projector, VGA, HDMI

Epson EB-L530U 5200 Lumen WUXGA 1920x1200 3LCD Laser Projector, V11HA27040, What's in the box - Power cable / Remote control including batteries / user guide, 16:10 Aspect Ratio, 2500000:1 contrast ratio, Laser light source, Optical Lens, 50" - 500" screen size, USB 2.0, RS-232C, Ethernet Interface, WiFi, 2x VGA in, VGA out, HDMI out, HDBaseT, Miracast, 2x HDMI, WiFi, 10 Watt loudspeaker

Overview:

The Epson EB-L530U is a high-performance laser projector engineered for professional environments that demand consistent brightness, flexible installation, and advanced connectivity. Delivering 5200 lumens of colour and white brightness, it produces clear, vivid images even in well-lit rooms. Its WUXGA resolution ensures sharp detail and Full HD clarity, making it well suited for presentations, digital signage, classrooms, and large venues.

Designed around Epson's 3LCD technology, this projector maintains accurate colour reproduction and stable image quality across extended use. The compact chassis and wide lens shift capabilities simplify installation in both new and existing setups, while scalable projection up to 500 inches enables impactful large-format displays.

Description:

The Epson EB-L530U laser projector combines high brightness, WUXGA resolution, and versatile connectivity into a compact, installation-friendly solution. With 3LCD technology, it delivers consistent colour accuracy and sharp visuals for professional use. Its long-life laser light source reduces maintenance requirements, while support for wireless projection, HDBaseT, and screen mirroring ensures seamless integration into modern AV environments. Suitable for boardrooms, classrooms, retail displays, and large venues, it provides reliable performance and flexible deployment options.

Features:

Display Performance and Image Quality
This model is built to deliver stable and high-quality visuals across a wide range of lighting conditions. The 5200-lumen output ensures strong visibility without requiring dimmed environments, while the high contrast ratio enhances depth and clarity.

Key image attributes include:

• WUXGA resolution at 1920 x 1200 for detailed visuals
• 16:10 aspect ratio suited to business and education content
• Contrast ratio exceeding 2,500,000:1 for improved depth
• Up to 1.07 billion colours for accurate reproduction
• 10-bit colour processing for smoother gradients

Laser Light Source and Efficiency
The laser projection system provides long operational life and consistent brightness over time, reducing the need for frequent maintenance.

Core advantages:

• Laser light source with up to 20,000 hours in standard mode and up to 30,000 hours in eco mode
• Stable brightness with minimal degradation
• Lower total cost of ownership compared to lamp-based systems
• Fast startup and shutdown functionality

Flexible Installation and Large-Scale Projection
The EB-L530U is engineered for adaptability across different room sizes and layouts. Its wide lens shift and zoom capabilities allow precise image alignment without complex repositioning.

Installation highlights:

• Screen size range from 50 inches to 500 inches
• Manual zoom with 1.0 to 1.6x range
• Vertical lens shift up to plus or minus 50 percent and horizontal up to plus or minus 20 percent
• Throw ratio from 1.35 to 2.20:1
• Keystone correction for both vertical and horizontal alignment

Connectivity and Integration Options
Modern AV environments require flexible input and networking capabilities, and this projector addresses that with a broad selection of interfaces.

Connectivity options include:

• Dual HDMI inputs with HDCP 2.3 support
• HDBaseT for long-distance signal transmission
• VGA input and output for legacy systems
• USB 2.0 ports for media playback and peripherals
• Ethernet interface for network control
• Integrated WiFi and Miracast for wireless projection
• RS-232C for control integration

It also supports network protocols such as HTTPS, SNMP, PJLink, and ESC/VP.net, enabling seamless integration into enterprise control systems.

Smart Functionality and Control
The projector includes a range of intelligent features designed to streamline operation and enhance usability.

Notable capabilities:

• Screen mirroring and wireless presentation via Epson iProjection app
• Split-screen functionality for multiple sources
• Edge blending and multi-projection support
• Auto power on and source detection
• Built-in scheduling and remote management via web interface
• Compatibility with control systems such as Crestron, AMX, Extron, and Control4

Audio and Physical Design
The unit integrates essential audio and is designed for both ceiling-mounted and desktop installations.

Additional details:

• Built-in 10 watt speaker for basic audio output
• Compact dimensions of 440 x 339 x 136 mm
• ?? of 8.2 kg for manageable installation
• Low noise operation at 31 dB normal and 23 dB eco mode

Power and Environmental Parameters
Designed for efficiency and reliability across varied conditions:

• Power consumption ranges from 223W in eco mode to 293W peak
• Standby consumption as low as 0.3W
• Operating voltage supports 100V to 240V AC
• Operating humidity between 20 percent and 80 percent

Whats' include

• Main projector unit
• Power cable
• Remote control with batteries
• User guide
• Cable cover

Use Case Applications
This projector is suited to a wide range of professional environments:

• Corporate boardrooms and meeting spaces
• Classrooms and lecture halls
• Retail and digital signage installations
• Visitor attractions and exhibition displays
• Large auditoriums and presentation venues

The Epson EB-L530U, part number EPPJV11H987040, delivers a balanced combination of brightness, resolution, and installation flexibility, making it a practical solution for organizations requiring dependable large-format projection with modern connectivity.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	V11HA27040
Technology
Projection System	3LCD Technology, RGB liquid crystal shutter
LCD Panel	0,67 inch with C2 Fine
Color Light Output	5.200 Lumen- 3.640 Lumen (economy) In accordance with IDMS15.4
White Light Output	5.200 Lumen - 3.640 Lumen (economy) In accordance with ISO 21118:2020
Resolution	WUXGA
High Definition	Full HD
Aspect Ratio	16:10
Contrast Ratio	Over 2.500.000 : 1
Light source	Laser
Laser Light source	20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction	Manual vertical: ± 30 degrees, Manual horizontal ± 30 degrees
Colour Video Processing	10 Bits
Colour Reproduction	Upto 1.07 billion colours
Optical
Throw Ratio	1,35 - 2,20:1
Zoom	Manual, Factor: 1 - 1,6
Projection Lens Zoom Ratio	1,35 - 2,2 : 1
Lens	Optical
Lens Shift	Manual - Vertical ± 50 %, horizontal ± 20 %
Screen Size	50 inches - 500 inches
Projection Distance Wide	1,4 m - 14,8 m
Projection Distance Tele	2,4 m - 23,8 m
Projection Distance Wide/Tele	1,44 m - 23,84 m
Projection Lens F Number	1,5 - 1,7
Projection Lens Focal Length	20 mm - 31,8 mm
Projection Lens Focus	Manual
Connectivity
Interfaces	USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/g 25GHz, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security	Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Colour Modes	Dynamic, Cinema, Presentation, sRGB, DICOM SIM
Other features	21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App
Video Color Modes	Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector control	via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption	234 Watt - On mode power consumption (Normal)
	293 Watt (Peak), 223 Watt (Eco), 0,3 Watt (Energy saving standby)
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	440 x 339 x 136 mm (Width x Depth x Height)
Product weight	8,2 kg
Noise Level	Normal: 31 dB (A) - Economy: 23 dB (A)
Supported Temperature	Storage -10degrees C - 60degrees C
Supported Humidity	Operation 20% - 80%, Storage 10% - 90%
	If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
	If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Options	Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit
Loudspeaker	10 Watt
What's in the box	Cable cover, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents
Room Type / Application	Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop
Colour	White
