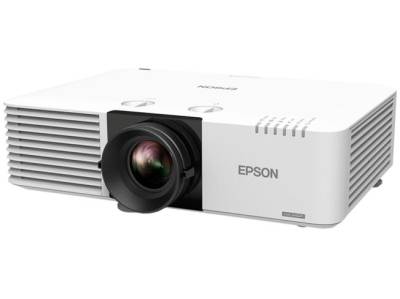

The Epson EB-L530U is a high-performance laser projector engineered for professional environments that demand consistent brightness, flexible installation, and advanced connectivity. Delivering 5200 lumens of colour and white brightness, it produces clear, vivid images even in well-lit rooms. Its WUXGA resolution ensures sharp detail and Full HD clarity, making it well suited for presentations, digital signage, classrooms, and large venues.
Designed around Epson's 3LCD technology, this projector maintains accurate colour reproduction and stable image quality across extended use. The compact chassis and wide lens shift capabilities simplify installation in both new and existing setups, while scalable projection up to 500 inches enables impactful large-format displays.
The Epson EB-L530U laser projector combines high brightness, WUXGA resolution, and versatile connectivity into a compact, installation-friendly solution. With 3LCD technology, it delivers consistent colour accuracy and sharp visuals for professional use. Its long-life laser light source reduces maintenance requirements, while support for wireless projection, HDBaseT, and screen mirroring ensures seamless integration into modern AV environments. Suitable for boardrooms, classrooms, retail displays, and large venues, it provides reliable performance and flexible deployment options.
Display Performance and Image Quality
This model is built to deliver stable and high-quality visuals across a wide range of lighting conditions. The 5200-lumen output ensures strong visibility without requiring dimmed environments, while the high contrast ratio enhances depth and clarity.
Key image attributes include:
Laser Light Source and Efficiency
The laser projection system provides long operational life and consistent brightness over time, reducing the need for frequent maintenance.
Core advantages:
Flexible Installation and Large-Scale Projection
The EB-L530U is engineered for adaptability across different room sizes and layouts. Its wide lens shift and zoom capabilities allow precise image alignment without complex repositioning.
Installation highlights:
Connectivity and Integration Options
Modern AV environments require flexible input and networking capabilities, and this projector addresses that with a broad selection of interfaces.
Connectivity options include:
It also supports network protocols such as HTTPS, SNMP, PJLink, and ESC/VP.net, enabling seamless integration into enterprise control systems.
Smart Functionality and Control
The projector includes a range of intelligent features designed to streamline operation and enhance usability.
Notable capabilities:
Audio and Physical Design
The unit integrates essential audio and is designed for both ceiling-mounted and desktop installations.
Additional details:
Power and Environmental Parameters
Designed for efficiency and reliability across varied conditions:
What's Included
Use Case Applications
This projector is suited to a wide range of professional environments:
The Epson EB-L530U, part number EPPJV11H987040, delivers a balanced combination of brightness, resolution, and installation flexibility, making it a practical solution for organizations requiring dependable large-format projection with modern connectivity.
| © 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | V11HA27040 |
| Technology | |
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0,67 inch with C2 Fine |
| Image | |
| Color Light Output | 5.200 Lumen- 3.640 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 5.200 Lumen - 3.640 Lumen (economy) In accordance with ISO 21118:2020 |
| Resolution | WUXGA |
| High Definition | Full HD |
| Aspect Ratio | 16:10 |
| Contrast Ratio | Over 2.500.000 : 1 |
| Light source | Laser |
| Laser Light source | 20.000 hours Durability High, 30.000 hours Durability Eco |
| Keystone Correction | Manual vertical: ± 30 degrees, Manual horizontal ± 30 degrees |
| Colour Video Processing | 10 Bits |
| Colour Reproduction | Upto 1.07 billion colours |
| Optical | |
| Throw Ratio | 1,35 - 2,20:1 |
| Zoom | Manual, Factor: 1 - 1,6 |
| Projection Lens Zoom Ratio | 1,35 - 2,2 : 1 |
| Lens | Optical |
| Lens Shift | Manual - Vertical ± 50 %, horizontal ± 20 % |
| Screen Size | 50 inches - 500 inches |
| Projection Distance Wide | 1,4 m - 14,8 m |
| Projection Distance Tele | 2,4 m - 23,8 m |
| Projection Distance Wide/Tele | 1,44 m - 23,84 m |
| Projection Lens F Number | 1,5 - 1,7 |
| Projection Lens Focal Length | 20 mm - 31,8 mm |
| Projection Lens Focus | Manual |
| Connectivity | |
| Interfaces | USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/g 25GHz, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Network Protocol | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Advanced Features | |
| Security | Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, DICOM SIM |
| Other features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Video Color Modes | Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection |
| Projector control | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| General | |
| Power consumption | 234 Watt - On mode power consumption (Normal) |
| 293 Watt (Peak), 223 Watt (Eco), 0,3 Watt (Energy saving standby) | |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 440 x 339 x 136 mm (Width x Depth x Height) |
| Product weight | 8,2 kg |
| Noise Level | Normal: 31 dB (A) - Economy: 23 dB (A) |
| Supported Temperature | Storage -10degrees C - 60degrees C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. | |
| If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance. | |
| Options | Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit |
| Loudspeaker | 10 Watt |
| What's in the box | Cable cover, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents |
| Room Type / Application | Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction |
| Positioning | Ceiling Mounted, Desktop |
| Colour | White |
