EB-L790U

Epson EB-L790U 7300 Lumen WUXGA 1920x1200 16:10 Laser Projector - White, HDMI, VGA

Epson EB-L790U 7300 Lumen WUXGA 1920x1200 16:10 Laser Projector - White, 3LCD Technology, RGB Liquid Crystal shutter, 16:10 Aspect Ratio, Laser Light source, Upto 1.07 Billion colours, 50" - 500" screen size, 2x USB 2.0, RS-232C, Ethernet, Wireless, HDMI out, Miracast, 2x HDMI, NFC, Apple AirPlay 2, 10 Watt loudspeaker

Overview:

Epson EB-L790U 7,300 Lumen WUXGA Laser Projector
The Epson EB-L790U is a high-performance WUXGA laser projector designed for professional environments that demand bright, reliable, and scalable projection. Delivering 7,300 lumens of white and colour brightness, it produces sharp and vibrant visuals even in well-lit rooms. Built around advanced 3LCD technology and a 16:10 aspect ratio, it is suitable for lecture halls, boardrooms, training centres, and large venue applications where clarity and impact are essential.

Description:

The EB-L790U laser projector combines high brightness output with WUXGA resolution to deliver detailed, colour-rich imagery across large screen sizes up to 500 inches. It supports flexible installation with lens shift, optical zoom, and advanced geometry correction tools, making it adaptable to a wide range of professional environments. With long-life laser technology, integrated wireless connectivity, and support for modern screen mirroring solutions, it is engineered for continuous use with minimal maintenance while maintaining consistent visual performance.

Features:

High Brightness Performance for Large Venues
Designed for demanding presentation environments, this projector delivers 7,300 lumens of brightness using Epson 3LCD technology for balanced colour reproduction and sharp detail. The WUXGA resolution (1920 x 1200) ensures clarity for both data and video content, making it suitable for education, corporate, and public display applications.

Key performance points:

• 7,300 lumens white and colour brightness for strong visibility in bright rooms
• WUXGA 1920 x 1200 resolution for detailed image reproduction
• 16:10 aspect ratio optimised for productivity content and presentations
• Contrast ratio exceeding 5,000,000:1 for deeper blacks and enhanced definition
• Laser light source with up to 30,000 hours in Eco mode for extended operation

Flexible Installation and Large Image Scaling
The EB-L790U is engineered for straightforward installation and adaptable positioning, allowing integration into a wide range of spaces without complex setup requirements. Its optical system supports large-scale projection with precise control.

Installation capabilities include:

• Screen size range from 50 inches up to 500 inches
• Throw ratio between 1.35 and 2.20:1 for placement flexibility
• 1.6x optical zoom for simplified alignment
• Manual lens shift: vertical ±50 percent and horizontal ±20 percent
• Keystone correction: vertical and horizontal ±30 degrees

Part number and identification: EB-L790U, SKU V11HB28040.

Connectivity and Collaboration Tools
Modern workplaces require flexible connectivity, and this projector supports multiple wired and wireless input options to streamline collaboration and content sharing.

Connectivity options:

• 2x HDMI inputs with HDCP 2.3 support
• HDMI output for daisy chaining setups
• Wireless LAN (IEEE 802.11 a/b/g/n/ac)
• Miracast and Apple AirPlay 2 screen mirroring support
• Ethernet (100 Base-TX / 10 Base-T) for network integration
• USB 2.0 ports for PC-free projection
• HDBaseT support for long-distance signal transmission
• NFC for fast configuration in large deployments

Smart Control and Network Management
The projector integrates advanced management tools designed for IT administrators and AV installers. It supports centralized control and remote monitoring to reduce operational overhead.

Control and management capabilities:

• Epson Projector Management and cloud monitoring support
• Compatibility with Crestron, AMX, and Extron systems
• Web control interface for remote operation
• Firmware updates delivered over the air
• NFC-based configuration for faster deployment

Quiet Operation and Built-In Audio
The EB-L790U is designed to maintain a low acoustic profile, making it suitable for environments where concentration is critical. It also includes integrated audio for standalone use in smaller installations.

Audio and noise details:

• 10W built-in speaker for clear voice reproduction
• Low noise output of 25 dB in Eco mode
• Quiet operation suitable for classrooms, meeting rooms, and lecture halls

Sustainable and Long-Life Design
Sustainability is built into the projector's design, focusing on energy efficiency, reduced waste, and long operational life. The laser light source significantly reduces maintenance requirements compared to traditional lamp-based systems.

Environmental considerations:

• Manufactured using a portion of recycled plastics
• Low power consumption across operating modes
• Laser life up to 20,000 to 30,000 hours depending on mode
• Reduced packaging material usage
• Designed for end-of-life recycling processes

Technical Summary

• Projection system: 3LCD with RGB liquid crystal shutter
• Resolution: WUXGA (1920 x 1200)
• Brightness: 7,300 lumens (white and colour output)
• Aspect ratio: 16:10
• Light source: Laser
• Screen size range: 50 to 500 inches
• Weight: 8.2 kg
• Dimensions: 440 x 340 x 138 mm
• Power consumption: 233 W (Eco), 336 W (Normal)
• Speaker: 10W integrated

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	EB-L790U
Technology
Projection System	3LCD Technology, RGB liquid crystal shutter
LCD Panel	0,67 inch with C2 Fine
Color Light Output	7.300 Lumen- 5.110 Lumen (economy) In accordance with IDMS15.4
White Light Output	7.300 Lumen - 5.110 Lumen (economy) In accordance with ISO 21118:2020
Resolution	WUXGA
Aspect Ratio	16:10
Contrast Ratio	Over 5.000.000 : 1
Light source	Laser
Laser Light source	20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction	Manual vertical: ±30 degrees, Manual horizontal ±30 degrees
Colour Video Processing	10 Bits
Colour Reproduction	Upto 1.07 billion colours
Optical
Throw Ratio	1,35 - 2,20:1
Zoom	Manual, Factor:1 - 1,6
Lens	Optical
Lens Shift	Manual - Vertical ±50 %, horizontal ±20 %
Screen Size	50 inches - 500 inches
Projection Distance Wide	1,4 m - 14,8 m
Projection Distance Tele	2,4 m - 23,8 m
Projection Distance Wide/Tele	1,44 m - 23,84 m
Projection Lens F Number	1,5 - 1,7
Projection Lens Focal Length	20 mm - 31,8 mm
Projection Lens Focus	Manual
Connectivity

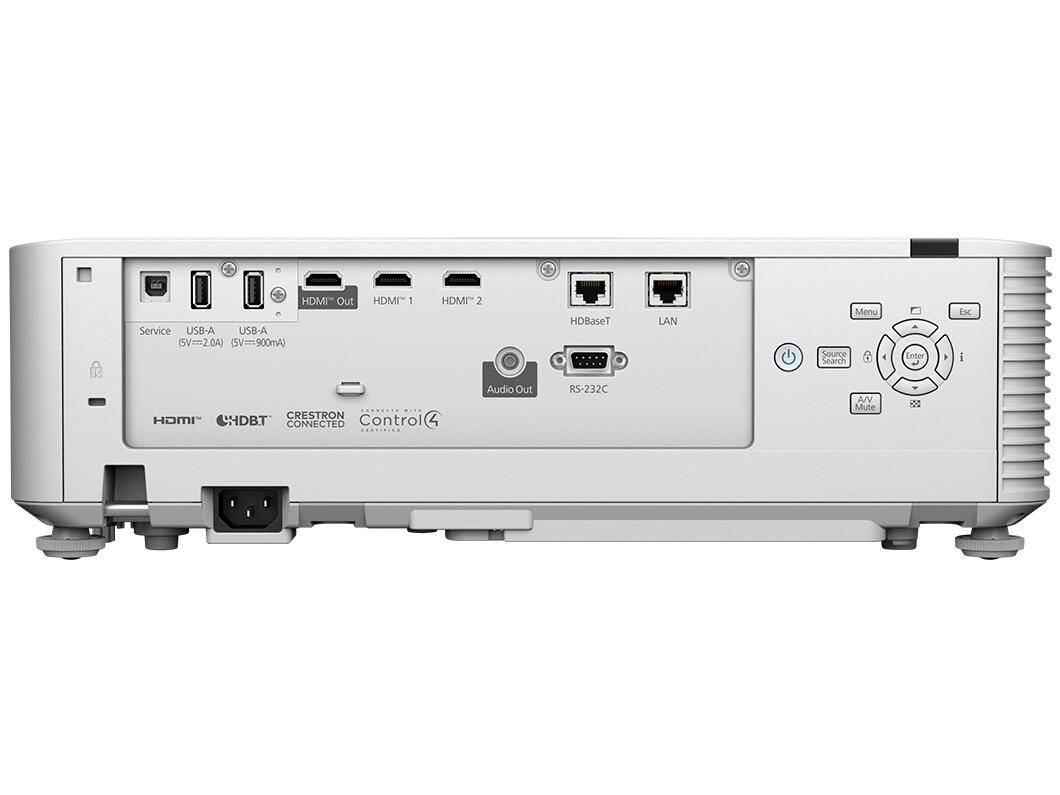

Interfaces	USB 2.0 (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI out, HDBaseT, Miracast, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC), Apple AirPlay 2
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, SNMP, ESC/VP.net, PJLink
Advanced Features
Security	Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
2D Colour Modes	Dynamic, Natural, Cinema, Presentation, DICOM SIM
Other features	21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Video Color Modes	Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control	via: Crestron Integrated Partner, Extron XTP, AMX Device Discovery
General
Power consumption	336 Watt (Normal On-Mode), 233 Watt (Eco On-Mode), 399 Watt (Normal Peak-mode), 295 Watt (Eco Peak-Mode), 0,4 Watt (Energy saving standby)
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	440 x 340 x 138 mm (Width x Depth x Height)
Product weight	8,2 kg
Noise Level	Normal:34 dB (A) - Economy:25 dB (A)
Supported Temperature	Storage -10degrees C - 60degrees C
Supported Humidity	Operation 20% - 80%, Storage 10% - 90%
Options	Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP20
Loudspeaker	10 Watt
Room Type / Application	Large Meeting Room/Boardroom, Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop
Colour	White
