B110-SP-10G

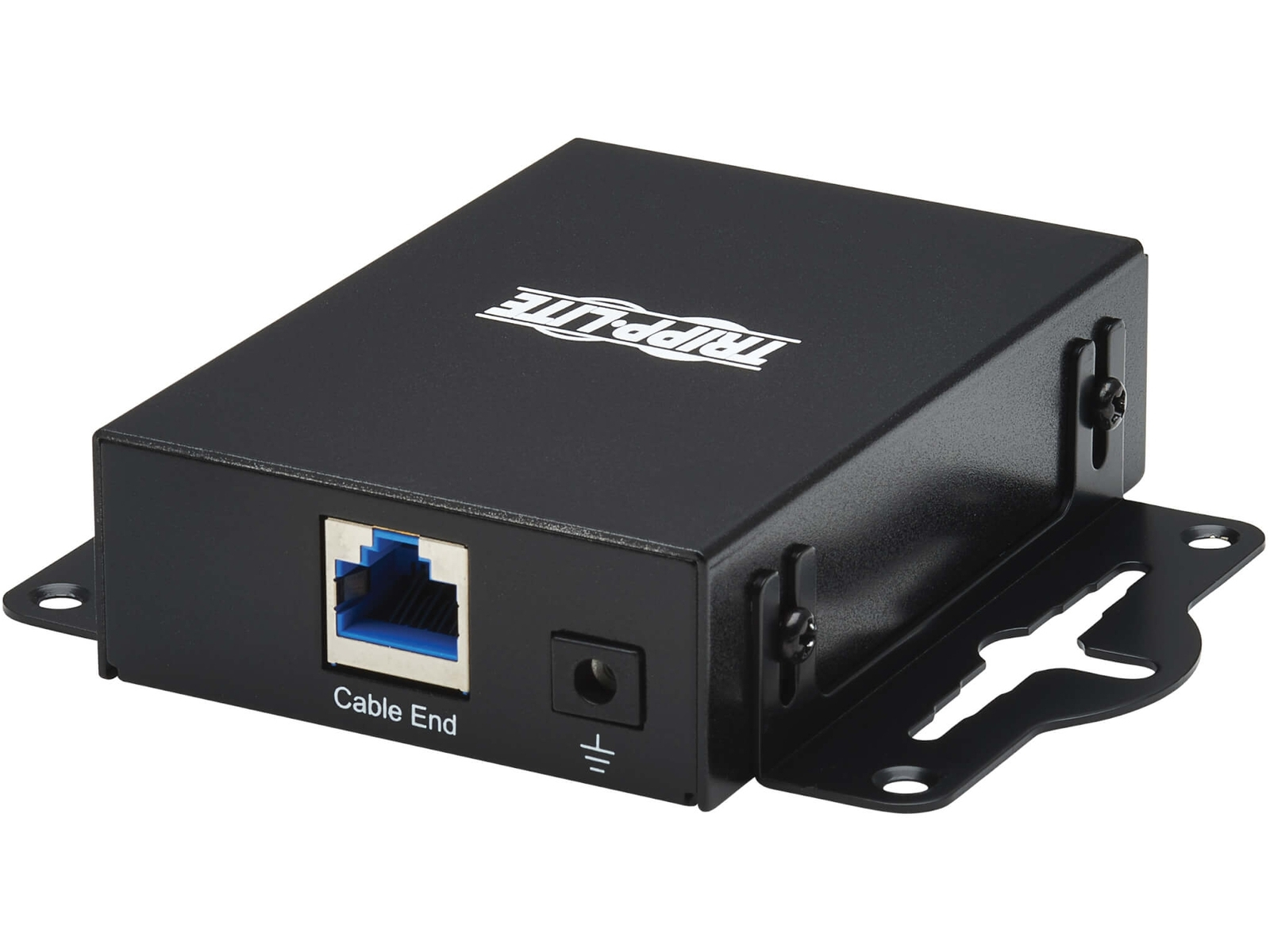

Eaton In-Line Network Surge Protector - 10 Gbps

Eaton - Eaton In-Line Network Surge Protector - 10 Gbps, Cat6a/8, Metal Case, IEC Compliant, TAA, Order on Request
BUY NOW ! Supplier stock not confirmed, but might be in stock.* print


B110-SP-10G Eaton In-Line Network Surge Protector - 10 Gbps Image 2
B110-SP-10G Eaton In-Line Network Surge Protector - 10 Gbps Image 3
B110-SP-10G Eaton In-Line Network Surge Protector - 10 Gbps Image 4
B110-SP-10G Eaton In-Line Network Surge Protector - 10 Gbps Image 5
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. B110-SP-10G Eaton In-Line Network Surge Protector - 10 Gbps is available from Laptop Direct and it is sold as new from our Surge & Lightning protection range of products. For reference purposes, the price of R1270 is valid 2026-10-21, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Surge & Lightning protection category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

B110-SP-10G

Eaton In-Line Network Surge Protector - 10 Gbps

Eaton In-Line Network Surge Protector - 10 Gbps, Cat6a/8, Metal Case, IEC Compliant, TAA, Order on Request

Overview:

Protects a device in your 10G network against damage from electrostatic discharge, cable discharge or power surge.
  • Easy to connect between network source and device using standard Cat5/5e/6/8 cabling
  • Rapid reaction time under 1 ns helps prevent damage from power surges
  • Supports Ethernet network data transmission speeds up to 10 Gbps
  • DIN-mountable with optional accessory (B110-DIN-02)
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features:

In-Line Surge Protector Keeps Your 10G Ethernet Network Equipment Safe
Ideal for home/corporate security systems, home theaters, trade shows and other digital signage applications, the B110-SP-10G protects connected network equipment from damage caused by electrostatic discharge (ESD), power surges and cable discharge events. Just connect it between your network source and device using Cat5/5e/6/6a/8 cables and ground it with the included wire. Note : Surge protection is unidirectional e.g. from source to device or device to source. Two B110-SP-10G surge protectors, connected in a series, are required to protect both the source and the connected device.

Your Last Defense Against Intruding Voltage Spikes
Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Gas discharge modules on all four twisted pairs protect each wire from surges or spikes by dissipating the voltage transient through a contained plasma gas. The B110-SP-10G meets the following IEC regulations: IEC 61000-4-2 (8K/15kV), IEC 61000-4-5 2kA (8/20µs), 6kV (8/20µs) and IEC 61000-4-4 (2kV)

Ready to Use Right from the Package, So You Can Plug and Play Immediately
This in-line surge protector supports data transmission speeds up to 10 Gbps without signal degradation. No software, drivers or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur. Surface mounting hardware is included. Can be DIN-mounted with optional accessory (B110-DIN-02 ). Be sure the distance between the B110-SP-10G and the equipment it is protecting is no more than 100 meters (330-ft).

TAA-Compliant for GSA Schedule Purchases
The B110-SP-10G is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

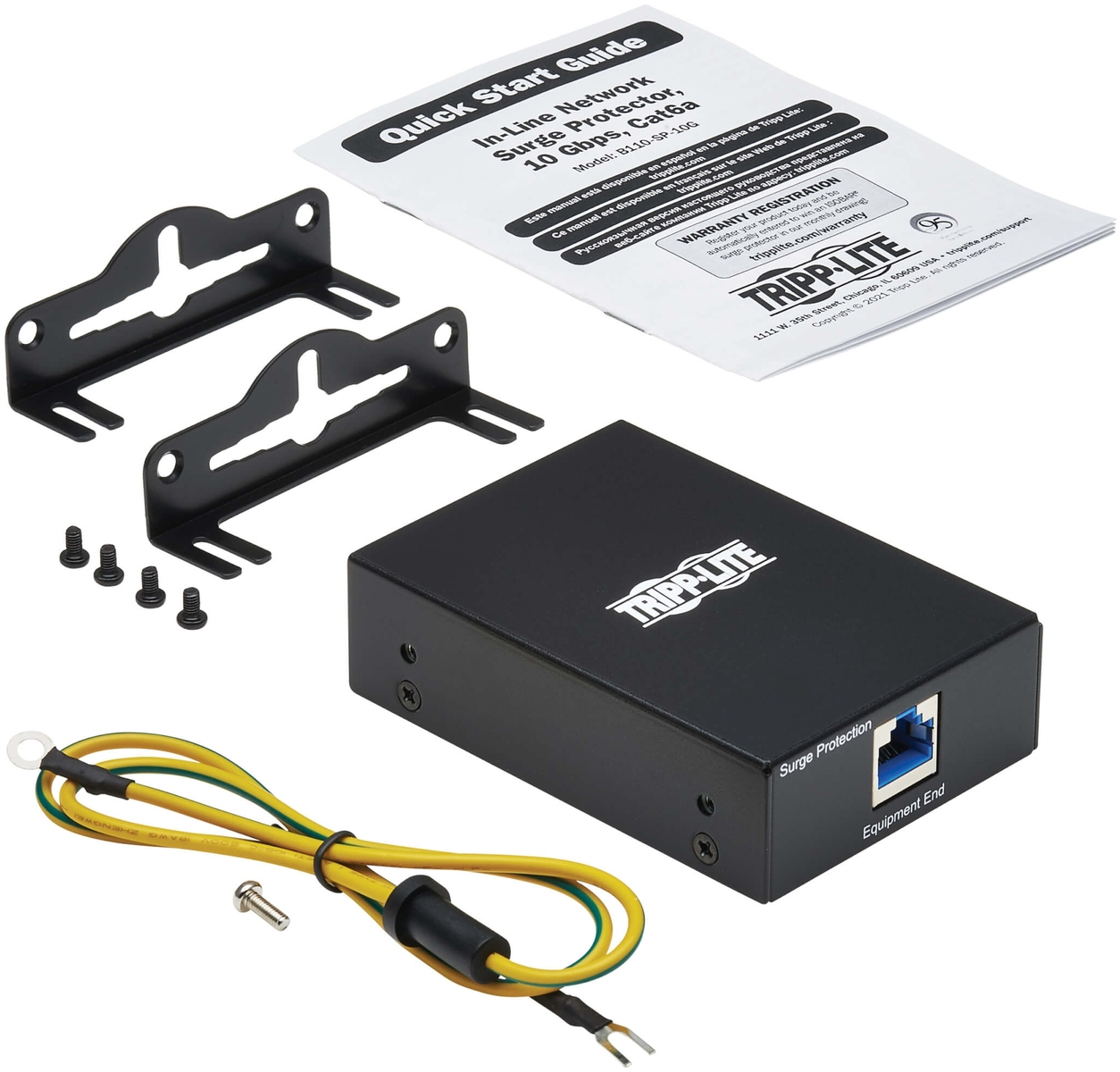

  • B110-SP-10G In-Line 10G Network Surge Protector
  • Grounding wire
  • Grounding wire screw
  • Mounting hardware
  • Quick Start Guide

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeB110-SP-10Gspacer
OVERVIEW
UPC Code37332269614
Product TypeSurge Protector
Accessory TypeSurge Protector
TechnologyCat5/5e , Cat6 , Cat6a , Cat8
Accessory ClassAudio Video Accessories
DISPLAY
Response Time<1 ns
INPUT
Right-Angle PlugNo
Input Cord Length (m)0
Product Length (in.)3.61
Product Length (cm.)9.169
Product Length (ft.)0.3
Product Length (m)0.091
OUTPUT
Output ReceptaclesNetwork
POWER
Power Over Cable (PoC) SupportNo
CONNECTIONS
Number of Ports2
Side A - Connector 1RJ45 (FEMALE)
Side B - Connector 1RJ45 (FEMALE)
SURGE / NOISE SUPPRESSION
AC Suppression Joule Rating0
DATALINE SURGE SUPPRESSION
Network (Ethernet) ProtectionYes
PHYSICAL
ColorBlack
Material of ConstructionAluminum
Housing ColorBlack
Included Mounting AccessoriesSurface mount bracket with (4) M3 x 5 mm screws. DIN-mountable with optional accessory (part number B110-DIN-02).
Mounting Holes or SlotsNo
Slot or Hole Mount Measurement (Center to Center)65 mm (2.56 in.)
RackmountableYes
Shipping Dimensions (hwd / cm)5.50 x 21.40 x 16.40
Shipping Weight (kg)0.56
Unit Dimensions (hwd / cm)9.17 x 6.43 x 2.57
Unit Packaging TypeBox
Unit Weight (kg)0.25
ENVIRONMENTAL
Operating Temperature Range32° to 104°F (0° to 40°C)
Storage Temperature Range5° to 122°F (-15° to 50°C)
Relative Humidity0 to 85%, Non-Condensing
ESD Protection8k/15kV
EFT Protection2kV
Lightning Protection2kA (8/20µs), 6kV (8/20µs)
COMMUNICATIONS
Signal Range (m)101
Network Compatibility10 Gbps
FEATURES & SPECIFICATIONS
10/100 Ethernet Extension SupportNo
Mounting Accessory IncludedYes
Driver RequiredNo
Recommended Category CableCat5e, Cat6, Cat6a, Cat8 Cables
DIN MountableYes
STANDARDS & COMPLIANCE
Product CertificationsIEC 61000
Product ComplianceRoHS , CE (Europe) , REACH , FCC (USA) , Trade Agreements Act (TAA)


Download: pdf_downloads/2_5/253392_PDF1.pdf (70227 KB)
