CA-MDPDP4Kx2-J

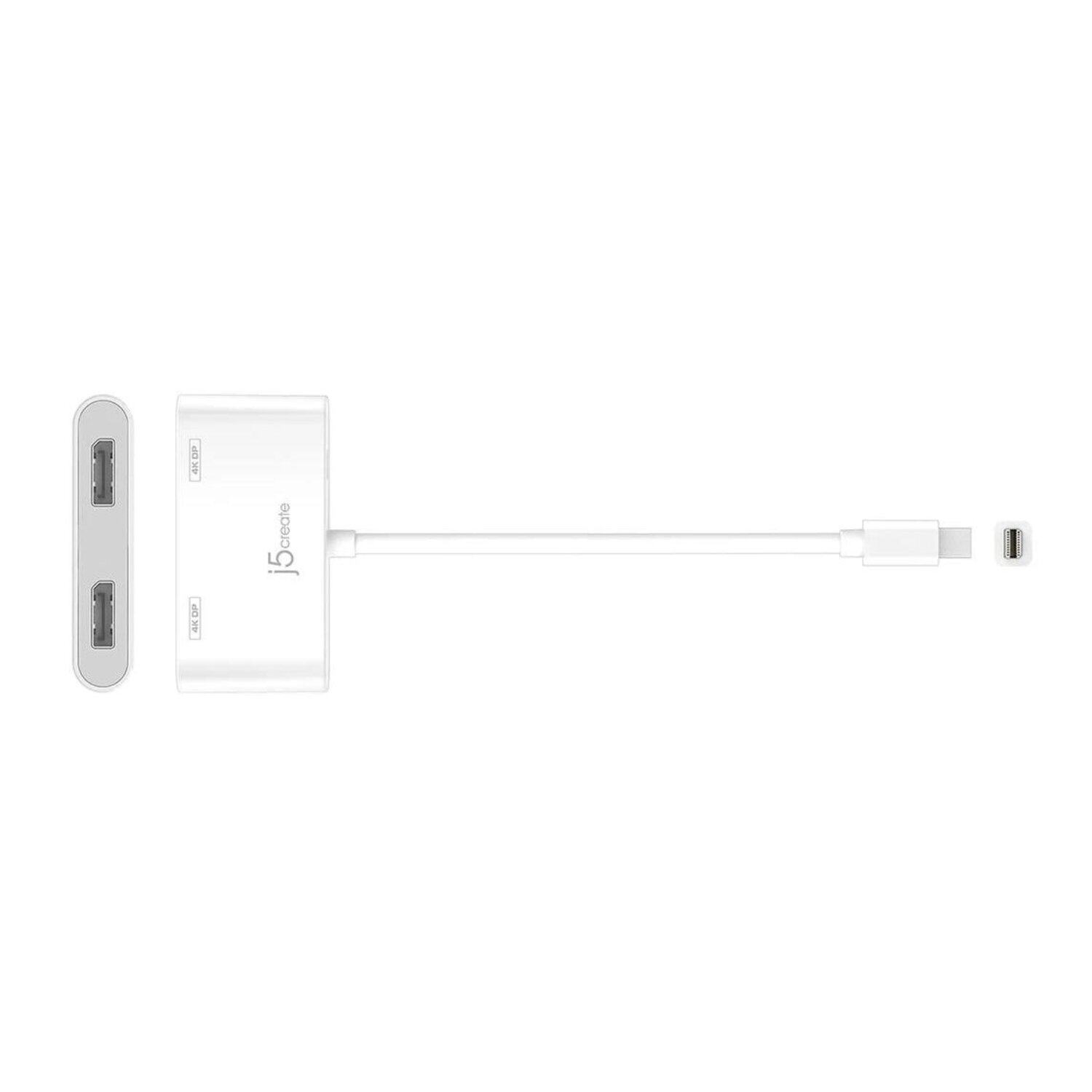

J5create JDA146 Mini DisplayPort to Dual DisplayPort Adapter

j5 create - J5create JDA146 Mini DisplayPort to DP(4K) x2 female MST hub with Cable (150mm) - support up to dual 4096x2160 4K UHD @30Hz, support extended/ expansion/ mirror mode, USB-powered, white, for MAC or PC - retail pack
BUY TODAY ! Expected to be in Stock at suppliers.* print


CA-MDPDP4Kx2-J J5create JDA146 Mini DisplayPort to Dual DisplayPort Adapter Image 2
Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. CA-MDPDP4Kx2-J J5create JDA146 Mini DisplayPort to Dual DisplayPort Adapter is available from Laptop Direct and it is sold as new from our Video Cables range of products. For reference purposes, the price of R864 is valid 2026-10-16, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Video Cables category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

CA-MDPDP4Kx2-J

J5create JDA146 Mini DisplayPort to Dual DisplayPort Adapter

J5create JDA146 Mini DisplayPort to DP(4K) x2 female MST hub with Cable (150mm) - support up to dual 4096x2160 4K UHD @30Hz, support extended/ expansion/ mirror mode, USB-powered, white, for MAC or PC - retail pack

About this product

The j5create JDA146 Mini DisplayPort to Dual DisplayPort MST hub lets compatible computers connect to two DisplayPort monitors from a single Mini DisplayPort output, with support for up to 3840 x 2160 at 30Hz per display. It supports extended, expansion and mirror display modes, plug-and-play operation and USB-powered operation. Compatible with supported Windows PCs and selected Mini DisplayPort systems. Buy now from our website for a practical dual-monitor solution.

Overview Summary

j5create JDA146 Mini DisplayPort to Dual DisplayPort MST Hub is designed to expand a compatible Mini DisplayPort computer to two DisplayPort displays. Using Multi-Stream Transport (MST), it can drive two independent displays at resolutions up to 3840 x 2160 at 30Hz each when the host graphics hardware supports DisplayPort 1.2 with MST and HBR2.

The compact white adapter provides two female DisplayPort outputs and uses an external USB power source through its Micro USB connection. It supports extended, expansion and mirror modes, while its plug-and-play design does not require additional driver installation. The 150mm cable helps keep the adapter compact and convenient for desktop or mobile workstation setups.

What tier does this fall into?

Dual-display 4K 30Hz MST adapter

What is this best for?

dual-monitor workstations, productivity, office computing, graphic design, photography, presentations, multi-screen desktop setups

Overview

The JDA146 mini DisplayPort(TM) to Dual DisplayPort(TM) Adapter allows you to connect up to two DisplayPort(TM) monitors from a single Mini DisplayPort(TM) output. The JDA146 utilizes multi-stream transport (MST) protocol, supporting up to 2 displays independently at up to 4k @ 30Hz each with DP 1.2.

Description

The j5create JDA146 is a Mini DisplayPort to Dual DisplayPort adapter designed for users who need to connect two DisplayPort monitors to a compatible computer with one Mini DisplayPort output. Its Multi-Stream Transport (MST) functionality allows two displays to operate simultaneously and independently when the host graphics hardware supports the required DisplayPort 1.2 MST and HBR2 capabilities.

With support for resolutions up to 3840 x 2160 at 30Hz, the JDA146 is suitable for high-resolution productivity environments, office workstations, photography, graphic design and other applications that benefit from additional desktop space. The adapter supports extended, expansion and mirror modes, allowing users to configure their displays according to their workflow.

The JDA146 features one Mini DisplayPort male host connector and two female DisplayPort video outputs. It is USB-powered and includes a Micro USB power cable. The adapter is designed for plug-and-play use without additional driver installation, making setup straightforward on compatible systems.

System compatibility is important when using the JDA146. Independent dual-display operation requires a graphics card or video source with DisplayPort 1.2 and MST plus HBR2 support. The official specifications also state that macOS does not support MST extended mode and therefore limits the adapter to mirror mode. When connected to an older DisplayPort 1.1 or earlier video source, the adapter operates as a splitter with mirroring and resolution limitations.

Features

The JDA146 provides a compact way to add two DisplayPort displays to a compatible Mini DisplayPort computer while keeping the setup simple and portable.

  • Dual DisplayPort output: Connect up to two DisplayPort monitors from one Mini DisplayPort source.
  • 4K display support: Supports resolutions up to 3840 x 2160 at 30Hz for each display when compatible system requirements are met.
  • MST technology: Multi-Stream Transport enables independent dual-display operation on supported systems.
  • Multiple display modes: Supports mirror, extended and expansion modes.
  • Plug-and-play: No additional driver installation is required for supported systems.
  • USB powered: Requires an external USB power source and includes a Micro USB power cable.
  • Compact design: The lightweight 42.5g adapter is suitable for desktop and mobile workstation use.
  • 150mm cable: Provides a compact connection between the Mini DisplayPort host and adapter body.
  • DisplayPort 1.2 support: Designed for systems supporting DisplayPort 1.2 with MST and HBR2 for independent dual-display output.

System Requirements

  • The graphics card for DisplayPort 1.2 with MST+HBR2
  • Available DisplayPort alt mode over USB type-C port
  • Mac OS X does not support MST + HBR2
  • Requires an external USB Power source (USB cable included)
  • Extended dual HDMI supported by Windows only (Microsoft Surface Pro2, Pro3, Pro4, Book supports MST+HBR2)

What's in the Box

  • 1 x j5create JDA146 Mini DisplayPort to Dual DisplayPort Adapter
  • 1 x USB Micro USB power cable, 200mm
  • 1 x Quick Installation Guide

Specifications

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code CA-MDPDP4Kx2-Jspacer
Hardware
Connector Type Passive
Interface
Host Interface Mini-DisplayPort (20 pin) Male
Video Interface DisplayPort (20 pin) Female
Power
Power Source USB-Powered
Physical Specifications
Housing Material Plastic
Dimensions Main body: 7.6 (W) x 3.3 (H) x 1.6 (D) cm
Cable length: 5.9 in./15 cm
Weight Approximately 0.0425 kg

FAQ

What is the j5create JDA146 used for?

The JDA146 is used to connect up to two DisplayPort monitors to a compatible computer with a Mini DisplayPort output.

Does the JDA146 support dual 4K monitors?

Yes. It supports up to two displays at 3840 x 2160 at 30Hz each when the host system meets the required DisplayPort 1.2 MST and HBR2 specifications.

Does the JDA146 support extended desktop mode?

Yes. Extended and expansion modes are supported on compatible systems with DisplayPort 1.2 MST and HBR2 support.

Does the JDA146 work with Mac computers?

The adapter can connect to compatible Mini DisplayPort Mac systems, but the official specifications state that macOS does not support MST extended mode. On macOS, the adapter is therefore limited to mirror mode.

Does the JDA146 require USB power?

Yes. The adapter requires an external USB power source and includes a Micro USB power cable.

Does the JDA146 require drivers?

No additional driver installation is required for supported systems. The host computer and graphics hardware must still meet the required DisplayPort and MST specifications.

What graphics specification is required for independent dual displays?

The graphics card or video source must support DisplayPort 1.2 with Multi-Stream Transport (MST) and High Bit Rate 2 (HBR2) for independent dual-display output.

Can the JDA146 mirror the same image on two monitors?

Yes. Mirror mode is supported. The adapter also supports extended and expansion display modes on compatible systems.

What ports are available on the JDA146?

The adapter has one Mini DisplayPort male host connector, two female DisplayPort video outputs and one Micro USB power connection.
