VSOL-V2801SC

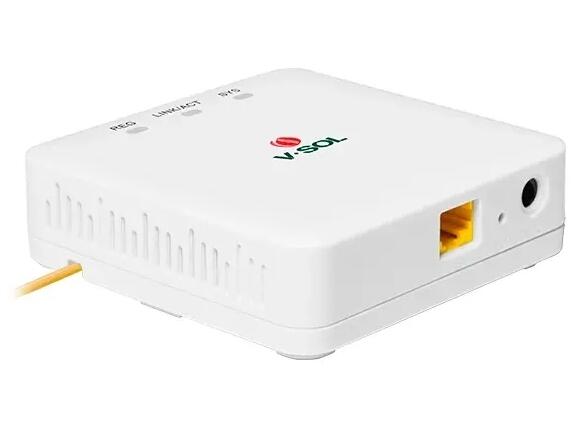

VSOL V2801SC Single Port xPON ONU with Integrated Fibre Tray

VSOL - VSOL V2801SC Single Port xPON ONU with Integrated Fibre Tray, 1x Gigabit SFU, SC/UPC, 12V / 05A PSU included, 1 xPON Port, SC Single Mode SC/UPC Connector, 20km transmission distance
No stock at suppliers. print


VSOL-V2801SC VSOL V2801SC Single Port xPON ONU with Integrated Fibre Tray Image 2
VSOL-V2801SC VSOL V2801SC Single Port xPON ONU with Integrated Fibre Tray Image 3
VSOL-V2801SC VSOL V2801SC Single Port xPON ONU with Integrated Fibre Tray Image 4
VSOL-V2801SC VSOL V2801SC Single Port xPON ONU with Integrated Fibre Tray Image 5
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. VSOL-V2801SC VSOL V2801SC Single Port xPON ONU with Integrated Fibre Tray is available from Laptop Direct and it is sold as new from our Network Fibre EPON / GPON / XPON router range of products. For reference purposes, the price of R467 is valid 2026-10-06, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Network Fibre EPON / GPON / XPON router category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

VSOL-V2801SC

VSOL V2801SC Single Port xPON ONU with Integrated Fibre Tray

VSOL V2801SC Single Port xPON ONU with Integrated Fibre Tray, 1x Gigabit SFU, SC/UPC, 12V / 05A PSU included, 1 xPON Port, SC Single Mode SC/UPC Connector, 20km transmission distance

Overview Summary:

The VSOL V2801SC Single Port xPON ONU is a compact and versatile device perfect for home and small office fibre network setups in South Africa. With its integrated fibre tray and single gigabit Ethernet port, installation is simplified while ensuring stable, high-speed broadband connectivity. Its dual-mode support for EPON and GPON networks allows seamless integration into existing infrastructures. Buy now to enhance your network performance and simplify fibre management.

Engineered for secure and efficient operation, the V2801SC includes robust firewall protection, QoS support, and automatic configuration features. Its 20km transmission distance makes it suitable for FTTH and FTTx deployments across urban and suburban areas. Shop now to upgrade your fibre network with a reliable, standards-compliant ONU.

What tier does this fall into?

High-performance

What is this best for?

FTTH deployment, FTTx networks, home broadband, small office networks, fibre-to-Ethernet conversion

Overview:

The VSOL V2801SC single port xPON ONU is engineered for reliable fibre access in FTTH and FTTx environments, combining compact design with strong performance. Its integrated fibre tray simplifies cable handling while protecting sensitive optical connections, reducing installation complexity and improving long-term stability. With automatic compatibility across both EPON and GPON networks, the unit adapts seamlessly to mixed infrastructure deployments. Built in traffic control and security mechanisms help maintain consistent throughput and safeguard connected devices, making it a practical solution for residential and small business fibre connectivity.

Description:

The VSOL V2801SC provides efficient fibre to Ethernet conversion in a compact form factor, making it suitable for space constrained installations. It supports dual mode EPON and GPON access, enabling flexible deployment across different network environments. The integrated fibre tray enhances cable organisation and reduces strain on connectors, while advanced QoS and firewall capabilities help ensure stable and secure data transmission. With low power consumption and straightforward management options, it delivers dependable connectivity for everyday broadband applications.

Features:

Key Capabilities and Design Advantages

  • Dual mode xPON support with automatic EPON and GPON detection
  • Integrated fibre tray for cleaner installation and reduced cable stress
  • Stable gigabit Ethernet connectivity for end user devices
  • Traffic prioritisation with QoS and multi queue handling
  • Built in firewall with filtering across MAC, ACL, and URL rules
  • Compact housing suitable for home or small office deployment

Optical and Interface Details

  • 1 xPON port supporting EPON PX20+ and GPON Class B+
  • SC single mode SC/UPC connector
  • Transmission distance up to 20 km
  • Wavelength operation: TX 1310 nm, RX 1490 nm
  • Transmit optical power range: 0 to +4 dBm
  • Receive sensitivity: -27 dBm
  • 1 Gigabit Ethernet RJ45 port with auto negotiation

Physical and Environmental Parameters

  • Dimensions: 91 x 91 x 41 mm
  • Weight: 170 g
  • Operating temperature: -10 to +55 degrees C
  • Storage temperature: -40 to +70 degrees C
  • Humidity range: 5 to 95 percent non condensing
  • Power supply: DC 12 V 0.5 A external adaptor
  • Maximum power consumption: 4 W or less

Network Functions and Protocol Support
The unit supports flexible deployment modes including bridging and routing, allowing integration into a variety of network topologies. Authentication options include SN, password, LOID, and combined methods, ensuring compatibility with different operator requirements.

Core capabilities include:

  • IPv4 and IPv6 support with DHCP, PPPoE, and static IP
  • NAT and static routing functionality
  • VLAN modes including transparent and trunk configurations up to 8 VLANs
  • Multicast handling with IGMP v1 v2 snooping and up to 64 multicast groups
  • Bandwidth allocation via DBA for efficient traffic management

Security and Reliability Functions

  • Rogue ONU detection and hardware dying gasp alerts
  • DDoS protection and advanced traffic filtering
  • Port loop detection and storm control
  • Ethernet port loss monitoring and alarm reporting

Management and Control Options
Management is accessible through multiple interfaces, providing flexibility for both local and remote administration. Supported methods include web interface, Telnet, and CLI, alongside compliance with CTC OAM 2.0 and OMCI standards for operator level integration.

The device identified by part number VSOL-V2801SC is positioned as a cost effective and reliable ONU for fibre deployments requiring stable performance, efficient cable management, and compatibility across multiple PON technologies.


Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeVSOL-V2801SCspacer
Hardware Parameter
Dimension 91mm x 91mm x 41mm(x W x H)
Net weight 170g
Operating condition Operating temp: -10 ~ +55degreesC
Operating humidity: 5 ~ 95% (non-condensed)
Storing condition Storing temp: -40 ~ +70degreesC
Storing humidity: 5 ~ 95% (non-condensed)
Power adapter DC 12V, 0.5A, externaAC-DC power adaptor
Power supply ≤4W
Interface 1GE
Button RST
Indicators REG/LOS, LINK/ACT, SYS
Interface Parameter
PON Interface 1 XPON port (EPON PX20+ & GPON Class B+)
SC single mode, SC/UPC connector
TX opticapower: 0~+4dBm
RX sensitivity: -27dBm
Overload opticapower: -3dBm (EPON) or -8dBm (GPON)
Transmission distance: 20KM
Wavelength: TX 1310nm, RX1490nm
User interface 1*GE, Auto-negotiation RJ45 connectors
Function Data
XPON Mode Duamode, Auto-access to EPON/GPON OLT
Uplink Mode Bridging and Routing Mode
Abnormaprotection Detecting Rogue ONU, Hardware Dying Gasp
Firewall DDOS, Filtering Based on ACL/MAC/URL
Basic Support MPCP discover & register
Support authentication Mac/Loid/Mac+Loid
Support Triple Churning
Support DBA bandwidth
Support auto-detecting, auto-configuration, and auto firmware upgrade
Support SN/Psw/Loid/Loid+Psw authentication
Alarm Support Dying Gasp
Support Port Loop Detect
Support Eth Port Los
LAN Support Port rate limiting
Support Loop detection
Support Storm control
Support VLAN tag mode
VLAN Support VLAN transparent mode
Support VLAN trunk mode (max 8 vlans)
Multicast Support IGMPv1/v2/Snooping
Max Multicast vlan 8
Max Multicast Group 64
QOS Support 4 queues
Support 802.1P
L3 Support IPv4/IPv6
Support DHCP/PPPOE/Static IP
Support Static route
Support NAT
Management Support CTC OAM 2.0 and 2.1
Support ITUT984.x OMCI
Support WEB
Support TELNET
Support CLI


Download: pdf_downloads/2_7/270263_PDF1.pdf (556827 KB)
