UN-UA-NVR-116E

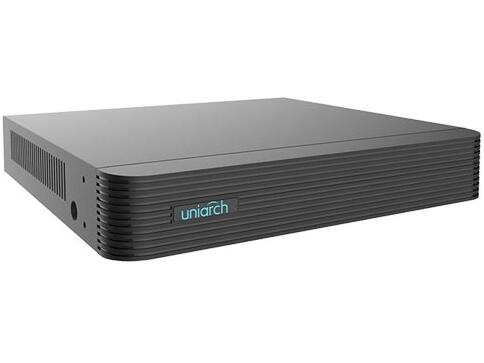

Uniview NVR-116E Uniarch 16-ch 1x SATA H.265 / H.264 NVR

Uniview NVR-116E Uniarch 16-ch 1x SATA H.265 / H.264 NVR, 16-ch IP Video Input, HDMI / VGA Output, VGA 1920x1080 @ 60Hz Max, HDMI 3840x2160 @ 30Hz Max, 8MP recording Resolution Max, 1-ch 3.5mm Audio Output, 4-ch synchronous playback, H.265 / H.264decoding Format, 1x SATA Interface up to 6TB, 1x RJ45 10M/100M Self-Adaptive Ethernet Interface, 2x USB 2.0 rear panel

Overview:

Uniview NVR-116E Uniarch 16-Channel Network Video Recorder
The Uniview NVR-116E is a high-performance 16-channel network video recorder (NVR) designed to support advanced video formats and provide reliable video surveillance solutions. It accommodates both H.265 and H.264 video compression formats, ensuring efficient storage and high-quality recording capabilities. With up to 8MP resolution recording, HDMI and VGA output support, and a robust design for seamless video surveillance, this NVR is ideal for both commercial and residential setups.

Product Summary
The Uniview NVR-116E delivers impressive performance with support for Ultra 265, H.265, and H.264 video formats. It offers a 16-channel video input, allowing multiple cameras to be connected simultaneously, while providing up to 8MP resolution for detailed video quality. Featuring HDMI and VGA outputs, the NVR supports dual display options, with HDMI capable of delivering 4K resolution (3840x2160 at 30Hz) and VGA providing full HD resolution (1920x1080 at 60Hz). The device supports a single SATA HDD up to 6TB for ample storage and supports cloud upgrades for continuous system improvement.

Features:

Key Benefits of the Uniview NVR-116E

• Multiple Video Format Support : The NVR-116E supports Ultra 265, H.265, and H.264 compression formats, offering excellent video quality and optimized storage efficiency.
• 16-Channel Input : Connect up to 16 IP cameras to monitor large areas with ease.
• High-Resolution Recording : Supports up to 8MP resolution, ensuring clear and detailed footage.
• Dual Display Outputs : HDMI and VGA outputs allow simultaneous video display on both types of screens, with high resolutions for both.
• Generous Storage Capacity : Equipped with a single SATA HDD slot, the NVR supports drives up to 6TB for extensive video storage.
• Cloud Upgrade Compatibility : The ability to upgrade via the cloud ensures that your system stays up to date with the latest features and improvements.

Enhanced Performance and Flexibility
The Uniview NVR-116E ensures smooth video playback and supports synchronized 4-channel playback for efficient video management. Its user-friendly interface and intuitive controls make it easy to set up and operate, while the self-adaptive Ethernet interface provides seamless connectivity. Whether you're managing a small office or a large-scale surveillance network, this NVR offers the flexibility, performance, and storage you need for reliable security monitoring.

Reliable and Future-Proof
Designed with future upgrades in mind, the NVR-116E allows for cloud-based system improvements, ensuring that your surveillance setup remains compatible with the latest advancements in technology. Its support for high-definition video formats and large storage capacity makes it an ideal choice for anyone looking to invest in a robust and long-lasting video recording solution.

Key Specifications

• Video Input: 16-Channel IP
• Video Formats: Ultra 265, H.265, H.264
• Recording Resolution: Up to 8MP
• Output: HDMI (3840x2160 at 30Hz) and VGA (1920x1080 at 60Hz)
• Audio Output: 1x 3.5mm Audio
• Storage: 1x SATA Interface (up to 6TB)
• Ethernet: 1x RJ45 10M/100M Self-Adaptive
• USB Ports: 2x USB 2.0 (Rear Panel)
• Cloud Upgrade Support

Why Choose the Uniview NVR-116E
If you're looking for a reliable, high-performance NVR that provides both flexibility and ease of use, the Uniview NVR-116E is a standout choice. It combines high-quality video recording, advanced storage options, and future-proof capabilities, all in one cost-effective package. Whether for commercial security installations or home surveillance, the NVR-116E meets the demands of modern surveillance systems, ensuring peace of mind with top-notch video clarity and performance.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UN-UA-NVR-116E
Model	NVR-116E
Video/Audio Input
IP Video Input	16-ch
Network
Incoming Bandwidth	64Mbps
Outgoing Bandwidth	32Mbps
Remote Users	128
Protocols	P2P, UPnP, DHCP
Video/Audio Output
HDMI/VGA Output	VGA:
	1024X768@60,1280X720@60,1280X1024@60,1600X1200@60,1920X1080@50, 1920X1080@60
	HDMI:
	1024X768@60,1280X720@60,1280X1024@60,1600X1200@60,1920X1080@50, 1920X1080@60, 3840X2160@30
Recording Resolution	8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Audio Output	1-ch, 3.5mm
Synchronous Playback	4-ch
Corridor Mode Screen	3 / 4 / 5 / 7 / 9 / 10 / 12 / 16
Decoding
Decoding format	H.265/H.264
Liveview/Playback	8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Capability	1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4*3MP@20, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25
Hard Disk
SATA	1 SATA interface
Capacity	up to 6TB for each disk
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
General
Power Supply	12V DC
	Power Consumption: ≤3.2 W (without HDD)
Working Environment	-10degreesC~+55degreesC (+14degreesF~+131degreesF), Humidity ≤ 90% RH (non-condensing)
Dimensions (W x D x H)	255mm x 215mm x 42mm (10.0" x 8.5" x 1.7")
Weight (without HDD)	≤1kg (2.2lb)
